Product Description

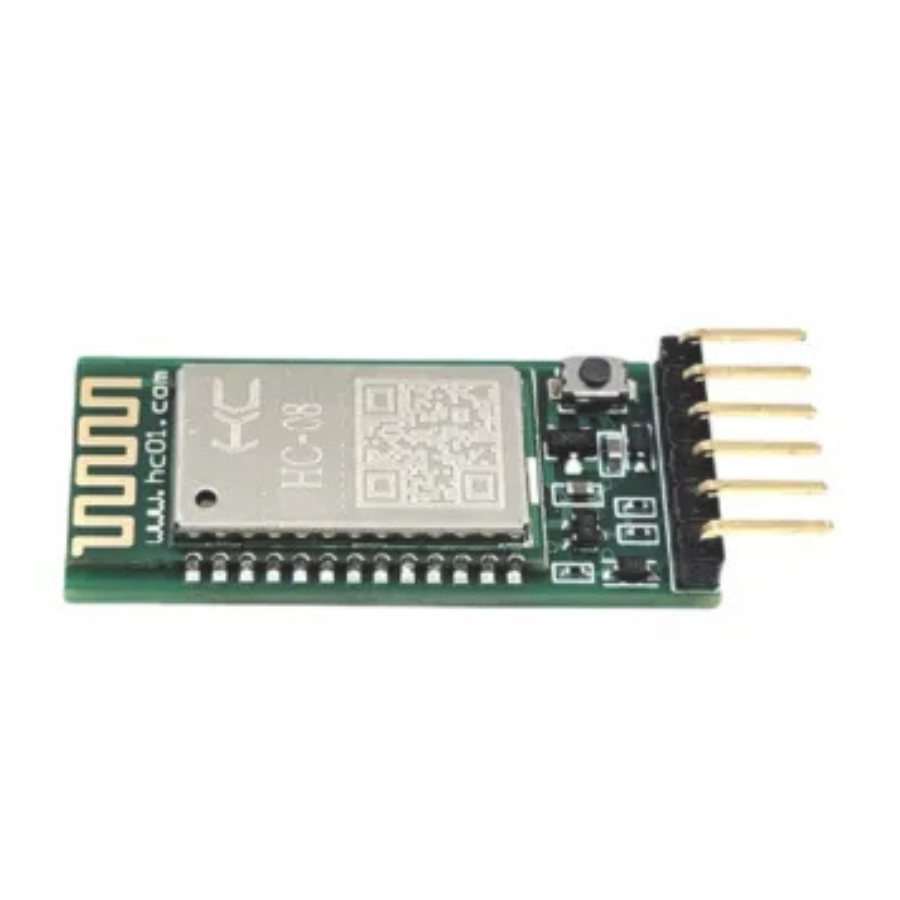

The HC-08 Bluetooth 4.0BLE Serial Port Module is a device that uses the BLE (Bluetooth Low Energy) protocol. This protocol is different from the standard Bluetooth protocol in terms of power consumption. Standard Bluetooth uses more power than BLE, but it can handle more data. BLE is suitable for transferring small amounts of data quickly between nearby devices. BLE devices have low power consumption, so they can run for years with a small battery. This makes them ideal for IoT applications.
The HC-08 module can connect easily to iOS 5 and Android 4.3 or above devices using a serial terminal app. It supports Bluetooth communication up to 80 meters (87 yards) away. It operates on a 2.4GHz frequency and has a CC2540 chipset with 256K Byte space. The module allows changing the role and serial baud rate, and it supports AT commands for configuration.
The HC-08 module is a new product from an experienced Bluetooth design and manufacturing supplier in China. It is mass-produced and well-tested, so it can be used reliably in products or projects. It is already widely used in many Bluetooth projects.
Note: The product dimensions may have ±2% error. Color also may vary due to light effect.
Specifications:
- Frequency: 2.4GHz ISM.
- Protocol: BLE 4.0.
- Max transmitting power: max. 4dBm.
- Modulation System: GFSK.
- Serial Baud Rate: 1200 to 115200 bps.
- Reference Distance: 80 meters.
- Speed: 1Mbps (Max).
- Power supply: 2.0 – 3.6 V.
- Sleep Mode Current: 0.4uA (MODE 2).
- Communication Port: UART 3.3V TTL.
- Working temperature: -20 ~ 75°C.
Package Includes :
1 x HC-08 Bluetooth 4.0BLE Serial Port Module.
