Product Description

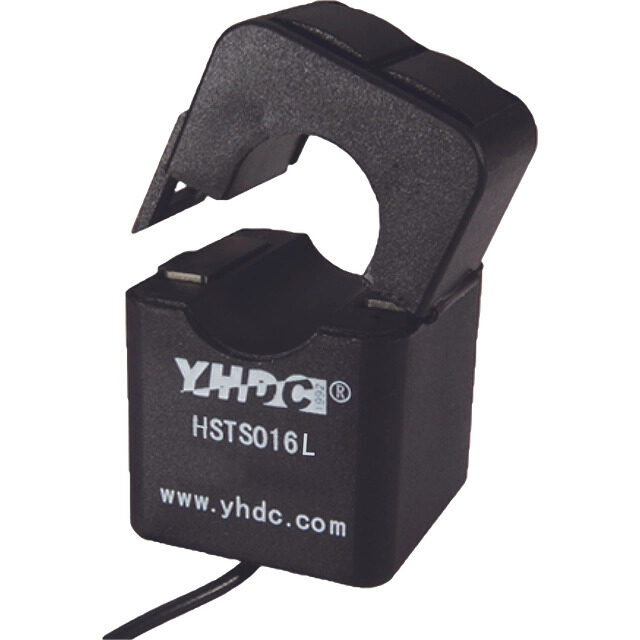

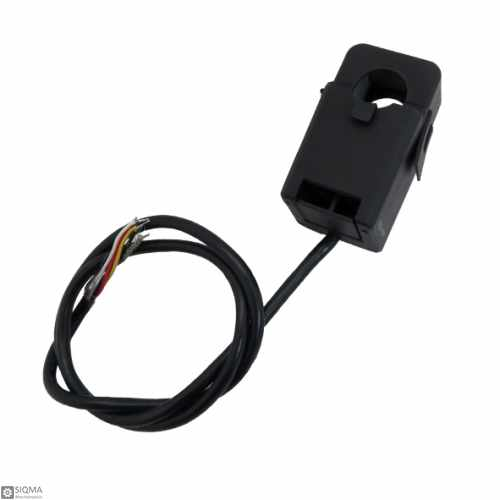

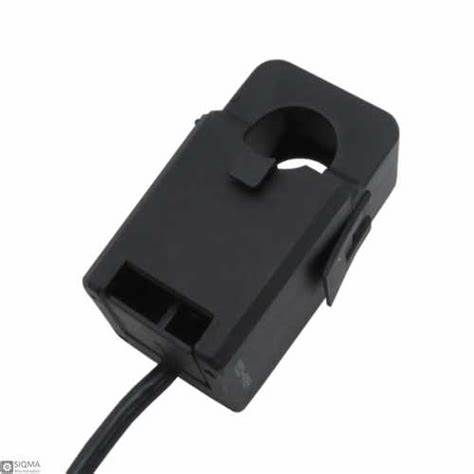

This is Hall closed loop current sensor.
Model: HSTS016L
Open loop, split core, hanging installation;
Detects DC, AC and pulsed currents.
Technical Indicators:
- Flame retardancy: UL94-V0
- Operating temperature: -10 ~ + 70 ℃
- Storage temperature: -40~+85℃
- Bandwidth: DC
- Dielectric strength: 2,5KV 50Hz 1min
- Rated input: ±100A
- Input measurement range: ±150A
- Rated output: 2.5±0.625V
- Accuracy: 1%
- Linearity: <0.1%
- Supply voltage (±5%) +5V
- Current consumption: ±15mA+Im
- Load impedance: ≥10KΩ
- Zero offset TA=25℃ ≤±15mV
- Response time: <3μs
- Weight: 70 grams
Package Includes
1 x Hall Split core Current Sensor YHDC HSTS016L 100A/2.5±0.625V 1%
