Product Description
The MLX90614 is an infrared thermometer that can measure temperature without touching the object. It has a high-resolution 17-bit ADC and a powerful DSP that make it very accurate and precise. It can be used for many purposes, such as measuring body temperature and detecting motion. The sensor has a 5-degree field of view and gives the average temperature of all the objects in that area.

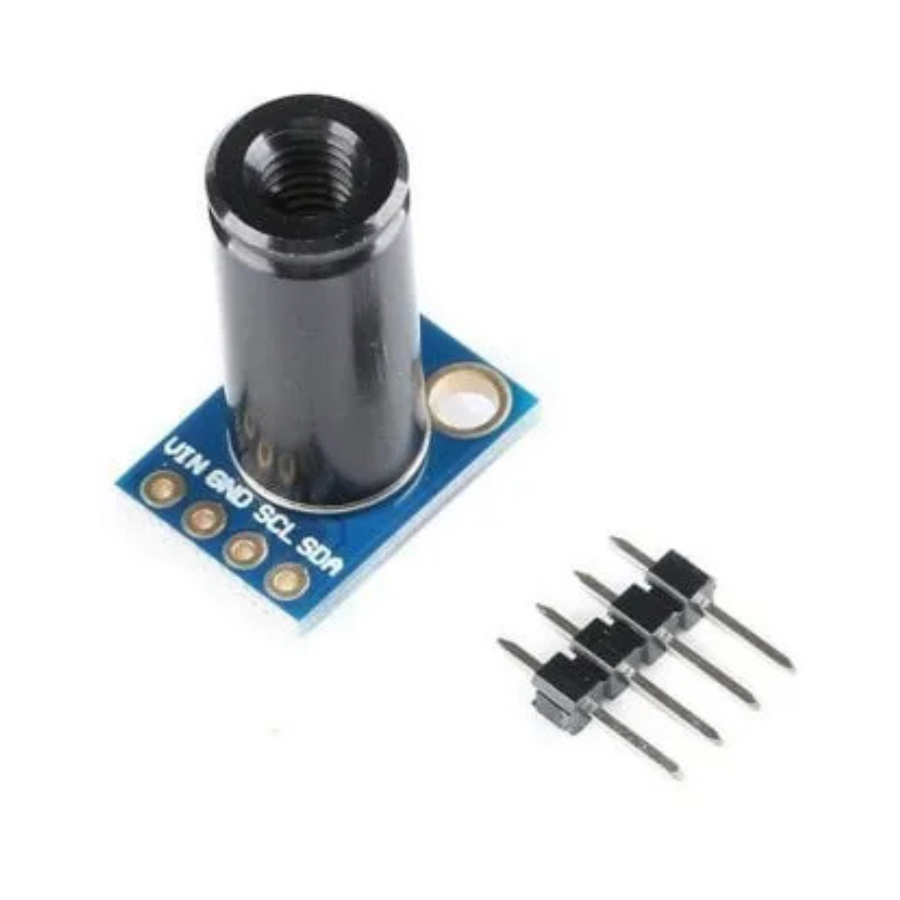

The GY-906 MLX90614ESF-DCI is a breakout board for the MLX90614 sensor that can be connected to Arduino or any other microcontroller that supports I2C communication.
The breakout board comes with all the necessary components for operation and two kinds of pins.
Application :
- High precision non-contact temperature measurements
- Thermal Comfort sensor for Mobile Air Conditioning control system
- The temperature sensing element for residential,
- commercial and industrial building air conditioning Windshield defogging
- Automotive blind angle detection
- Industrial temperature control of moving parts
- Temperature control in printers and copiers
- Home appliances with temperature control
- Livestock monitoring
- Movement detection
- Thermal relay/alert
- Body temperature measurement
- Data check
Features:
- Small size, low cost.
- Mounted on a breakout board with two types of pins.
- 10k Pull-up resistors for the I2C interface with optional solder jumpers.
- Easy to integrate
- Factory calibrated in a wide temperature range:
- Single and dual-zone versions
- SMBus compatible digital interface
- Customizable PWM output for continuous reading
- High accuracy of /- 0.2°C over the wide temperature range
- Sleep mode for reduced power consumption
Specifications:
- Input: 3V
- Sensing range: 25 CM -60 cm
- Field of view: 5 degrees
- Sensor temperature: -40… 85°C
Package Includes:
1 x GY-906 MLX90614ESF -DCI Sensor Module
Tutorial:
https://www.instructables.com/Ultra-Compact-Infrared-Thermometer/
Optical Encoder Disc: Speed Measurement with Arduino PWM
Speed measurement is one of the most fundamental requirements in robotics, motor control, and industrial automation. Whether you...
Read More →
Temperature Sensors and Applications
The global temperature sensor market size is projected to grow from USD 6.3 billion in 2020 to USD 8.8 billion...
Read More →
Piezoelectric Sensor: Vibration, Impact and Energy Harvesting
Piezoelectric sensors are one of the most fascinating components in electronics. They convert mechanical stress—vibration, impact, bending—directly into...
Read More →Technical Specifications
| Model | GY-906 |
|---|---|
| Package Quantity | 90614 pcs |
| SKU | AI2474 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The GY-906 MLX90614ESF -DCI Sensor Module is a versatile pir / ir and optical sensor used across a wide range of applications including motion detection, security systems, automatic lighting, people counting, and gesture recognition.
Common use cases:
- Building an automatic porch light
- Creating a people counter for a room
- Adding motion detection to a security system
This product is ideal for home automation builders and security system designers.
Technical Tip: PIR sensors detect heat-emitting movement. Adjust sensitivity and delay potentiometers for your environment. False triggers can be reduced with proper shielding.
