Product Description

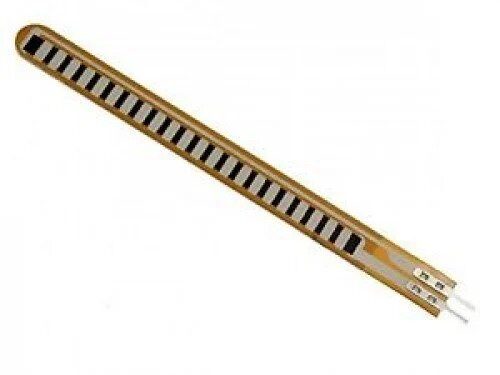

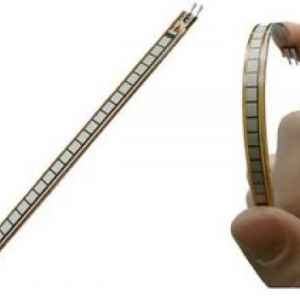

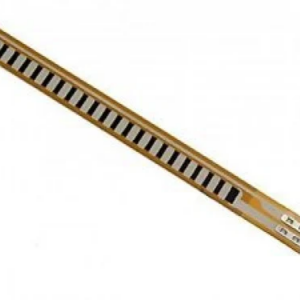

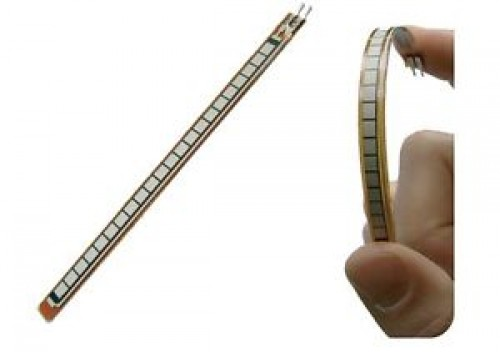

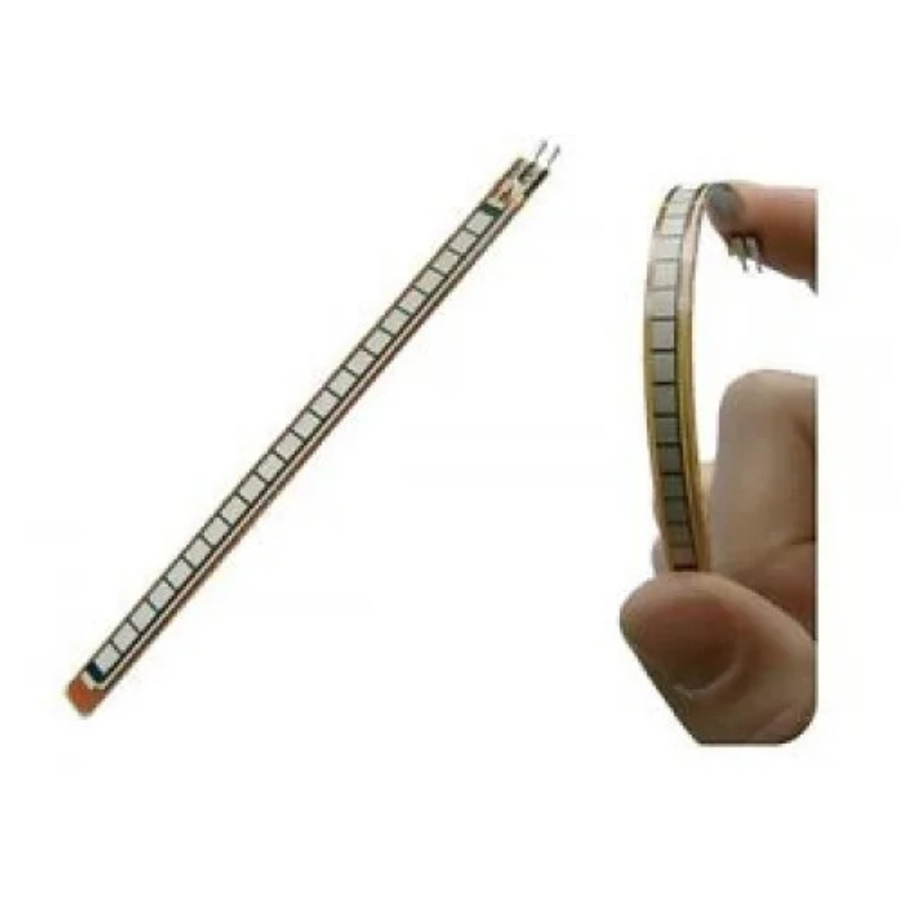

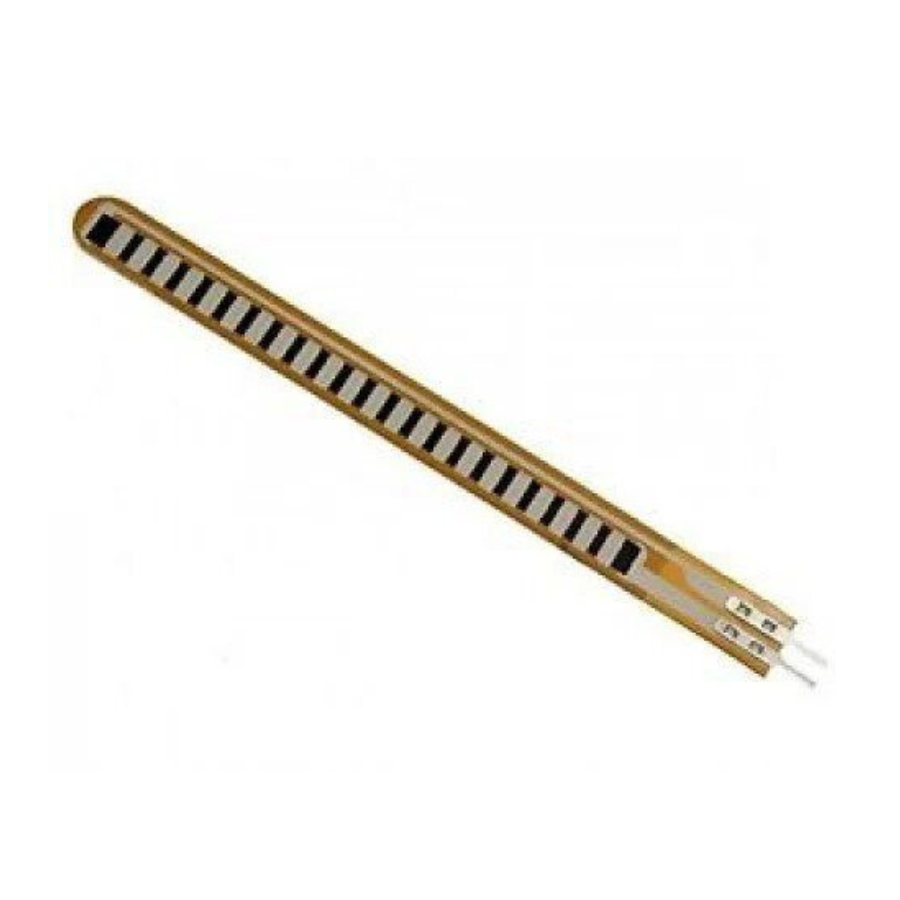

This is a 2.2 Flex Sensor – Bend Sensor that changes its resistance when it is bent or flexed by a physical device. It has a 0.1 spaced connector that is compatible with breadboards. It can be used for applications such as Robotics, Gaming (Virtual Motion), Medical Devices, Computer Peripherals, Musical Instruments, and Physical Therapy.
Applications:
- Angle Displacement Measurement.
- Bends and Flexes physically with the motion device.
- Robotics Applications.
- Gaming (Virtual Motion).
- Medical Devices.
- Computer Peripherals.
- Musical Instruments.
- Physical Therapy.
Features
- Angle Displacement Measurement.
- Bends and Flexes physically with the motion device.
- Simple Construction.
specification-
| Total Length (cm) | 7.5 |
|---|---|
| Active Sensor Length | 55mm |
| Life Cycle | >1 million |
| Height | 0.43mm (0.017) |
| Flat Resistance | 10K Ohms ±30% |
| Bend Resistance | minimum 20K Ohms ±30% (@ 180° pinch bend) |
| Power Rating | 0.5 Watts continuous; 1 Watt Peak. |
| Shipping Weight | 0.002 kg |
| Shipping Dimensions | 3 × 2 × 1 cm |
Package Includes
- 1 x Flex Sensor 2.2 Bend Sensor for Hand Gesture Recognition
Note: To avoid damaging the sensor, do not bend its base, which is sensitive. You can flex the sensing area within the usable range safely, but try to limit the bending outside of this range. For optimal performance, attach the base and the bottom part firmly and let only the flex sensor bend.
Tutorial:
Flex Sensor 2.2 Bend Sensor for Hand Gesture Recognition Overview
The Flex Sensor 2.2 Bend Sensor for Hand Gesture Recognition is a thin, flexible resistive element that varies its resistance as it bends. It’s designed to detect finger and hand movements in applications such as gesture-controlled robots, gaming controllers, and wearable interfaces.
Key Features of Flex Sensor 2.2 Bend Sensor for Hand Gesture Recognition
- Active flex length of 5.6 cm with a total length of 7 cm (2.2)
- Flat resistance of 10 KΩ ±30% for reliable sensitivity
- Over 1 million life cycles for long-term durability
- Ultra-thin 0.43 mm profile for low-profile integration
- 0.5 W power rating and 0.1 connector compatible with standard breadboards
- Fast shipping from Zbotic across India
Applications and Use Cases
- Wearable gesture-glove interfaces for precise robotic control
- Virtual reality and gaming motion capture systems
- Physical therapy devices to monitor joint flexion
- DIY musical instruments with motion-sensitive triggers
- Custom computer peripherals for alternative input methods
- Medical prosthetics monitoring finger articulation
How to Use Flex Sensor 2.2 Bend Sensor for Hand Gesture Recognition
Plug the 0.1 spaced connector into your breadboard or solder directly, then form a voltage divider using a fixed resistor (recommended 10 KΩ) and the flex sensor. Connect the divider output to an analog input on your microcontroller, power the circuit at 5 V, and map the analog readings in your code to translate resistance changes into bend angles.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I connect this sensor to an Arduino?
Use a 10 KΩ resistor to form a voltage divider: connect one end of the flex sensor to 5 V, its other end to the analog input and the fixed resistor, then ground the resistor’s free end. Read the analog value and map it to bend angle in your code.
What resistor value should I pair with the sensor?
A 10 KΩ fixed resistor provides a balanced voltage divider with the sensor’s 10 KΩ flat resistance, yielding good linearity across the bending range.
How many bending cycles can the sensor withstand?
The sensor is rated for over 1 million flex cycles, ensuring reliable performance in repetitive gesture-recognition applications.
