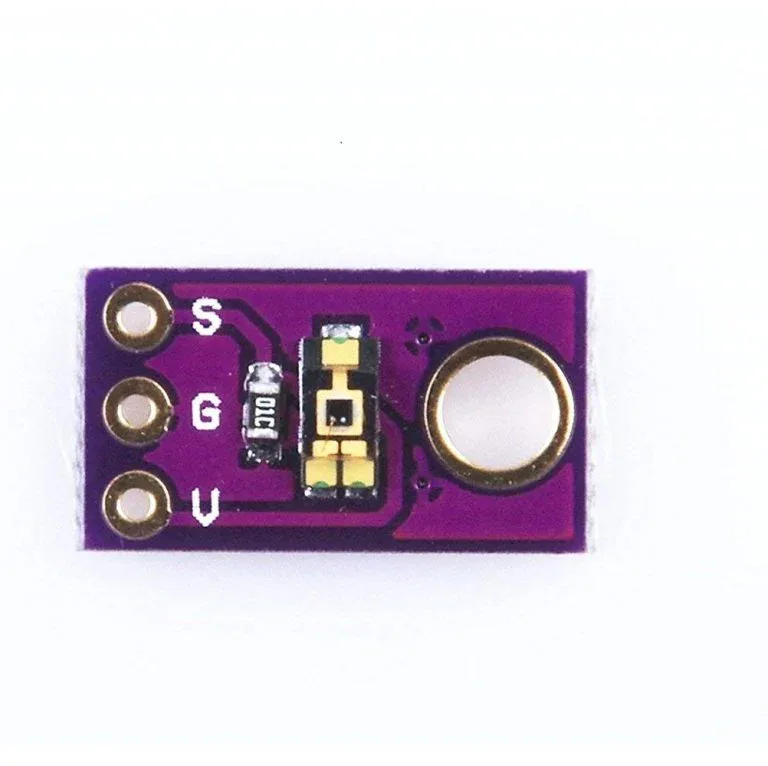

CJMCU-TEMT6000 An Ambient Light Sensor

Looking for Temt6000 Sensor? CJMCU-TEMT6000 An Ambient Light Sensor is available at Zbotic with fast shipping across India.

This CJMCU-TEMT6000 An Ambient Light Sensor module uses a special ambient light detector（TMET6000） with a spectral response that closely emulates the human eye. It helps you to detect the light density and reflect the analog voltage signal back to the Arduino controller. You can set the threshold of a voltage level to trig another unit on the Arduino project.

CJMCU-TEMT6000  is an ambient light sensor is a silicon NPN epitaxial planar phototransistor in a miniature transparent 1206 package for surface mounting. It is sensitive to visible light much like the human eye and has peak sensitivity at 570 nm. While this device is very sensitive to ambient light, but which inhibit infrared (IR) spectrum, which can provide similar “to the human eye, ” the visible spectrum greater responsiveness.

APPLICATIONS:

Ambient light sensor for control of display backlight dimming in LCD displays and keypad backlighting of mobile devices and in industrial on/off-lighting operation.

1.  Automotive sensors
2. Mobile phones
3. Notebook computers
4. PDA’s
5. Cameras
6. Dashboards

Sample Code:

void setup()
{
Serial.begin(9600); // open serial port, set the baud rate to 9600 bps
}
void loop()
{
int val;
val=analogRead(0); //connect sensor to Analog 0
Serial.println(val); //print the value to serial
delay(100);
}

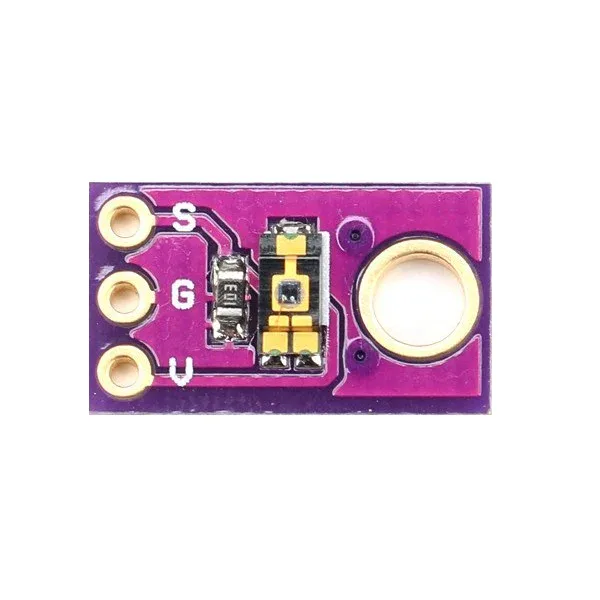

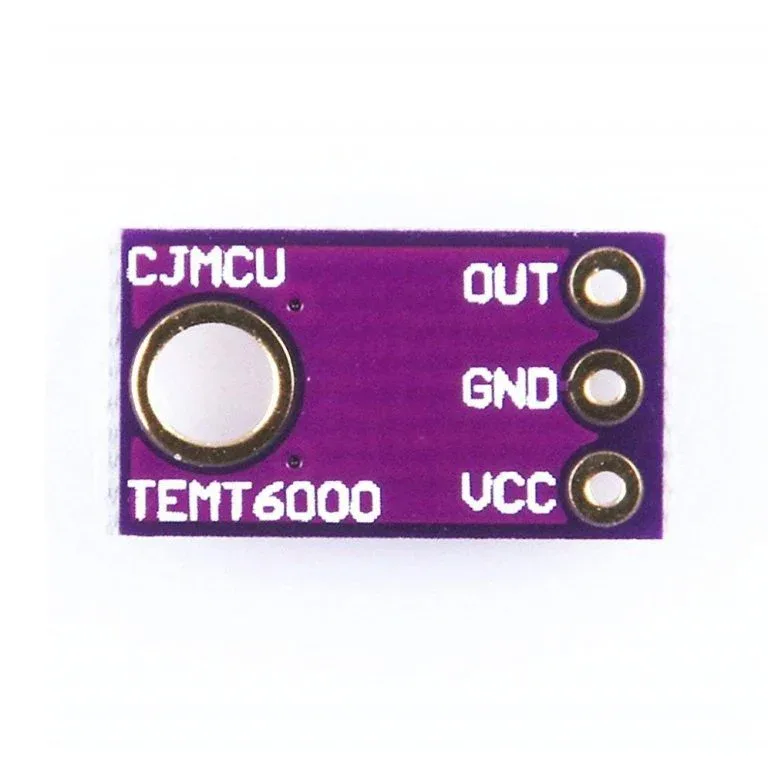

Pinout:

 Features:

1. AEC-Q101 qualified
2. High photosensitivity
3. Near-Human Eye Spectral Response
4. Scalable Output Voltage
5. Adapted to human eye responsivity
6. Lead (Pb)-free reflow soldering
7. Compliant to RoHS Directive 2002/95/EC and in
   accordance to WEEE 2002/96/EC

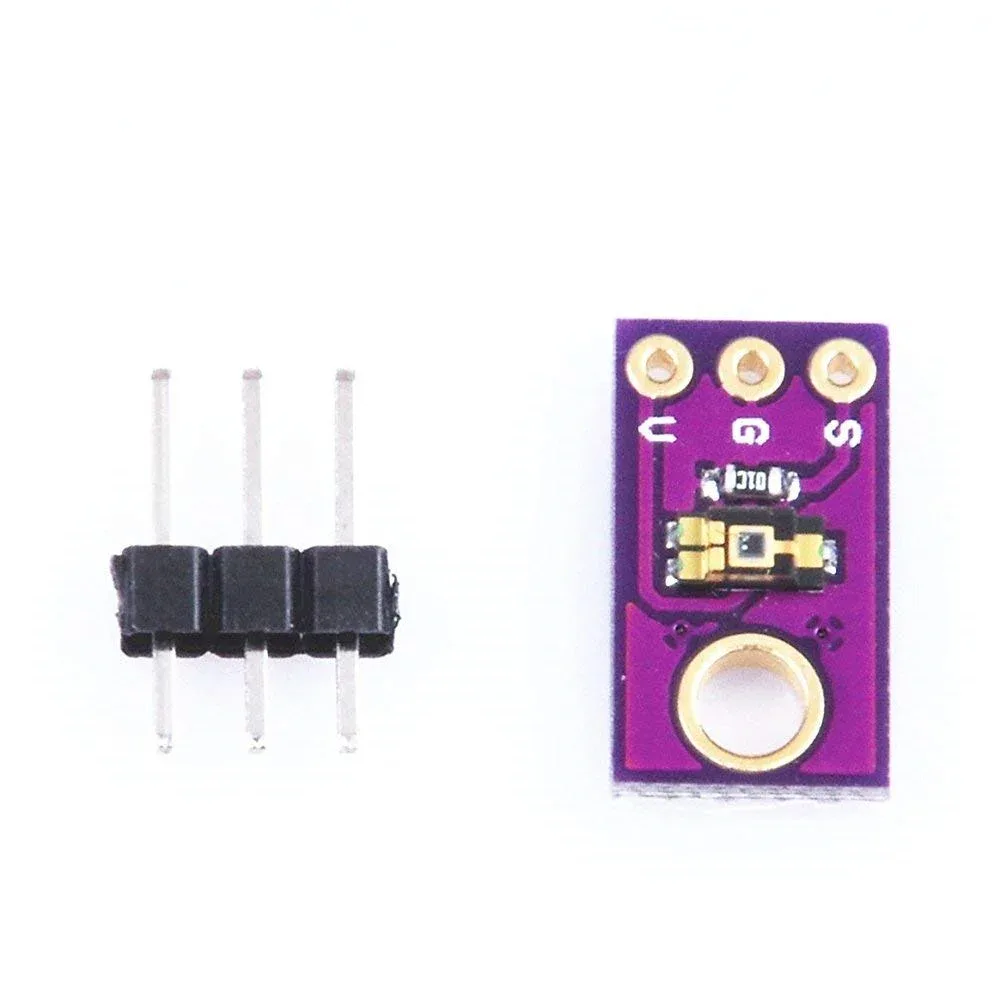

Package Includes:

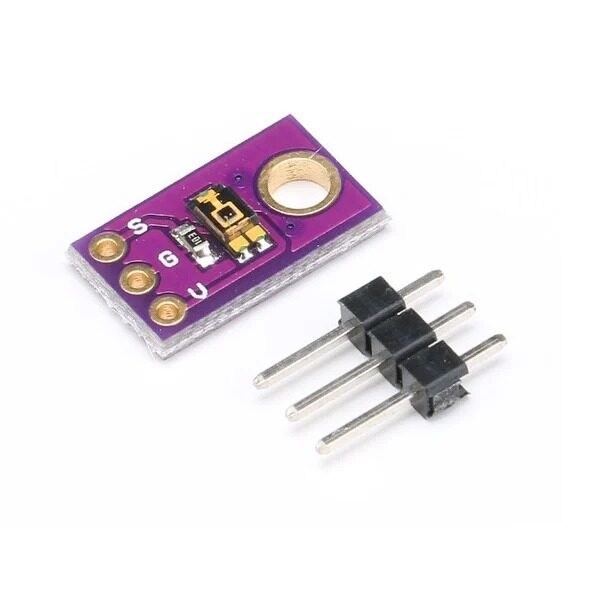

1 x CJMCU-TEMT6000 An Ambient Light Sensor

1 x 3*1 Burg Pin (Straight)

Tutorial:

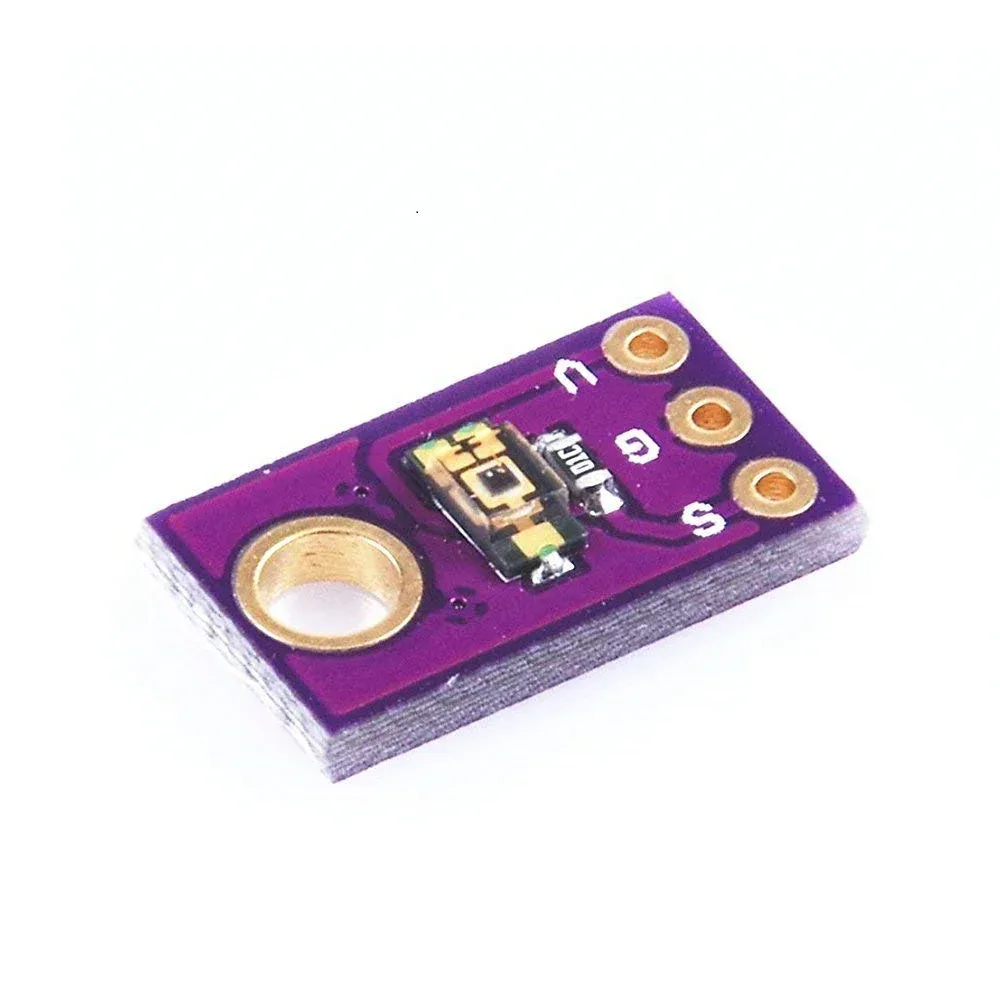

CJMCU-TEMT6000 An Ambient Light Sensor Overview

The CJMCU-TEMT6000 Ambient Light Sensor module features the TEMT6000 phototransistor in a miniature 1206 SMD package. It measures visible light intensity with a spectral response closely matching the human eye and outputs an analog voltage signal ideal for microcontroller applications.

Key Features of CJMCU-TEMT6000 An Ambient Light Sensor

• AEC-Q101 qualified phototransistor for automotive-grade reliability
• High photosensitivity with peak response at 570 nm
• Scalable analog voltage output proportional to ambient light levels
• Compact 1206 surface-mount package for easy PCB integration
• Lead-free reflow soldering compatible, RoHS and WEEE compliant
• Genuine TEMT6000 sensor with fast shipping from Zbotic

Applications and Use Cases

• Automatic display and keypad backlight control in handheld devices
• Ambient light compensation in camera modules and monitors
• Dynamic adjustment of LED brightness in smart lighting systems
• Environmental monitoring stations logging daylight intensity
• Light-seeking robots and interactive installations
• Solar panel sun-tracking optimizations for energy harvesting

How to Use CJMCU-TEMT6000 An Ambient Light Sensor

Connect VCC to 3.3 V or 5 V, GND to ground, and the sensor’s analog output to an ADC-enabled pin on your microcontroller. In your firmware, read the voltage, map it to a lux value or threshold, and trigger actions like LED dimming or data logging. Secure the module on your PCB and avoid stray reflections for accurate measurements.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on orders above ₹499
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

1. What voltage range does the TEMT6000 sensor support?

The CJMCU-TEMT6000 module operates from 3.3 V to 5 V, making it compatible with most Arduino and Raspberry Pi ADC inputs without additional level shifting.

2. How do I convert the analog output to a lux value?

Read the analog voltage via your microcontroller’s ADC and apply the TEMT6000 transfer ratio (approximately 0.85 V at 100 lux). For best results, calibrate against a reference lux meter and adjust in software.

3. Can I solder the CJMCU-TEMT6000 directly onto my custom PCB?

Yes. The onboard TEMT6000 phototransistor is in a 1206 SMD package designed for lead-free reflow soldering, allowing straightforward integration into your PCB design.
