Product Description

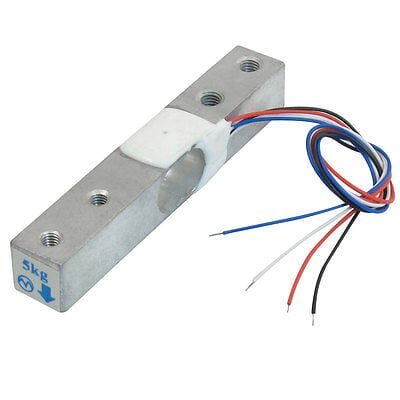

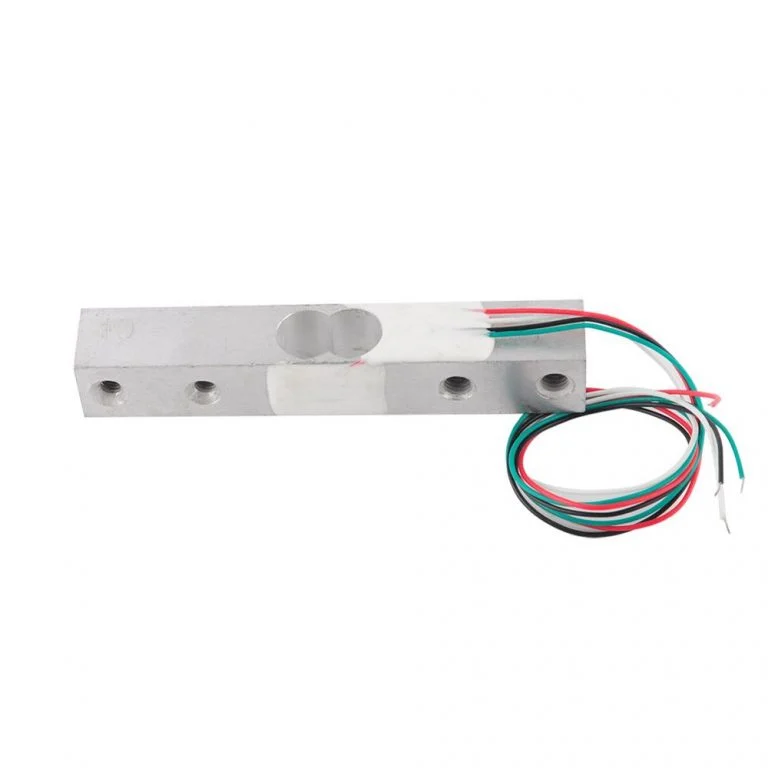

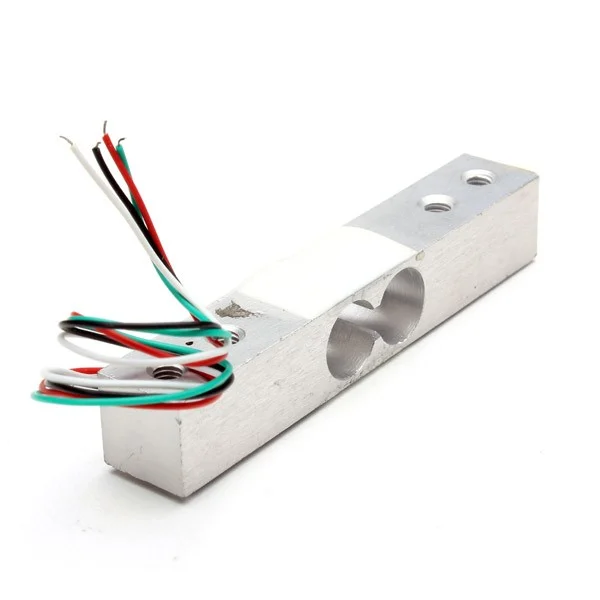

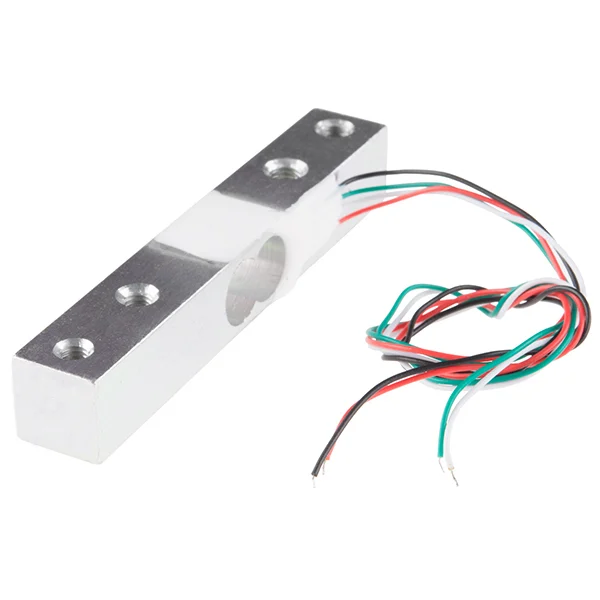

A straight bar load cell (or a strain gauge) is a device that converts up to 5 kg of force (pressure) into an electrical signal. The device measures the change in electrical resistance that occurs when the bar is strained (e.g. by pressure or force).
With this device, you can measure the weight of an object, the change in weight over time, or the presence of an object by sensing the strain or load on a surface. The straight bar load cell is made of aluminum alloy and can read up to 1KG of weight.
The device has four lead wires that can be connected to an HX711 A/D Pressure Sensor. It works with a driving voltage of 5-10V and produces an output voltage that varies with the force applied to it.
To install the device, you need to fix one end through the screw hole and leave the other end floating. You should follow the label to indicate the direction of the gravitational force. You should not push the white plastic cover part of the device directly, as it may cause damage.
Connection Diagram with Arduino via HX711:
Package Includes:
1 x Weighing Load Cell Sensor 5kg YZC-131 With Wires
How to Interface BH1750 Light Sensor with Arduino & ESP32
The BH1750 light sensor is one of the most popular digital ambient light sensors used in hobby electronics...
Read More →
Fingerprint Sensor R307 vs AS608: Complete Biometric Module Buyer Guide for Arduino
Biometric fingerprint sensors have become affordable and accessible enough for hobbyists in India to integrate into door locks,...
Read More →
ICM-42688 6-Axis IMU: Low Noise Precision for Drones
When it comes to building high-performance drones and UAVs, the inertial measurement unit (IMU) is arguably the most...
Read More →Technical Specifications
| Model | YZC-131 |
|---|---|
| SKU | AI2659 |
| Weight | 0.04 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Weighing Load Cell Sensor 5kg YZC-131 With Wires is a versatile load / pressure / force / flex sensor used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
