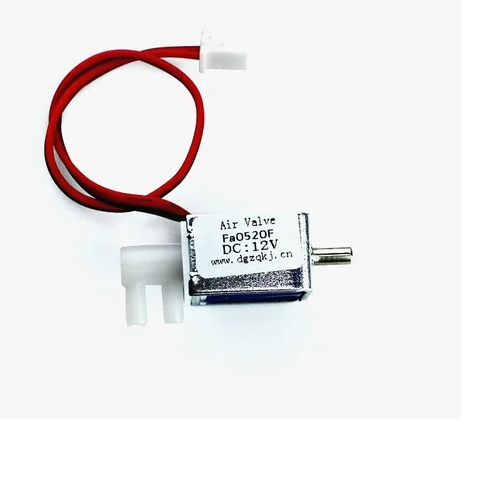

FA0520F 12V DC 2-position 3-way Small Mini Electric Solenoid Valve for Air / Gas
You might be searching for a pump that operates on 12 V this could be the best choice for your project.
This is a tiny FA0520F 12V DC 2-position 3-way Small Mini Electric Solenoid Valve for Air / Gas Pump Gas Release Exhaust Discouraged Solenoid Exhaust Valve. Control gas flow in and out with this small Gas valve which operates on 12V dc.
Note:
Product Image may vary from actual product in terms of manufacturer and color according to the availability
How it Works:
- This valve act as closed (blocked flow) when not powered
- When you apply a 5V power supply to the input, the valve gets open and the flow-through valve get started
- Removing the supply voltage again blocks the flow
- This is a two-way valve which means it can flow in both directions
Working Modes:
- When powered on, 1 and 2 are connected, 3 and 1,2 are not connected
- When power is off, 1 and 3 are connected, 2 and 1, 3 are not connected
Specifications:
| Item Type: | Solenoid Valve |
|---|---|
| Voltage Rating (VDC/VAC): | 12VDC |
| Port Size | 5.5mm (All 3 i/o are of the same size) |
| Power | Pneumatic |
| Operating Temperature (°C) | -10 to 60 |
| Inner Diameter (ID) (mm) | 1.6 |
| Outer Diameter (OD) (mm) | 3 |
| Length (mm): | 35 |
| Width (mm): | 15 |
| Height (mm): | 15 |
| Weight (g): | 20 |
Package Includes:
1 x FA0520F 12V DC Solenoid Valve for Air / Gas
