This is the 24V variant of the LY-01 DC24V 1.2A 28.8W Electromagnetic Lock in Solenoids and Electromagnets. Available at ₹562.86 (₹477.00 + GST) with free shipping across India.
Looking for Ly-01 Ic 1.2a? LY-01 DC24V 1.2A 28.8W Electromagnetic Lock is available at Zbotic with fast shipping across India.

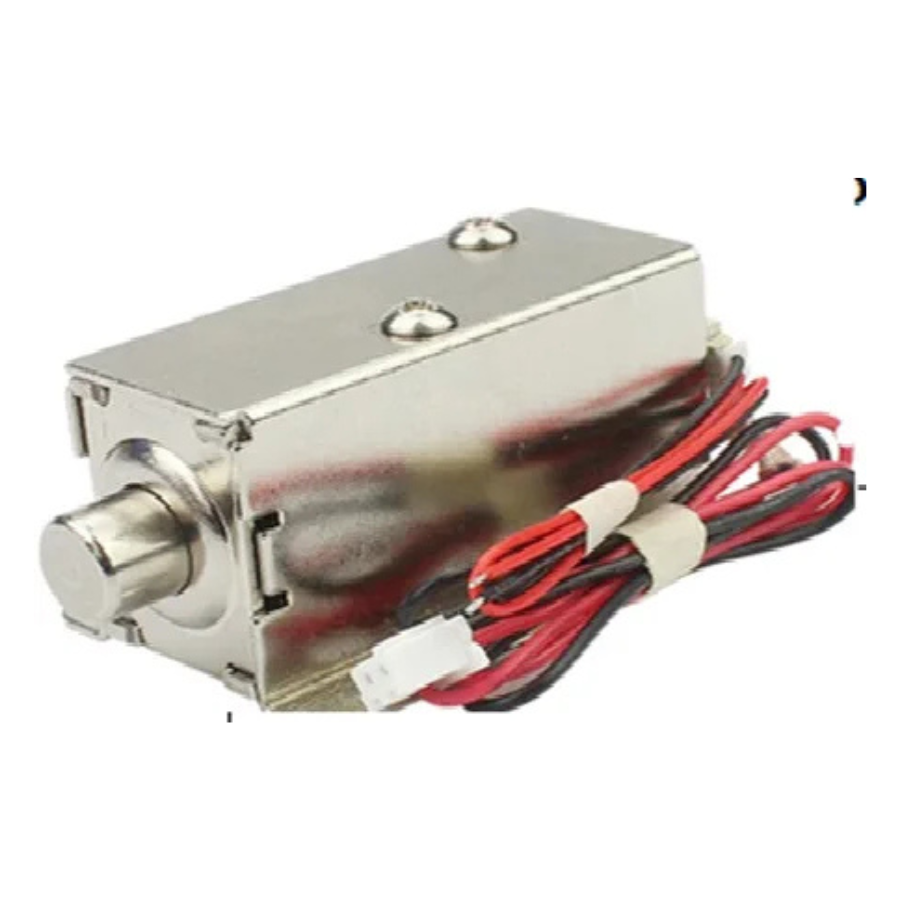

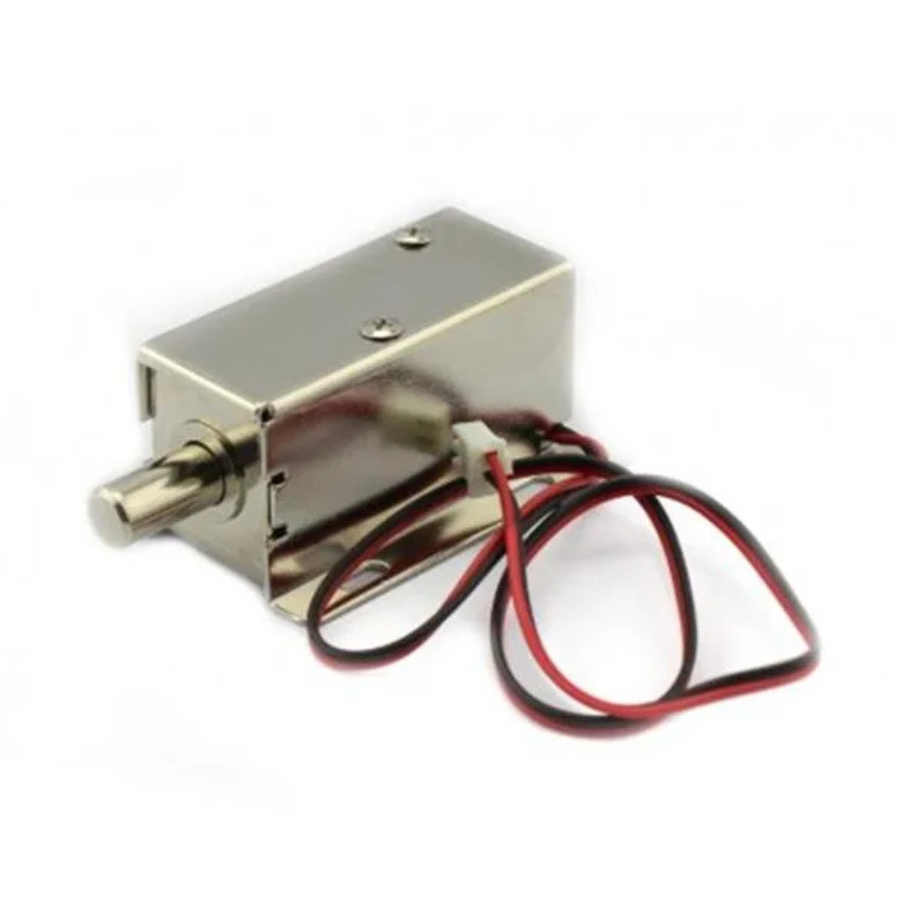

LY-01 DC24V 1.2A 28.8W Electromagnetic Lock
Note: It is recommended that the continuous power-on time should not exceed 24 hours. After a long time of work, the lock body will generate temperature, and the maximum temperature is about 70℃
|
Product number
|
LY-01
|
|
Use voltage
|
DC24V
|
|
Working current
|
1.2A
|
|
Power consumption
|
28.8W
|
|
Power-on time
|
＜24H
|
|
Telescopic stroke
|
10mm
|
|
suction
|
Initial force: 0.8N Holding force: 5N
|
|
Working temperature
|
-10~+60℃
|
PACKAGE INCLUDES
1 X LY-01 DC24V 1.2A 28.8W Electromagnetic Lock
Note: Don’t power on for a long time
LY-01 DC24V 1.2A 28.8W Electromagnetic Lock Overview
The LY-01 DC24V 1.2A 28.8W Electromagnetic Lock is a compact security device designed for access control systems. It secures doors, gates or cabinets by creating a strong magnetic bond when powered, with built-in feedback signaling to monitor lock status.
Key Features of LY-01 DC24V 1.2A 28.8W Electromagnetic Lock
- Operates at DC24V and draws 1.2A for reliable 28.8W holding force
- Lock state feedback signal output for real-time open/closed monitoring
- Rugged industrial iron body resists deformation and ensures durability
- Pure copper internal coil for efficient performance and long service life
- Compact, straightforward design simplifies installation in tight spaces
- Genuine LY-01 unit with fast shipping across India from Zbotic
Applications and Use Cases
- Office and commercial door entry systems
- Server room or data center security locks
- Warehouse and factory gate interlocks
- Retail display cabinets and safes
- Residential smart-home access control
- Locker and storage unit electronic locking
How to Use LY-01 DC24V 1.2A 28.8W Electromagnetic Lock
Mount the LY-01 lock body to a sturdy frame and align the matching armature plate on the moving door surface. Connect the DC24V power supply (1.2A) to the designated terminals and attach the feedback output wire to your access control system’s monitoring input. After securing all fasteners, test switching power on and off to verify strong magnetic holding and correct feedback signaling.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What power supply do I need for the LY-01 lock?
The LY-01 requires a stable DC24V power source capable of delivering at least 1.2A. Use a regulated power supply designed for access control equipment to ensure consistent performance.
How does the lock state feedback signal work?
The lock has a dedicated feedback output terminal that switches state when the magnet engages or releases. Connect this wire to your controller’s feedback input to receive real-time open/closed status.
Can the LY-01 be powered continuously?
This electromagnetic lock is rated for frequent and extended use up to 24 hours of continuous power. For uninterrupted 24/7 applications, allow periodic cooldowns or consult our support team for best practices.
Technical Specifications
| Model | LY-01 |
|---|---|
| Operating Voltage | 24V |
| Current Rating | 1.2A |
| Power Rating | 28.8W |
| SKU | AI3961 |
| Weight | 0.2002 kg |
| Availability | In Stock |
Applications & Use Cases
The LY-01 DC24V 1.2A 28.8W Electromagnetic Lock is a versatile solenoids and electromagnets used across a wide range of applications including door locks, valve control, pick-and-place machines, pinball machines, and industrial automation.
Common use cases:
- Building an electronic door lock
- Controlling a water valve remotely
- Actuating a mechanism in an automation line
This product is ideal for automation engineers and mechanical design enthusiasts.
Technical Tip: Solenoids draw significant current — use a MOSFET or relay to drive them, never directly from a microcontroller pin. Add a flyback diode for back-EMF protection.
