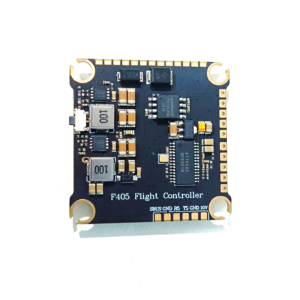

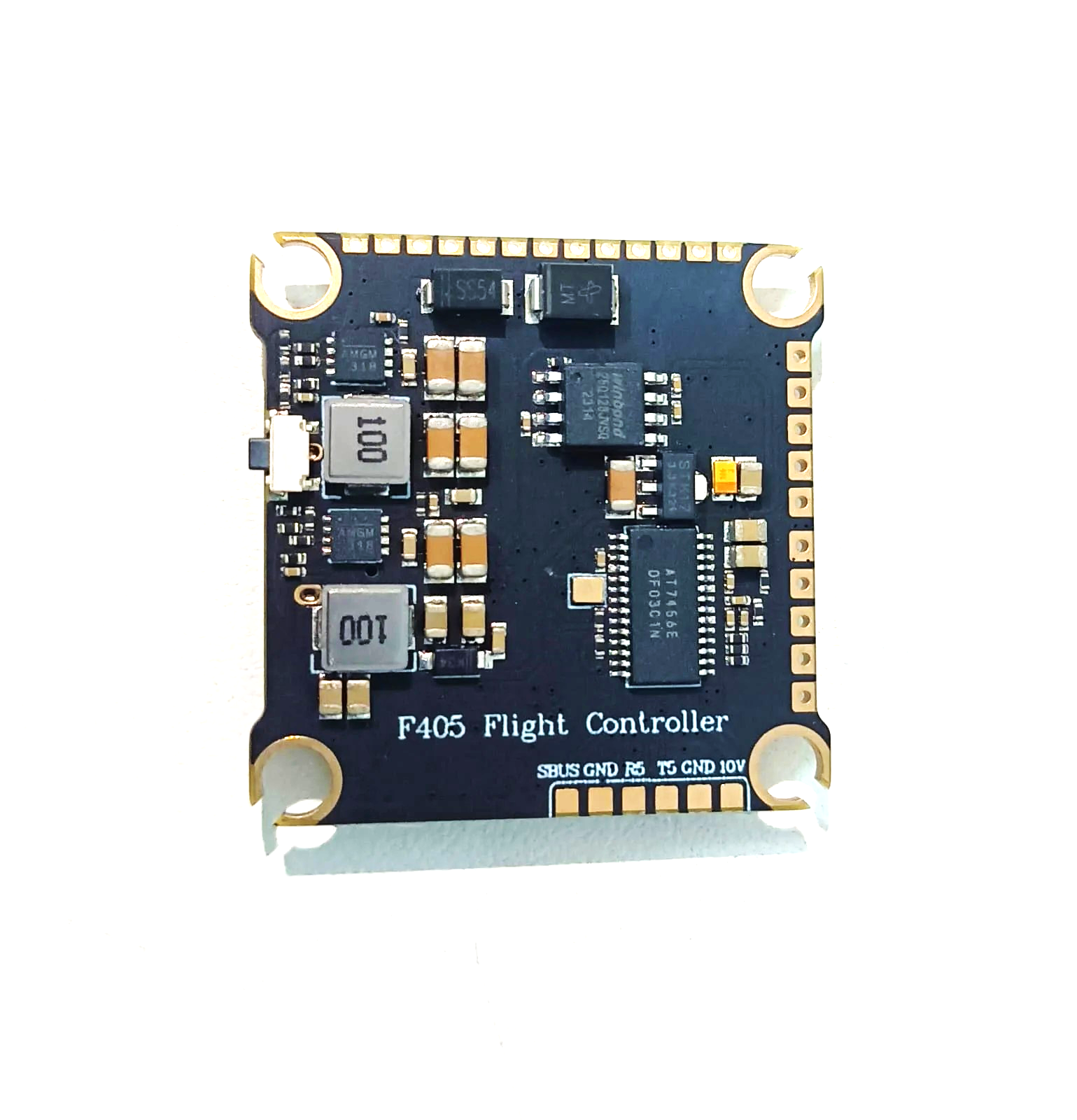

F405Flight Controller With OSD 16M Black Box Flight Control MPU6500

This is the Black variant of the F405Flight Controller With OSD 16M Black Box Flight Control MPU6500 in Flight Controller & Accessories. Available at ₹3,816.75 (₹3,635.00 + GST) with free shipping across India.

Looking for F405flight Controller? F405Flight Controller With OSD 16M Black Box Flight Control MPU6500 is available at Zbotic with fast shipping across India.

The Matek F405-OSD Flight Controller comes with lots of features. From the high-speed, 168MHz, 32bit F405 processor to BetaFlight firmware and OSD this flight controller has the power to easily control your drone. It also has a black box to help you fine-tune your drone or to help determine what went wrong with any mishap. The OSD provides detailed information on battery voltage and other information.

The FC board is lightweight  (7g) and of standard FC size (36 x 36mm) to easily fit into any drone.

Features:

1. Support 32K Gyro update & 16K PID Loop.
2. OSD: BetaFlight OSD w/ AT7456E chip
3. Beeper: Yes.
4. RSSI: Yes.
5. Blackbox: MicroSD card slot (SD/SDHC).
6. VCP, UART1, UART2, UART3, UART4, UART5.
7. Built-in inverter for SBUS input (UART2-RX).
8. PPM/UART Shared: UART2-RX.
9. Support SoftSerial on S5 & S6.
10. Battery Voltage Sensor: 1:10.
11. Current Sensor: No (FCHUB-6S option).
12. BEC 5V & 10V: No (FCHUB-6S option).
13. LDO 3.3V: Max.300mA for Spektrum RX.
14. Spektrum BIND_PIN: RX4.
15. WS2812 Led Strip: Yes.
16. 2x LEDs for FC STATUS (Blue, Red).
17. 6x PWM / DShot outputs without conflict.
18. 5x UARTs.
19. 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND.
20. 4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible)
21. 1x Side-press button for BOOT(DFU) mode.
22. 1x 16pin bottom mounted FFC Slot for FCHUB-6S connection.

Highlights:

1. 168MHz STM32F405RGT6
2.  6-axis ICM-20602 (3-axis gyroscope. 3-axis accelerometer)
3.  BetaFlight OSD
4.  MicroSD BlackBox
5.  VCP and 5 x UARTs
6.  6 PWM/DSHOT outputs
7.  MatekF405 Target

Requires:
1 x Micro SD card (Up to 4GB)

Package Includes:

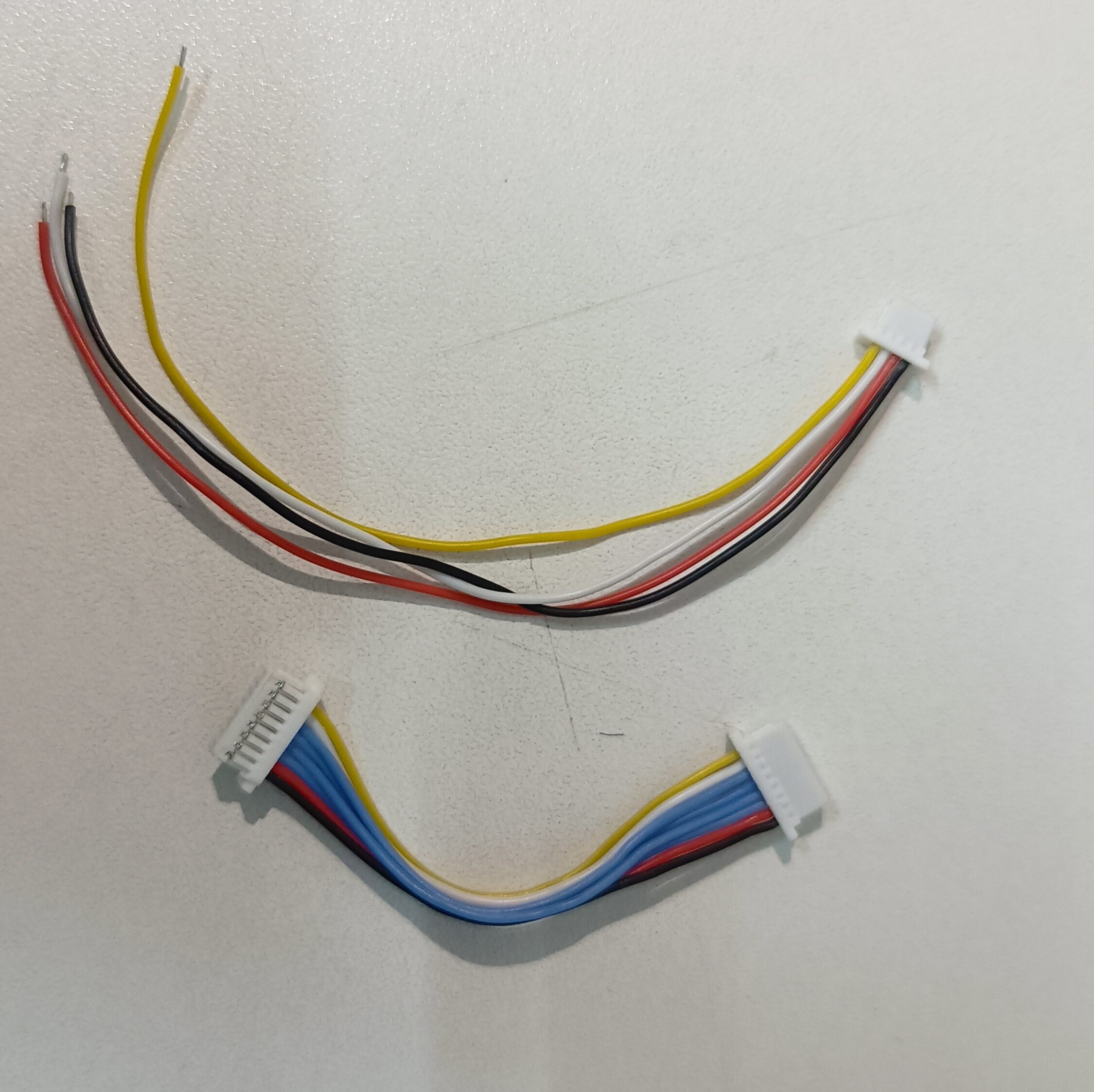

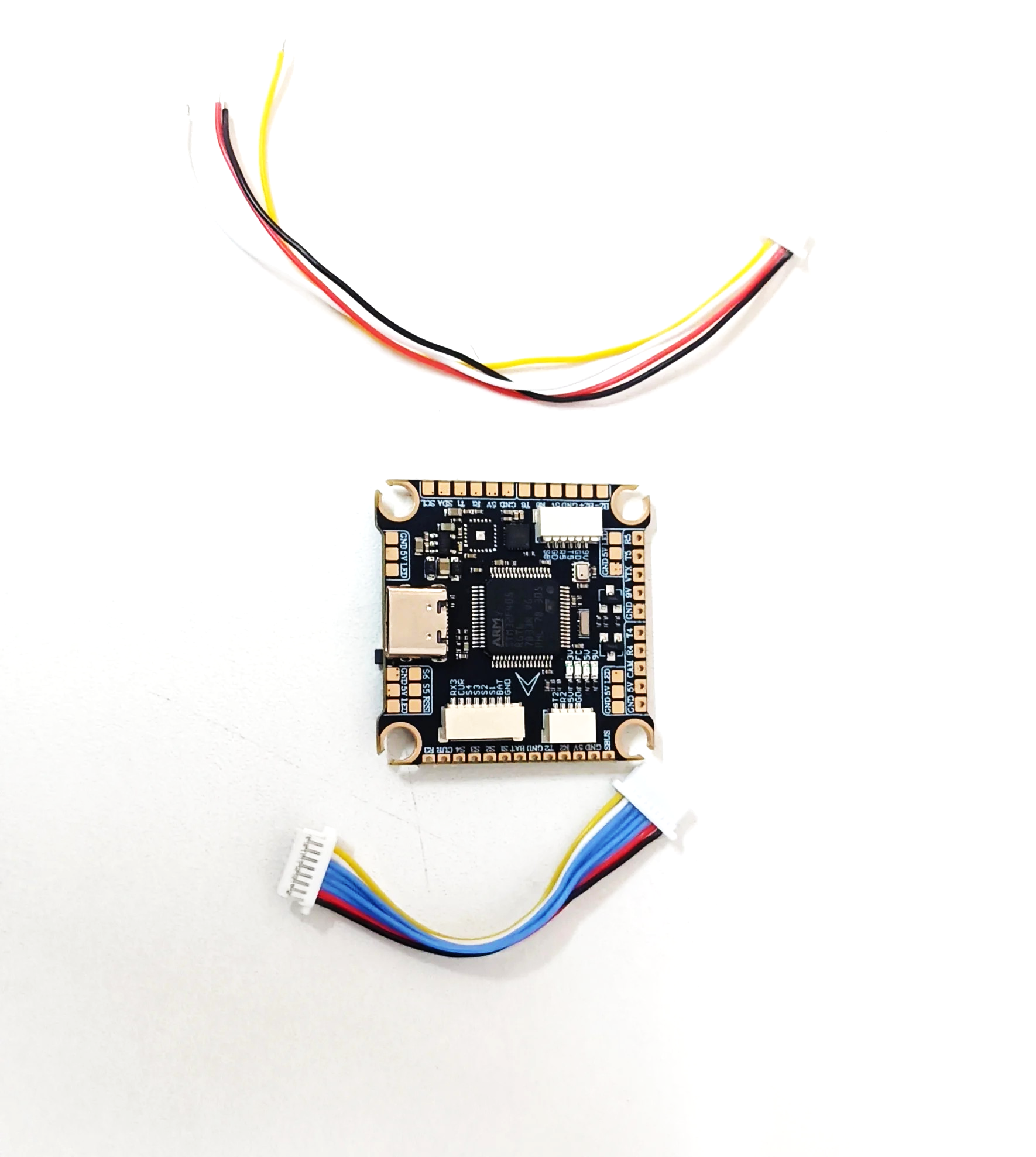

1 × F405-OSD Flight Controller Board
1 × OSD 16M Black Box Flight Control

F405Flight Controller With OSD 16M Black Box Flight Control Overview

The F405Flight Controller With OSD 16M Black Box Flight Control MPU6500 is a high-performance flight control board designed for multirotor drones. Featuring a 168 MHz STM32F405 processor, integrated OSD, and 16 MB black box storage, it provides pilots with precise flight data and reliable logging for tuning and troubleshooting.

Key Features of F405Flight Controller With OSD 16M Black Box Flight Control

• 168 MHz STM32F405RGT6 32-bit processor for responsive flight control
• 6-axis ICM-20602 (MPU6500) gyro/accelerometer sensor with 32 kHz gyro update & 16 kHz PID loop
• Built-in BetaFlight OSD (AT7456E) displays voltage, timer, RSSI and more
• 16 MB MicroSD BlackBox recorder for in-flight data logging and post-flight analysis
• VCP + 5 UART ports and 6 PWM/DSHOT outputs for ESCs, GPS, and peripherals
• Standard 36 × 36 mm mounting holes, weighs just 7 g for easy integration
• Fast shipping from Zbotic across India—get your controller in 1–2 days

Applications and Use Cases

• FPV racing quads requiring high-speed gyro sampling and reliable OSD telemetry
• Freestyle drones where black box logging helps dial in PID tuning
• Long-range builds needing onboard OSD voltage and signal monitoring
• DIY drone kits and educational robotics projects focused on flight control
• Fixed-wing UAVs leveraging lightweight design and multiple UART connectivity
• Custom multicopter prototypes with advanced ESC protocols like DSHOT

How to Use F405Flight Controller With OSD 16M Black Box Flight Control

Mount the controller using standard 36 × 36 mm standoffs, solder power, ESC and peripheral connections to the designated pads, then flash the MatekF405 BetaFlight firmware. Insert a microSD card for BlackBox logs, configure ports and OSD layout in BetaFlight Configurator, calibrate sensors, and you’re ready to fly.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which firmware target is pre-installed on this flight controller?

The board ships with the MatekF405 target on BetaFlight, ensuring full compatibility and pre-configured OSD settings.

How do I retrieve BlackBox logs after a flight?

Insert a formatted microSD card before flying. After landing, remove the card and access the “BLACKBOX” folder on your PC to review .bin log files in the BlackBox Explorer tool.

Can I drive digital ESC protocols like DSHOT?

Yes, the F405 board offers six PWM pads that support DSHOT 150/300/600 protocols for precise ESC control and telemetry feedback.
