ESPresso Lite V2.0 ESP8266

The ESPresso Lite V2.0 ESP8266 is the first low-cost Arduino-compatible ESP8266 WiFi development board manufactured by Malaysia. Working together with experts, a Singapore IoT technology company, this board allows anyone to learn, experiment and build their IoT projects easily and quickly.

The core hardware inside ESPresso Lite V2.0 is Espressif System’s ESP8266 WROOM-02 WiFi module and is programmable using the Arduino IDE like how anyone would run their programs in other Arduino boards.

The ESPresso Lite V2.0 comes in a kit, with extra headers. You will have to fire up the soldering station to solder some of the headers. Not to forget we recommend getting UC00A for USB to UART which you need to load program and future debugging purposes.

expert is working hard to prepare the tutorial to kick-start your first IoT project with ESPresso Lite, please refer to this tutorial to get started.

Please do visit ESPert.co for more information about this product.

We are also selling the IoT kit of ESPresso Lite V2.0 which includes all that is required to get ESPresso Lite V2.0 into action, click below to buy

ESPresso Lite V2.0 IoT Starter Kit ESP8266

Specification and Features :

1. Espresso Lite V2.0 :

   1. Features Espressif System’s ESP8266 WROOM-02 Wi-Fi module (with 4Mb flash)
   2. Design for IoT with free espert.io cloud and app service
   3. Support the Arduino IDE (boards manager) and libraries
   4. Auto program loading from Arduino IDE, using UC00A (or other compatible USB to Serial)
   5. Vin: 5 to 12VDC
   6. Operating Voltage: 3.3VDC
   7. Onboard 3.3V Voltage Regulator with a maximum current of 800mA continuous, 1A peak
   8. One Reset button, two User Programmable buttons
   9. The WROOM-02 module is FCC, CE & TELEC certified
   10. Breadboard friendly breakout pins
   11. Ready pads for I²C OLED panel

2. WROOM-02 :

   1. Operating Voltage: 3.0 to 3.6VDC
   2. Operating Current: Average = 80mA
   3. IEEE 802.11b/g/n at 2.4 GHz
   4. WiFi mode: SoftAP/Station/SoftAP + Station
   5. Security: WPA/WPA2
   6. Encryption: WEP/TKIP/AES
   7. Integrated low power 32-bit MCU
   8. Integrated 10-bit ADC
   9. Integrated TCP/IP protocol stack
   10. Integrated TR switch, balun, LNA, power amplifier and matching network
   11. Integrated PLL, regulators, and power management units
   12. Various interfaces available, including SDIO, HSPI, UART, I2C, I2S, IR, PWM, GPIO, etc.
   13. Supports antenna diversity
   14. Deep sleep power <10uA, Power-down leakage current < 5uA
   15. Wake up and transmit packets in < 2ms.
   16. Standby power consumption of < 1.0mW (DTIM3).
   17. +20dBm output power in 802.11b mode.
   18. Operating temperature range -40C ~ 125C.
   19. FCC, CE and TELEC certified.

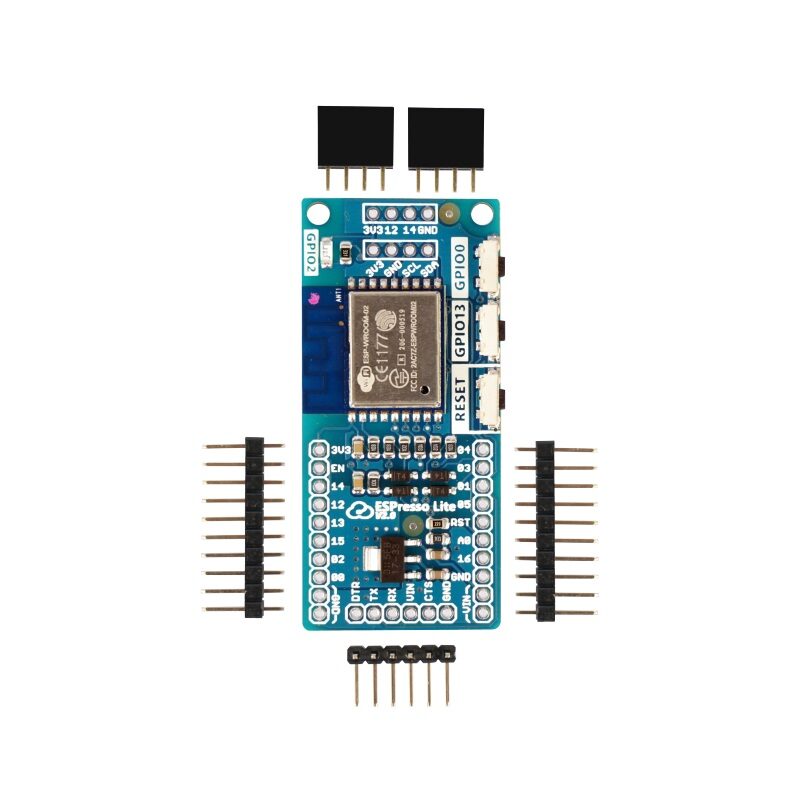

Package Includes :

1 x ESPresso Lite V2.0.

Set of Connectors.

ESPresso Lite V2.0 ESP8266 Overview

The ESPresso Lite V2.0 ESP8266 is a compact, Arduino-compatible Wi-Fi development board based on the Espressif ESP8266 WROOM-02 module. Designed for rapid IoT prototyping, it integrates seamlessly with the Arduino IDE and the free espert.io cloud and mobile app service for remote monitoring and control.

Key Features of ESPresso Lite V2.0 ESP8266

• Espressif ESP8266 WROOM-02 Wi-Fi module with 4 Mb onboard flash
• Onboard 3.3 V regulator delivering up to 800 mA continuous (1 A peak)
• Full Arduino IDE support via boards manager and standard libraries
• IoT-ready design with free espert.io cloud and mobile app integration
• Auto program loading through UC00A (or any compatible USB-to-Serial adapter)
• One Reset button plus two user-programmable pushbuttons
• Genuine product guarantee and fast shipping from Zbotic

Applications and Use Cases

• Home automation nodes for lighting, climate control, and security
• Wireless data loggers for environmental monitoring
• Prototype IoT gadgets like smart doorbells or pet feeders
• Educational projects and workshops teaching Arduino and Wi-Fi coding
• Simple web servers or RESTful API endpoints on local networks

How to Use ESPresso Lite V2.0 ESP8266

Solder the included header pins onto the board, connect a UC00A USB-to-Serial adapter (or similar) to the TX/RX pins, then plug into your PC. In the Arduino IDE, install the ESP8266 board package via Boards Manager, select “ESP8266 WROOM-02,” configure your Wi-Fi credentials in your sketch, and upload. After flashing, register the device on espert.io to start remote monitoring and control.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Do I need to solder headers before using the board?

Yes. The ESPresso Lite V2.0 is supplied with loose header pins that you must solder if you plan to mount it on a breadboard or enclosure. This gives you stable connections for programming and prototyping.

Which USB-to-Serial adapter should I use?

We recommend the UC00A adapter, as it matches the board’s 3.3 V logic. You can also use any USB-to-Serial adapter that supports 3.3 V TX/RX levels for programming and debugging.

How do I integrate with the espert.io cloud service?

After uploading your sketch with Wi-Fi credentials, open the Serial Monitor to retrieve the device’s unique ID. Register this ID at espert.io, then use the mobile or web app to configure data feeds, control pins, and monitor real-time statistics.
