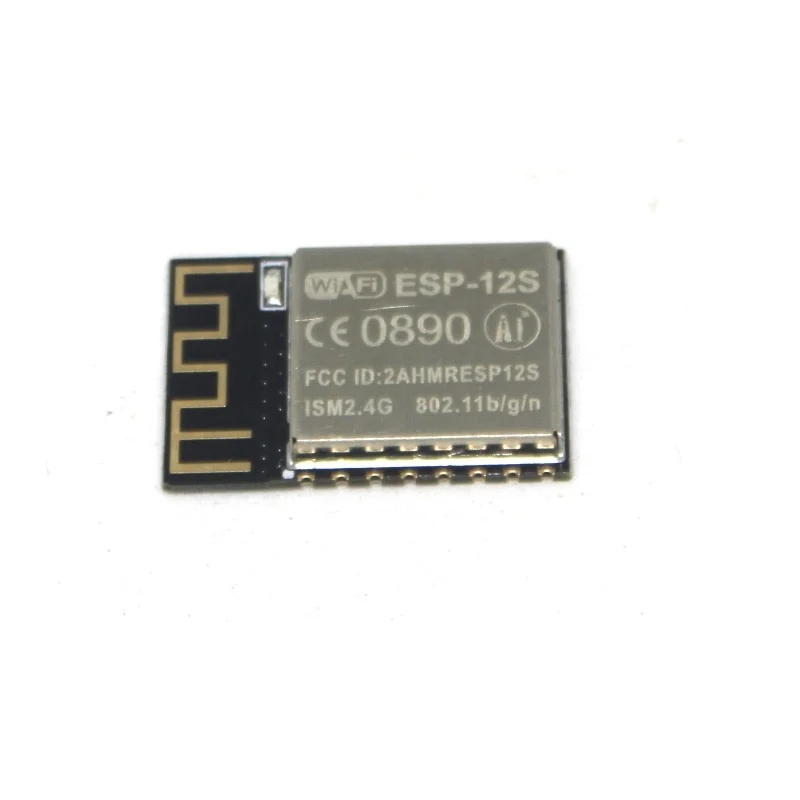

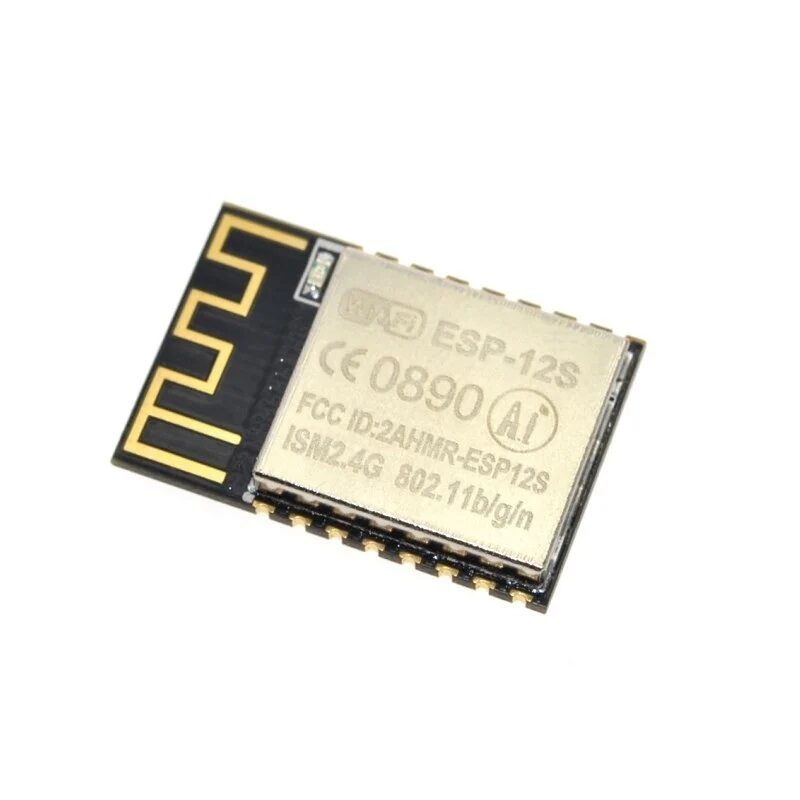

Ai Thinker ESP-12S ESP8266 Serial WiFi Module
Introducing the Ai Thinker ESP-12S ESP8266 Serial WiFi Module, a compact and powerful solution for wireless connectivity in various applications. This module combines industry-leading technology with ultra-low power consumption, making it suitable for a wide range of IoT projects, home automation, industrial control, and more.
The Ai Thinker ESP-12S ESP8266 Serial WiFi Module offers a competitive package size and utilizes ultra-low power technology. It’s designed for versatility and can be used in diverse networking scenarios, including home automation, industrial control, baby monitors, wearable electronics, and wireless location sensing devices.
Features:
- Compact Design: The smallest 802.11b/g/n Wi-Fi SOC module, ideal for applications with space constraints.
- High Performance: Equipped with a low power 32-bit CPU, capable of reaching clock speeds of up to 160MHz. It can also serve as the application processor, enhancing overall performance.
- Integrated Features: Built-in 10-bit high precision ADC, UART/GPIO/IIC/PWM/ADC support, and embedded LWIP protocol stack for seamless integration into various projects.
- Easy Integration: Packaged in SMD-16 for easy welding, allowing for rapid production and high reliability of connections.
- Versatile Connectivity: Supports multiple sleep patterns, UART baud rates up to 4Mbps, and various operation modes including STA, AP, and STA + AP.
- Advanced Technologies: Features support for Smart Config/AirKiss technology, remote firmware upgrade (FOTA), and general AT commands for quick configuration.
- Development Environment: Supports development in both Windows and Linux environments, providing flexibility for developers.
Upgrade your IoT projects with the Ai Thinker ESP-12S ESP8266 Serial WiFi Module, offering unparalleled performance, reliability, and versatility for your wireless connectivity needs.
Specifications:
| Module Model | ESP-12S |
|---|---|
| Package/Case | SMD16 |
| SPI Flash | Default 32Mbit |
| Antenna Type | PCB |
| Input Supply Range (VDC) | 3.0 ~ 3.6 |
| Transmit Power (dBm) | 802.11b: 16±2 dBm (@11Mbps), 802.11g: 14±2 dBm (@54Mbps), 802.11n: 13±2 dBm (@HT20, MCS7) |
| Frequency Range | 2412 ~ 2484MHz |

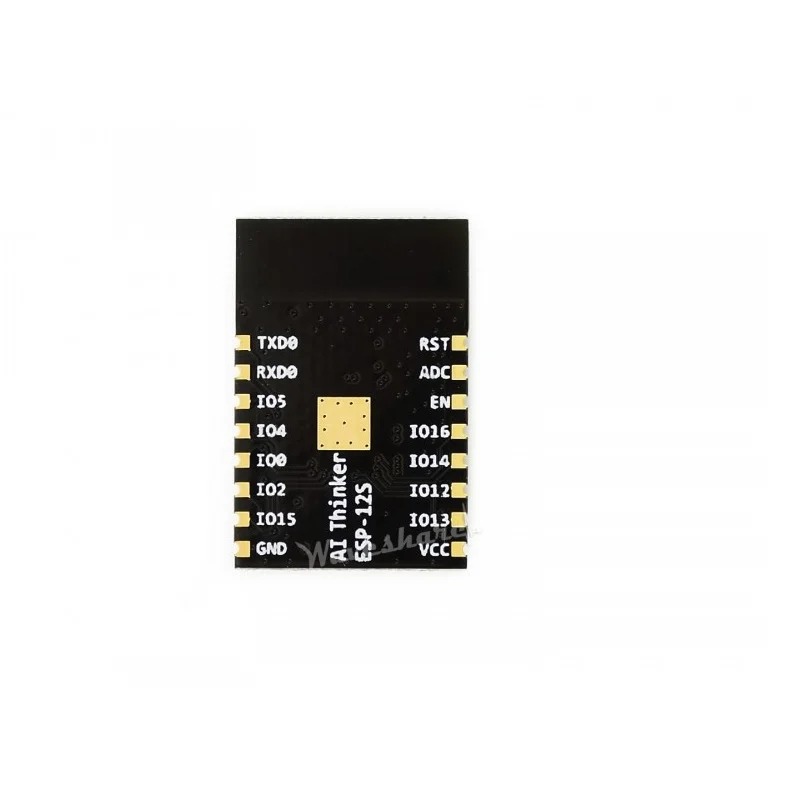

| IO Port | 9 |
| Interface | UART/GPIO/ADC/PWM |
| Receiving Sensitivity | 54 Mbps (3/4 64-QAM): -70dBm, 6 Mbps (1/2 BPSK): -88dBm, CCK, 1 Mbps : -90dBm, CCK, 11 Mbps: -85dBm, HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm |
| UART Baudrate | Support 300 ~ 4608000 bps ˈDefault 115200 bps |
| Operating Temperature (°C) | -20 to 85 |
| Security | WEP/WPA-PSK/WPA2-PSK |
Package includes:
1 x Ai Thinker ESP-12S ESP8266 Serial WiFi Module
