ESP WROOM 32 MCU Module WITHOUT BLE

Looking for Esp Wroom 32 Module? ESP WROOM 32 MCU Module WITHOUT BLE is available at Zbotic with fast shipping across India.

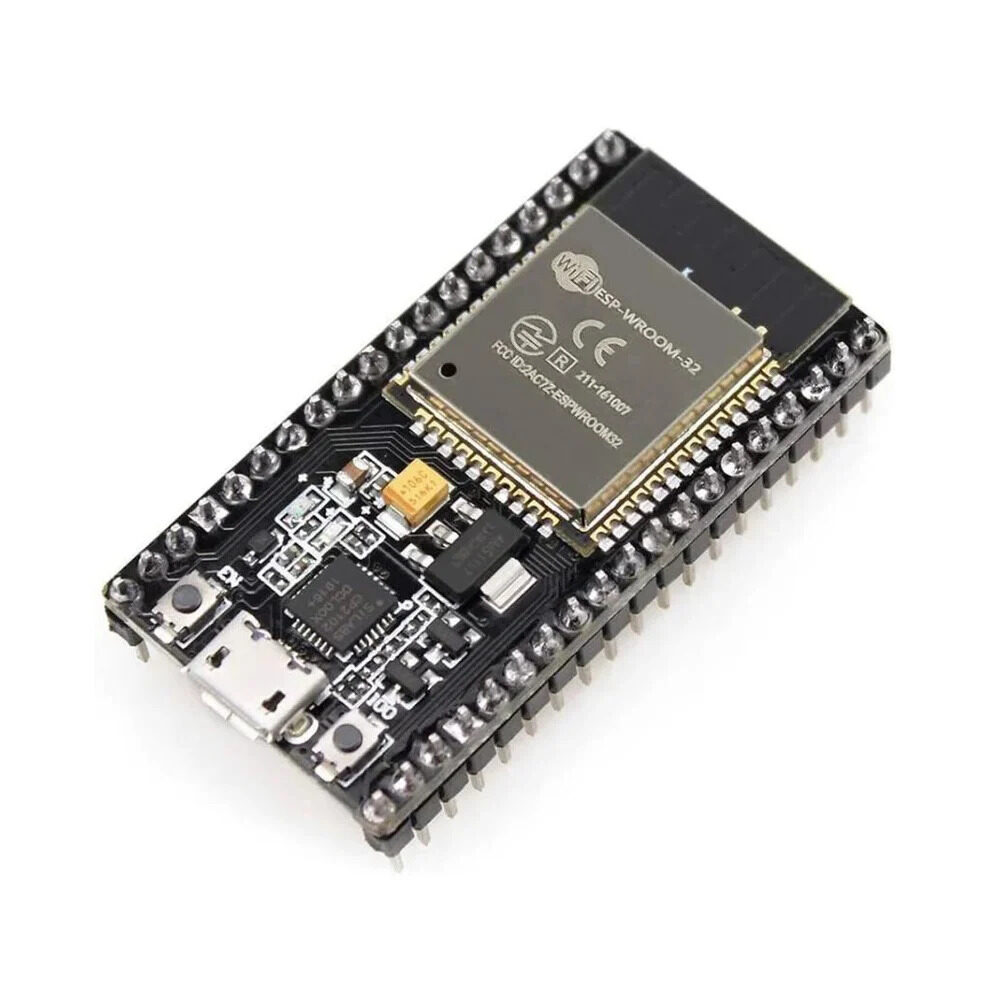

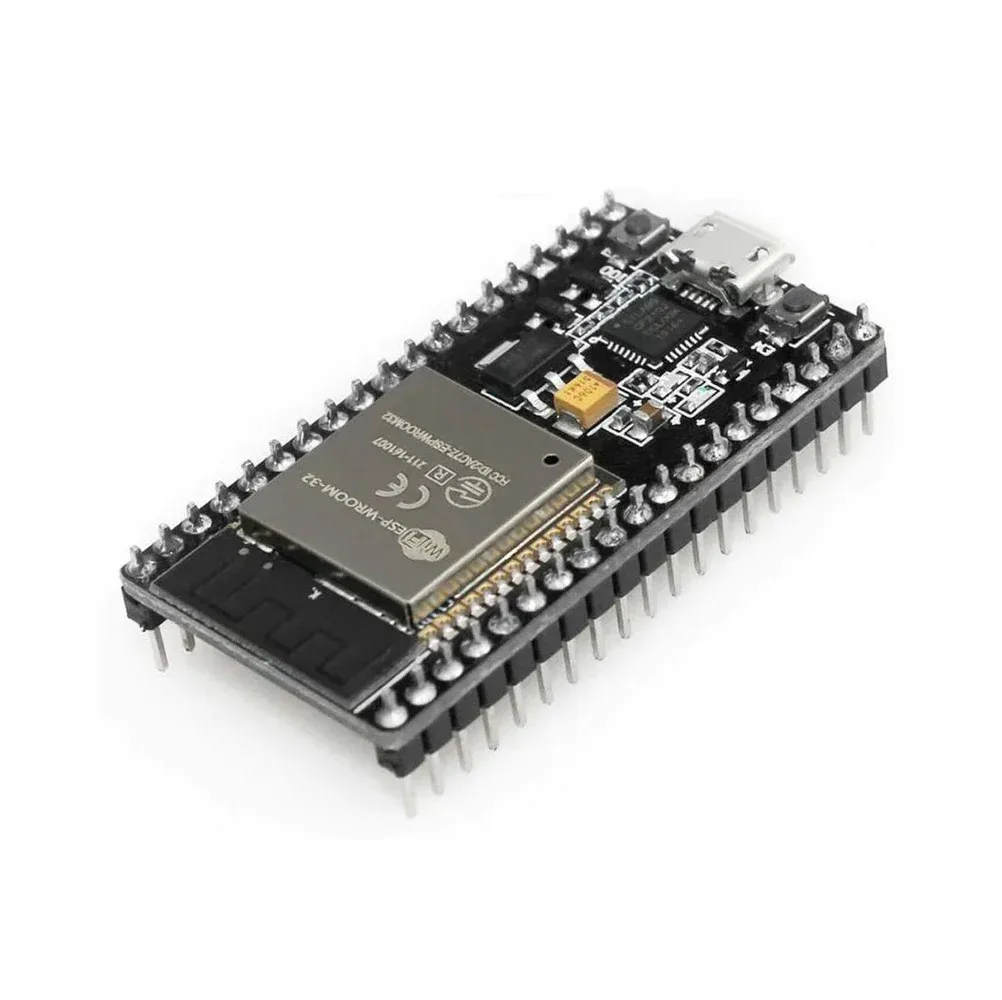

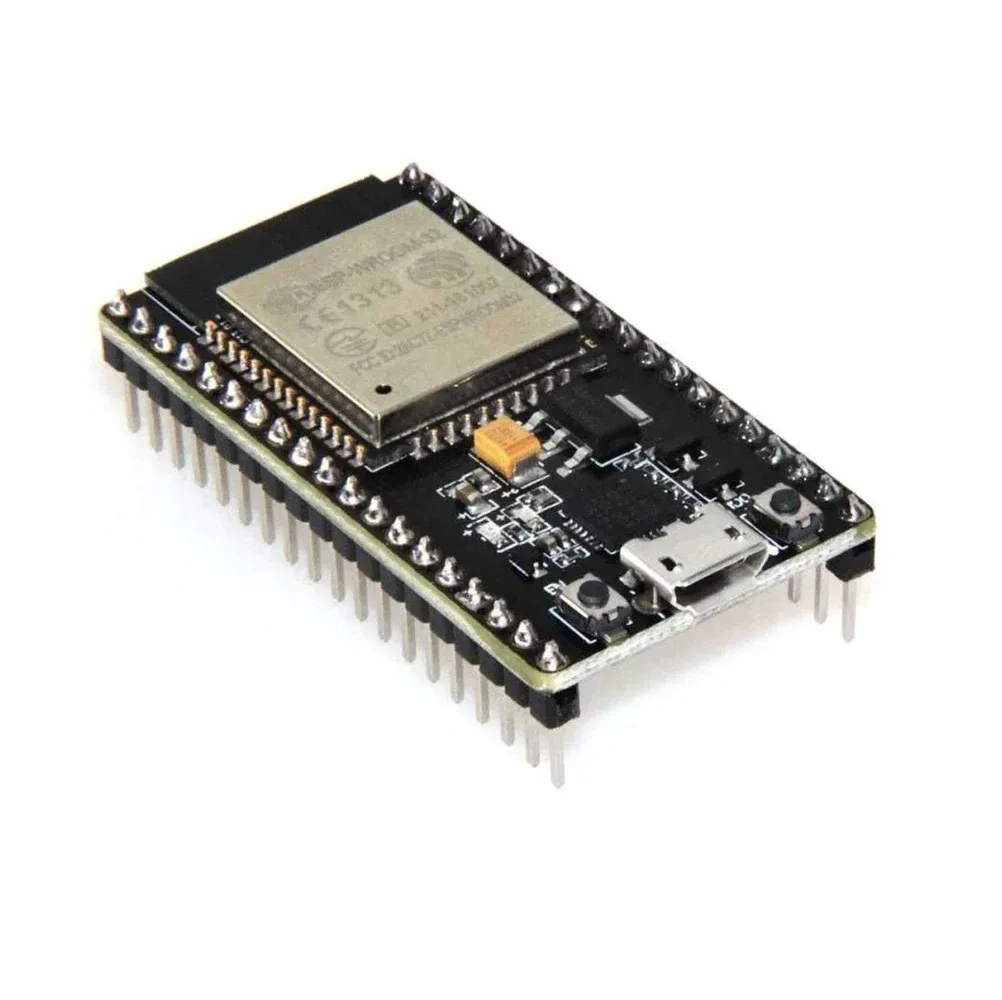

ESP32 Development board is based on the ESP WROOM32 WIFI Module.It’s a low-footprint, minimal system development board powered by the latest ESP-WROOM-32 module and can be easily inserted into a solderless breadboard.

It contains the entire basic support circuitry for the ESP-WROOM-32, including the USB-UART bridge, reset- and boot-mode buttons, LDO regulator and a micro-USB connector. Every important GPIO is available to the developer.

Applications:

1. Universal low power IoT sensor hub.
2. Home automation.
3. Universal low power IoT recorder.
4. Mesh network.
5. Video streaming of the camera.
6. Industrial wireless control

Features:

1. Small volume, easily embedded to other products
2. Strong function with support LWIP Protocol, Freertos
3. Supporting three modes:  AP, STA, and AP+STA
4. Supporting Lua program, easily to develop
5. Includes CP2102 USB-UART bridge

Specifications:

1. Model: ESP WROOM 32 MCU
2. Processor: Single or Dual core Tensilica Xtensa 32-bit LX6
3. Operating voltage (v): 2.3 ~ 3.6
4. Operating current (mA): 80
5. Clock Frequency (MHz): 80 ~ 240
6. Flash memory (MB): 4
7. Data Rate (Mbps): 54
8. SRAM Memory (KB): 512
9. BLE (Bluetooth Low Energy): Without (BLE)
10. Operating temperature: -40 °C – 85 °C
11. Dimensions: 5 x 2.5 x 1.5mm
12. Weight: 9g

Packages Includes:

1 x ESP WROOM 32 MCU Module WITHOUT BLE

ESP WROOM 32 MCU Module WITHOUT BLE Overview

The ESP WROOM 32 MCU Module WITHOUT BLE is a compact development board built around the ESP-WROOM-32 Wi-Fi module without Bluetooth functionality. It provides ready-to-use support circuitry—USB-UART bridge, voltage regulator, reset and boot buttons—making it ideal for embedding into Wi-Fi-based applications.

Key Features of ESP WROOM 32 MCU Module WITHOUT BLE

• Powered by a Tensilica Xtensa 32-bit LX6 core for efficient processing
• Onboard USB-UART bridge and micro-USB connector for easy programming
• Factory-integrated 3.3 V LDO regulator with wide input range
• Reset and boot-mode buttons for hassle-free firmware flashing
• Supports FreeRTOS and LWIP stack for real-time multitasking and TCP/IP networking
• Small footprint for seamless integration into prototypes and end products
• Genuine product with fast shipping from Zbotic across India

Applications and Use Cases

• Low-power Wi-Fi sensor hub collecting environmental data
• Home automation controllers for lighting, HVAC or security systems
• Mesh network nodes to extend coverage in smart buildings
• Remote data loggers uploading measurements to cloud servers
• Industrial wireless control panels for machinery monitoring
• Prototype boards for proof-of-concept Wi-Fi devices

How to Use ESP WROOM 32 MCU Module WITHOUT BLE

Place the module on a solderless breadboard or custom PCB, then connect via micro-USB cable to your computer. The onboard USB-UART bridge facilitates serial communication—install the recommended Espressif drivers if prompted. Use the boot and reset buttons to enter programming mode, then upload firmware using Arduino IDE or Espressif ESP-IDF. Once flashed, power the board with 5 V through USB or a regulated 3.3 V rail and develop your Wi-Fi application.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Does this module support Bluetooth LE?

No. The ESP WROOM 32 MCU Module WITHOUT BLE omits any Bluetooth radio and supports only Wi-Fi connectivity.

Which software frameworks can I use?

You can program this module with the Arduino IDE, Espressif ESP-IDF or any toolchain compatible with the Xtensa LX6 core and its SDK.

How do I power and flash the board?

Use a standard micro-USB cable to supply 5 V (regulated onboard to 3.3 V) and connect to your PC. The built-in USB-UART bridge handles firmware uploads when you press the boot button to enter flashing mode.
