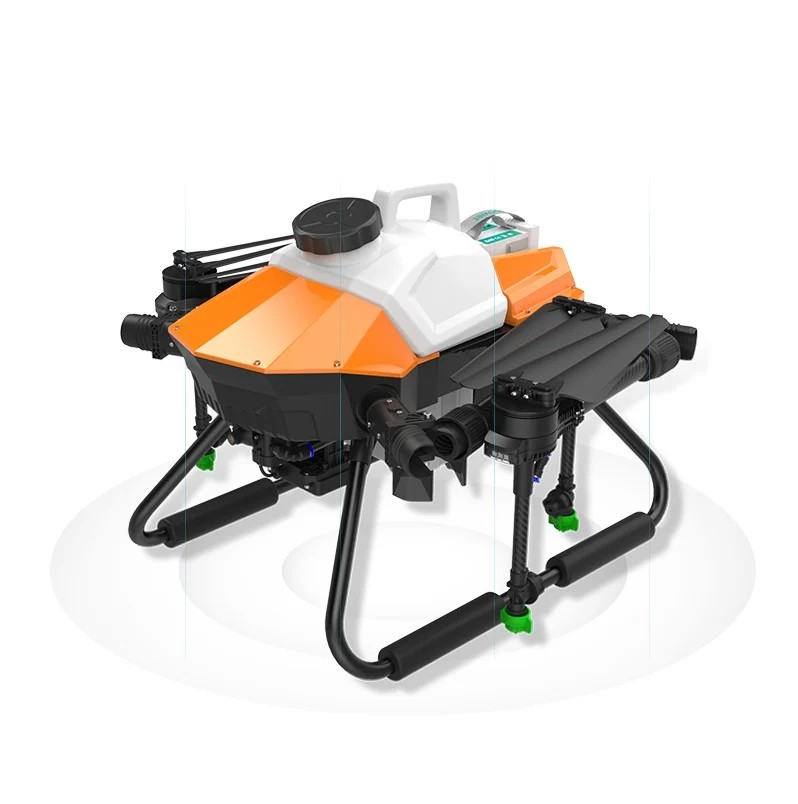

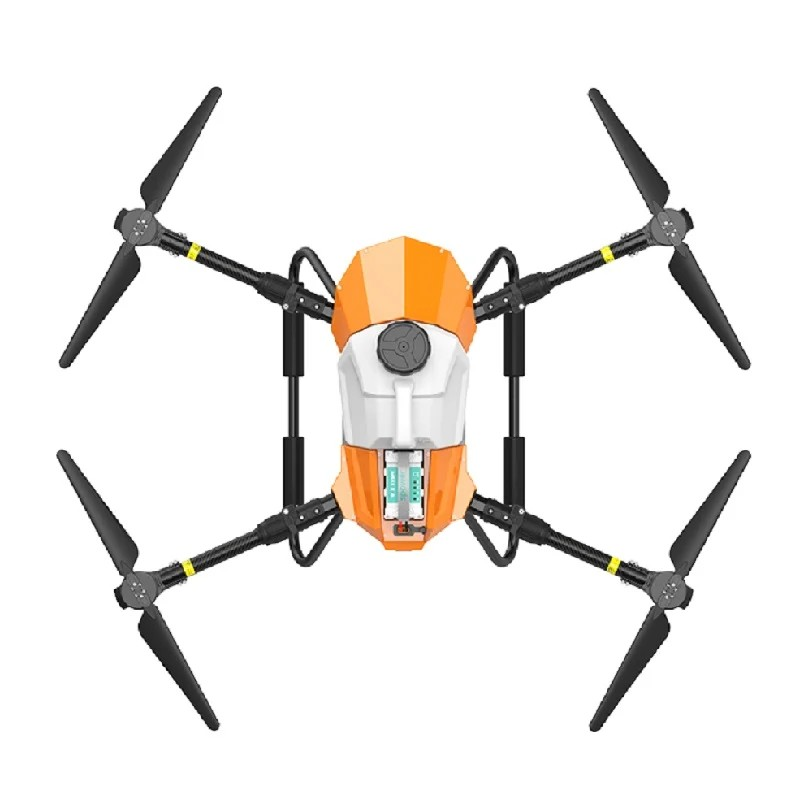

EFT G06 6L 4 Axis Agriculture Drone Frame
Introducing the EFT G06 6L 4 Axis Agriculture Drone Frame: a compact and efficient solution tailored for precision agriculture. With its integrated body design, quick-release features for both the battery and medicine box, and a unique three-stage layout, this drone frame offers unparalleled convenience and high performance. The rectangular layout maximizes spray range, while the ultra-small body ensures swift folding for easy transport. Built with a modular design for quick maintenance and the option for a fixed-height radar, this frame enhances accuracy in various applications.
Features:
- Integrated Body: Reduces parts for higher strength and improved waterproof performance.
- Three-Stage Compact Fuselage: Unique three-stage layout with front flight control, middle tank, and rear battery.

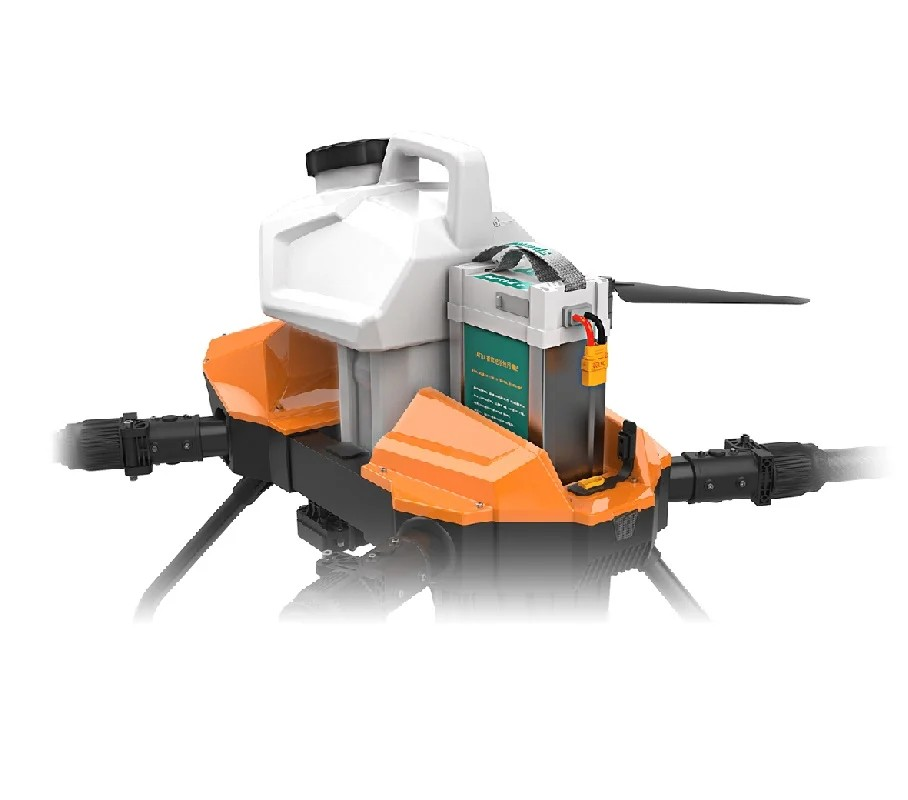

- Quick-Release Battery Medicine Box: Enables fast medicine and battery change, saving time and effort.
- Rectangular Layout Scheme: Maximizes nozzle distance for an increased spray range.

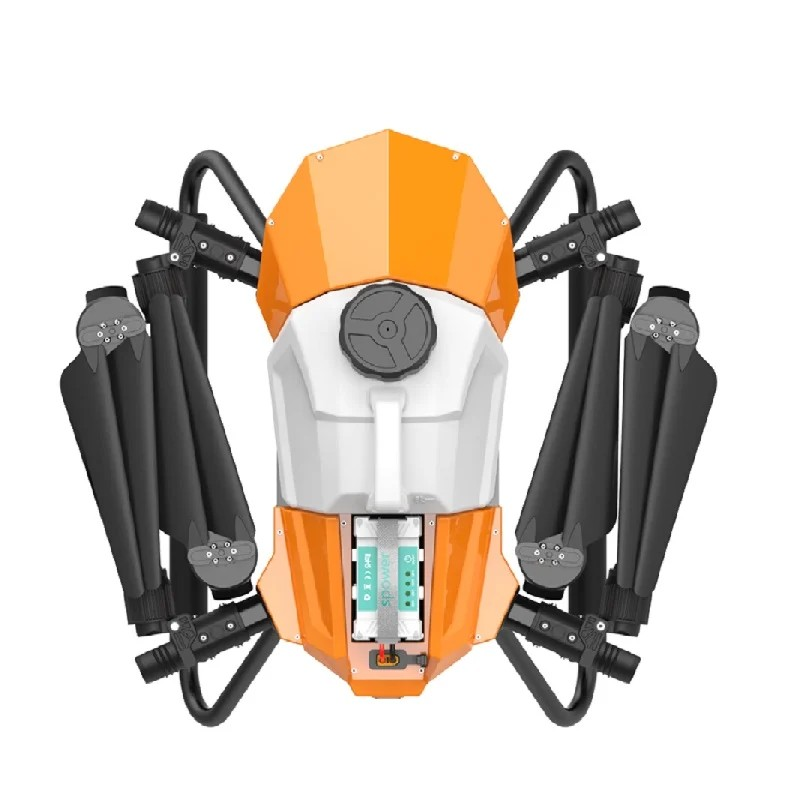

- Ultra-Small Body and Fast Folding: Compact design with quick folding for easy transit and transportation.
- Modular Design: Quick-disassembly modular design for convenient maintenance.
- Optional Fixed-Height Radar: Reserved position for millimeter wave radar, achieving accurate height-fixing and ground-like effects.
- Recommended motor X6Plus 24inch
- Recommended battery 8000mAh 12S
Recommended Motor: X6Plus 24inch
Recommended Battery: 8000mAh 12S
Specifications:
| Model | EFT G06 6L 4 Axis Agriculture Drone Frame |
|---|---|
| Tank Capacity (L) | 6 |
| Expanded Height (mm) | 477 |
| Expanded Length (mm) | 1562 |
| Expanded Width (mm) | 1255 |
| Folded Height (mm) | 477 |
| Folded Length (mm) | 650 |
| Folded Width (mm) | 612 |
| Color: | Orange |
| Arm Diameter (mm) | 30 |
Package Includes:
1 x EFT G06 6L 4 Axis Agriculture Drone Frame
