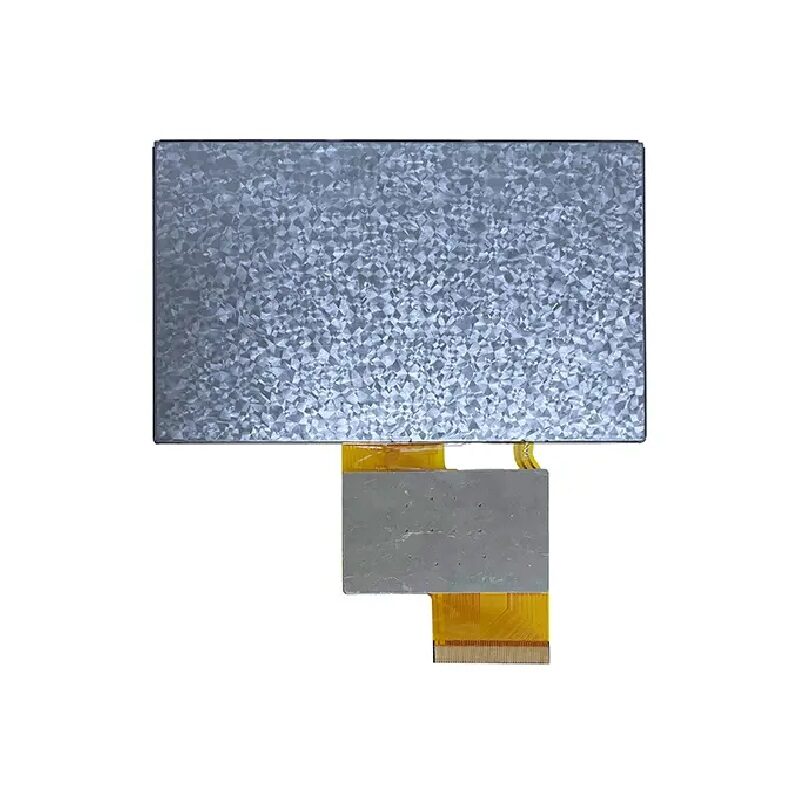

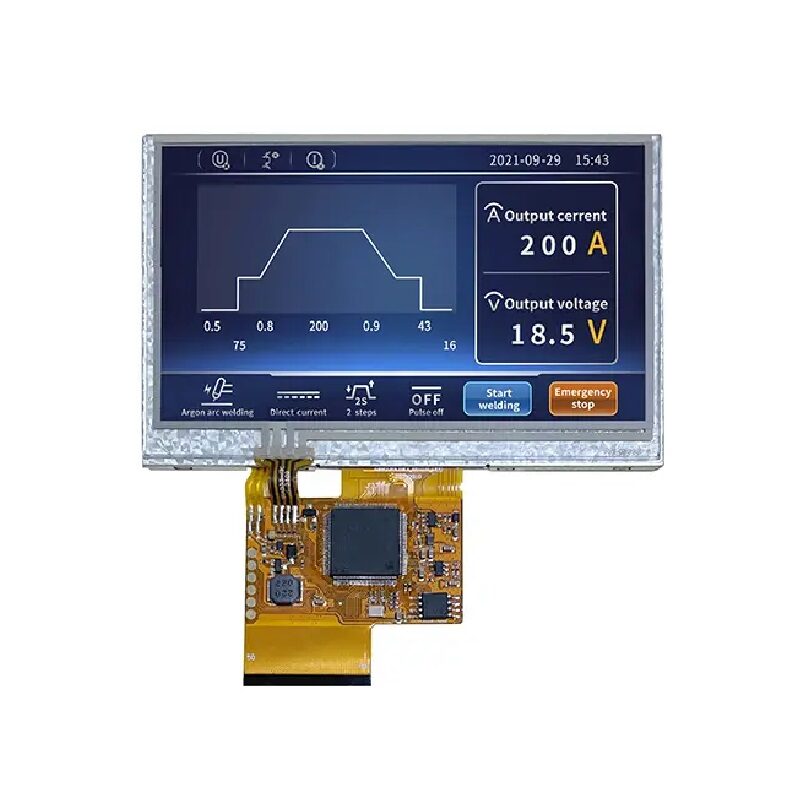

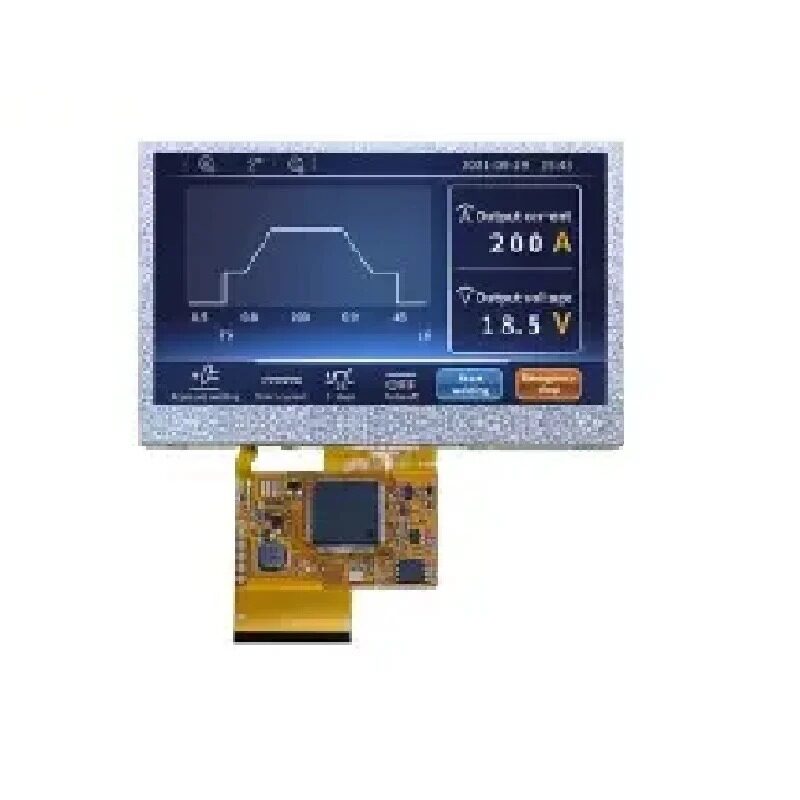

DWIN TN, resistive touch 4.3 inch COF Display

Name: DWIN TN, resistive touch 4.3 inch COF Display
Brand: DWIN
SKU: AI1819
Price: 1499.00 INR
Availability: OutOfStock
Rating: 4.65 (20 reviews)

Description:

This DWIN 4.3 inch COF SMART Screen is quite useful and is full features load SMART screen. It is called SMART screen because it comes with UI development Software from the manufacturer which gives user great and useful tools to develop their own UI with great Features. One can design UI Such as a button, slider, Graph, Text Display, etc. on their own.

User can Develop their own UI Using the software provided and pre-installed for it called TA / DGUS II ( DGUS II pre-installed) . Also, it supported with RGB color and 16.7M colors. It is also equipped with 200 nit brightness which makes it visible in daylight too.

It is compatible with All micro-controller Boards. which can be interface with I2C communications.

Features:

4.3 inch, 480×272 pixels resolution, 262K colors, TN-TFT-LCD, normal viewing angle.
Smart screen without TP, product thickness of only 3mm.
COF structure featured by light and thin structure, low cost and easy production.
50 pins interfaces, including IO, UART, CAN, AD, PWM from CPU core for easy secondary development.
Suitable for consumer applications with simple functions, mild working environment, and large enough consumption

Datasheet:

Packages includes:

1 x DWIN TN, resistive touch 4.3 inch COF Display

About Dwin Tn, Resistive Display

DWIN TN, resistive touch 4.3 inch COF Display is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by DWIN, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

Brand: DWIN
SKU: AI1819
Category: HMI LCD Display

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about Dwin Tn, Resistive Display and other products.

Applications

Dwin Tn, Resistive Display can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your Dwin Tn, Resistive Display today and start building.

DWIN TN, resistive touch 4.3 inch COF Display Overview

The DWIN TN 4.3 inch COF Display is a compact smart screen with an integrated resistive touch panel, ideal for embedded HMI applications. It comes pre-installed with the DGUS II UI engine, allowing you to design and load custom interfaces directly into its onboard memory.

Key Features of DWIN TN, resistive touch 4.3 inch COF Display

4.3 inch COF (Chip On Film) TFT display with resistive touch panel
High brightness at 200 nits for good visibility in various lighting conditions
Supports 16.7 million colors for vibrant UI graphics
5 V operating voltage (4.5 V–5.5 V) with low power consumption
16 MB FLASH and 128 KB RAM onboard for storing images and UI logic
Pre-installed TA/DGUS II development environment for rapid interface design
Fast shipping across India when ordered from Zbotic

Applications and Use Cases

Industrial control panels displaying machinery status and diagnostics
Home automation touch screens for lighting, HVAC, and security systems
Portable handheld instrumentation requiring a responsive user interface
Medical devices showing patient data, settings, and alerts
DIY electronics and robotics projects with custom graphical dashboards

How to Use DWIN TN, resistive touch 4.3 inch COF Display

Begin by connecting a regulated 5 V power supply to the display’s power pins, then link its interface pads to your microcontroller or processor according to the COF pinout. Use the DGUS II software on your PC to design screens, upload images and control logic into the 16 MB FLASH, and test touch inputs directly through the development tool before deployment.

Why Buy from Zbotic?

Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Can I update the UI design after deployment?

Yes. Use the DGUS II development software to modify your graphics and logic on your PC, then transfer the updated .bin file to the display’s FLASH via serial or USB-to-TTL interface.

What is the connector type on the COF display?

The display uses a Chip-On-Film flex connector with exposed pads. You can solder it directly or use a compatible FFC/FPC adapter board for easy prototyping.

How do I calibrate the resistive touch panel?

Touch calibration routines can be implemented in your application firmware. DGUS II also provides touch-calibration sample projects that guide you through adjusting the X/Y response curves.

Tags: Buy Online India HMI Display HMI LCD Display Nextion Touch Display Zbotic

Technical Specifications

Brand	DWIN
Display Size	4.3"
SKU	AI1819
Weight	0.135 kg
Availability	Out of Stock

Applications & Use Cases

The DWIN TN, resistive touch 4.3 inch COF Display is a versatile hmi lcd display used across a wide range of applications including industrial HMI panels, factory automation displays, smart home control, CNC machine interfaces, and medical equipment displays.

Common use cases:

Building a touchscreen control panel for machinery
Displaying real-time sensor data in a factory
Creating a smart thermostat interface

This product is ideal for industrial automation engineers and embedded system developers.

Technical Tip: HMI displays with built-in controllers (Nextion, STONE) simplify development — just send serial commands from your MCU.

Shipping & Delivery

Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Genuine DWIN product sourced from authorized channels

Weight	0.135 kg

15 Days Warranty

Please note that this item is only covered by a standard supplier warranty against manufacturing defects for a period of 15days from the time of delivery. It is important to understand that only manufacturing defects are covered under this warranty, and any other issues will not be considered for reimbursement or replacement. We strongly advise inspecting the product upon delivery to ensure it meets your expectations. In case of any manufacturing defects, we guarantee reimbursement or replacement.
