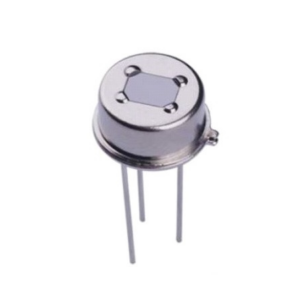

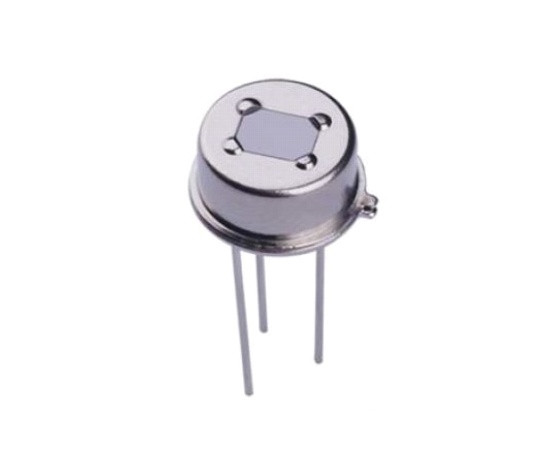

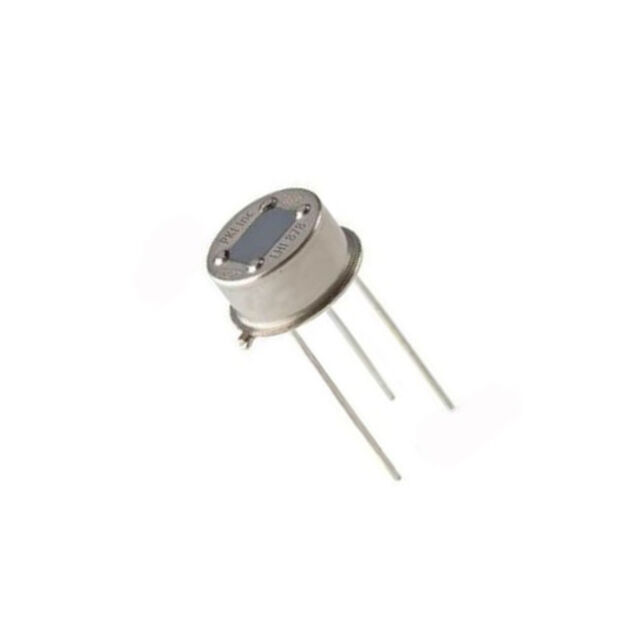

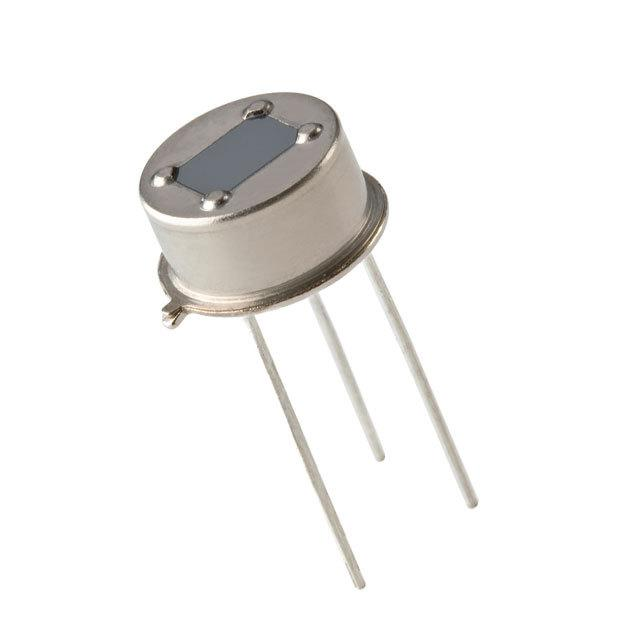

Digital Smart Pyroelectric Detector AS312
- The AS312 is a compact and intelligent motion detector that utilizes digital technology. It features a built-in electronic circuit, making it a complete and ready-to-use solution. With just a power source and a power switch, it functions effectively as a motion-activated switch. The AS312 has a built-in delay time of 2 seconds, allowing for reliable motion detection.
Features
- Digital signal Processing （DSP）
- Power adjustable, save more energy.
- Two-way differential high impedance sensor input and temperature
compensation - Built-in filter, screen the interference by other frequency
- Excellent power supply rejection, Insensitive to RF conduction
interference - Schmidt REL output
Applications
- Intelligent appliance
- Alarms
- Motion detector
- Sensor lamp, Sensor switch
- Security system
- Automatic control etc.
Package Includes
- 1 x Digital Smart Pyroelectric Detector AS312
Datasheet
Digital Smart Pyroelectric Detector AS312 Overview
The Digital Smart Pyroelectric Detector AS312 is a compact motion sensor module that detects infrared changes using digital signal processing. Designed for easy integration, it serves as a motion-activated switch in security systems, lighting controls, and smart appliances.
Key Features of Digital Smart Pyroelectric Detector AS312
- Wide supply voltage range of 2.7 – 3.3 V for flexible powering options
- Ultra-low working current (12–20 µA) for energy-efficient operation
- Fixed on-time and lock-time of 2.3 s for reliable motion-triggered output
- Two-way differential high-impedance inputs with temperature compensation
- Built-in DSP filter rejects interference and provides stable detection
- Schmitt relay output stage with IOH/ IOL ±10 mA drive capability
- Genuine product, fast shipping from Zbotic
Applications and Use Cases
- Automated hallway and corridor lighting control
- Battery-powered security alarms and perimeter sensors
- Smart home appliances for motion-triggered standby wake-up
- Energy-saving HVAC control based on room occupancy
- Automatic door or gate activation systems
- Robotics and industrial equipment presence detection
How to Use Digital Smart Pyroelectric Detector AS312
Connect the AS312’s VDD pin to a stable 2.7–3.3 V supply and its GND pin to ground. Wire the digital OUT pin to your MCU’s input or relay driver. Mount the sensor in a coverage area, observing a clear field of view. Once powered, the module’s built-in DSP and filter will trigger the output high for 2.3 s upon detecting motion, then enter a 2.3 s lock time before rearming.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What supply voltage range does the AS312 support?
The AS312 operates on a supply voltage between 2.7 V and 3.3 V, making it compatible with most low-voltage power sources and lithium-based batteries.
What type of output signal does the detector provide?
The module offers a digital Schmitt trigger output that swings high or low, capable of sourcing or sinking up to ±10 mA, suitable for direct MCU inputs or relay drivers.
How long is the motion detection pulse and lock time?
Upon detecting infrared motion, the AS312 output remains active for an on-time of 2.3 s, followed by a non-adjustable lock time of 2.3 s before it can retrigger.
