DC To AC SSR-10DA Solid State Relay Module 3-32 VDC /24-380VAC 10A
This is DC To AC SSR-10DA Solid State Relay Module 3-32VDC/24-380VAC 10A. A solid-state relay (SSR) allows you to control high-current AC loads from lower voltage DC control circuitry. Solid-state relays have several advantages over mechanical relays.
One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can be switched much faster and for much longer periods without wearing out.

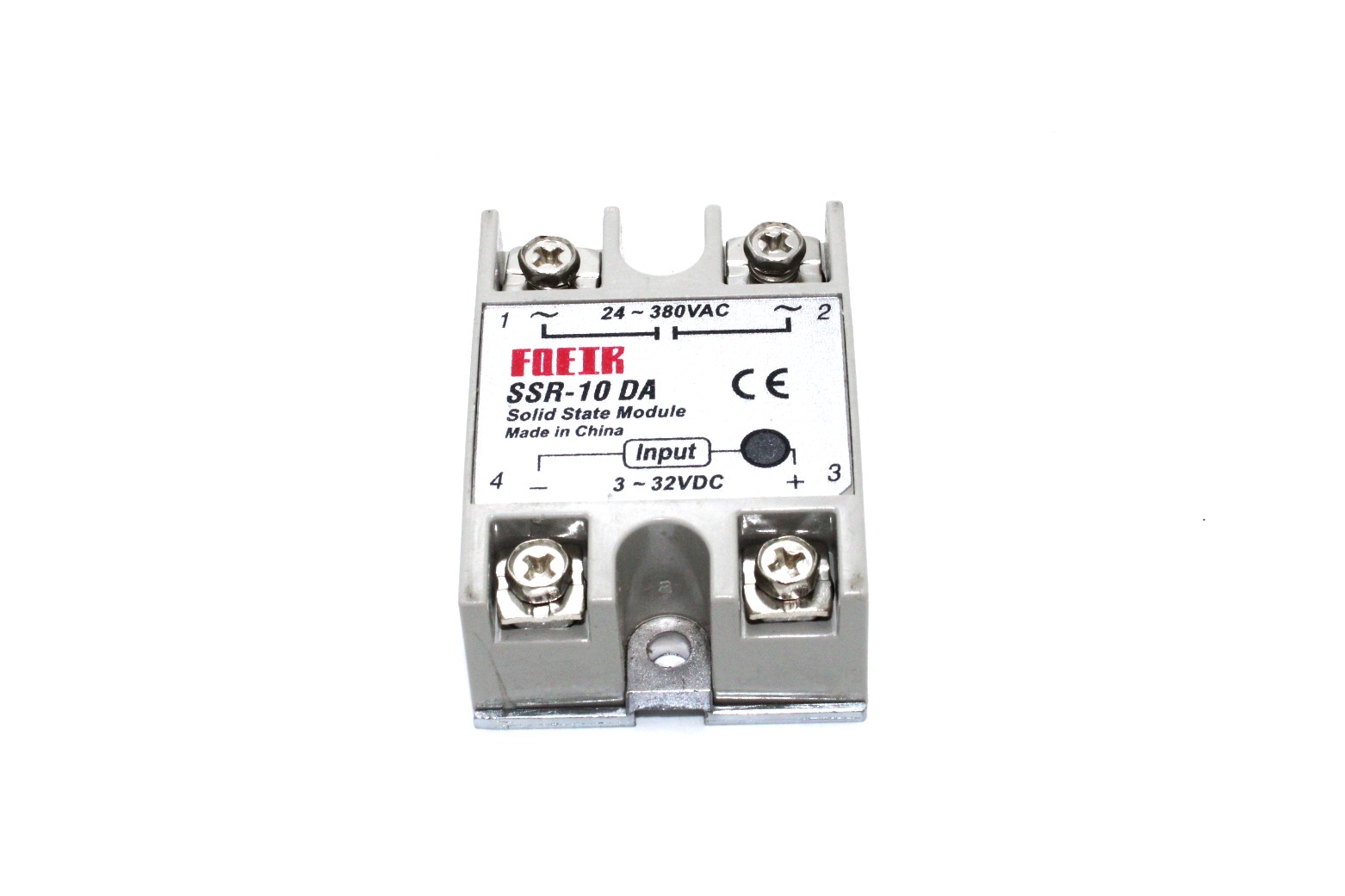

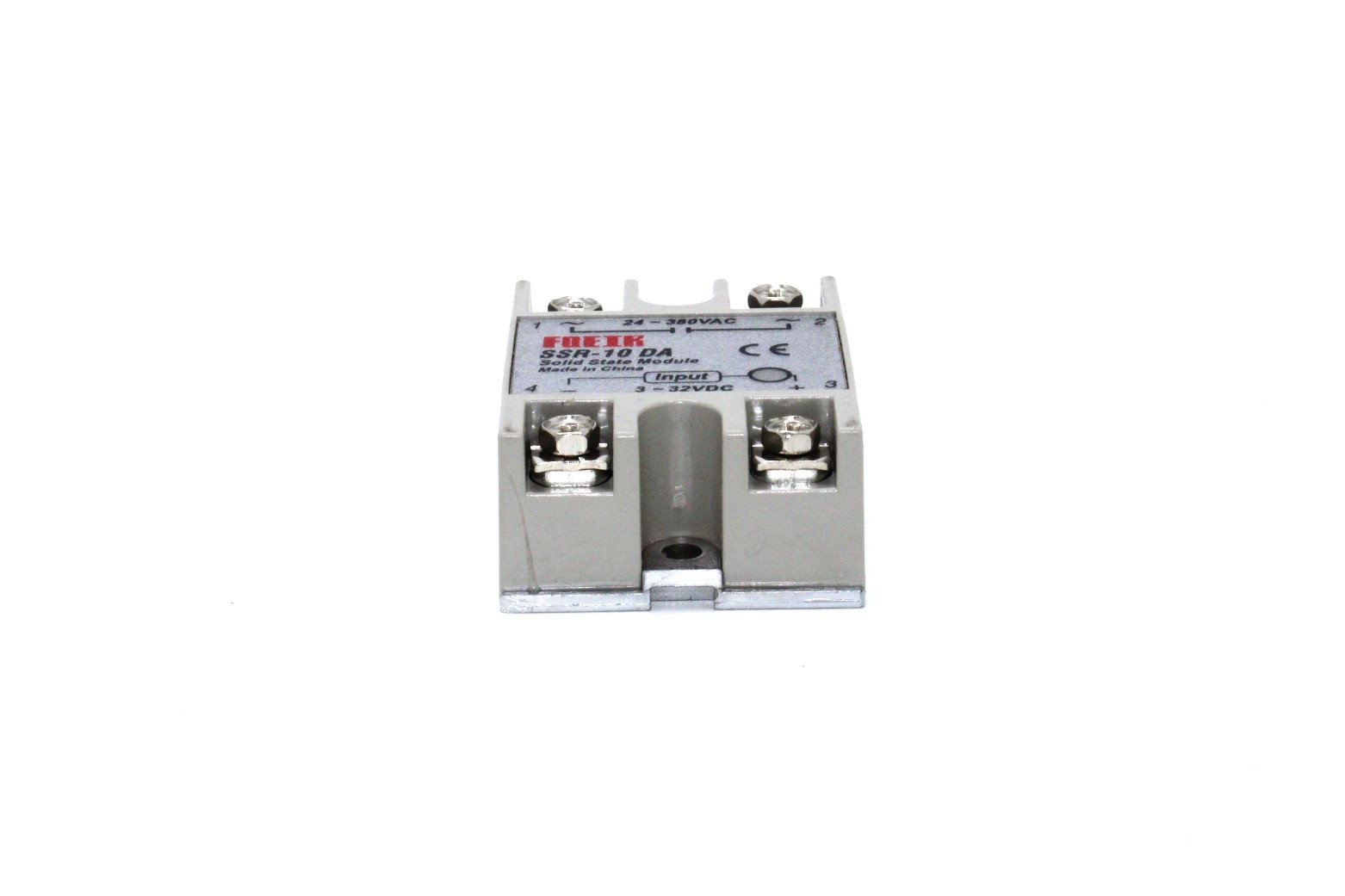

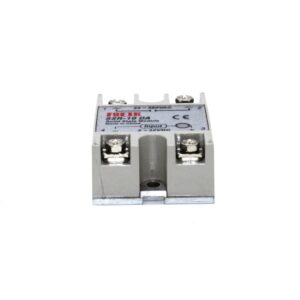

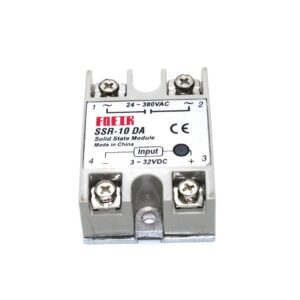

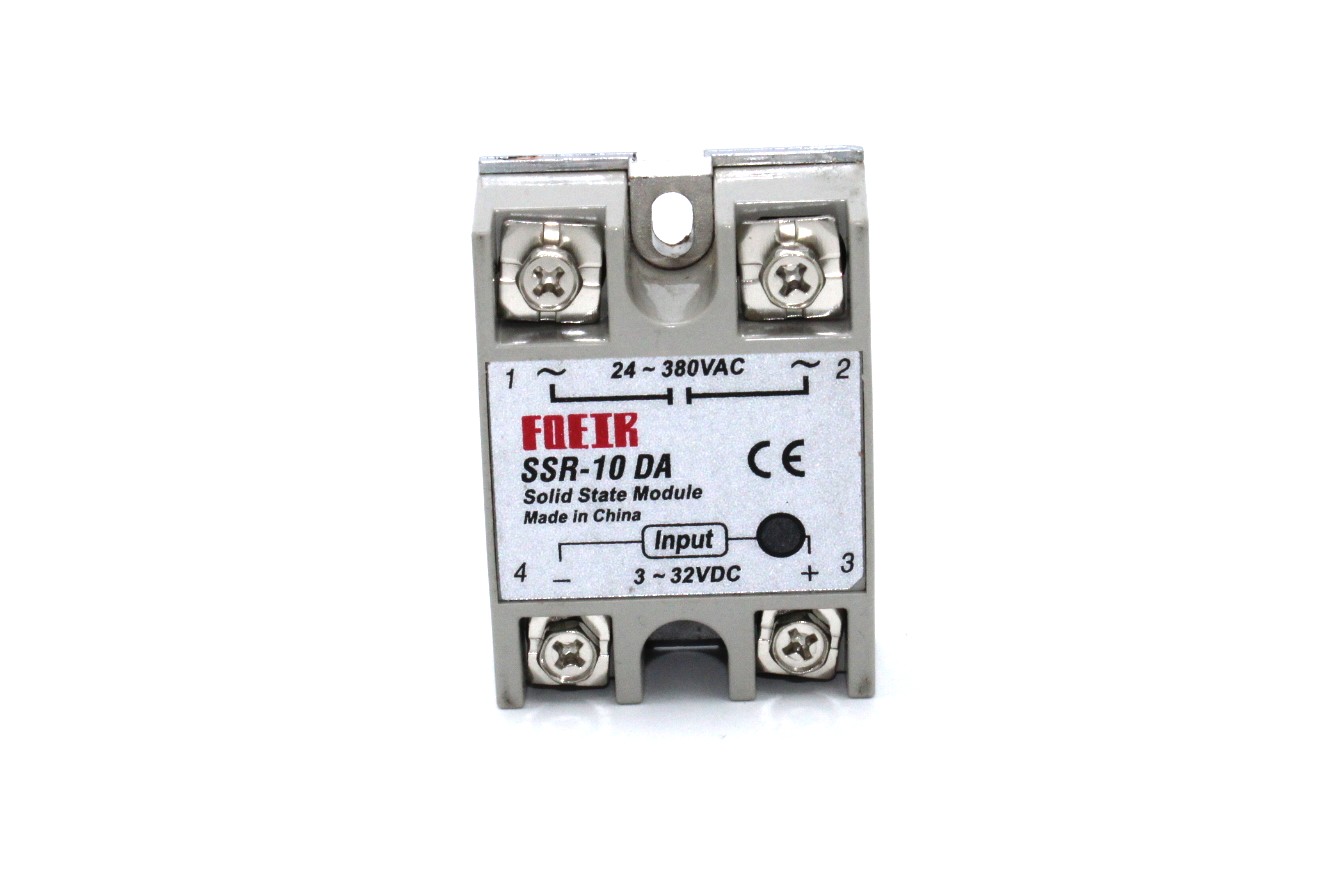

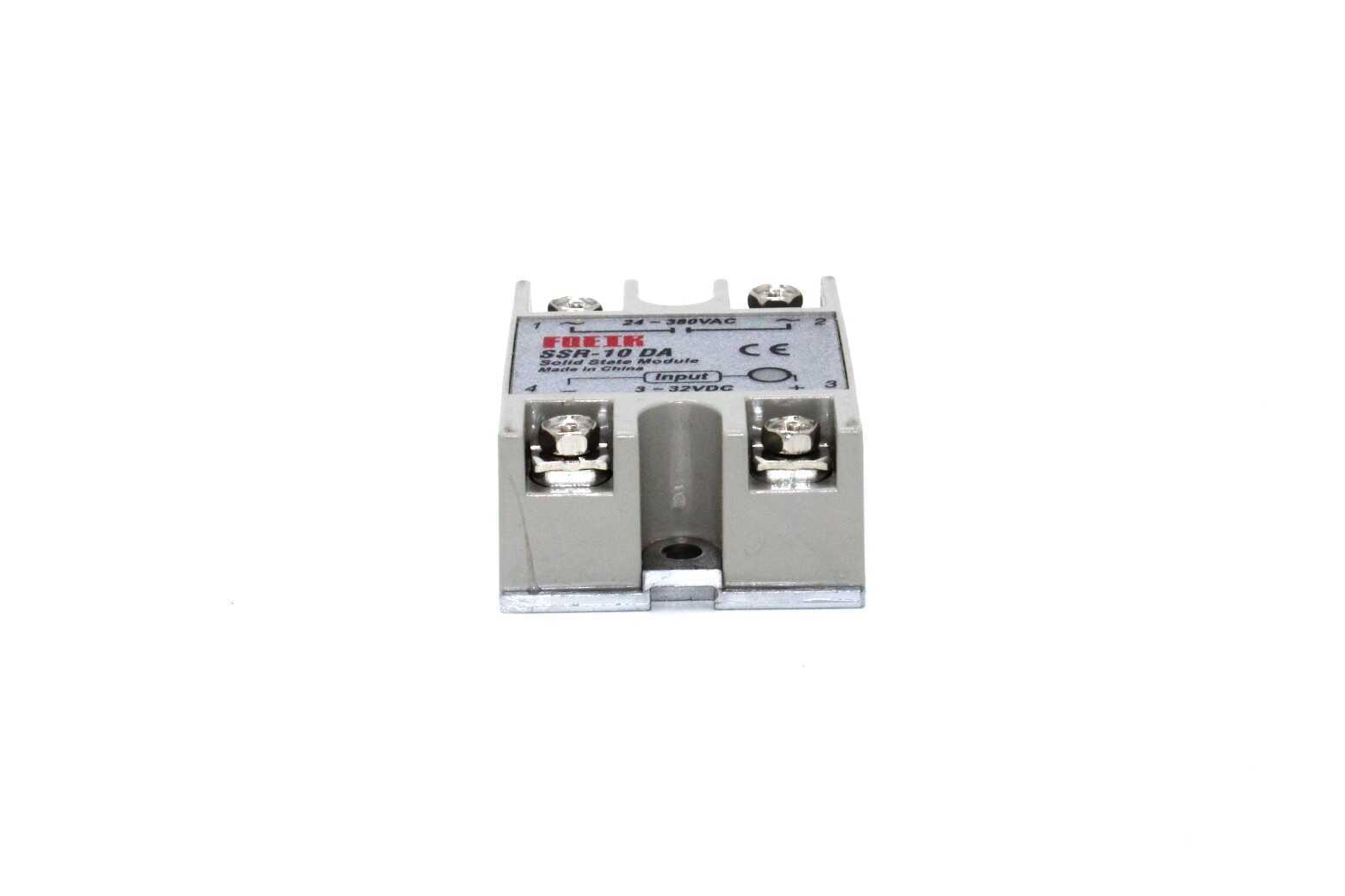

This particular SSR can switch current loads of up to 10A with a 3-32V DC input and a zero cross trigger control method. Each one of these relays is equipped with four screw terminals (for use with ring or fork connectors) and a plastic cover that slides over the top of the relay to protect the terminals.
Features :
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size designed to offer users maximum simplicity.
Specifications:
| Model | SSR-10DA |
|---|---|
| Rated Load Current (A) | 10 |
| Trigger Voltage (VDC) | 3-32 |
| Switching Voltage (VAC) | 24-380@10A |
| Color: | Light Gray |
| Length (mm): | 60 |
| Width (mm): | 45 |
| Height (mm): | 24 |
| Weight (g): | 92 |
Package includes :
1 x DC To AC SSR-10DA Solid State Relay Module 3-32 VDC /24-380VAC 10A
