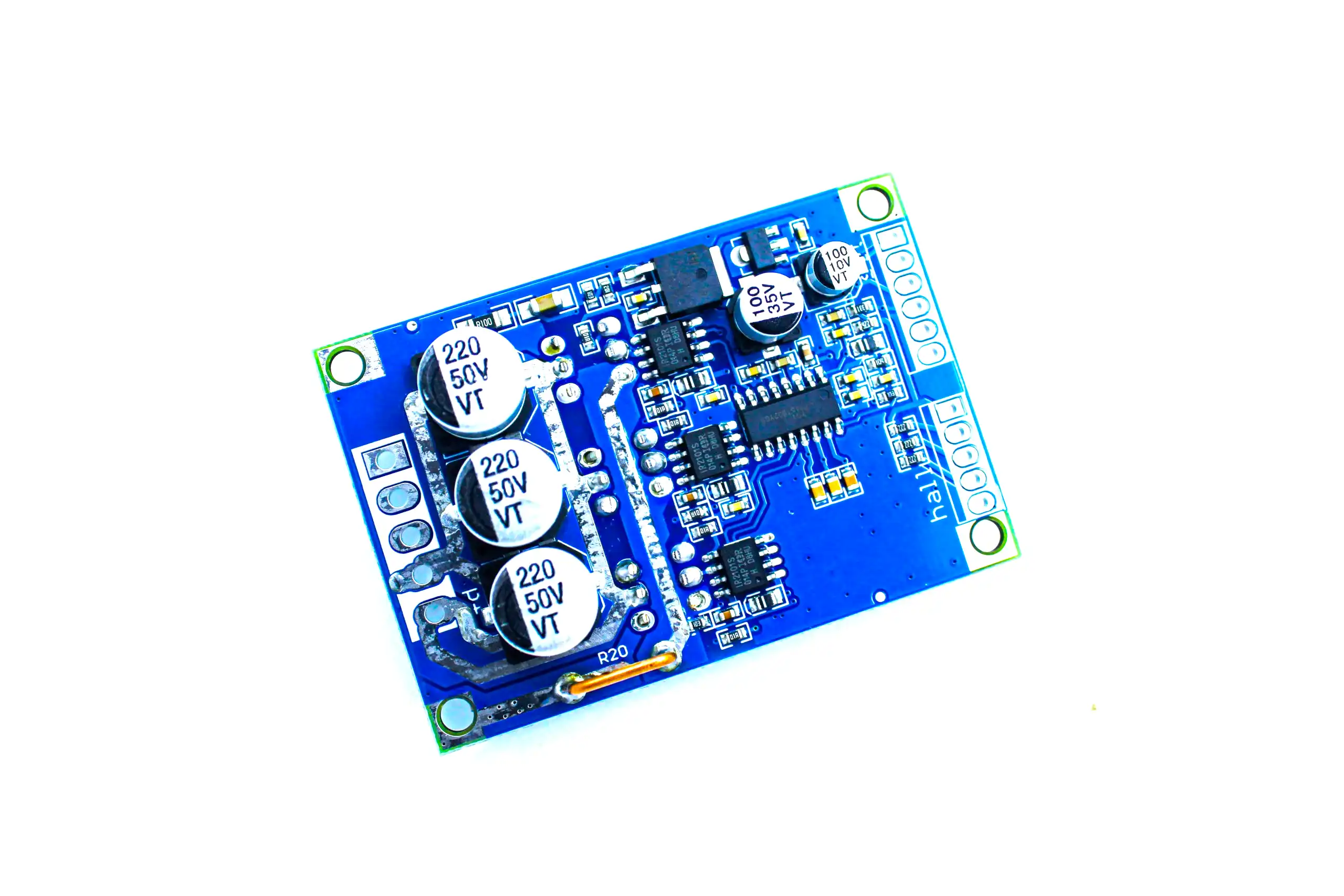

DC 12V-36V 500W Brushless Motor Controller Hall Balanced Car Driver Board
Presenting the DC 12V-36V 500W Brushless Motor Controller Hall Balanced Car Driver Board, a crucial device for managing brushless motors in balanced vehicles and other diverse applications.
This controller functions within a DC 12V to 36V voltage range, ensuring consistent power supply to brushless motor setups. It boasts a maximum driving power of 500W and an operating current of 15A or less, promoting efficient and steady motor operation.
With integrated hall sensors, the controller provides accurate speed and direction management, facilitating smooth and even motor activity. It incorporates stall protection, over-current protection, and steering control features, which bolster operational safety and dependability.
Its compact PCB layout, measuring 63x42x17mm, allows for seamless incorporation into various projects, delivering durable performance in demanding conditions.
Due to its extensive capabilities and dependable functionality, the DC 12V-36V 500W Brushless Motor Controller stands out as a superior option for the power management and control of brushless motors across multiple applications.
Features
- SMT process, high quality
- DC brushless motor driver board
- Operating voltage: DC 12V to 36V; operating current <=15A
- With speed regulation function, 0.1V-5V speed voltage
- Stall protection, over-current protection, enable control, steering control and speed control signal
Pin Connections
Power Terminal OUT:
- VCC (positive power supply)
- GND (negative one)
- MC (motor phases W)
- MB (motor phases V)
- MA (motor phases U)
SET for the Control Side:
- GND: Control terminal ground
- VR: The governor end 0-5V (corresponding to 10% of motor speed – 100%)
- ZF: Reversing control (connected to 5V or ground can change the motor rotation direction)
- M: Tachometer pulse output (depending on the number of motor poles corresponding to the number of pulses per revolution of the output number)
- EL: Enable control terminal (connected to 5V or ground running then 5V, grounding the motor stops)
HALL for the Hall Terminals:
-
- 5V, Hall power positive
- Ha, Hall signal
- Hb, Hall signal
- Hc, Hall signal
- GND, Hall negative
Specifications:
| Specifications | Details |
|---|---|
| Operating Voltage | DC 12V-36V |
| Operating Current | <=15A |
| Drive Power | <=500W |
| Speed Voltage | 0.1V-5V |
| Operating Temperature | -40~85 degrees Celsius |
| Humidity | <=90%RH |
Application Notes
Note: Due to different Hall motor manufacturers, the Hall line order may show difference from the pictures, you need to adjust the sequence. If the line sequence is wrong, it will not work as expected, such as start-up abnormally, with large current or even burn the driver board

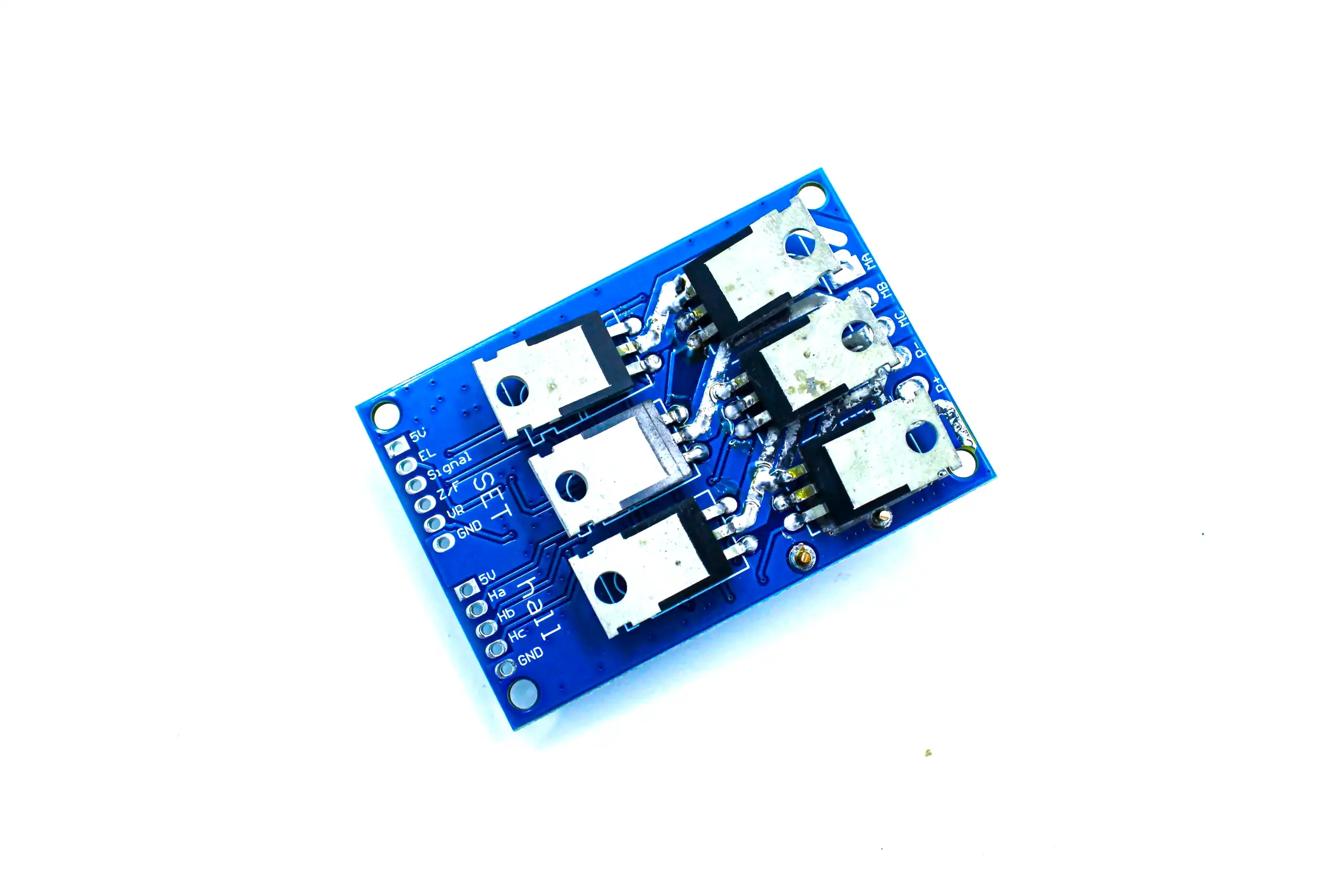

Tips: If you use less than 60W, without additional heat sink; please make sure to add heat sink when exceed 60W. When installing the heat sink, you must pay attention to the insulation for 6pcs MOS on the back of module. It will damage the driver board permanently without insulation
Note: Product Images are shown for illustrative purposes only and may differ from actual product.
Package Includes
- 1 x DC 12V-36V 500W Brushless Motor Controller Hall Balanced Car Driver Board. (Board comes in green/blue colour and will ship randomly any of the colour).
