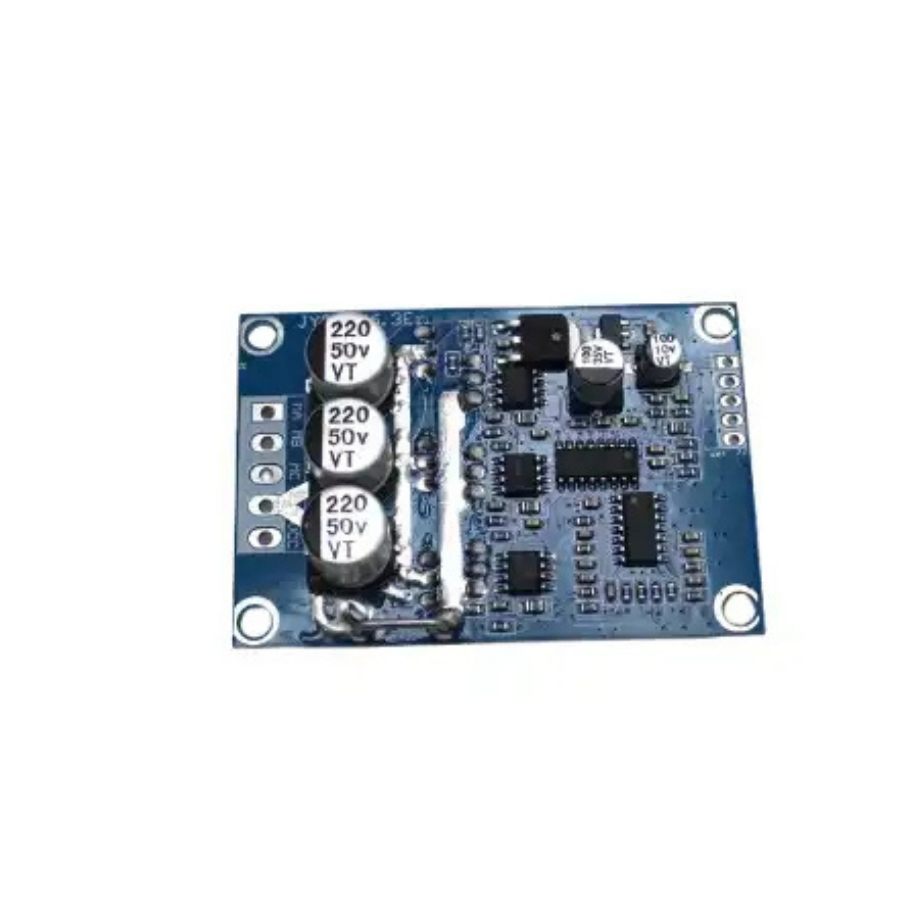

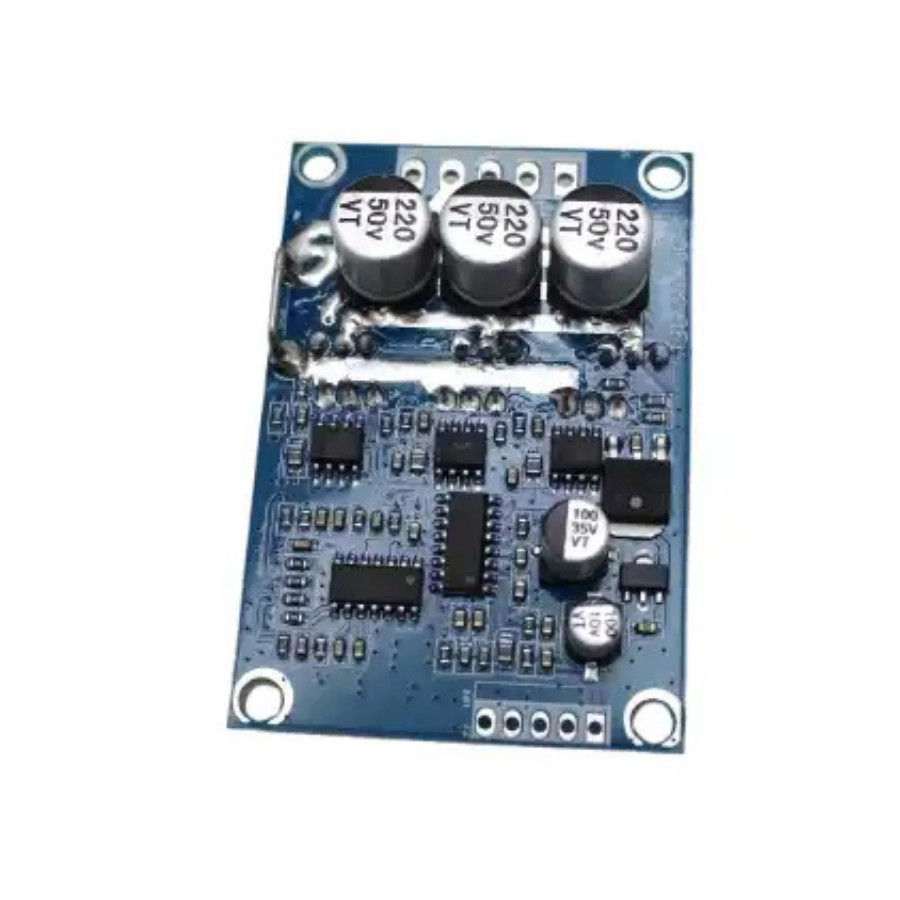

DC 12V-36V 500W Brushless Motor Controller Driver Board

₹903.0 ( +GST 18% )

  • ⚡ Dispatched within 24 hours*
  • 💸 COD Orders above 250rs*
  • ✅15 days warranty*
  • 🛠️ Dedicated Technical Support Team
  • 🚚 Free shipping on orders above Rs 499/- for b2c customers

QUICK OVERVIEW

  1. Drive plate type: JYQD_V6.3E1
  2. Voltage range: 12V-36V
  3. Peak current: 20A
  4. PWM speed control: PWM frequency 1-20KHZ
  5. Duty cycle: 0-100%
  6. Drive power: ≤ 500W (related working voltage)

For B2B Enquiry Email Us:- [email protected]

2 in stock

Frequently Bought Together
This item: DC 12V-36V 500W Brushless Motor Controller Driver Board

2 in stock

₹903.0 ( +GST 18% )
₹903.0 ( +GST 18% )
1 × 30A 1-6s Electronic Switch PWM 3.7-27V Input

1 in stock

₹310.0 ( +GST 18% )
1 × DC 12V-36V 500W Brushless Motor Controller Hall Balanced Car Driver Board

83 in stock

₹900.0 ₹899.0 ( +GST 18% )
30A Brushless Motor speed controller ESC For Airplane Quadcopter
1 × 30A BLDC ESC- Brushless Electronic Speed Controller

59 in stock

₹357.0 ( +GST 18% )
Compare
Add to wishlist
SKU: AI0463 Category: (ESC) Drone Speed Controller
Share:
  • Description
  • Additional information
  • Reviews (0)
  • COO Info
Description

Product Description

Brushless Motor Controller DC 12-36V 500W PWM Driver Board is specifically made for quadcopters and multi-rotors. Which provides faster and better motor speed control giving better flight performance compared to other available ESCs.

This Brushless Motor Controller DC 12-36V 500W PWM Driver Board is used for the 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly. If the driving effect is not good (such as starting jitter, reversing, the motor no-load working current is too large, the speed is not stable, the efficiency is low, and can’t start up with a load) Customers can adjust the resistance and capacitance of the driver board according to the actual situation to achieve the best driving effect.

Specifications and Features :

  1. Protection: Overload protection, locked-rotor protection, over-current protection
  2. Analog voltage speed regulation: 0-5V
  3. Operating temperature: -40 ~ +85℃
  4. Drive power: ≤ 500W (related working voltage)
  5. Speed control function: voltage speed regulation or single-chip
  6. microcomputer control PWM speed regulation

Wiring Diagram:



wiring diagram



Pin Connection :
5V -Driver board internal output voltage
Signal – Motor speed pulse signal output port, 5V pulse signal.

Control port:

Z/F– Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is a reverse direction.
VR -Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm, connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
GND—Used for Drive board internal control.

Power port :

MA —-motor phase A
MB —- motor phase B
MC—- motor phase C
GND—-DC-
VCC—-DC +
3. Use shielded wires if the drivers’ board has more than 50 cm distance from the motor, otherwise, it may lead to abnormal driving, affecting the normal use.
4.Control port distance: 2.54mm,Power port distance: 3.96 mm
5. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.
Application notes:
  1. Confirm that the voltage and power parameters of the motor do not exceed the range of the driver board as specified.
  2. The JYQD-V6.3E1 driver board is a bare board without housing and a heatsink. If the power of the motor is below 60W, it does not need to add a heatsink, It only needs to ensure normal ventilation and wall insulation. If the power of the motor is more than 100W, it must add a heatsink.
  3. Please take note that the JYQD-V6.3E1  driver board has no anti-reverse connection protection, it will permanently damage the driver board if reversed polarity connection.
  4. The 5V output port on the driver board prohibits connecting an external device. It is only applicable to the external potentiometer and switch of the board for speed regulation and reversal.
  5. The “Signal” terminal on the JYQD-V6.3E1 driver board is the motor speed pulse output signal (push-pull output), and the maximum output current is less than 5mA.

Package Includes :

1 x DC 12V-36V 500W Brushless Motor Controller Driver Board

Additional information
Weight 0.0448 kg
Reviews (0)

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

COO Info

Country Of Origin – China
