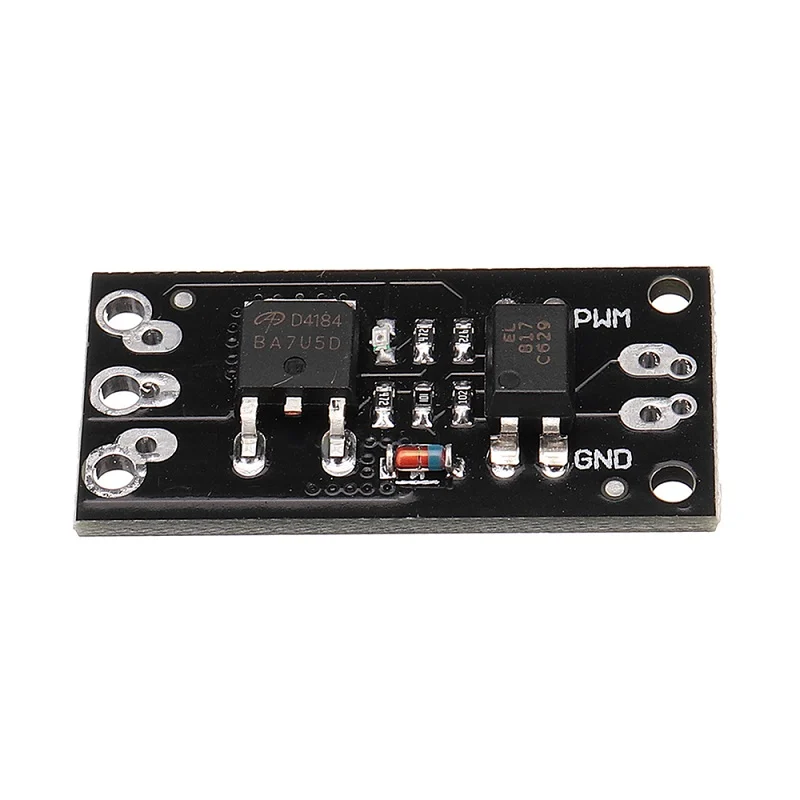

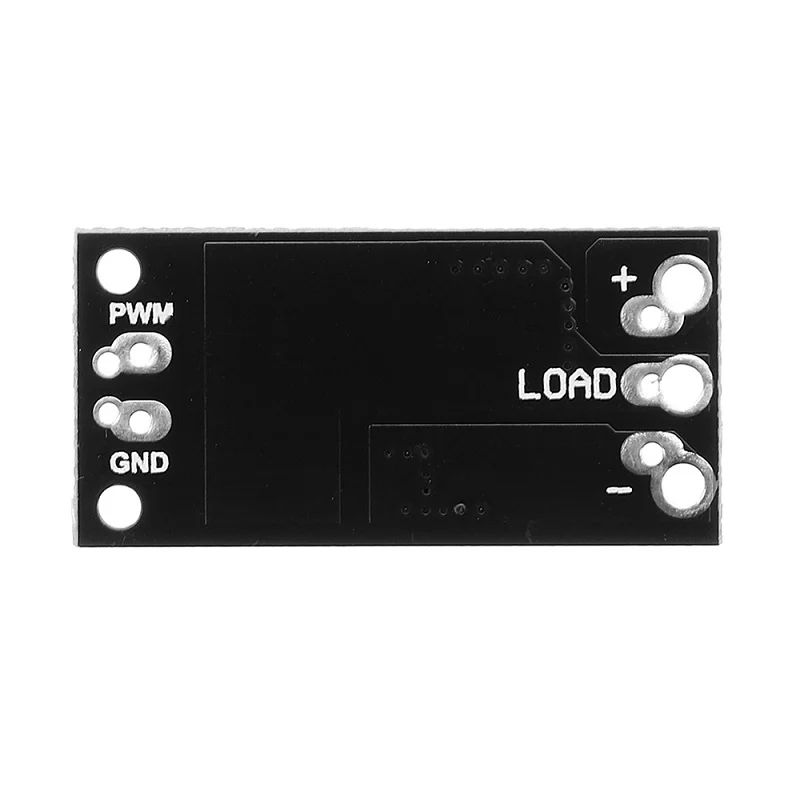

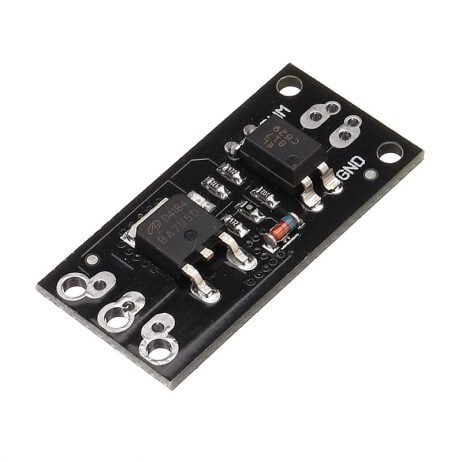

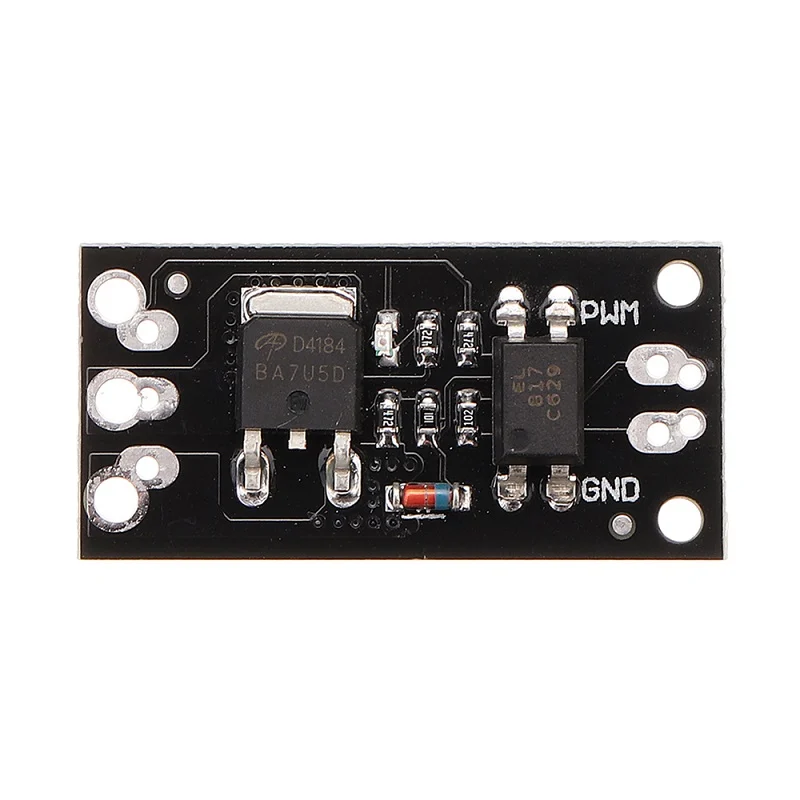

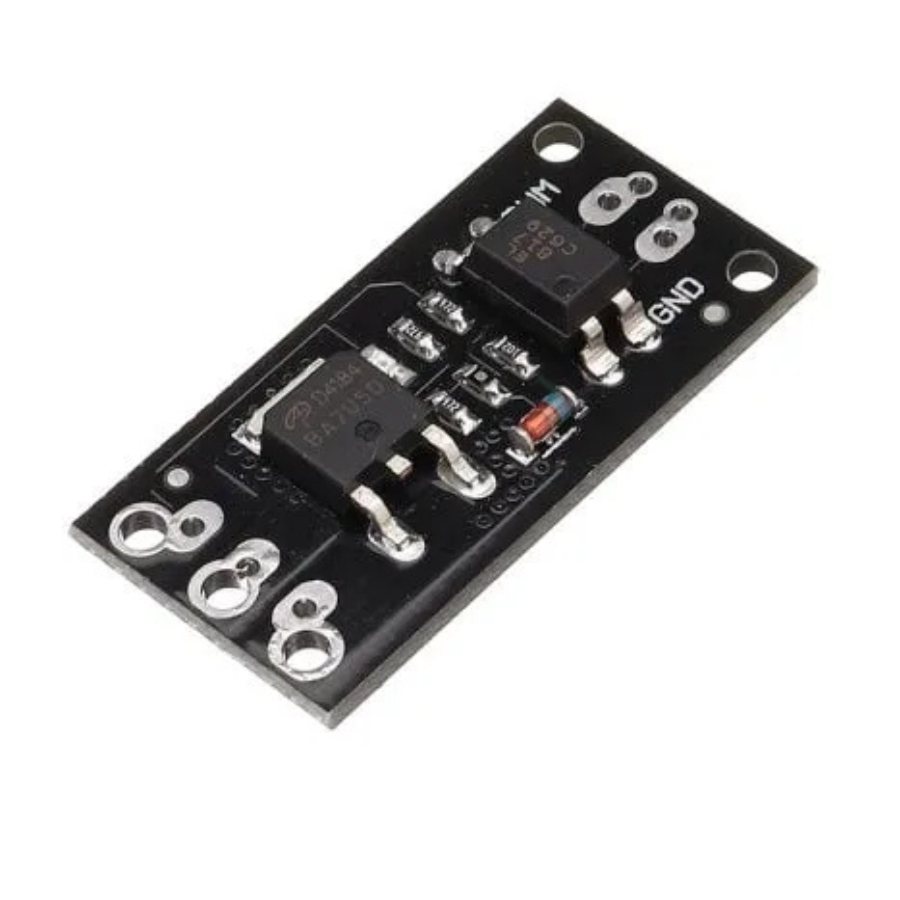

Product Description
The optocoupler isolation separates the control signal and the power of the device being controlled, which greatly enhances the resistance to interference. PWM speed regulation is widely used to control the motor’s start and stop. The signal input side can be soldered to the terminal or the pin itself, and the output can be compatible with the breadboard or connected directly with a wire.
Features:
- Compatible with MCU and control board, 3V or 5V signal.
- High-level start, low-level stop, PWM speed regulation.
- Widely used to control the start and stop of the motor, solenoid valve, and other tributary equipment.

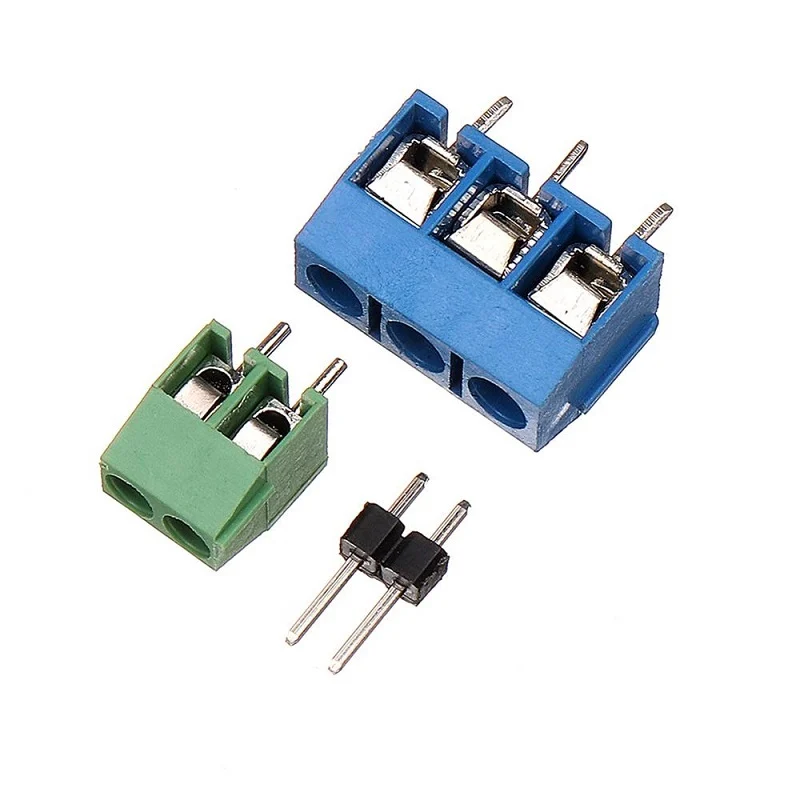

- The signal input side can be welded to the terminal or pin itself, compatible breadboard.
- Output can be soldered to the terminal or direct wire.
Specifications:
- Model: D4184
- MOS tube: 40V 50A
- Dimensions: 32.6mm X 16.5mm
- Mounting Holes Diameter: 2mm
Package Includes:
1 x D4184 Mosfet Control Module Replacement Relay
IoT Street Light Controller: Smart City Lighting
Table of Contents Smart Street Lighting Overview Light Sensors and Controllers Hardware Design for Outdoor Use Wireless Network...
Read More →
ESP32 BLE Beacon: Indoor Location Tracking with iBeacon
Building an ESP32 BLE beacon with iBeacon protocol is one of the most practical and exciting applications of...
Read More →
ESP32 FreeRTOS: Multitasking for Real-Time IoT Projects
One of the most underutilized yet powerful features of the ESP32 is its built-in support for ESP32 FreeRTOS...
Read More →Technical Specifications
| Model | D4184 |
|---|---|
| SKU | AI2432 |
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The D4184 Mosfet control Module Replacement Relay is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
