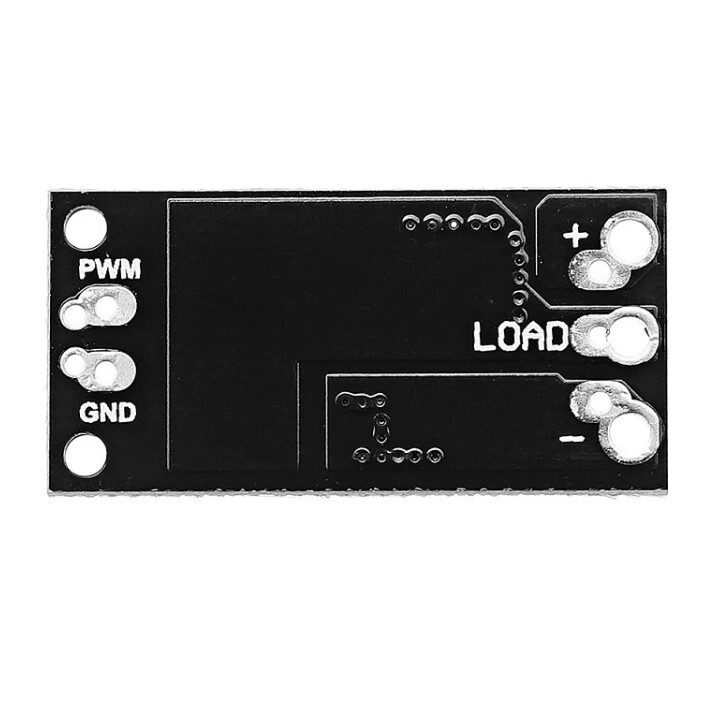

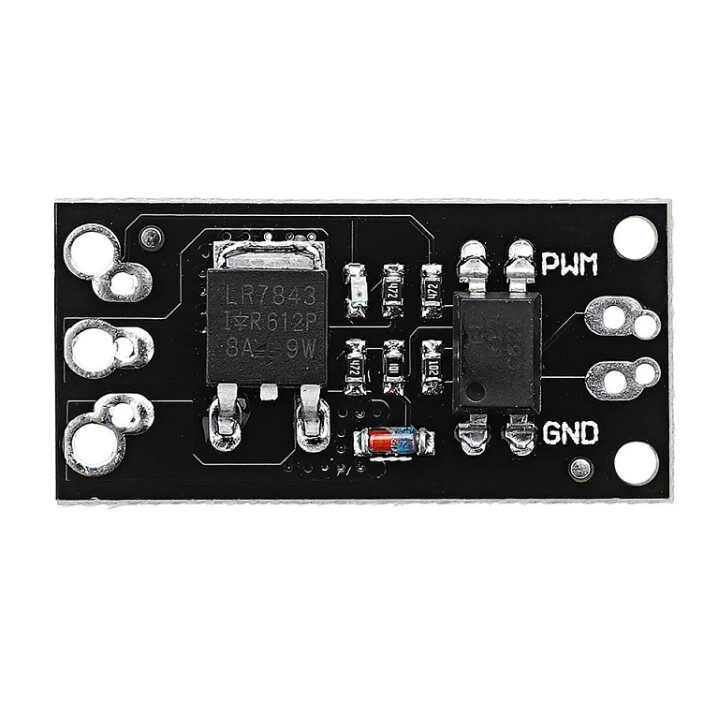

LR7843 Mosfet Control Module Replacement Relay
With optocoupler isolation, the control signal and the power of the controlled device are isolated, which greatly increases the rigidity of the interference. PWM speed regulation widely used to control the start and stop of the motor. The signal input side can be welded to the terminal or pin itself, compatible breadboard output can be soldered to the terminal or direct wire.
Features:
- Compatible with MCU and control board, 3V or 5V signal.
- High-level start, low-level stop, PWM speed regulation.
- Widely used to control the start and stop of the motor, solenoid valve, and other tributary equipment.

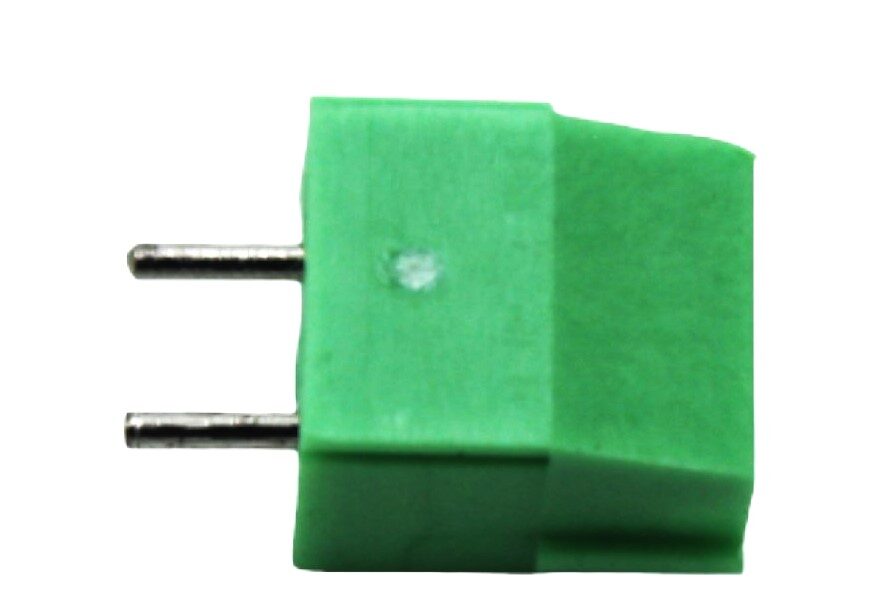

- The signal input side can be welded to the terminal or pin itself, compatible breadboard.

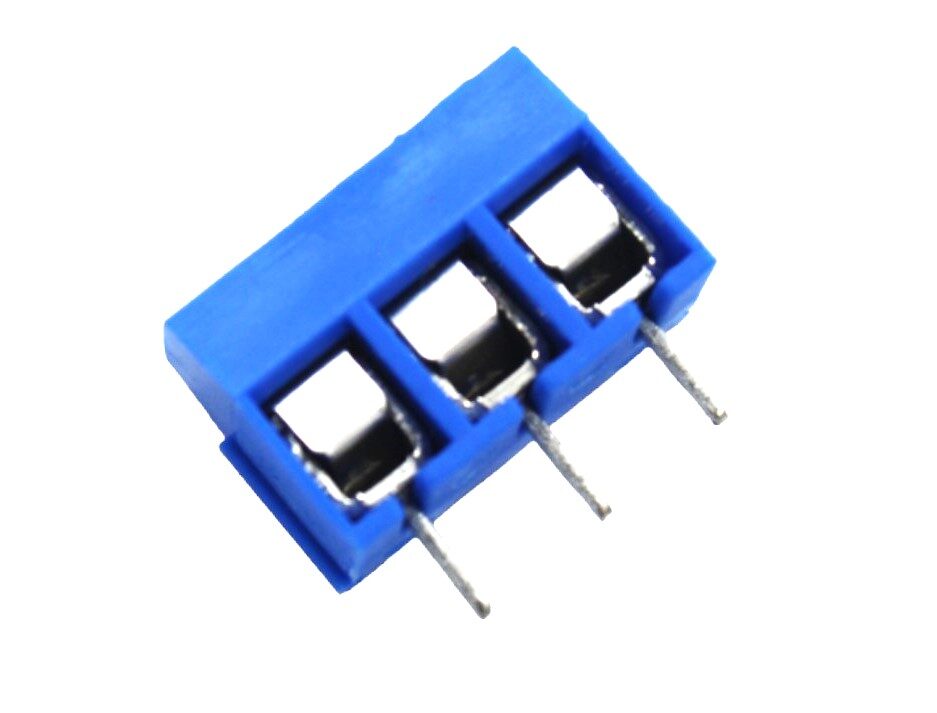

- Output can be soldered to the terminal or direct wire.
Specifications:
- Model: LR7843
- MOS tube: 30V 161A
- Dimensions: 23mm X 16mm
- Mounting Holes Diameter: 2mm
Package Includes:

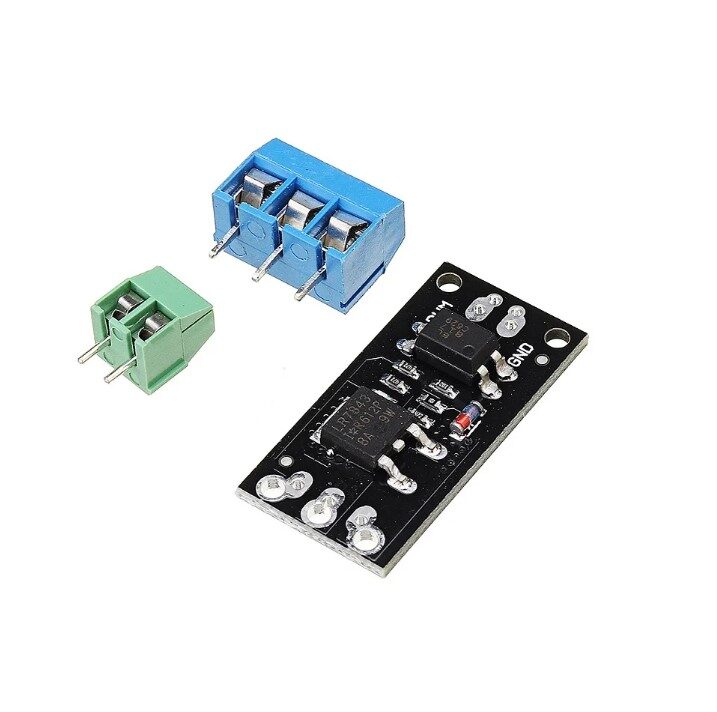

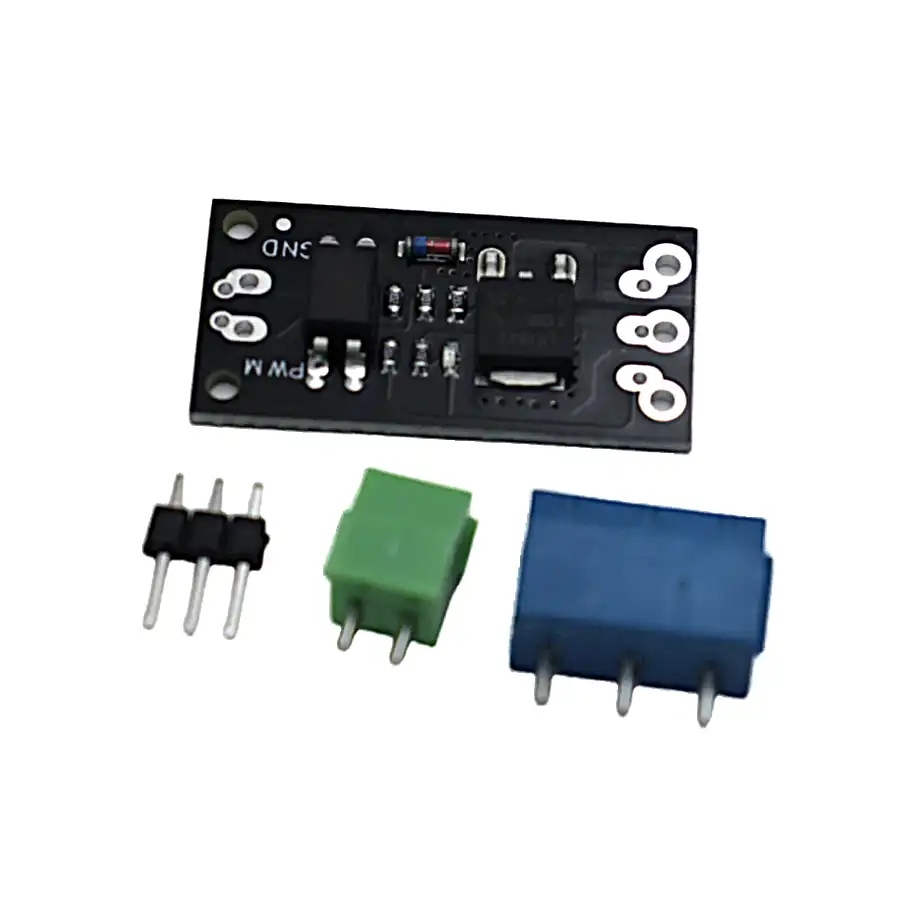

1 x LR7843 Mosfet Control Module Replacement Relay
Troubleshoot ESP32 WiFi Drops and Reconnection Issues
If you are building an IoT project with an ESP32 and struggling with ESP32 WiFi disconnect troubleshoot fix...
Read More →
XIAO ESP32-C3: Smallest ESP32 Board for Wearable Projects
The XIAO ESP32-C3 from Seeed Studio is the smallest production-ready ESP32 board available today, and it has rapidly...
Read More →
ESP32 Modbus TCP: Connect Industrial PLCs to IoT Cloud
The ESP32 Modbus TCP industrial integration is one of the most powerful use cases for this versatile microcontroller....
Read More →Technical Specifications
| Model | LR7843 |
|---|---|
| SKU | AI1000 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The LR7843 Mosfet Control Module Replacement Relay is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
