CUAV X25 EVO Flight Controller Open-Source Drone Unmanned Systems WITH PMU 2 LITE
Description:
Power Innovation, Disruptive Wide-Range Power Supply Architecture
X25 EVO has been fully upgraded to a 10V-18V high-voltage power supply, significantly improving power supply efficiency. The baseboard has a built-in 15V/5A DC-DC high-power converter, and the external interface supports 5V/12A output, empowering heavy-load devices.
Striving for Excellence, Brand-New Industrial IMU Sensor Matrix
The non-similarity IMU sensor matrix is composed of 3 sets of TDK industrial-grade IMUs, 2 sets of barometers, and the industrial-grade RM3100 anti-interference electronic compass. It supports failover and ensures safe operation in various complex environments.
Powerful Performance, High-Performance H7 Processor
Dual Temperature Compensation System, Redefine Standard of Sensor Performance & Precision
Rock-Solid, Double Shock-Absorption Structure System
Global Awareness, CAN Bus + 100M Ethernet
Support Wide Voltage and Large Current
Strong Drive, Support 3.3V / 5V PWM Level Output
Built-in bidirectional multi-level converter supports 3.3V/5V PWM switching. This effectively solves level or signal attenuation and distortion issues caused by long wiring, capacitive or high-impedance loads, ensuring smooth actuator operation.
Status Visualization, Multifunctional RGB Full-Color Indicator Light
Specifications :
| Basic Parameters | |
| Processor | STM32H7 Arm® Cortex®‑M7 480 MHz |
| Version | X25 EVO |
| Gyro&Acce | IIM‑42653 × 2 Gyro Sensing Range: ±4000°/s Accel Sensing Range: ±32g IIM‑42652 Gyro Sensing Range: ±2000°/s Accel Sensing Range: ±16g |
| Electronic Compass | RM3100 |
| Barometer | TDK ICP-20100 / Bosch BMP581 |

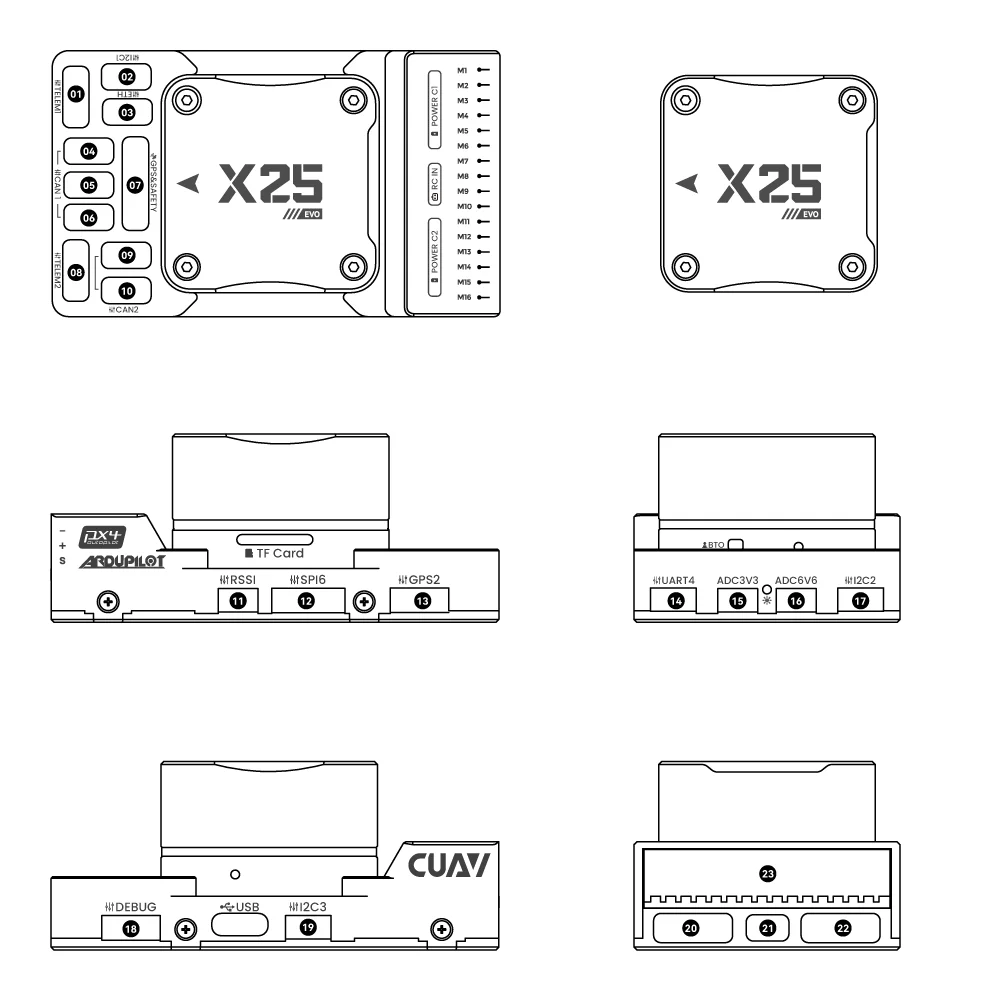

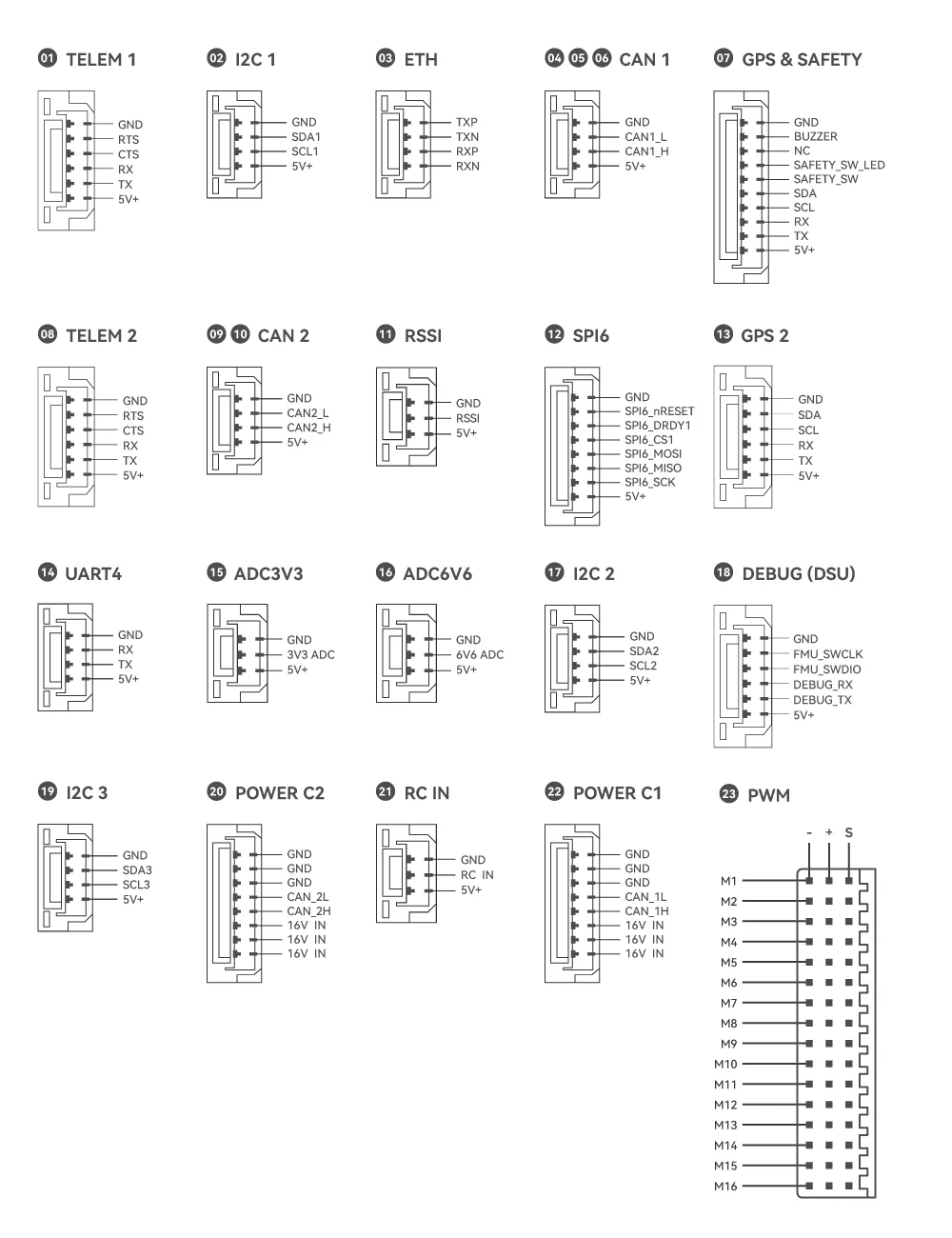

| Port Type | |
| PWM OUT | 16 |
| Power IN (CAN) | 2(5055670871‑5055650801) |
| GPS Ports | 2 |
| TELEM Ports | 2 |
| UART4 Ports | 1 |
| RC IN | 1(PPM / SBUS / DSM, etc.) |
| DEBUG Ports (DSU) | 1 |
| Ethernet (ETH) | 1 |
| CAN Bus | CAN1 × 3 CAN2 × 2 |
| SPI6 Expansion | 1 |
| ADC 3V3 | 1 |
| ADC 6V6 | 1 |
| USB Ports | 1(Type‑C) |
| I2C Ports | 3 |
| RSSI Ports | 1 |
| Power Module | PMU 2 Lite |
| Electrical and Mechanical Data | |
| Input Voltage | USB: 4.75V ~ 5.25V PMU 2 Lite: 20V ~ 70V Power: 10V ~ 18V |
| Operating Temperature | -20℃ ~ +85℃ |

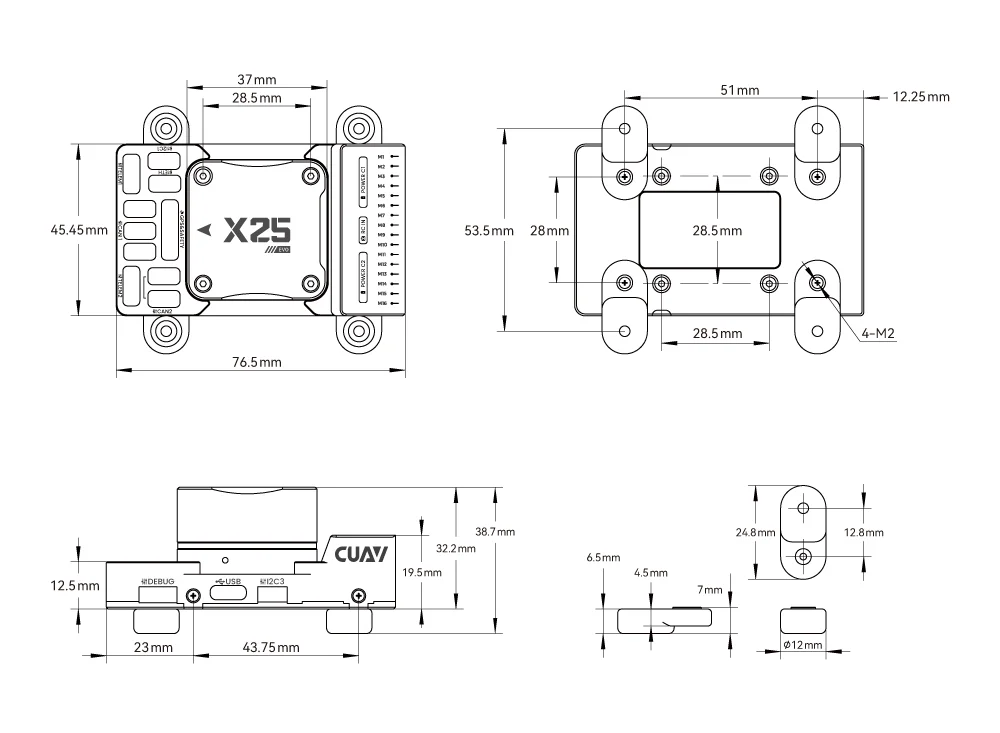

| Size | 76.5 × 45.45 × 32.2mm |
| Weight | 110g |
Pacakge Includes:
1xCUAV X25 EVO Flight Controller Open-Source Drone Unmanned Systems WITH PMU 2 LITE
Drone ESC Explained: How to Choose the Right Speed Controller
The drone ESC (Electronic Speed Controller) is the unsung hero of every multirotor build. It sits between your...
Read More →
Drone Transmitter & Receiver Guide: FlySky vs RadioLink
Choosing the right drone transmitter receiver combo is one of the most important decisions you will make as...
Read More →
DGCA Drone Weight Categories in India: Green, Yellow & Red Category Explained (2026)
DGCA Drone Weight Categories in India: Green, Yellow and Red Category Explained (2026) India's drone regulations have undergone...
Read More →Technical Specifications
| Brand | Cuav |
|---|---|
| Package Quantity | 25 pcs |
| SKU | AI5144 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The CUAV X25 EVO Flight Controller Open-Source Drone Unmanned Systems WITH PMU 2 LITE is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
