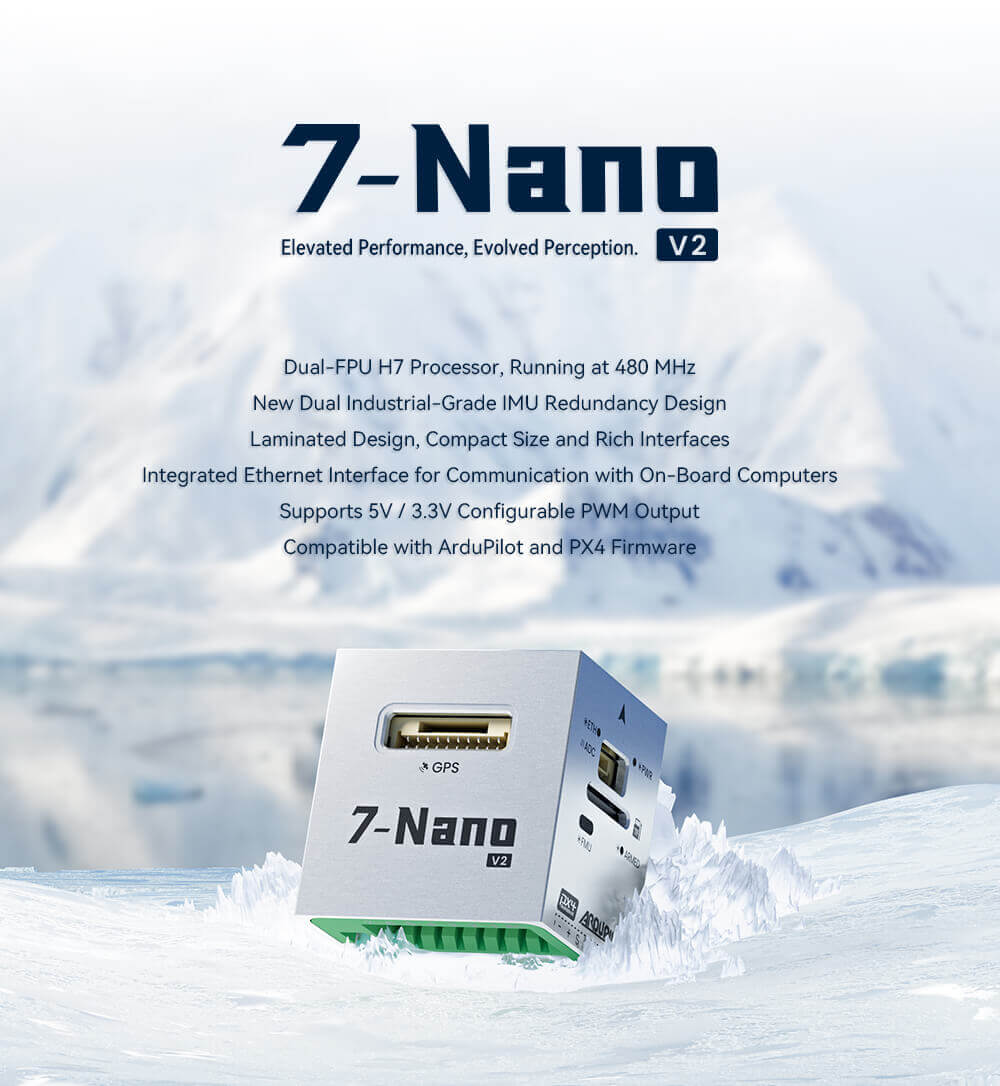

CUAV 7-Nano V2 Standard Flight Controller
Description:

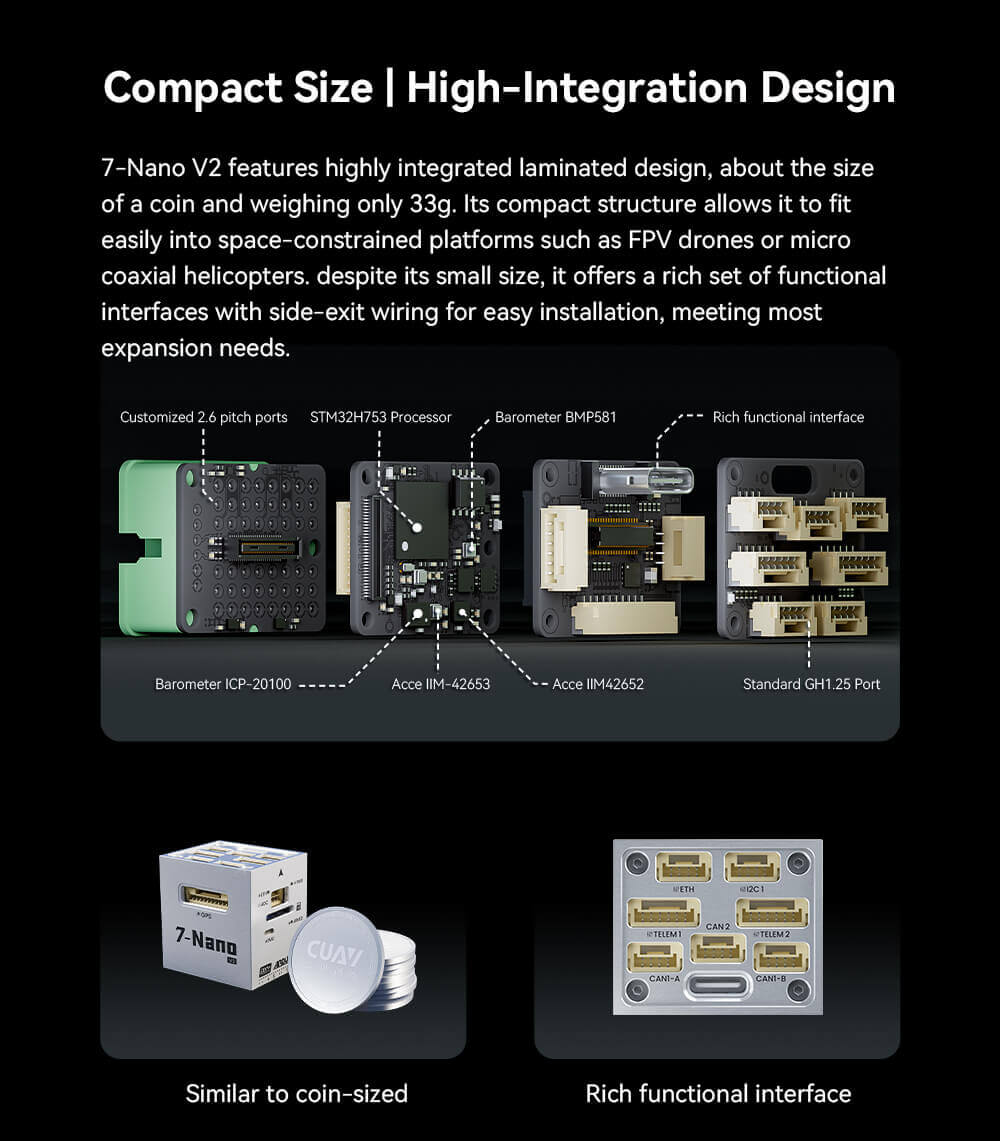

Compact Size | High-Integration Design
7-Nano V2 features a highly integrated laminated design, about the size of a coin, and weighing only 33g. Its compact structure allows it to fit easily into space-constrained platforms such as FPV or micro coaxial helicopters. Despite its small size, it offers a rich set of functional interfaces with side-exit wiring for easy installation, meeting most expansion needs.

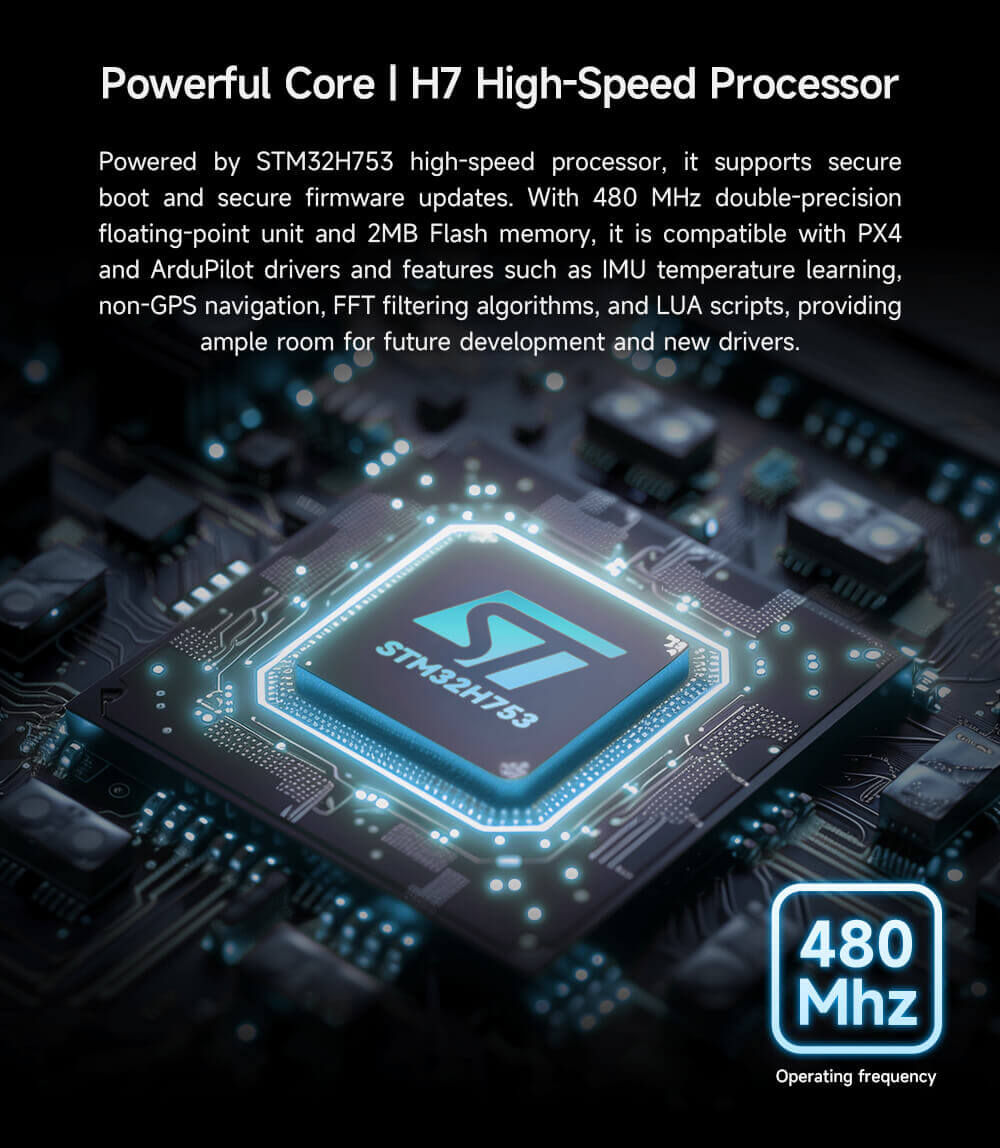

Powerful Core | H7 High-Speed Processor
Powered by the STM32H753 high-speed processor, it supports secure boot and secure firmware updates. With a 480 MHz double-precision floating-point unit and 2MB Flash memory, it is compatible with PX4 and ArduPilot drivers and features such as IMU temperature learning, non-GPS navigation, FFT filtering algorithms, and LUA scripts, providing ample room for future development and new drivers.

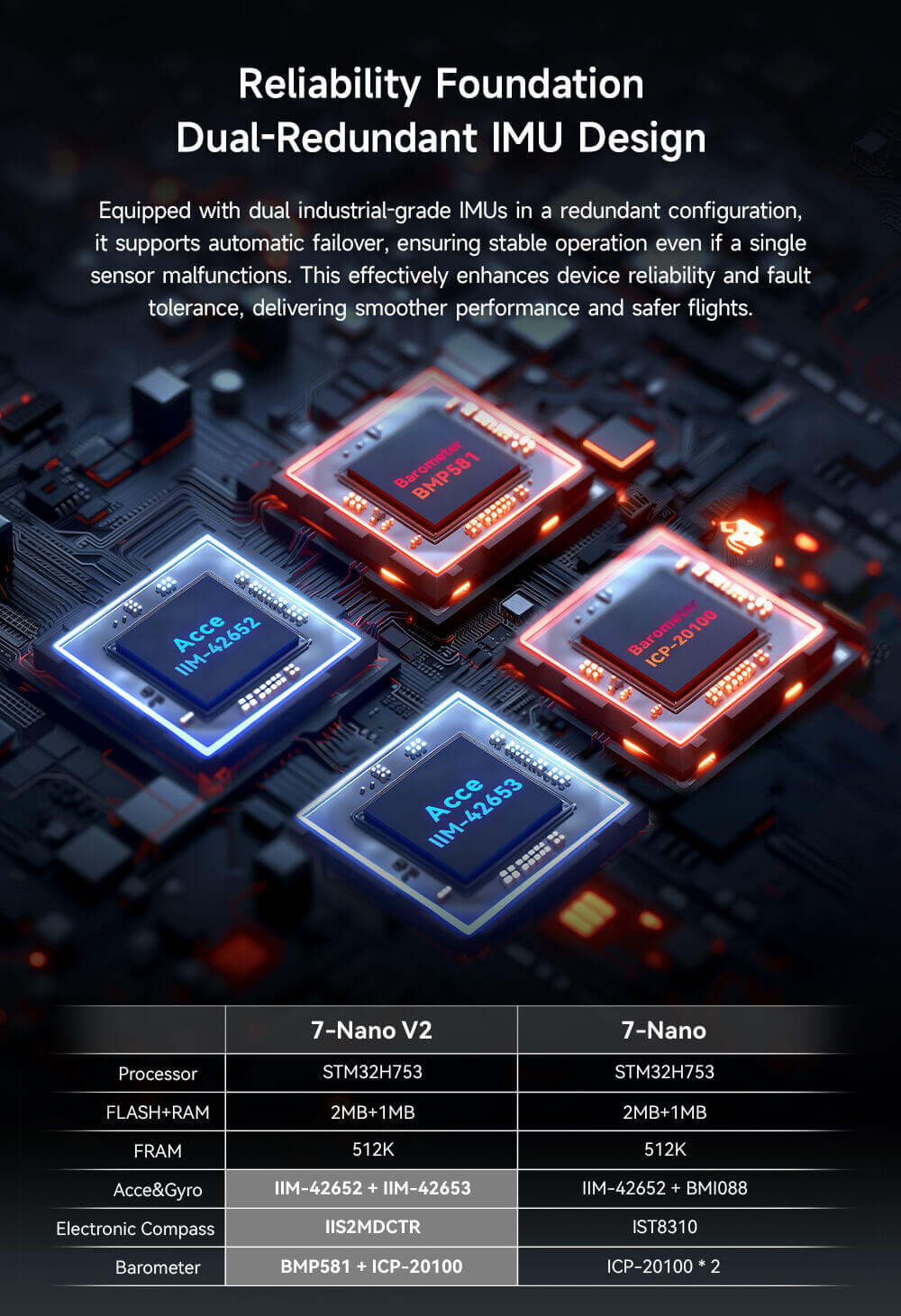

Reliability Foundation Dual-Redundant IMU Design
Equipped with dual industrial-grade IMUs in a redundant configuration, it supports automatic failover, ensuring stable operation even if a single sensor malfunctions. This effectively enhances device reliability and fault tolerance, delivering smoother performance and safer flights.

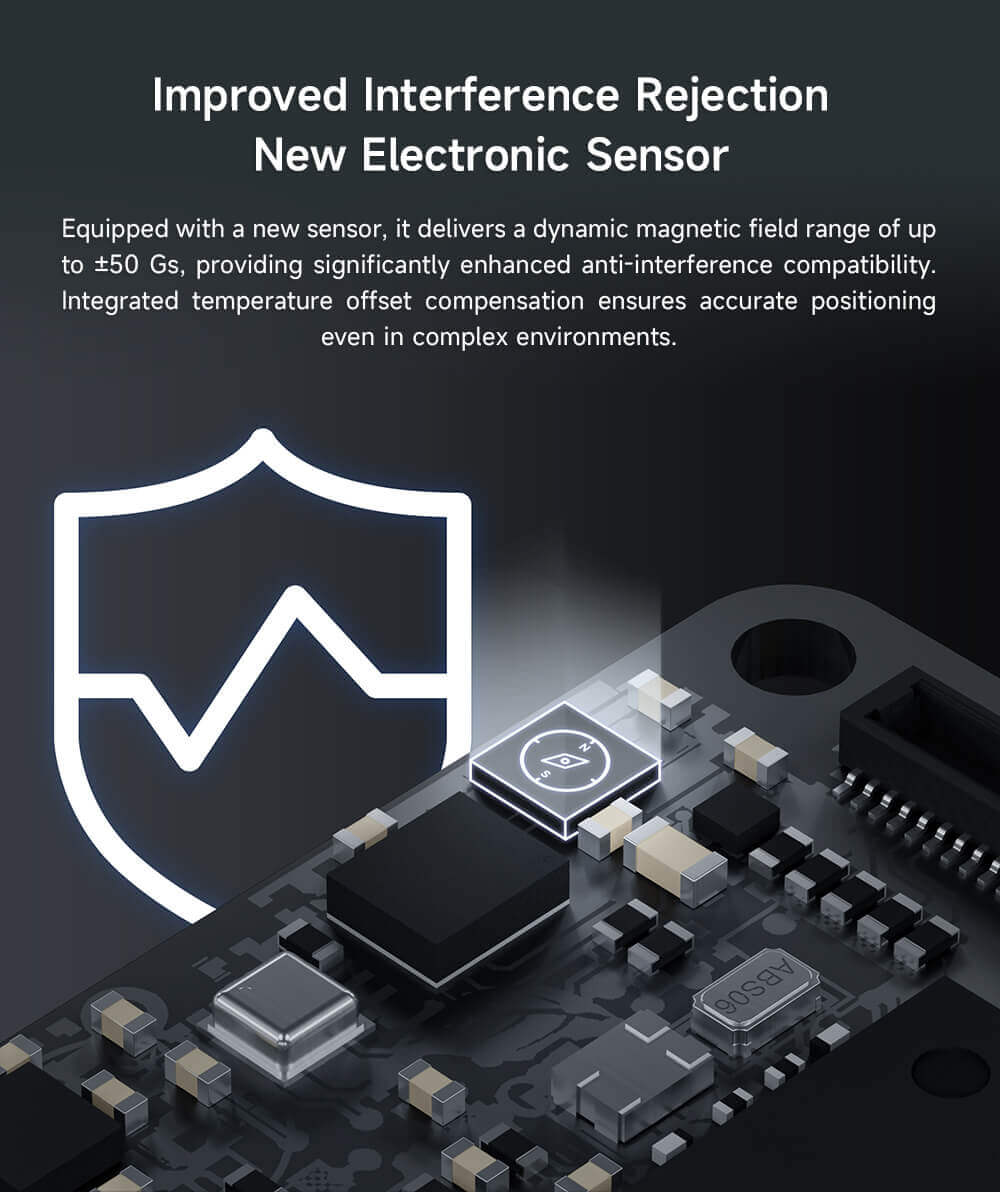

Improved Interference Rejection New Electronic Sensor
Equipped with a new sensor, it delivers a dynamic magnetic field range of up to ±50 Gs, providing significantly enhanced anti-interference compatibility. Integrated temperature offset compensation ensures accurate positioning even in complex environments.

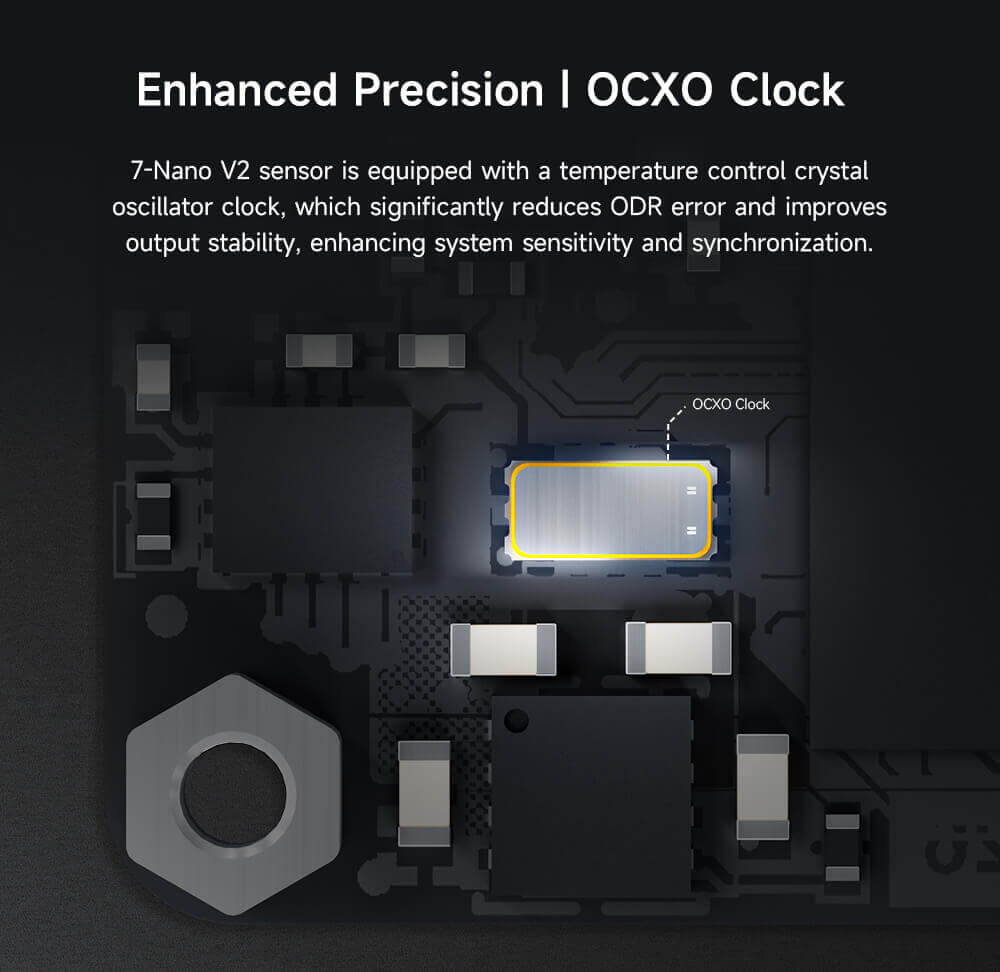

Enhanced Precision | OCXO Clock
7-Nano V2 sensor is equipped with a temperature control crystal oscillator clock, which significantly reduces ODR error and improves output stability, enhancing system sensitivity and synchronization.

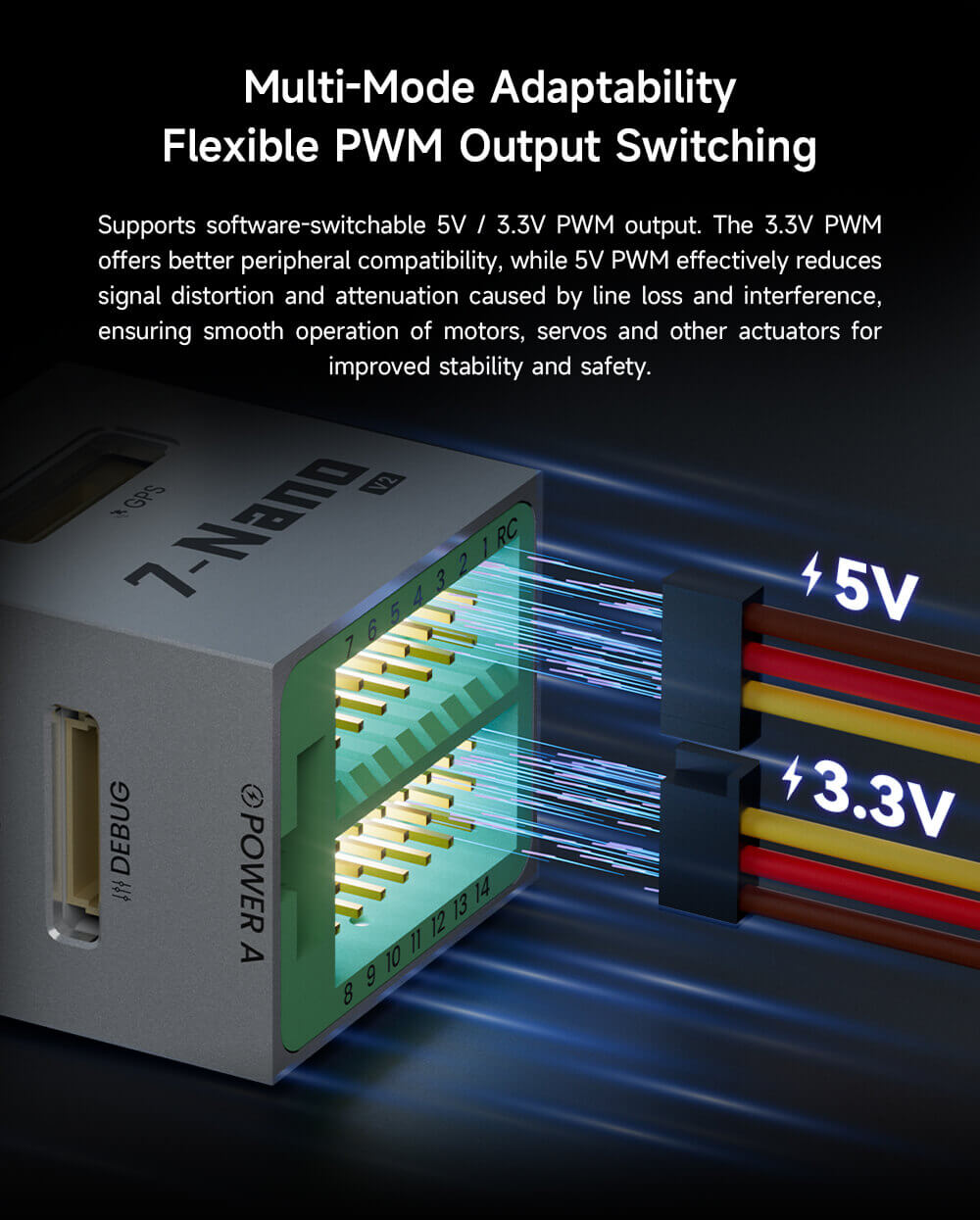

Multi-Mode Adaptability Flexible PWM Output Switching
Supports software-switchable 5V / 3.3V PWM output. The 3.3V PWM offers better peripheral compatibility, while 5V PWM effectively reduces signal distortion and attenuation caused by line loss and interference, ensuring smooth operation of motors, servos, and other actuators for improved stability and safety.

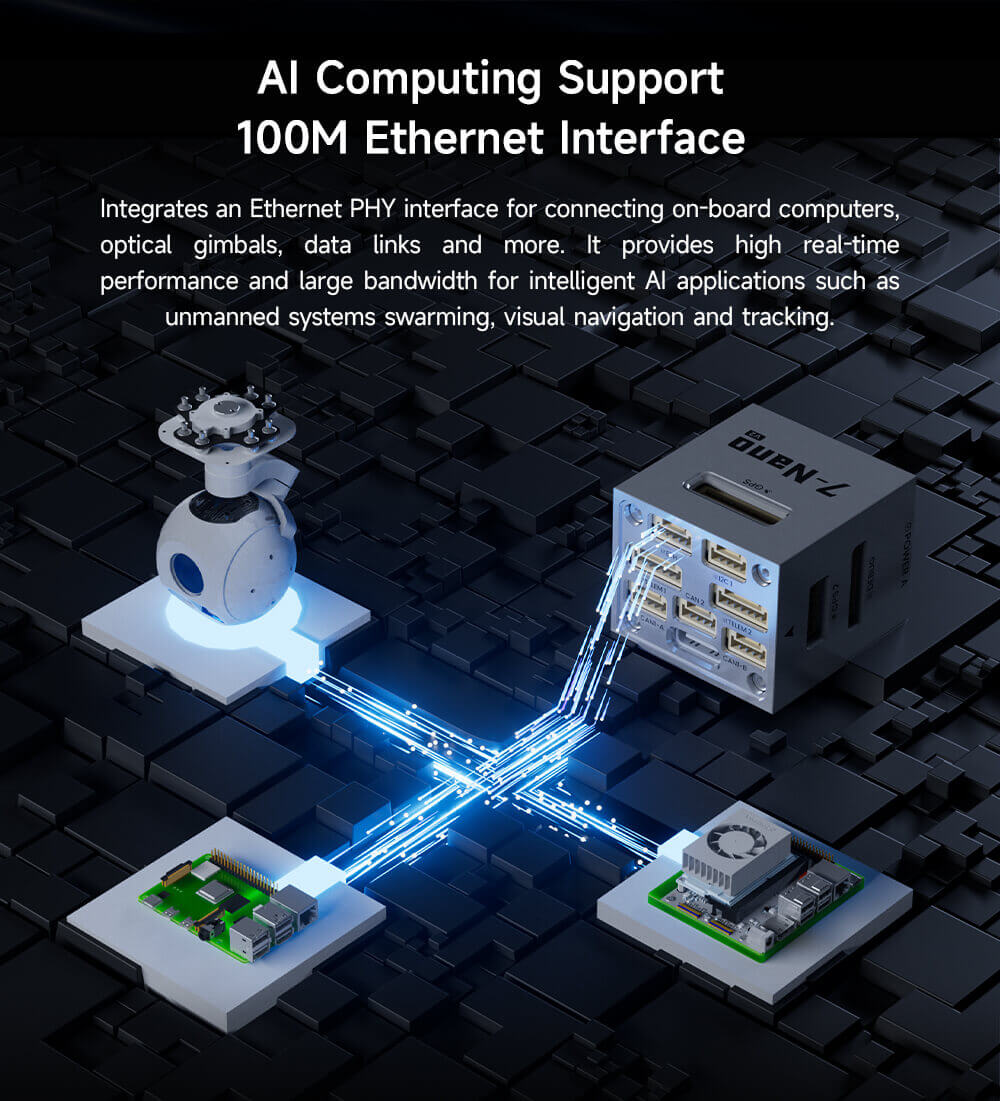

AI Computing Support 100M Ethernet Interface
Integrates an Ethernet PHY interface for connecting on-board computers, optical gimbals, data links, and more. It provides high real-time performance and large bandwidth for intelligent AI applications such as unmanned systems swarming, visual navigation, and tracking.

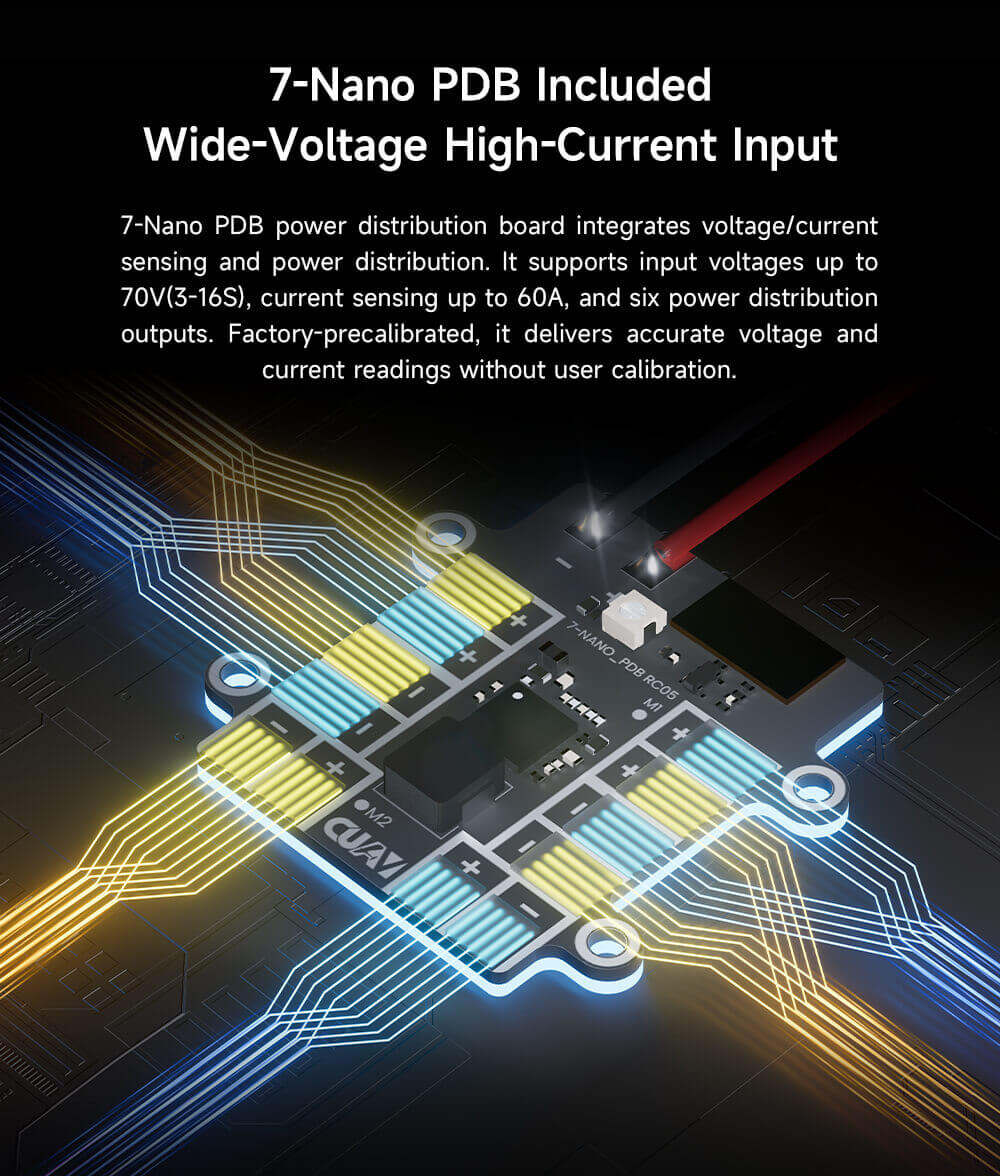

7-Nano PDB Included Wide-Voltage High-Current Input
7-Nano PDB power distribution board integrates voltage/current sensing and power distribution. It supports input voltages up to 70V(3-16S), current sensing up to 60A, and six power distribution outputs. Factory-precalibrated, it delivers accurate voltage and current readings without user calibration.

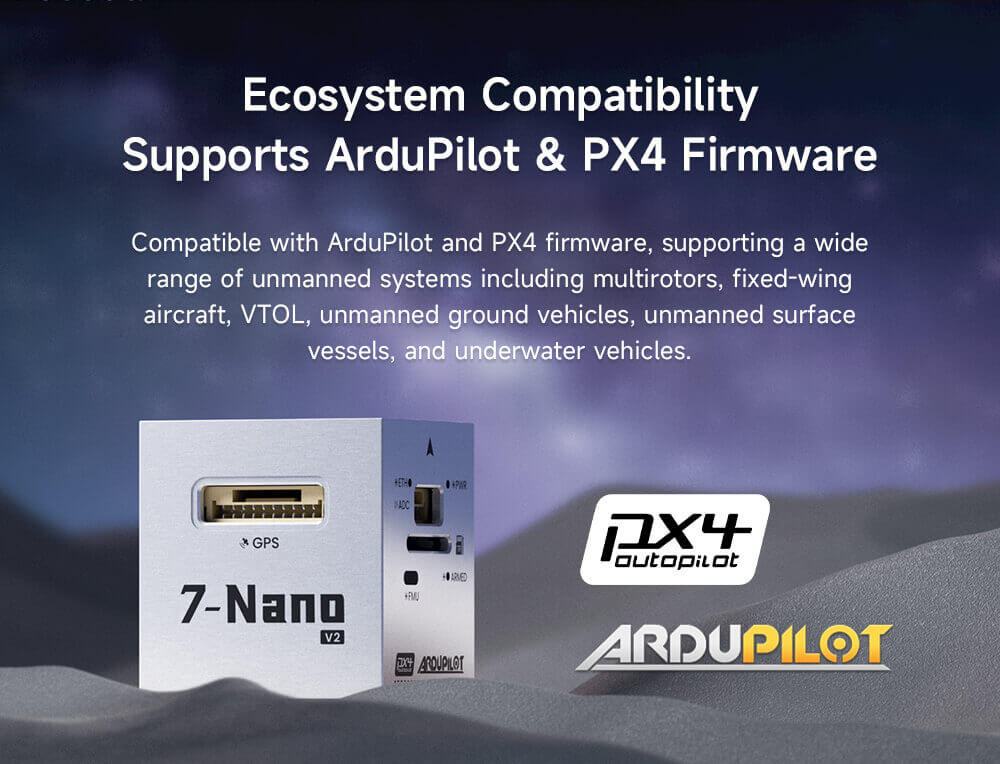

Ecosystem Compatibility Supports ArduPilot & PX4 Firmware
Compatible with ArduPilot and PX4 firmware, supporting a wide range of unmanned systems, including multirotors, fixed-wing aircraft, VTOL, unmanned ground vehicles, unmanned surface vessels, and underwater vehicles.
Pacakge Includes:
Agriculture Drone Parts List: Complete Buying Guide for India
The demand for agriculture drone parts in India has exploded as farmers increasingly adopt drone-based spraying to cut...
Read More →
FPV Drone Video Latency: Minimize Delay for Responsive Flight
Table of ContentsWhat is FPV Video Latency and Why Does it Matter?The Complete FPV Latency ChainAnalog vs Digital...
Read More →
iNAV Setup Guide: GPS Autonomous Flight Step-by-Step
iNAV Setup Guide: GPS Autonomous Flight Step-by-Step iNAV (Inertial Navigation) is the premier open-source flight controller firmware for...
Read More →Technical Specifications
| Brand | Cuav |
|---|---|
| SKU | AI5053 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The CUAV 7-Nano V2 Standard Flight Controller is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Cuav product sourced from authorized channels
