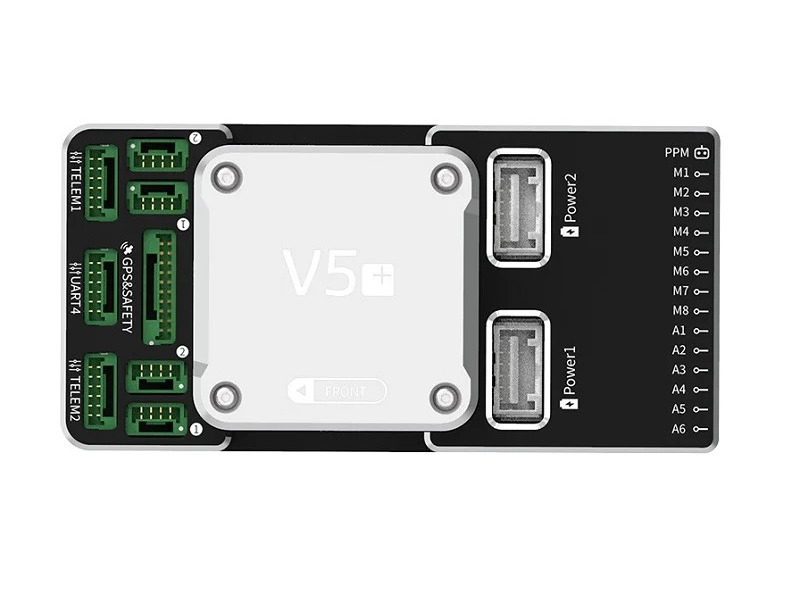

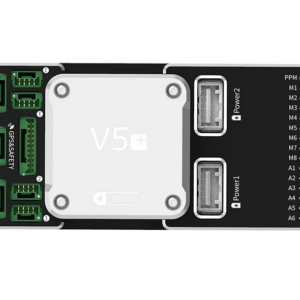

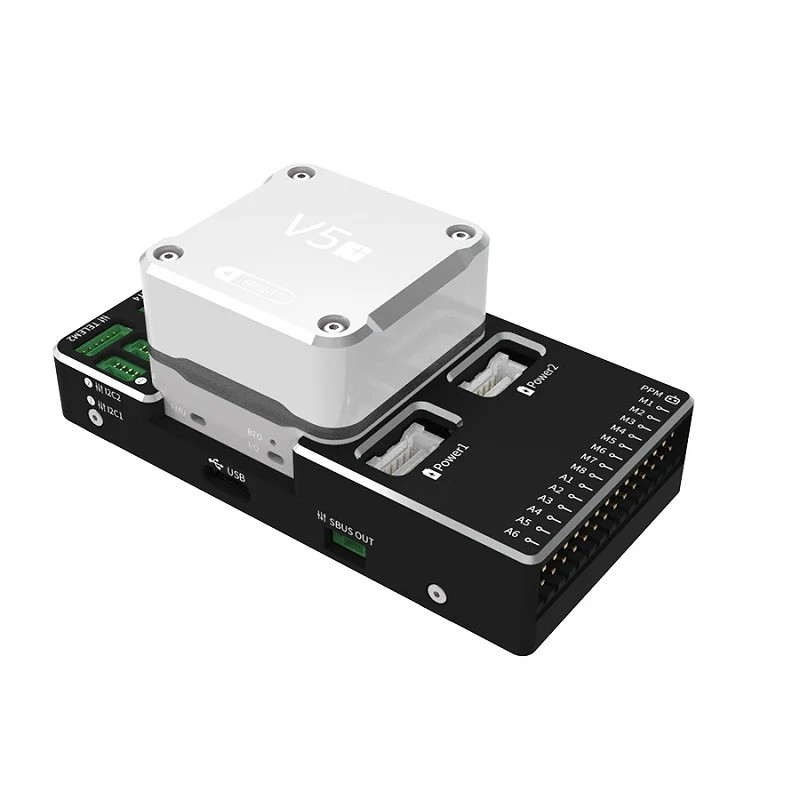

CUAV V5+ Flight Controller | Drone Autopilot PX4 APM
The CUAV V5+ Flight Controller, by CUAV®, is a state-of-the-art autopilot system crafted for sophisticated drone operations. It is built on the Pixhawk FMUv5 standard, providing a highly modular and customizable platform suitable for academic research and commercial integration projects.
It features Pixhawk standard pinouts for its external interface, which allows for smooth integration with custom carrier boards. The compatibility with PX4 and ArduPilot firmware adds to its flexibility and versatility in various applications.
The V5+ Flight Controller showcases an upgraded hardware design aligned with the FMUv5 standard, including a more robust processor, expanded FLASH and RAM, and improved sensor reliability. These enhancements render it ideal for complex commercial integration projects and academic research initiatives.
The detachable CORE design of the controller increases flexibility, facilitating straightforward installation into diverse projects. The ability to use a customized carrier board promotes deep integration into particular configurations, and CUAV provides an open carrier board reference design for added user convenience.
Overall, the CUAV V5+ Flight Controller is an advanced autopilot solution designed for academic research and commercial system integration, delivering exceptional performance, flexibility, and customization possibilities.
Featuring a Built-in Patented Damping System, the CUAV V5+ Flight Controller incorporates a unique shock absorption design, separating the sensors from the mainboard. This innovative approach ensures robust performance even in harsh environments, enhancing overall applicability.
Capable of supporting RTK centimeter positioning, the V5+ Flight Controller accommodates the integration of an RTK positioning module (sold separately), enabling precise centimeter-level positioning to meet stringent accuracy requirements.
Adhering fully to PX4 official standards, CUAV maintains its commitment to the PX4 open-source project as a silver member of Dronecode. The V5+ interfaces are meticulously designed in accordance with PX4 standards, ensuring seamless compatibility and interoperability within the Pixhawk 4 ecosystem.
Powered by a Faster STM32F765 processor, the V5+ Flight Controller delivers enhanced performance with a clock speed of up to 216MHz and a generous 2MB FLASH/512K RAM capacity. This upgrade translates to improved processing speed and efficiency, optimizing overall flight performance.
Furthermore, the V5+ Flight Controller incorporates a Multi-sensor Redundancy Combination, integrating five sets of sensors. This redundancy enables real-time monitoring of multiple sensor channels, facilitating immediate redundant switching in the event of a sensor failure. This feature significantly enhances flight safety and stability, ensuring reliable operation even in challenging conditions.
Features:
- Multi-Sensor Redundancy Combination
- ICM-20689 Accelerometer & Gyroscope
- ICM-20602 Accelerometer & Gyroscope
- Built-in patented damping system
- Detachable CORE Design
- MS5611 Barometer
- IST8310 Compass
- PX4 Autopilot
Specification:
Main FMU Processor | STM32F765 (32 Bit Arm® Cortex®-M7, 216MHz, 2MB memory, 512KB RAM) |
---|---|
IO Processor | STM32F100 (32 Bit Arm® Cortex®-M3, 24MHz, 8KB SRAM) |
On-board sensors | Accelerometer/Gyroscope: ICM-20689 Accelerometer/Gyroscope: BMI055 Magnetometer: IST8310 Barometer: MS5611 |
Power | 4.3~5.4V |
USB Input | 4.75~5.25V |
Servo Rail Input | 0~36V |

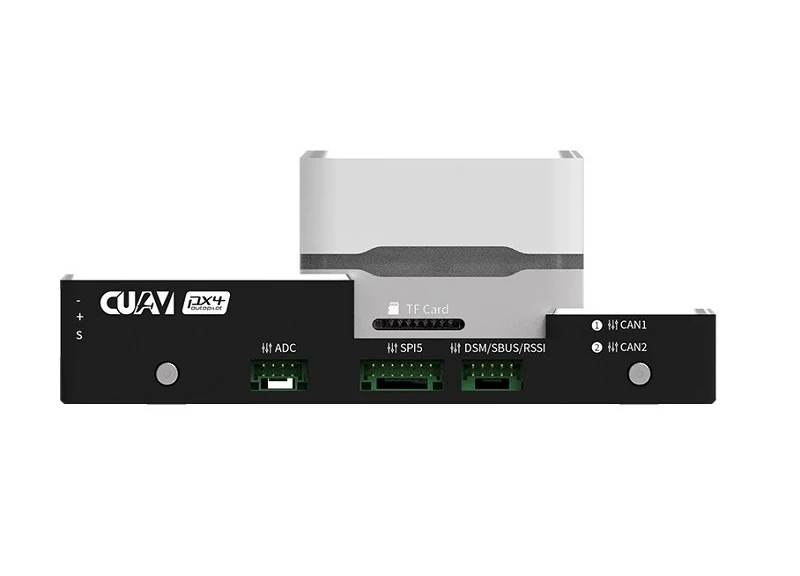

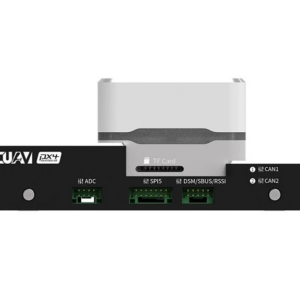

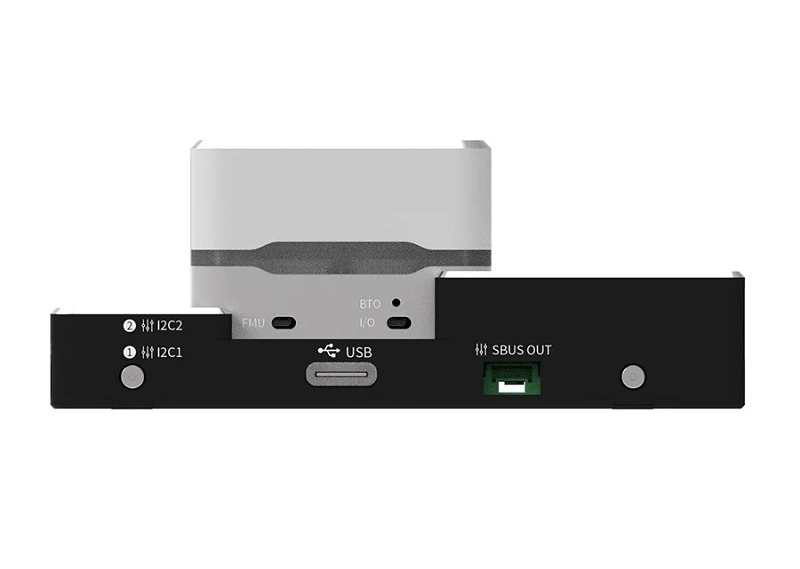

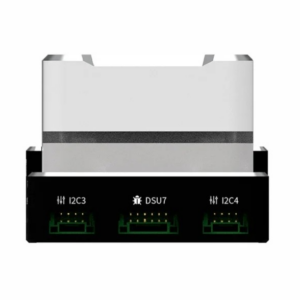

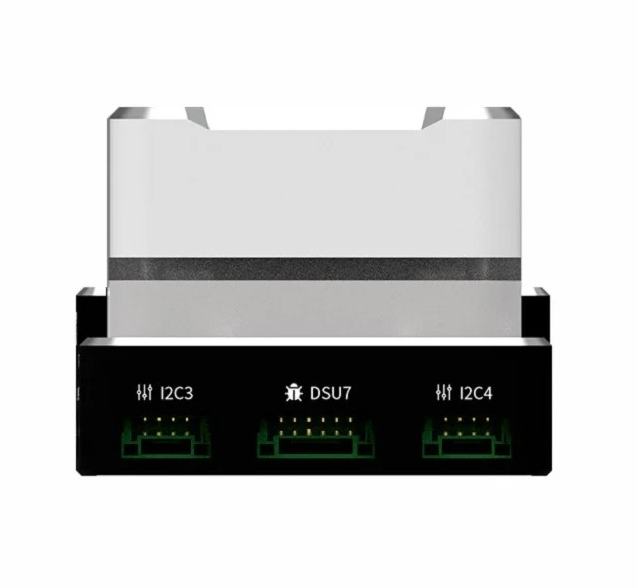

Interfaces | 8-14 PWM outputs (6 from IO, 8 from FMU) 3 dedicated PWM/Capture inputs on FMU Dedicated R/C input for CPPM Dedicated R/C input for PPM and S.Bus analog / PWM RSSI input S.Bus servo output 5 general-purpose serial ports 4 I2C ports 4 SPI buses 2 CANBuses with serial ESC Analog inputs for voltage/current of 2 batteries |
Dimensions | 85.5*42*33mm |
Weight | 90g |
Package Includes:
1 x CUAV V5+ Flight Controller
1 x c type cable
1 x RSSI Cable (V5 + series)
1 x I2C\CAN cable
1 x Dupont cable
1 x SBUS signal cable
1 x DSM signal cable
1 x ADC3.3 cable
1 x link module
1 x can distribute bold
1 x can PMV module
