CUAV Pixhawk V6X V2 Flight Controller
Description:
The Pixhawk V6X v2 Flight Controller is a next-generation autopilot designed for high-end UAV and robotics applications. Developed following the Pixhawk FMU v6X standard with PX4 and ArduPilot support., it features a powerful STM32H753 processor with a STM32F103 Cortex-M3 co-processor for advanced computing and real-time control. With triple-redundant IMUs, dual barometers, and thermal compensation, it ensures superior stability and safety.
The integrated 100 Mbps Ethernet enables high-speed communication with onboard computers and payloads. Built on the Pixhawk FMU v6X standard, it offers extensive connectivity and expandability, making it ideal for autonomous drones, mapping systems, and industrial unmanned platforms.
Note :Pixhawk V6X v2 is an upgraded iteration of the original Pixhawk V6X. They share compatible carrier boards, but their firmware is mutually incompatible.
Features:
- Performance STM32H7 Processor: Delivers advanced processing power for complex flight control and autonomous operations.
- STM32F103 Cortex-M3 co-processor : Handles real-time tasks efficiently, improving system responsiveness and safety.
- Triple Redundant IMUs: Ensures high reliability with independent buses and automatic fault switching.
- Dual Redundant Barometers: Provides accurate altitude data and enhances flight stability.
- Thermal Compensation System : Factory-calibrated sensors maintain accuracy across temperature variations.
- 100 Mbps Ethernet Connectivity: Enables high-speed data communication with onboard computers and payloads.
- Extensive I/O Interfaces: Supports multiple GPS, CAN, telemetry, and PWM connections for flexibility.
- PX4 & ArduPilot Compatibility: Fully supports leading open-source autopilot platforms.
Specifications:
| Parameter | Specification |
|---|---|
| Main Processor | STM32H753IIK6 |
| Co-Processor | STM32F103 |
| Accelerometer & Gyroscope | IIM-42652 / BMI088 / ICM-42686 |
| Magnetometer | RM3100 |
| Barometer | ICP-20100 / BMP581 |
| PWM Outputs | 16 |
| Power Ports | 2 |
| GPS Ports | 2 |
| Telemetry Ports | 3 |
| CAN Bus | 2 |
| PPM RC Input | 1 |
| SBUS / DSM / RSSI Input | 1 |
| SBUS Output | 1 |
| FMU Debug Port | 1 |
| IO Debug Port | 1 |
| Ethernet Port | 1 |
| SPI Interface | 1 × SPI6 |
| UART Interface | 1 × UART4 |
| USB Ports | 2 |
| TF (MicroSD) Card Slot | 1 |
| Power Module | PMU 2 Lite-5V |
| Power Input Voltage | 12V – 70V DC |
| USB Operating Voltage | 4.75V – 5.25V |
| Power Rail Voltage | 4.85V – 5.45V |
| Servo Input Voltage | 0V – 9.9V |
| Operating Temperature | -20°C to +85°C |
| Total Weight | 97.9 g |
| Core Module Weight | 43.1 g |
| Carrier Board Weight | 54.8 g |
Datasheet:

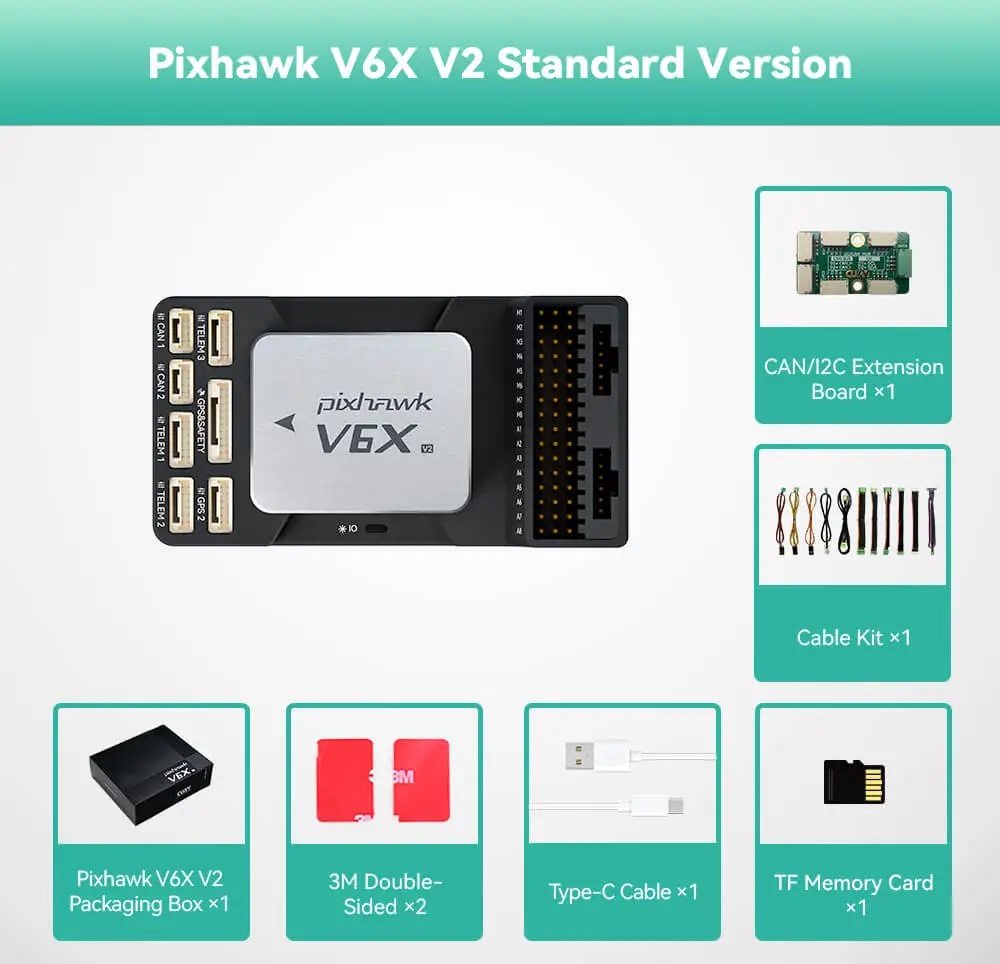

Package Includes:
1 x CUAV Pixhawk V6X V2 Flight Controller
1 x CAN/I2C Extension Board
1 x Cable Kit
1 x USB Type-C Cable
1 x TF Memory Card
2 x 3M Double-Sided Adhesive Pad
1 x Pixhawk V6X V2 Packaging Box
