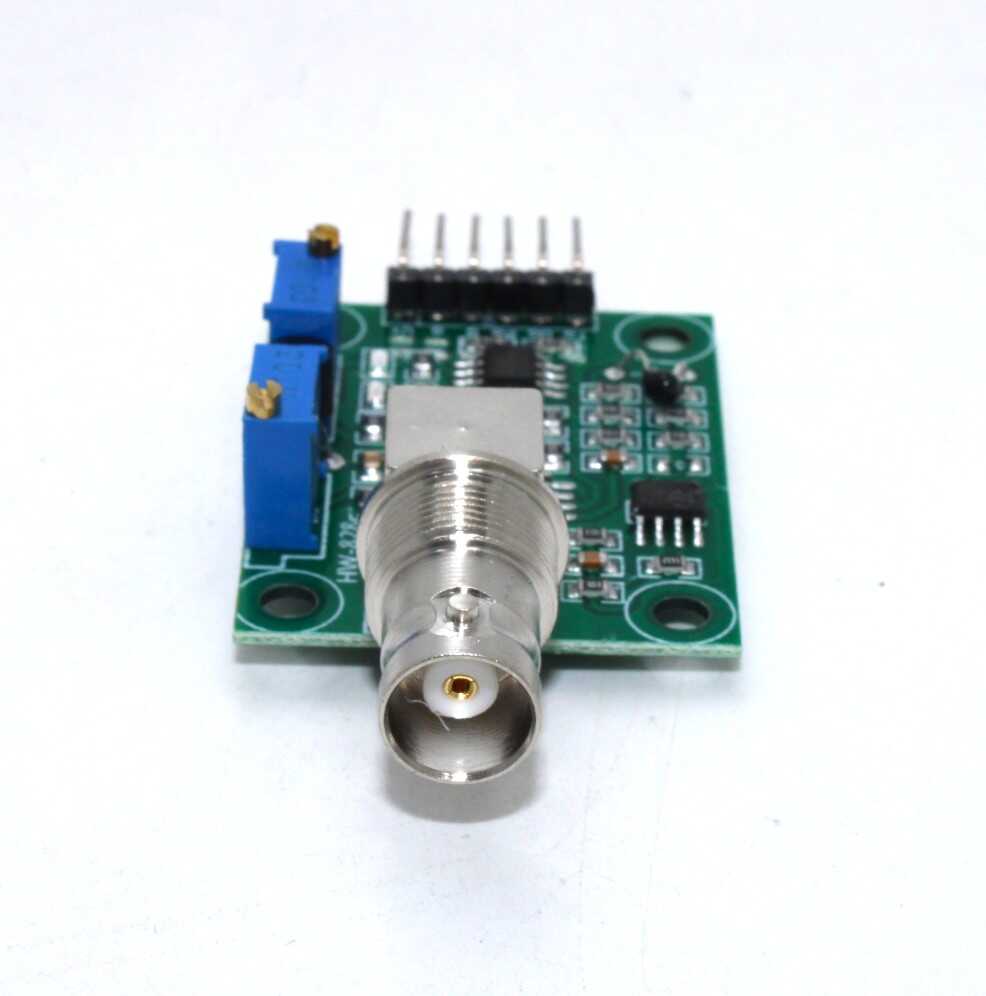

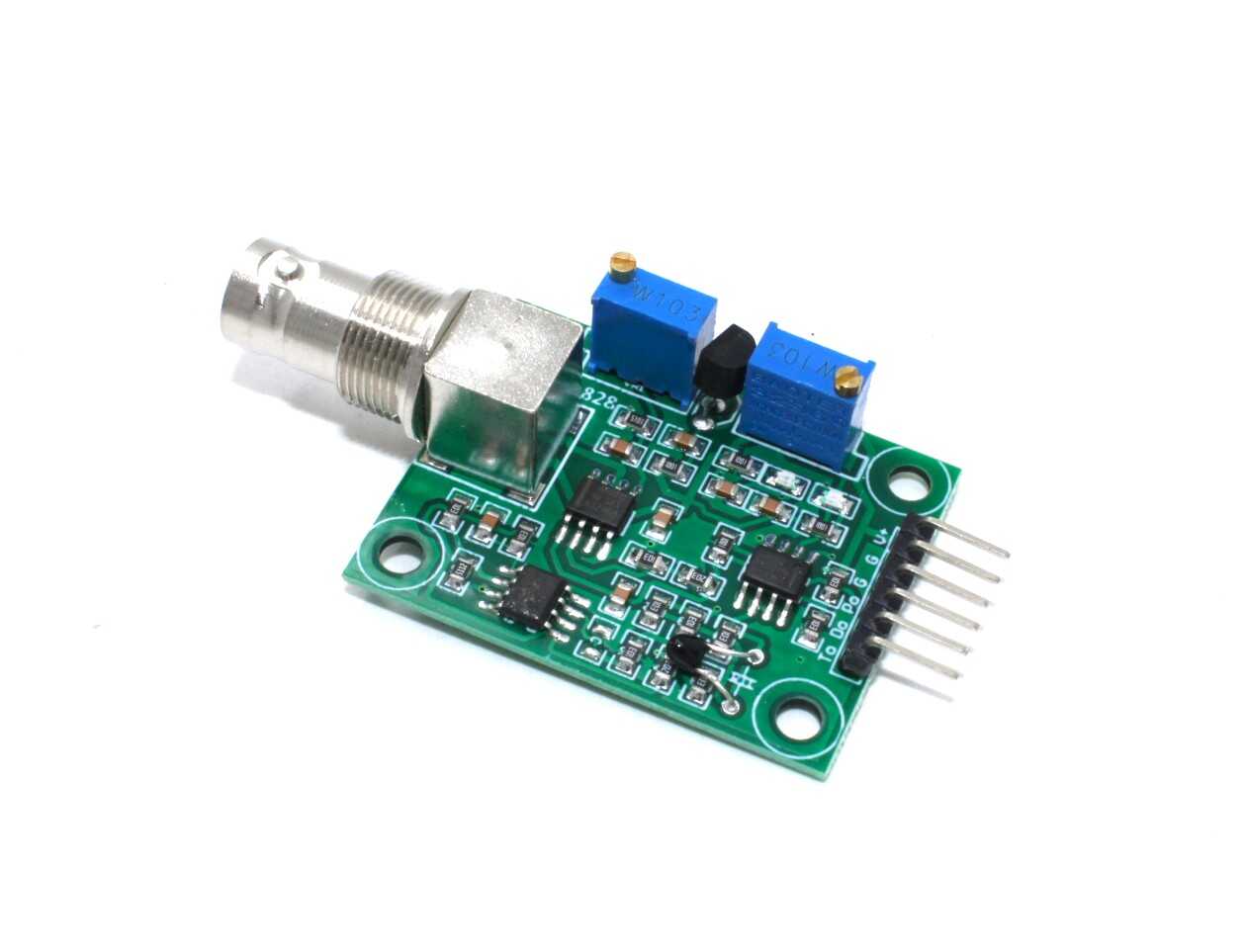

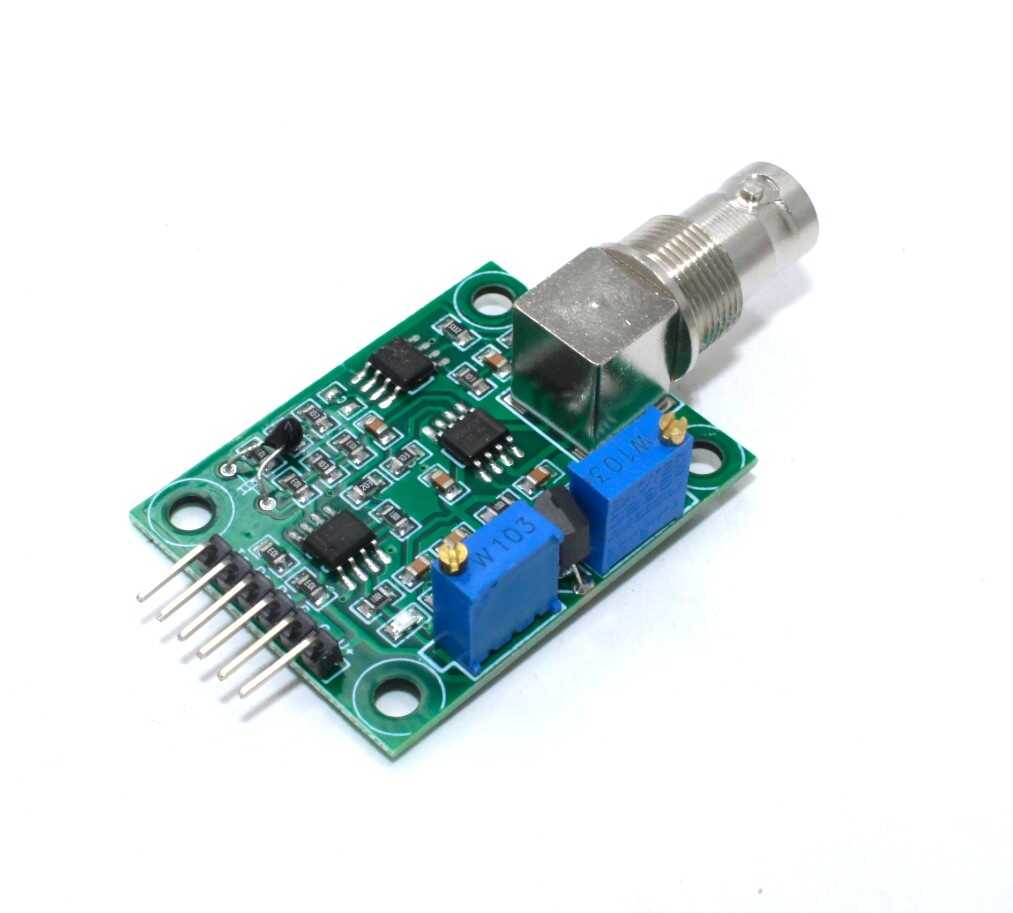

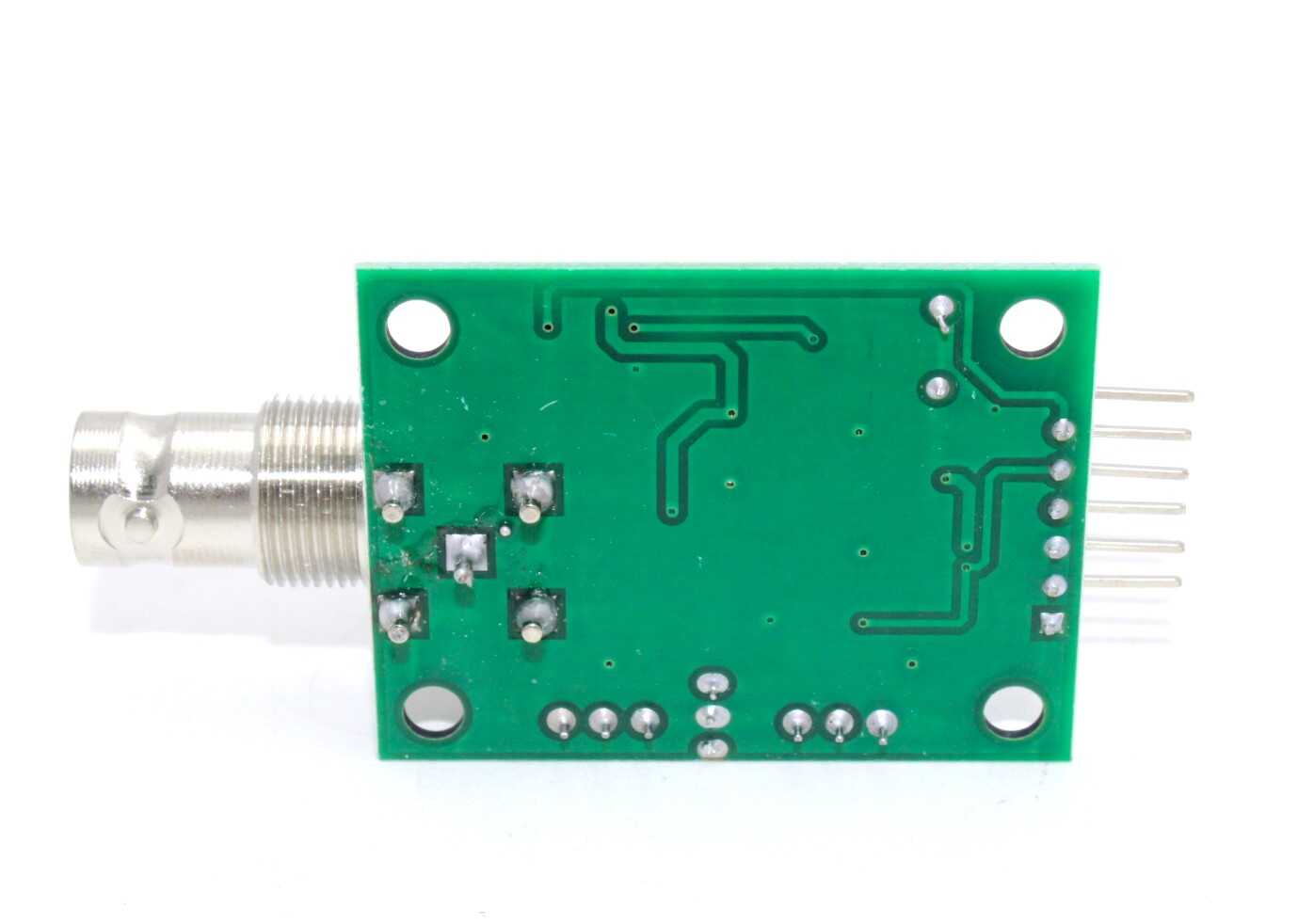

Liquid pH Value Detection Sensor for Arduino
This is a Liquid pH Value Detection Sensor for Arduino, designed for measuring the pH level of liquids.
pH, which stands for “power of hydrogen”, measures the concentration of hydrogen ions in a solution. It is widely used in applications such as water quality testing and aquaculture. The pH scale ranges from 1 to 14, with 7 being considered neutral. A pH value below 7 indicates acidity, while a value above 7 denotes alkalinity or basicity.
The pH sensor features a single cylindrical electrode that connects directly to the input terminal of a pH meter, controller, or any device with a BNC input. The electrode probe provides accurate and reliable readings, delivering almost instantaneous results for precise pH measurement.
Connection Diagram of Liquid pH Value Detection Sensor for Arduino:
Features
Heating voltage: 5±0.2V
Working current: 5-10mA
The detection concentration range: PH0-14
The detection range of temperature: 0-60 centigrade
The response time: ≤ 5S
Stability time: ≤ 60S
Power consumption: ≤ 0.5W
Specification
| Detection Concentration Range | PH0-14 |
|---|---|
| Detection Range of Temperature (°C) | 0 to 60 |
| Response Time (s) | ≤5 |
| Stability Time (s) | ≤60 |
| Power Consumption (W) | ≤0.5 |
| Operating Temperature (°C) | -10 to 50 |
| Working Humidity (%RH) | 95 |
| PCB Size ( L x W ) mm | 42 x 32 |
| Height (mm): | 13 |
| Weight (g): | 20 |
Package Includes
1 x Liquid pH Value Detection Sensor For Arduino
Video
Indoor Positioning with Ultrasonic Sensor Array: Trilateration
GPS doesn't work indoors — signals are blocked by walls, ceilings, and structural steel. Yet countless applications demand...
Read More →
Capacitive Soil Sensor vs Resistive: Which Is More Accurate?
Table of ContentsIntroductionHow Resistive Soil Sensors WorkHow Capacitive Soil Sensors WorkAccuracy ComparisonDurability and LifespanWiring Both Sensors to ArduinoArduino...
Read More →
AMG8833 Thermal Camera: Heat Map Visualisation with Arduino
Thermal imaging is no longer limited to expensive industrial equipment. The AMG8833 thermal camera from Panasonic brings 8×8...
Read More →Technical Specifications
| Brand | Arduino |
|---|---|
| SKU | AI0346 |
| Weight | 0.050001 kg |
| Availability | In Stock |
Applications & Use Cases
The Liquid pH Value Detection Sensor for Arduino is a versatile water tds, ph, flow, level and pressure sensor used across a wide range of applications including water quality monitoring, hydroponics, aquariums, industrial water treatment, and smart irrigation.
Common use cases:
- Measuring TDS in a hydroponic nutrient solution
- Monitoring pH in an aquarium
- Tracking water flow in an irrigation system
This product is ideal for aquaculture professionals, hydroponic growers, and environmental engineers.
Technical Tip: Calibrate pH and TDS sensors regularly with standard solutions. Keep probe tips clean and submerged when not in use.
