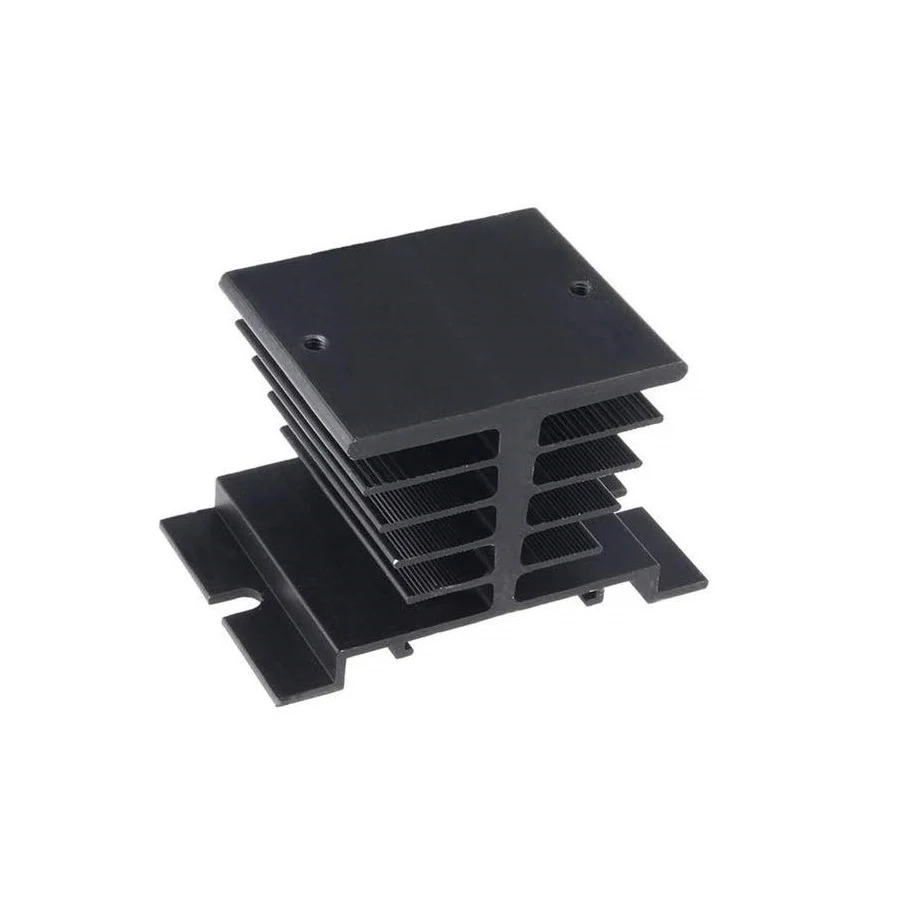

Black Single Phase Solid State Relay SSR Heat Sink Base Small Type Heat Radiator for 10A to 40A Size:80*50*50MM
Elevate the performance and reliability of your single-phase solid-state relays (SSRs) with the Black Single Phase Solid State Relay (SSR) Heat Sink Base. Specifically designed for SSRs within the 10A to 40A range, this compact heat sink is engineered to efficiently dissipate heat, ensuring optimal functioning and longevity of your relay system.
Features:
- Effortless Installation: This heat sink base is designed for ease of use and connection, simplifying the installation process for both professionals and DIY enthusiasts alike.
- Enhanced Performance: By effectively dissipating heat generated during relay operation, this heat sink base helps maintain optimal performance and reliability of your SSRs, even during extended use.
- Compact Design: With dimensions of 805050MM, this small type heat radiator offers a space-saving solution without compromising on performance.
- Durable Construction: Crafted from high-quality materials, this heat sink base ensures durability and longevity, providing a reliable solution for your relay system needs.
Specifications:-
| Specification | Details |
|---|---|
| Product Name | Black Single Phase Solid State Relay (SSR) Heat Sink Base – Small Type Heat Radiator |
| Suitable for | Single-phase solid-state relays (SSRs) within the 10A to 40A range |
| Size | 80 x 50 x 50 mm |
| Ease of Use | Easy to install and connect |
| Construction | Durable material for long-lasting performance |
| Application | Ideal for industrial machinery, automation systems, and other applications requiring SSRs |
| Compact Design | Space-saving solution without compromising performance |
| Heat Dissipation | Efficiently dissipates heat generated during relay operation |
| Reliability | Ensures optimal functioning and longevity of SSRs |
| Compatibility | Compatible with a wide range of SSRs for versatile use |
Package Includes:
1 x Heat Sink Base Small Type Heat Radiator for 10A to 40A Solid State Relay SSR
Black Single Phase Solid State Relay SSR Heat Sink Base Overview
The Black Single Phase Solid State Relay SSR Heat Sink Base is a compact aluminum radiator designed to cool single-phase SSR modules rated from 10A to 40A. With its 80×50×50 mm profile and black anodized finish, it ensures efficient heat dissipation and stability for industrial and DIY relay applications.
Key Features of Black Single Phase Solid State Relay SSR Heat Sink Base
- Compatibility with single-phase SSR modules rated 10A–40A
- High-grade aluminum construction for rapid thermal transfer
- Black anodized surface improves corrosion resistance
- Compact 80 × 50 × 50 mm dimensions fit tight panel spaces
- Pre-drilled mounting holes streamline relay attachment
- Fast shipping across India from Zbotic for quick project delivery
Applications and Use Cases
- Industrial control panels requiring solid-state relay cooling
- Heating element regulation in plastic molding or packaging machines
- Temperature control systems for ovens and kilns
- CNC machine spindle and motor drive SSR installations
- 3D printer heated bed or chamber switching modules
- Home automation SSR boards for lighting and HVAC control
How to Use Black Single Phase Solid State Relay SSR Heat Sink Base
Mount your single-phase SSR onto the heat sink base using thermal compound between the relay’s flat backplate and the aluminum surface, then secure with screws through the pre-drilled holes. Ensure adequate airflow around the heat sink and connect your SSR’s input and output terminals according to the relay manufacturer’s wiring diagram.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which SSR models fit this heat sink base?
This heat sink is designed for single-phase SSRs within the 10A to 40A range that have a flat mounting surface matching the 80 × 50 mm area. Always check your relay’s datasheet for plate dimensions before installation.
Do mounting screws and thermal compound come included?
The heat sink base is supplied without screws and thermal compound to allow users to select hardware compatible with their specific SSR model and application requirements.
How much temperature reduction can I expect?
By using a properly sized heat sink base and good thermal contact, you can lower SSR case temperature by 15–25 °C under typical 25 °C ambient conditions and moderate load currents.
Technical Specifications
| Current Rating | 10A |
|---|---|
| Size | 50mm |
| Color | Black |
| SKU | AI4230 |
| Weight | 0.0858 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Black Single Phase Solid State Relay SSR Heat Sink Base Small Type Heat Radiator for 10A to 40A Size:80*50*50MM is a versatile aluminium heat sink used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
