ATMEGA16 ATmega 32 ISP AVR Minimum Development System Board Module

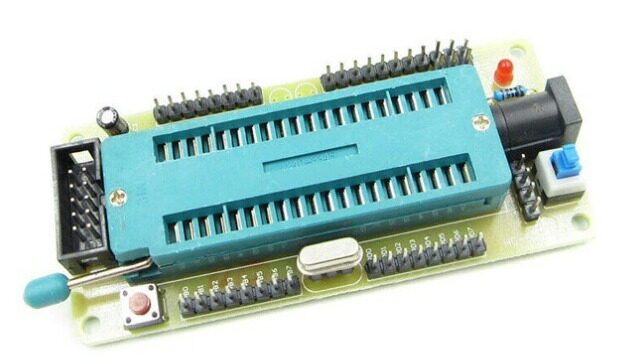

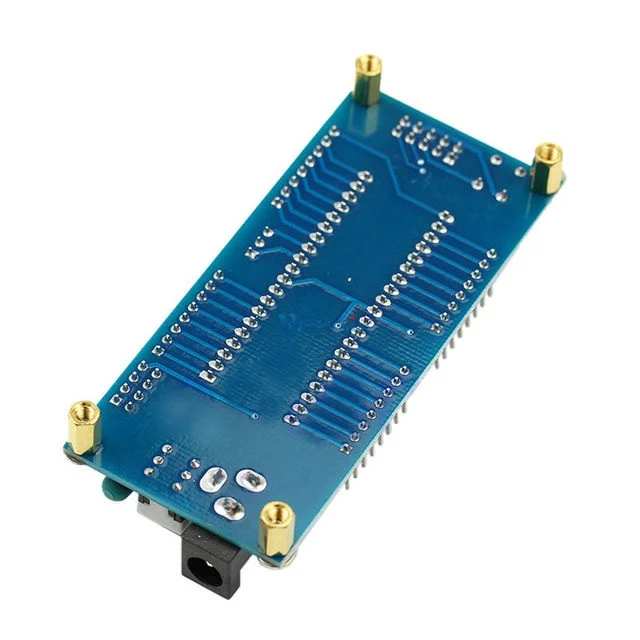

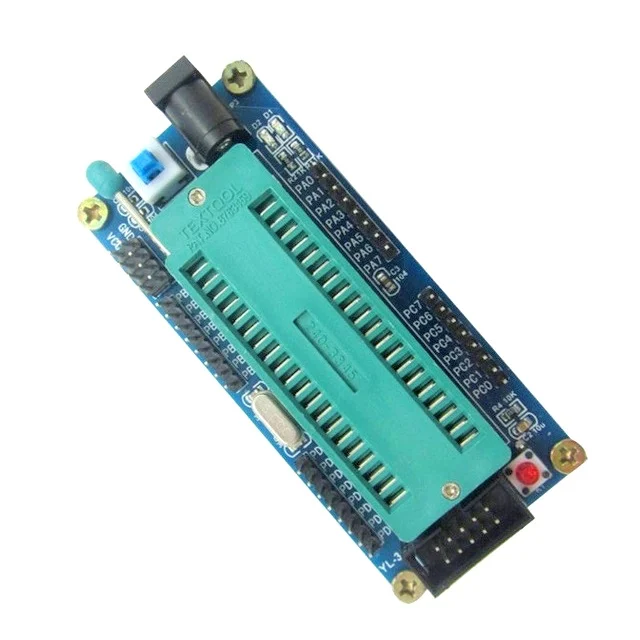

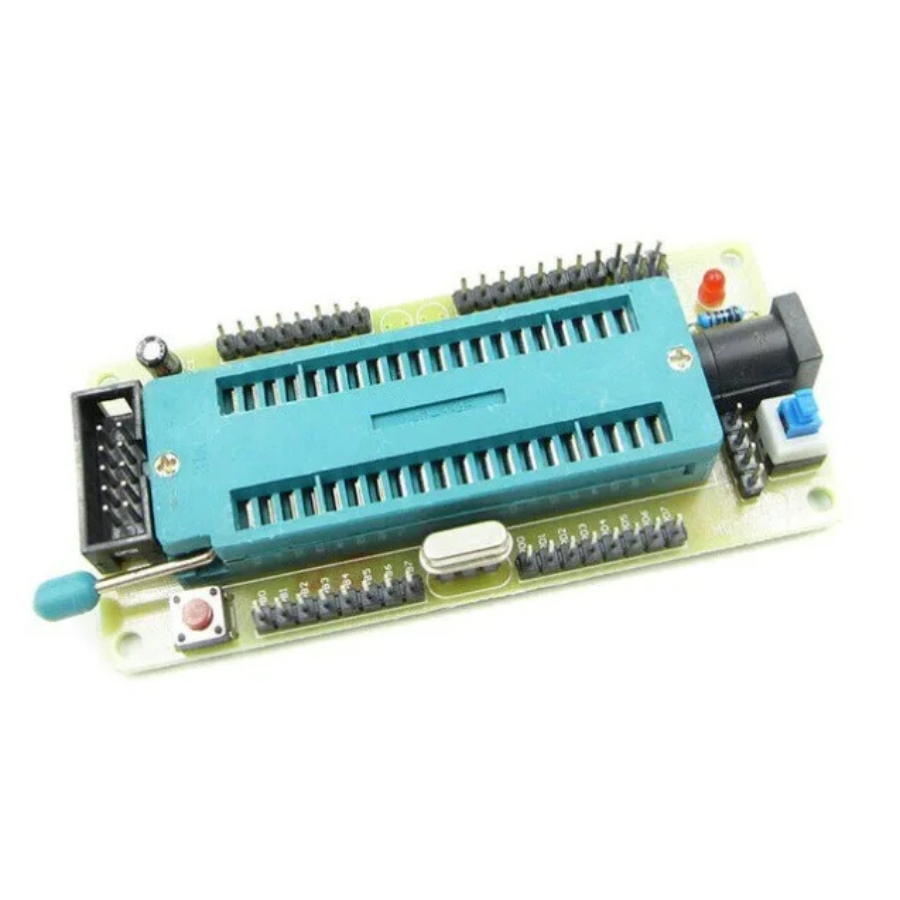

This is a minimum development system board module for ATMEGA16 and ATmega32 ISP AVR.
Having a personal development board can spark your creativity and intelligence. For a learner, a bare board may be more useful than an assembled one. That’s why we offer you our minimum system development board for ISP Atmega16 and Atmega32.
This board is made of high-quality materials and advanced techniques, so you can trust its performance. You don’t need to solder or assemble anything; you can design your own circuits as you wish. It is a great helper for your development.
Note: This minimum system development board without AVR chip, you need purchase for the chip in additional!!!
Features
- 32 I/O pin all the leads.
- Classic ATmega16 minimum system, eliminating the hassle of soldering.
- Crystal: The socket hole welding facilitates the buyer to replace the crystal, 8M crystal.
- Support chips: ATmega16/ATmega32 and chip which pin compatible.
- Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply)
- DC-005 Power Block (supporting the transposon is 5.5*2.1mm).
- Expand outside 4 channel VCC, GND.
- Reset: Power-on-reset and reset button.
- Power LED (D1) and the program run indicator (D2).
- Standard ISP download interface.
Specifications:
| Support Chips | ATmega16/ATmega32 |
|---|---|
| Reset Button | YES |
| Length (mm): | 90 |
| Width (mm): | 40 |
| Height (mm): | 14 |
| Weight (g): | 46 |
Package Includes
- 1 x ATMEGA16 ATmega32 AVR Minimum System Board
ATMEGA16 ATmega 32 ISP AVR Minimum Development System Board Overview
This ATMEGA16 ATmega32 ISP AVR Minimum Development System Board is a fully assembled module designed for rapid prototyping and learning with ATmega16 or ATmega32 microcontrollers. It breaks out all 32 I/O pins, includes power and reset circuitry, and features a standard ISP interface for easy programming without soldering.
Key Features of ATMEGA16 ATmega 32 ISP AVR Minimum Development System Board
- Supports ATmega16 and ATmega32 DIP-compatible AVR chips
- Breaks out all 32 I/O pins on dual-row headers for easy wiring
- Ready-to-use, no soldering required—just insert your MCU
- Flexible power options: DC-005 barrel jack (5.5×2.1 mm) or external expansion pin
- Built-in power-on-reset circuit and manual reset button
- Power indicator LED (D1) and program-run indicator LED (D2)
- Standard 6-pin ISP download interface for AVR programmers
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Hands-on learning of AVR assembly or C programming in educational labs
- Rapid prototyping of digital control and sensor-interface projects
- Firmware development and debugging via the ISP header
- Custom I/O expansion for robotics, automation or LED-matrix applications
- Embedded systems experiments requiring easy access to multiple I/O lines
- Replacement of barebones breadboard setups with a reliable development platform
How to Use ATMEGA16 ATmega 32 ISP AVR Minimum Development System Board
Insert an ATmega16 or ATmega32 DIP chip into the socket, supply 5–12 V via the DC-005 barrel jack or expansion pins, then connect your AVR ISP programmer to the 6-pin header. Press the reset button or cycle power for a clean start. Use your preferred AVR IDE (such as Atmel Studio or avrdude) to upload firmware and observe the D2 LED to verify program execution. Connect external peripherals or sensors to the I/O headers as needed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which AVR chips can I use on this board?
The socket and pin headers support ATmega16 and ATmega32 DIP-28 packages, as well as any other 28-pin AVR chips that share the same pinout.
How do I power the board during ISP programming?
You must supply external power via the DC-005 barrel jack or the Vcc/GND expansion pins. The ISP interface does not provide board power, so a separate 5–12 V source is required before programming.
What do the two LEDs indicate?
D1 is the power indicator LED, which lights when the board is powered. D2 is the program-run indicator, toggled by your firmware (typically connected to a GPIO pin) to signal successful code execution.
Technical Specifications
| Model | ATMEGA16 |
|---|---|
| SKU | AI0597 |
| Weight | 0.054213 kg |
| Availability | Out of Stock |
Applications & Use Cases
The ATMEGA16 ATmega 32 ISP AVR Minimum Development System Board Module is a versatile pic programmer used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
