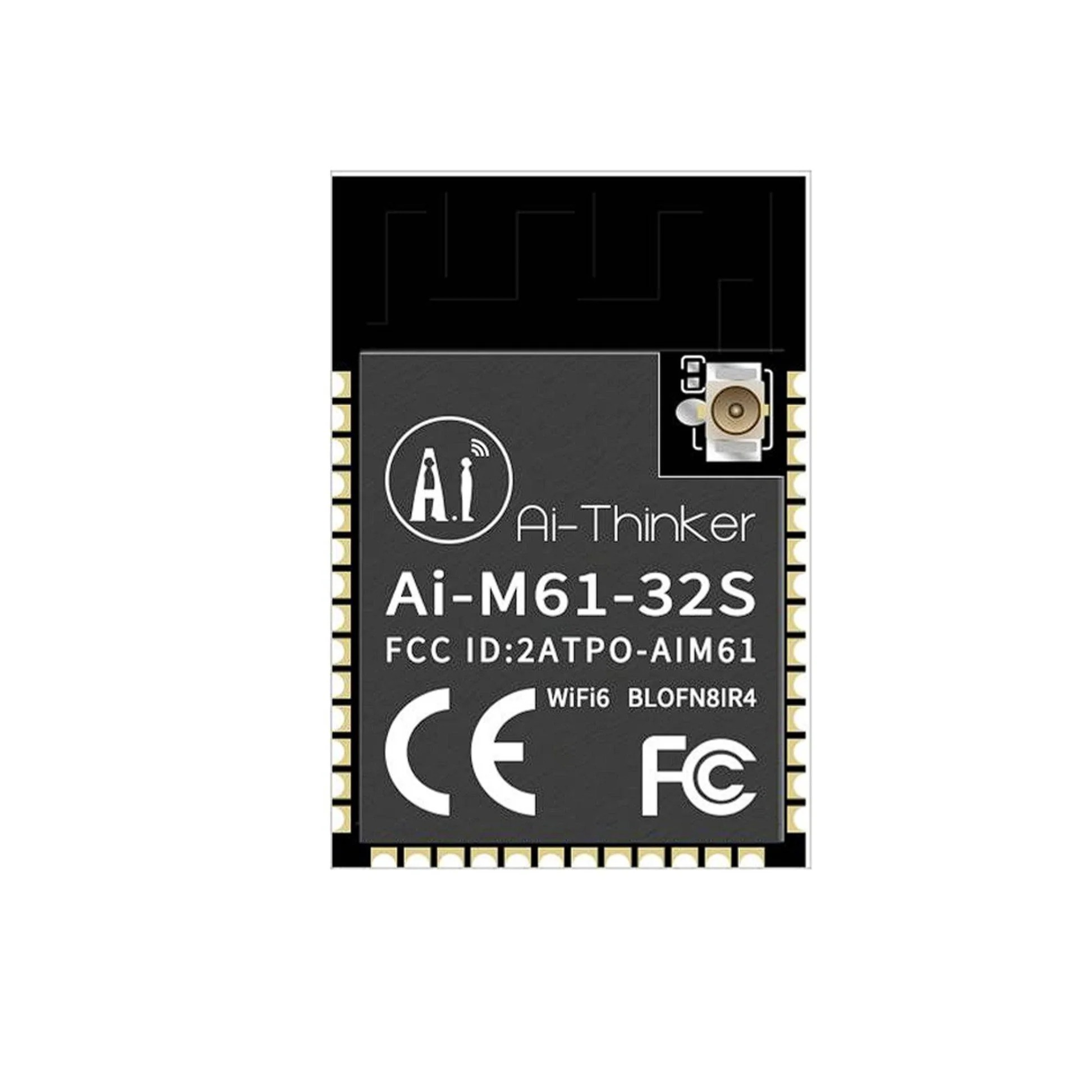

Ai-Thinker Ai-M61-32S WiFi BLE Module

Looking for M61 Module? Ai-Thinker Ai-M61-32S WiFi BLE Module is available at Zbotic with fast shipping across India.

Ai-M61-32S is a Wi-Fi 6+BLE5.3 module developed by Ai-Thinker. The module is equipped with a BL618 chip as the core processor and supports Wi-Fi 802.11b/g/n/ax Protocol and BLE protocol, supporting Thread protocol. The BL618 system includes a low-power 32-bit RISC-V CPU with a floating-point unit, DSP unit, cache and memory, with a maximum frequency of 320M. The Ai-M61-32S module has rich peripheral interfaces, including DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc. Ai-M61-32S can be widely used in audio and video multimedia, the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes and other fields. Ai-M61-32S module Sec Eng module supports AES/SHA/PKA/TRNG and other functions, supports image encryption and signature startup, and meets various security application requirements in the Internet of Things field

Specifications:

• Model: Ai-M61-32S
• Antenna: on-board PCB antenna/IPEX connector
• Frequency: 2400 ~ 2483.5MHz
• Operating Temperature:-40℃ ~ 85℃
• Storage Temperature: -40℃ ~ 125℃, < 90%RH
• Power Supply: Support voltage 2.97V ~ 3.6V，supply current ≥500mA
• IO: 29
• UART Rate: Default 115200 bps
• Security: WPS/WEP/WPA/WPA2/WPA3
• Flash: Default 8MByte，Support expansion
• Interface: Support DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO, etc.

Features:

• Ai-M61-32S support BLE5.3
• Support Thread
• Support 2.4GHz working frequency band
• Support IEEE 802.11 b/g/n/ax
• Support Wi-Fi/BLE/Thread coexistenc
• Wi-Fi security supports WPS/WEP/WPA/WPA2/WPA3
• Support 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps
• Support STA, SoftAP, STA+SoftAP and sniffer mode
• 32-bit RISC-V CPU with FPU and DSP, the highest frequency can reach 320M
• 4MB pSRAM，532KB SRAM，128KB ROM，4Kb eFuse
• Support Camera Sensor DVP interface
• Support Video Codec MJPEG encoding
• Support LCD (QSPI, DBI and RGB)
• Support DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP and GPIO, etc.

Package Included:

1 x Ai-Thinker Ai-M61-32S WiFi BLE Module

Datasheet:

Ai-Thinker Ai-M61-32S WiFi BLE Module Overview

The Ai-Thinker Ai-M61-32S is a compact wireless connectivity module that combines Wi-Fi 6 (802.11ax) and Bluetooth Low Energy 5.3 in a single package. Powered by the BL618 RISC-V processor, it’s designed for advanced IoT, multimedia and edge computing applications requiring high throughput and low power consumption.

Key Features of Ai-Thinker Ai-M61-32S WiFi BLE Module

• Dual-band connectivity with Wi-Fi 802.11b/g/n/ax and BLE 5.3, plus Thread protocol support
• On-board PCB antenna and IPEX connector options for flexible RF integration
• High-performance BL618 chip: 32-bit RISC-V CPU, FPU, DSP, cache and 320 MHz max frequency
• Extensive peripheral interfaces: DVP, MJPEG, Display, Audio Codec, USB2.0, Ethernet, SD/MMC, SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO
• Wide operating range: 2400–2483.5 MHz frequency, –40 °C to 85 °C operating temperature
• Reliable power supply: 2.97 V–3.6 V input, supply current ≥ 500 mA
• Fast shipping across India—order today and dispatch within 24 hours from Zbotic

Applications and Use Cases

• Smart home gateways and IoT hubs requiring Wi-Fi 6 throughput and BLE sensor connectivity
• Portable audio/video streaming devices using MJPEG and audio codec interfaces
• Wearable electronics and health monitors with low-power BLE and GPADC inputs
• Edge computing nodes for industrial automation leveraging Ethernet and SPI/UART links
• Thread-based mesh networks for smart lighting and environmental sensing
• USB-powered peripherals or dongles integrating Wi-Fi and BLE in one module

How to Use Ai-Thinker Ai-M61-32S WiFi BLE Module

Begin by soldering the module onto your PCB or mounting it on a breakout board, then choose either the on-board antenna or attach an external antenna via IPEX. Supply 3.3 V (2.97–3.6 V) and at least 500 mA, connect to your host MCU over UART, SPI or I2C, and flash the BL618 with your firmware. Configure Wi-Fi and BLE stacks in your development environment, and wire up peripherals such as audio codec, GPIO or camera interfaces as needed.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What programming interfaces does the Ai-M61-32S support?

The module provides multiple host interfaces: UART for AT-command control, SPI for high-speed data transfer, I2C for low-speed peripherals and USB2.0 device mode. Choose the interface that best fits your application bandwidth and pin count.

Can I use an external antenna for extended range?

Yes. The Ai-M61-32S comes with both an on-board PCB antenna and an IPEX connector. You can solder the module without the onboard antenna footprint and attach a U.FL antenna via the IPEX port for improved RF performance.

How do I enable Thread on this module?

The BL618 firmware includes Thread protocol support. After flashing the Thread-enabled SDK, configure network parameters in your development IDE and initialize the Thread stack via the AT or SDK API commands to join or form a mesh network.
