This is the 250V variant of the 80-250V SSR-60AA Solid State Relay in Solid State Relays, Relays. Available at ₹379.96 (₹322.00 + GST) with free shipping across India.
Looking for Ssr-60aa Relay? 80-250V SSR-60AA Solid State Relay is available at Zbotic with fast shipping across India.

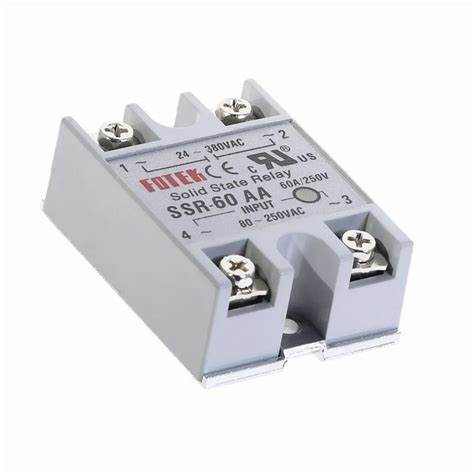

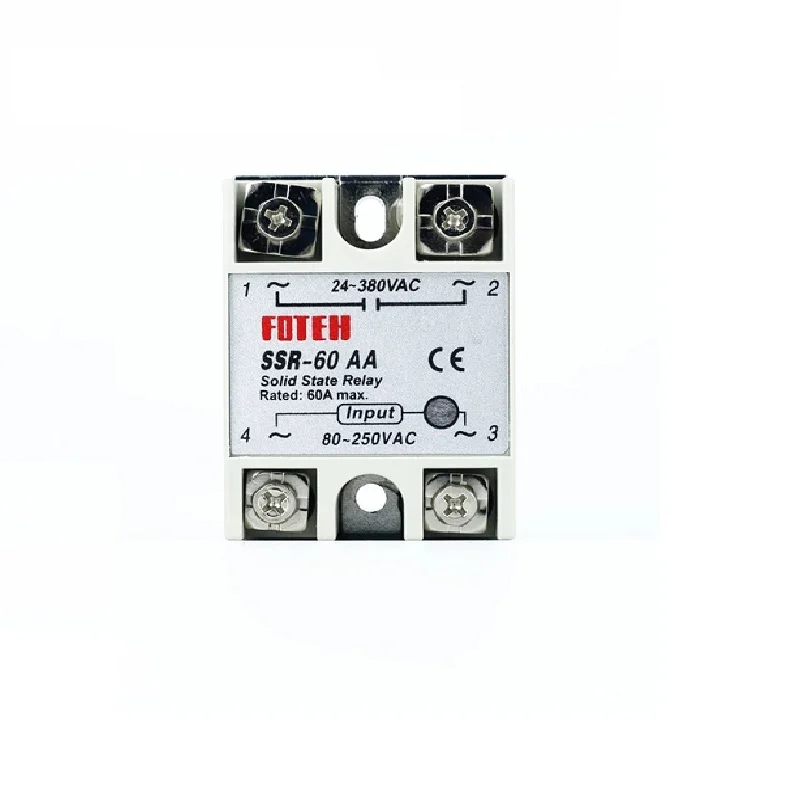

80-250V SSR-60AA Solid State Relay
Upgrade your relay system with the AC To AC SSR-60AA Solid State Relay Module. Unlike traditional electromechanical relays, this solid-state relay contains no moving parts, ensuring reliability and longevity in operation.
- Solid-State Technology: Utilizes solid-state components for enhanced reliability and durability.
- Types of SSR: Available types include photo-coupled SSR, transformer-coupled SSR, and hybrid SSR, offering flexibility for various applications.
- Photo-Coupled Operation: Controlled by a low voltage signal isolated optically from the load, ensuring safe and efficient operation.
- Control Signal: The control signal energizes an LED, which activates a photo-sensitive diode to switch the load.
- High Load Capacity: Capable of switching current loads of up to 86A with an input range of 80-250VAC/24-380VAC.
- Zero Cross Trigger Control: Utilizes a zero-cross trigger control method for precise switching and reduced electrical noise.
- Screw Terminals: Equipped with four screw terminals for easy connection using ring or fork connectors.
- Protective Cover: Features a plastic cover that slides over the top of the relay to protect the terminals, ensuring safety and reliability.
Features:
- Long service life and high reliability
- Reduced electromagnetic interference
- Highly reliable, compact size designed to offer users maximum simplicity.
Specification-
| Rated Load Current (mA) | 60A |
|---|---|
| Dielectric Strength | Over 2.5kVA / 1 min |
| Trigger Voltage (VAC) | 80-250V |
| Switching Voltage (VAC | 24-380@80A |
| Operating Temperature (°C) | -20 to 85 °C |
| Material | ABS |
| Length (mm) | 45.5 |
| Width (mm) | 62.5 |
| Height (mm) | 24 |
| Weight (gm) | 93 |
| Shipping Weight | 0.105 kg |
| Shipping Dimensions | 12 × 9 × 1 cm |
Package Includes:
1 x 80-250V SSR-60AA Solid State Relay
80-250V SSR-60AA Solid State Relay Overview
The 80-250V SSR-60AA Solid State Relay is an AC-to-AC switching module designed for high-current applications up to 60A. With no moving parts, it offers silent operation and enhanced longevity compared to traditional electromechanical relays, making it ideal for industrial automation and power control.
Key Features of 80-250V SSR-60AA Solid State Relay
- Rated Load Current: Supports continuous AC current up to 60A
- Wide Trigger Voltage: Operates on control signals from 80VAC to 250VAC
- High Switching Voltage: Handles load voltages from 24VAC to 380VAC
- Robust Insulation: 2.5kVAC dielectric strength for 1 minute between input and output
- Temperature Range: Reliable performance from -20°C to 85°C
- Fast Shipping from Zbotic: Shipped within 24 hours across India
Applications and Use Cases
- Motor speed control and soft-start functions in manufacturing
- AC heater and oven temperature regulation systems
- Lighting dimming and stage equipment switching
- Automated conveyor and packaging machinery control
- HVAC system fan and blower switching
- Silent switching in power distribution units
How to Use 80-250V SSR-60AA Solid State Relay
Mount the SSR-60AA on a proper heatsink, then connect your AC load to the output terminals. Apply the control voltage (80–250VAC) to the input terminals, observing correct terminal markings. Ensure secure wiring, adequate insulation, and proper ventilation to maintain safe operating temperatures.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What control voltage is required to trigger the SSR?
The SSR-60AA requires an input control voltage between 80VAC and 250VAC to activate the internal solid-state switch.
Can this SSR handle motor loads?
Yes, this relay can switch inductive loads such as AC motors up to 60A, making it suitable for motor control and automation tasks.
Is a heatsink necessary for continuous operation?
For continuous operation near the 60A limit, mounting the SSR-60AA on a heatsink is recommended to keep junction temperatures below 85°C and ensure reliable performance.
