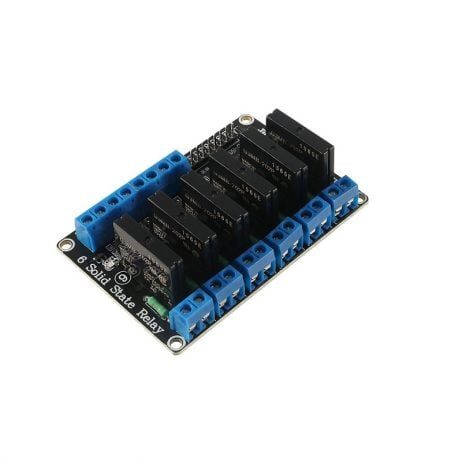

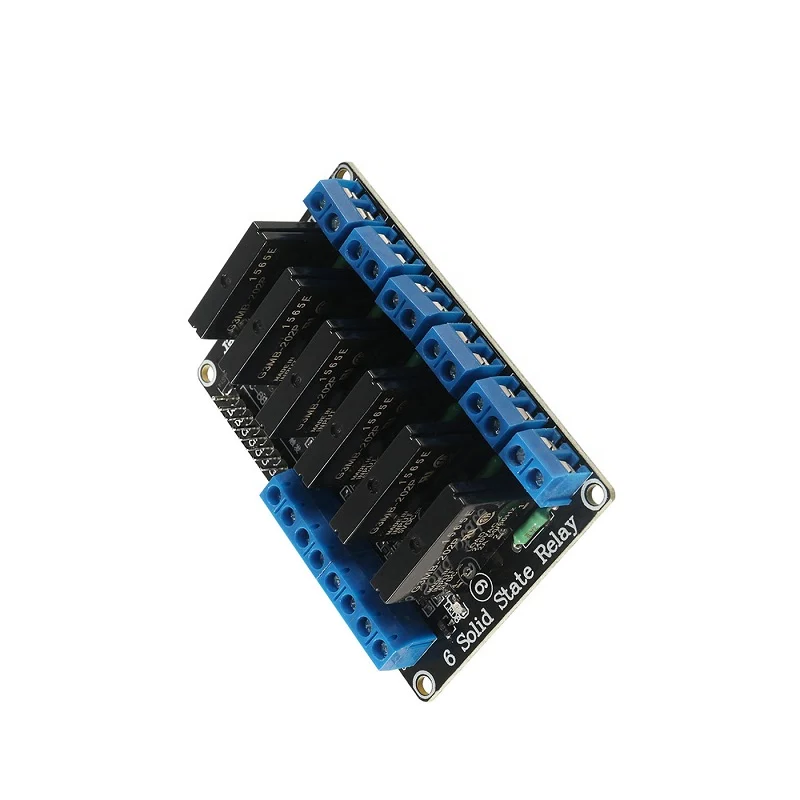

6 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse
The 6 Channel 12V Solid State Relay Module functions similarly to a mechanical relay but utilizes solid-state technology, making it highly efficient and reliable. By employing infrared light as the ‘contact,’ it enables the control of high-voltage AC loads using lower voltage DC control circuitry. Solid-state relays offer numerous advantages over mechanical relays, including generating no noise and boasting a significantly longer lifespan. Unlike traditional mechanical relays, solid-state relays can be switched by much lower voltage and current levels. Additionally, due to the absence of moving contacts, they can be switched faster and for longer durations without experiencing wear and tear.
Input Parts:
- DC: connected to VCC (Supply power according to relay voltage)
- DC-: connected to GND.
- IN1: CH1 Signal triggering the end of 1-channel relay module (active at the high level)
- IN2: CH2 Signal triggering the end of 2-channel relay module (active at the high level)
- IN3: CH3 Signal triggering the end of 3-channel relay module (active at the high level)
- IN4: CH4 Signal triggering the end of 4-channel relay module (active at the high level)
- IN5: CH5Signal triggering the end of 5-channel relay module (active at the high level)
- IN6: CH6 Signal triggering the end of64-channel relay module (active at the high level)
Features:
- 6-channel 2 AMP Solid State Relay board.
- Control 6 loads of up to 2 amps each at 240 V AC.
- Good for lighting, Holiday displays, etc.
- Has been assembled, and the electrical test passed.
- Led indicator for each relay.
- Use it to control various appliances and other equipment with a large current.
- It can be controlled directly by a Microcontroller.
- Input control signal voltage.
- 0-0.5V low stage SSR is OFF
- 0.5V – 2.5V (unknown state).
- 2.5-20V high stage SSR is ON
Specification:
Part Number: G3MB-202P
Power supply:12VDC/160mA
Trigger Voltage (VDC):12
Switching Voltage (VAC):240@2A
Isolation: Phototriac
Package Includes:
1 x 6 Channel 12V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse
6 Channel 12V Relay Module Solid State High Level SSR DC Overview
This 6 Channel 12V Relay Module features solid state relays (SSRs) based on the G3MB-202P. It allows you to switch AC loads up to 240VAC/2A using a 12V DC control signal with high-level triggering and built-in resistive fuse protection.
Key Features of 6 Channel 12V Relay Module Solid State High Level SSR DC
- Six independent SSR outputs, each rated for 240VAC at 2A resistive loads.
- 12VDC supply with 160mA total current draw for all six channels.
- High-level trigger: activates on 12V DC control input per channel.
- Optical isolation via phototriac for noise immunity between control and load.
- Integrated resistive fuse on each channel for short-circuit protection.
- Zero-cross turn-on reduces inrush current and electrical interference.
- Genuine modules in stock at Zbotic with fast shipping across India.
Applications and Use Cases
- Home automation: control lighting circuits and AC appliances remotely.
- Industrial panels: switch heaters, solenoid valves or small motors.
- Laboratory setups: reliable on/off switching for test equipment.
- Embedded systems: integrate with Arduino, Raspberry Pi, PLC outputs.
- HVAC control: cycle fans or pumps without mechanical wear.
How to Use 6 Channel 12V Relay Module Solid State High Level SSR DC
Wire the module’s 12VDC power pins to a regulated 12V supply and common ground. Connect each control input to a 12V logic output; applying 12V will switch the corresponding AC channel. Route your AC load between the module’s output terminal and the AC mains. Ensure the load does not exceed 240VAC/2A resistive rating and confirm proper mains insulation before powering up.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What control voltage is required to trigger each SSR channel?
Each channel requires a 12V DC high-level input to activate the internal phototriac and switch the AC load.
Can this module switch inductive loads such as motors or transformers?
This SSR module is specified for resistive loads up to 240VAC/2A. Switching inductive loads may generate higher inrush currents; use additional snubbers or select an SSR rated specifically for inductive loads.
How is isolation achieved between the control and load sides?
Optical isolation is implemented via a phototriac for each channel, ensuring the 12V control circuitry remains electrically separated from the high-voltage AC outputs.
