This is the 8V variant of the 4S 10A BMS For LFP With Balancing 12.8V in Battery Protection Board. Available at ₹182.90 (₹155.00 + GST) with free shipping across India.
Looking for 4s Bms? 4S 10A BMS For LFP With Balancing 12.8V is available at Zbotic with fast shipping across India.

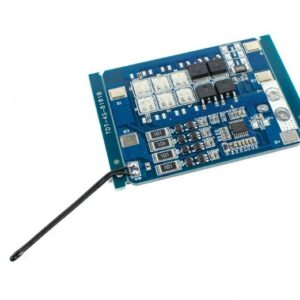

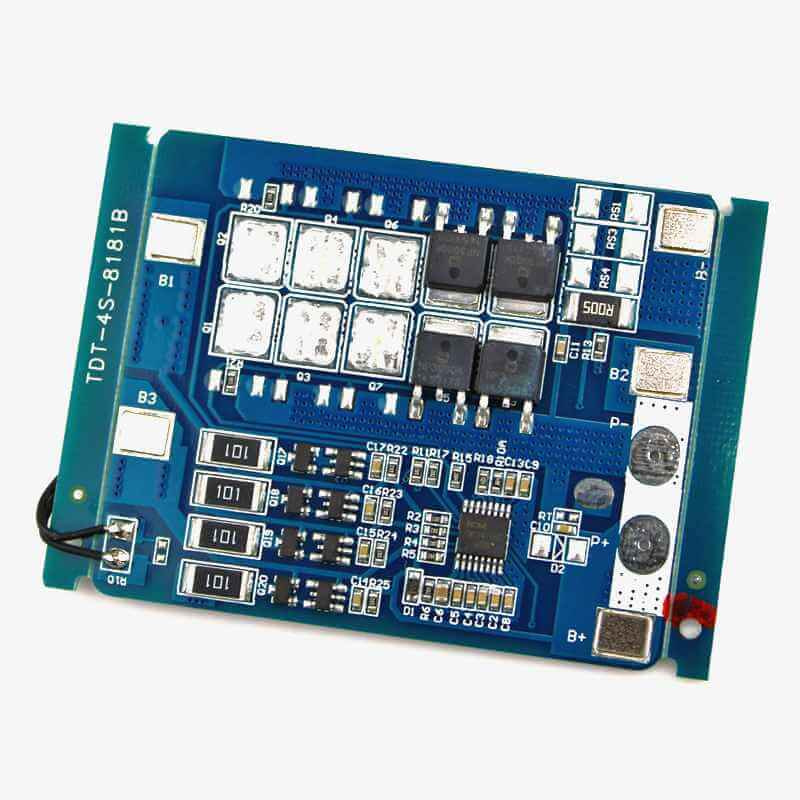

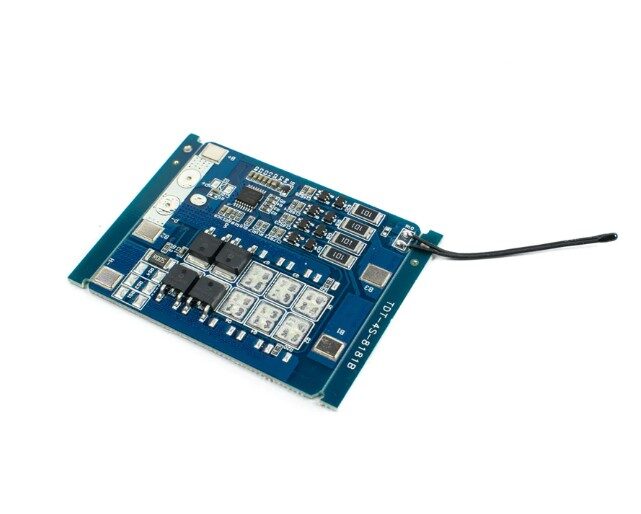

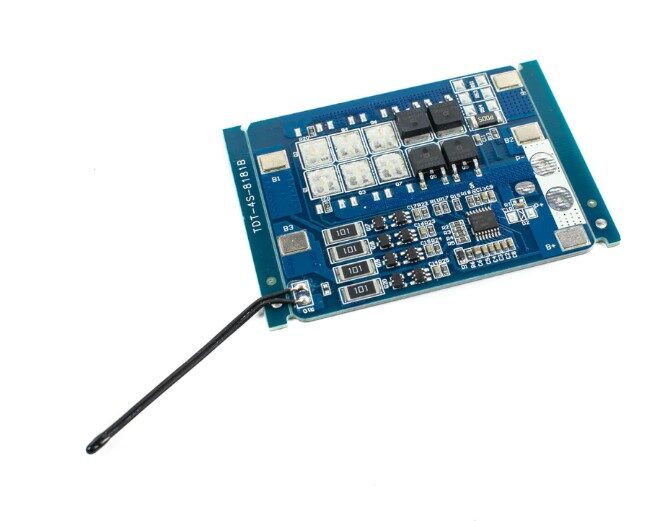

4S 10A BMS For LFP With Balancing 12.8V
The bms for lifepo4 4S 10A BMS with 12.8V balancing is designed for maximum performance and easily integrates into LiFePo4 systems. It ensures balanced energy distribution and seamless transitions between charging and discharging cycles, improving battery efficiency overall.
With a strong 10A capacity, this BMS supports a wide range of applications and ensures a reliable and secure power supply. This specialized BMS serves as a dependable guardian in LiFePo4 configurations, employing cutting-edge balancing technology for optimal battery management. Boost your energy storage capacity with this effective BMS, which is made to balance and maximize the performance of your LiFePo4 system.
This BMS performs well even under difficult circumstances and is widely used in the construction of battery packs for solar and electric vehicle (EV) applications.
Notably, a temperature sensor keeps an eye on the battery’s temperature, which is important for charging lithium-based cells.
This BMS functions well in extreme circumstances, such as below-freezing temperatures and temperatures above 45°C on a regular basis.
Its sturdy construction guarantees top performance, and the temperature monitoring function gives charging procedures an additional degree of accuracy.
With its efficiency and adaptability for battery packs in demanding environments, this BMS stands out as a dependable option.
package includes:1x 4S 10A BMS For LFP With Balancing 12.8V
4S 10A BMS For LFP With Balancing 12.8V Overview
The 4S 10A BMS for LFP with 12.8V balancing is a dedicated battery management system designed specifically for 4-cell LiFePO4 packs. It monitors and equalizes cell voltages, smoothly handles charging and discharging cycles, and safeguards your battery against imbalance. Ideal for small renewable energy and backup power systems.
Key Features of 4S 10A BMS For LFP With Balancing 12.8V
- 4-cell LiFePO4 support at a nominal 12.8 V configuration
- 10 A continuous charge/discharge current rating
- Integrated passive cell balancing for uniform state-of-charge
- Over-charge, over-discharge and short-circuit protection
- Compact PCB design for easy integration into battery packs
- Fast shipping from Zbotic across India
Applications and Use Cases
- Off-grid solar energy storage systems
- Portable power stations and UPS builds
- Small electric vehicles or e-bike battery packs
- Telecom backup power units
- DIY robotics and automation power sources
- Marine and RV battery banks
How to Use 4S 10A BMS For LFP With Balancing 12.8V
Connect the BMS’s balance leads to each of the four LiFePO4 cells in series, secure the main positive and negative output terminals to your load or charger, and ensure proper insulation of all connections. Once wired, the unit will automatically monitor individual cell voltages, handle balancing during charge, and protect against over-discharge and short circuits.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which battery chemistry and configuration does this BMS support?
This BMS is exclusively designed for 4-cell LiFePO4 packs wired in series, providing a nominal voltage of 12.8 V.
What is the maximum continuous current rating?
The board supports up to 10 A continuous charge or discharge, making it suitable for medium-duty applications.
How does the cell balancing feature work?
During the charging phase, the passive balancing circuit shunts excess charge from higher-voltage cells to ensure all four cells reach equal voltage, extending pack life and performance.
Galvanic Isolation: Why and How to Isolate Power Rails in Your Circuits
Galvanic Isolation: Why and How to Isolate Power Rails in Your Circuits Every experienced electronics designer knows that...
Read More →
Portable Solar Charger: Camping Power Solution India
Table of ContentsDesigning a Portable Solar Charger Solar Panel Selection for Camping Charge Controller Options Battery Bank Integration...
Read More →
Battery Tab Welding vs Soldering: Which Method to Use
Table of ContentsThe Case Against Soldering Batteries How Spot Welding Protects Cells When Soldering Is Acceptable Solder Tab...
Read More →Technical Specifications
| Operating Voltage | 12.8V |
|---|---|
| Current Rating | 10A |
| Cell Configuration | 4S |
| SKU | AI1056 |
| Weight | 0.0182 kg |
| Availability | In Stock |
Applications & Use Cases
The 4S 10A BMS For LFP With Balancing 12.8V is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
