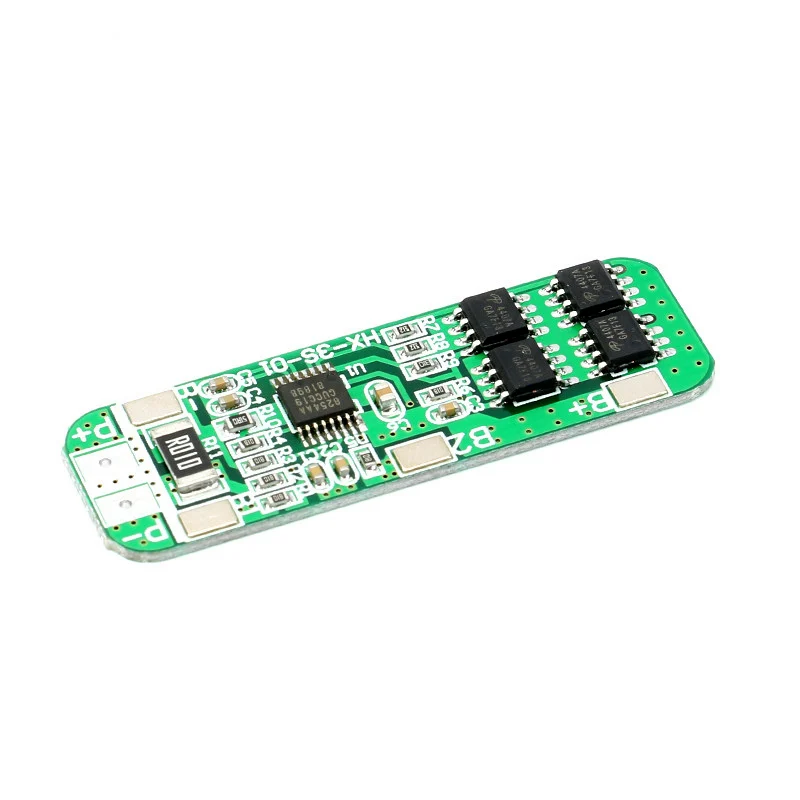

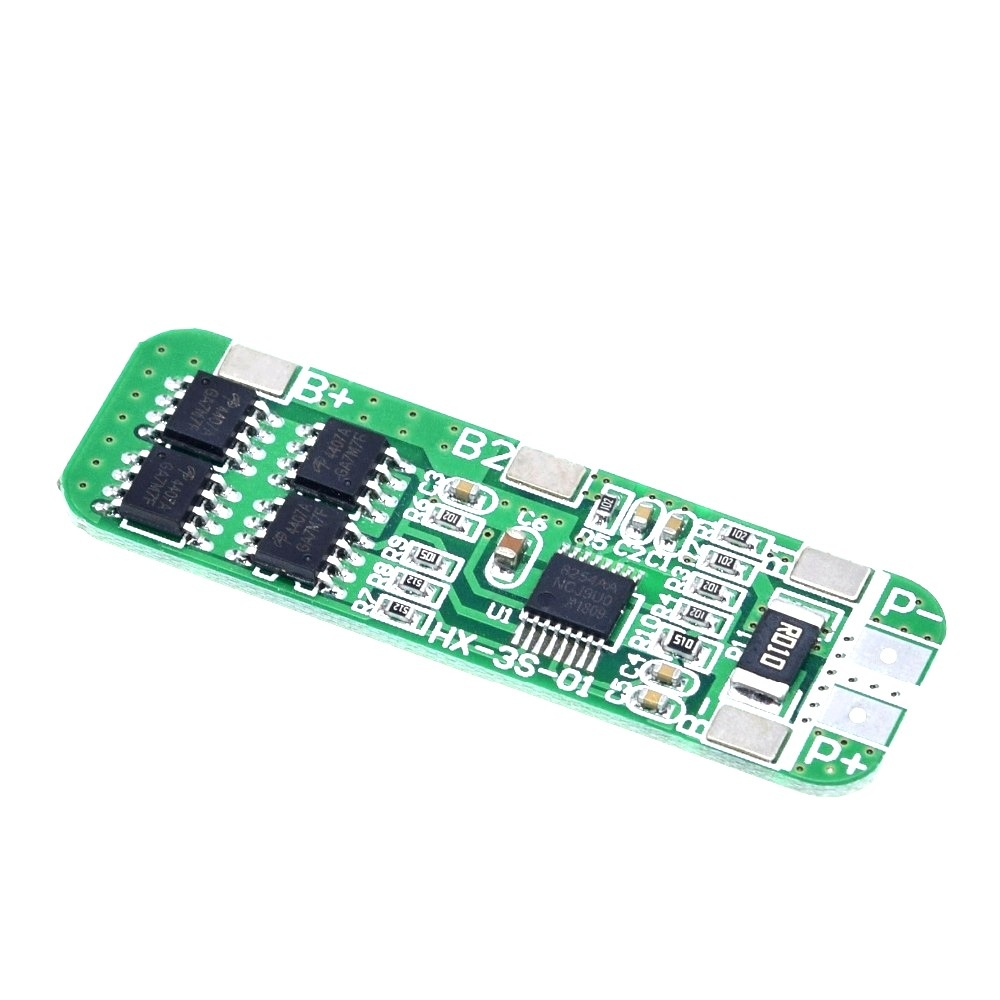

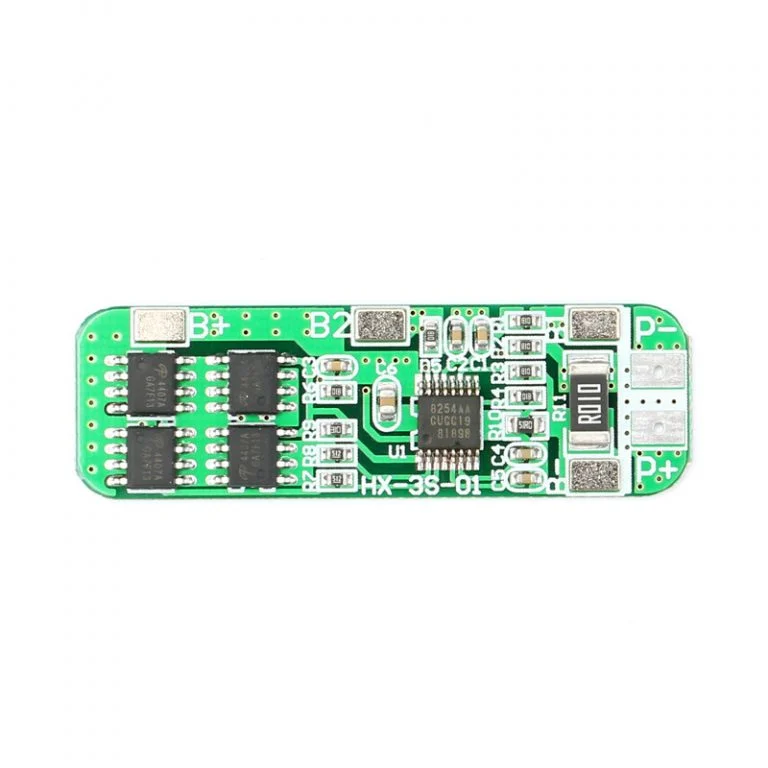

3S 10A Li-ion 18650 Charger Protection Board Module 10.8V 11.1V 12.6V
Charger Protection Board Module is a 3 Series 6A 18650 Lithium Battery Protection Board with Balance for 11.1V 12.6V Drill Motor Lipo Cell Module. It has the following features:
– It has an AUTO Recovery function and 10 low load resistance MOS tubes integrated.
– It can discharge 6A continuously and balance 100mA current for electric drill/sprayer/LED lights/low power inverter. (Please reduce the load current if the cooling environment is poor)
– It is compatible with 3.6V or 3.7V nominal voltage lithium batteries (including 18650,26650, and polymer lithium batteries) that have a charging voltage between 16.8V and 18.1V.
– It has a continuous charge current limit of 6A. It is suitable for drills with a starting current below 80A and a power below 135W (with balance).

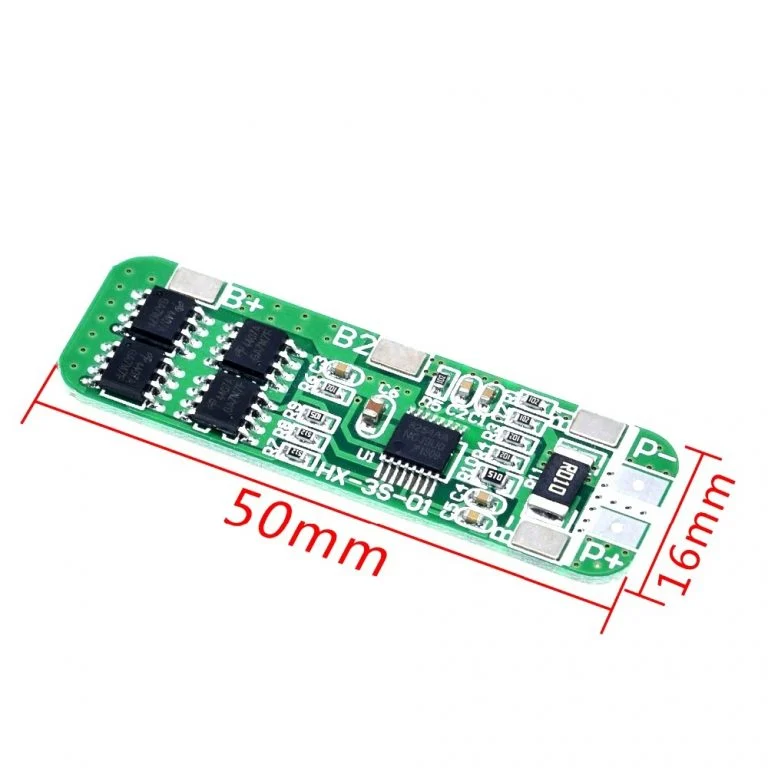

– It has a compact size of about 50 x 16 x 3.4 mm that can be easily installed on the battery bundle or in a small space.
Applicable Scope
This power range can be used for these products: battery packs for massagers, LED lights with standby power, 12V electronic devices, battery packs for solar street lights, backup power for monitors, and other items.
Note: For products that discharge more than 3A of current, the battery discharge rate should be at least 3C.
Precautions:

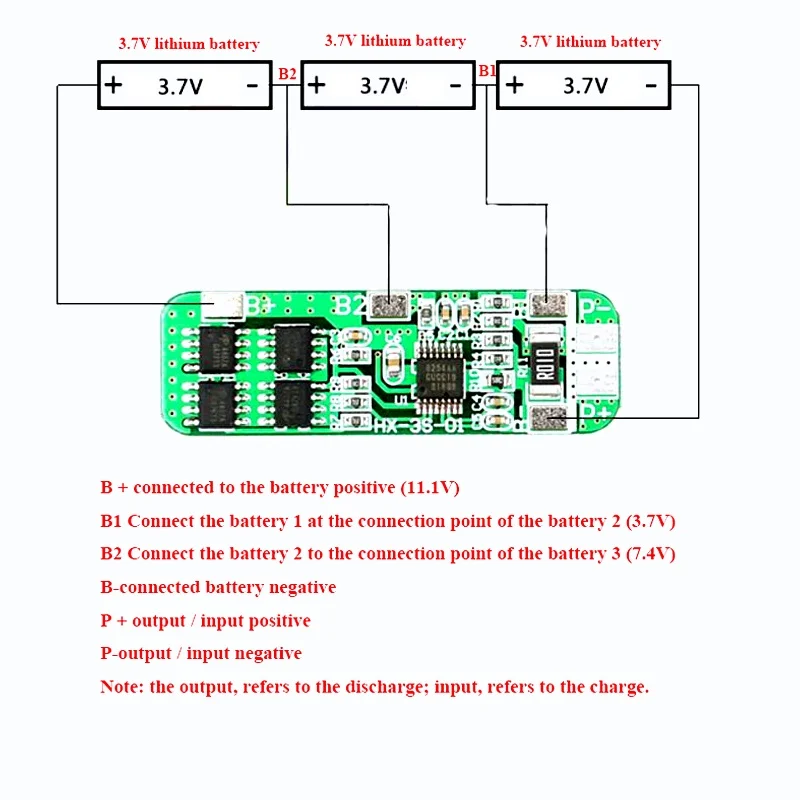

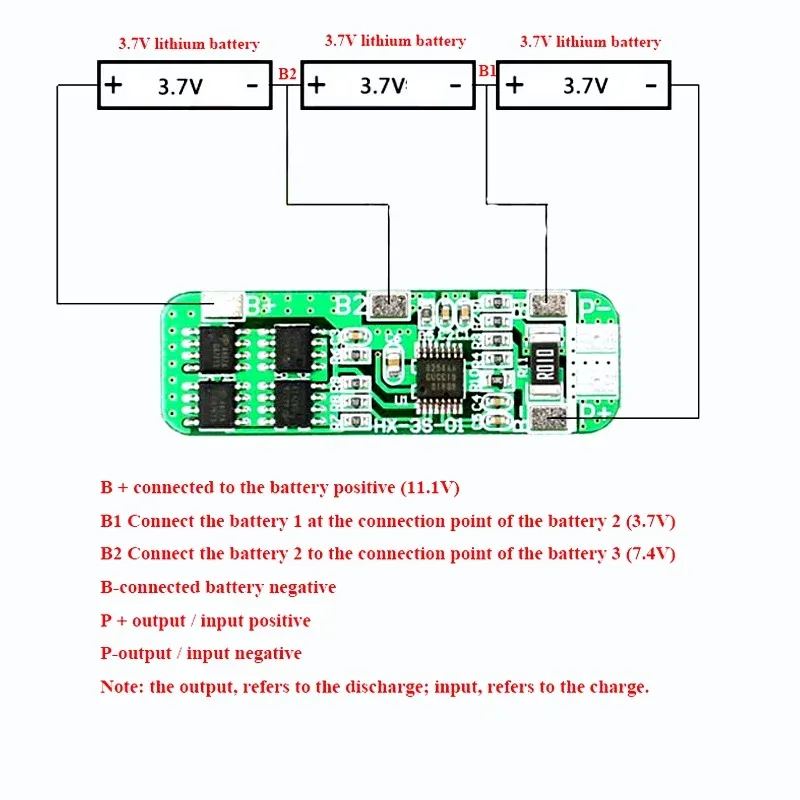

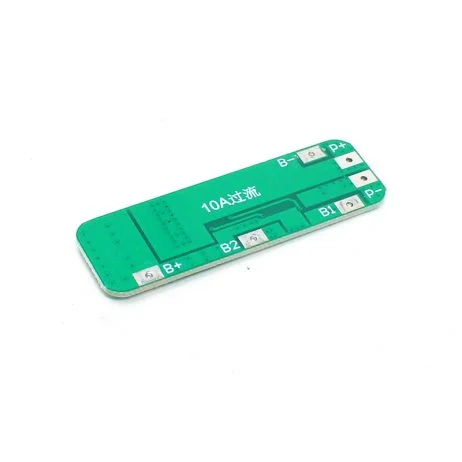

1. Please strictly follow the wiring 0V (B -), 3.7V (B1), 7.4V (B2), 11.1V (B ), do not deliberately short circuit.
2. Please charge after connecting the line, then it will have output.
3. When connecting three groups of batteries, please ensure that the voltage of each group of batteries, if not the same, please fill each battery separately and then use in series. Discharge test, the voltage drops quickly when the group of battery time difference battery.
4. Please do not mix the battery and the poor battery together! 3 sets of battery capacity/resistance closer to the better! (Two good batteries 1 a poor battery use effect = 3 poor battery use effect).
Specifications and Features:
- Charging Voltage: 12.6V-13V
- Overcharge Voltage Range: 4.25V-4.35V ± 0.05V
- Overpressure Voltage Range: 2.3V-3.0V ± 0.05V
- Upper Limit Operating Current: 5A-6A
- Upper Limit Instantaneous Current: 10A
- Quiescent Current: less than 30uA
- Internal Resistance: less than 45mohm
- Effective Life: more than 50,000 hours
- Operating Temperature: -40- 50 degrees
- Storage Conditions: -40- 80 degrees3S 11.1V 12.6V 6A 18650 lithium battery protection board (comes with recovery function-AUTO Recovery)
- Application: Nominal voltage of 3.6V, 3.7V lithium battery (including 18650.26650, a polymer lithium battery)
- Continuous discharge current (upper limit): 10A (if the cooling environment is not good, please reduce the load current use)
- Continuous charge current (upper limit): 6A.
Specification:
| Battery | 3 Cell |
|---|---|
| Overcharge detection voltage (V) | 4.25 ± 0.025 |
| Over-discharge detection voltage (V) | 2.50 ± 0.08 |
| Over current Protection (A) | 10 |
| Working current (A) | 5 ~ 6 |
| Operating Temperature (°C) | -40 ~ +85 |
| Length (mm): | 50 |
| Width (mm) | 15.5 |
| Height (mm) | 3 |
| Weight (gm) | 3 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 8 × 2 × 1 cm |
