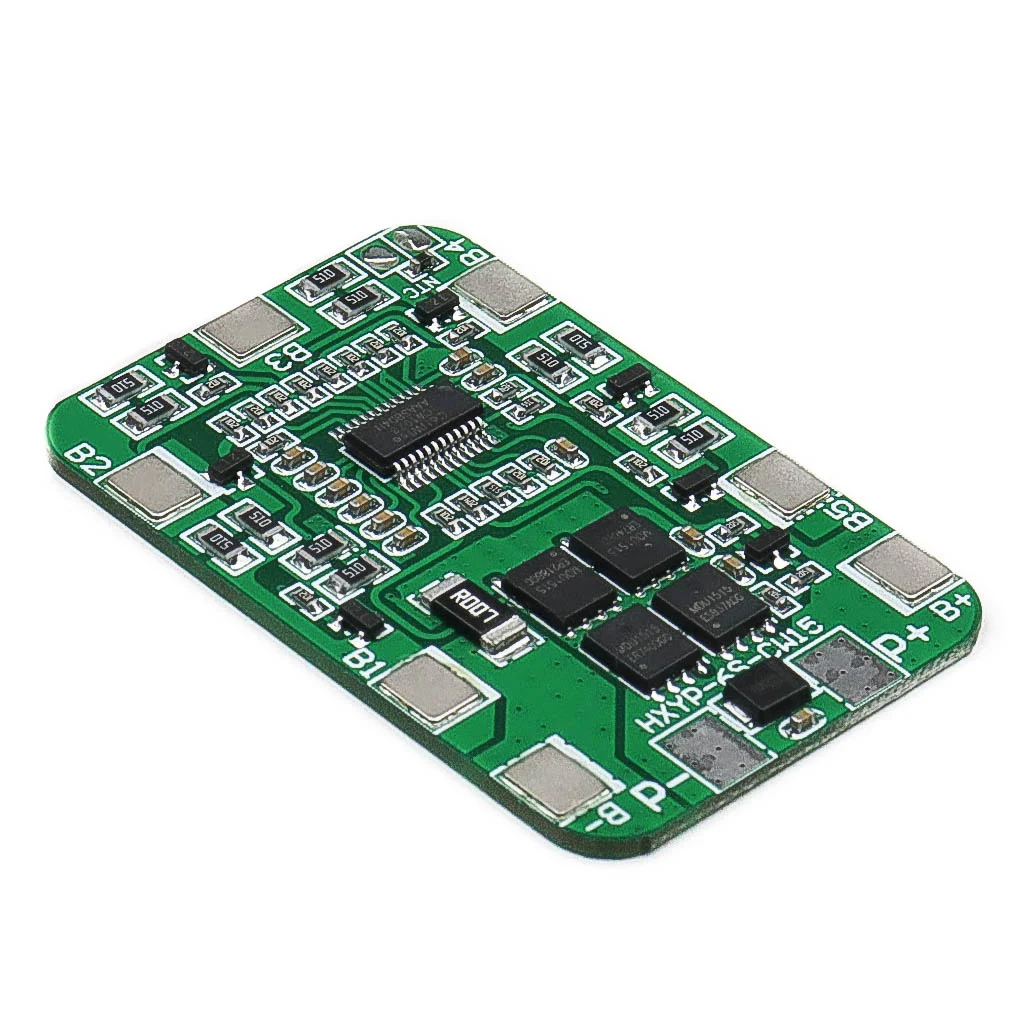

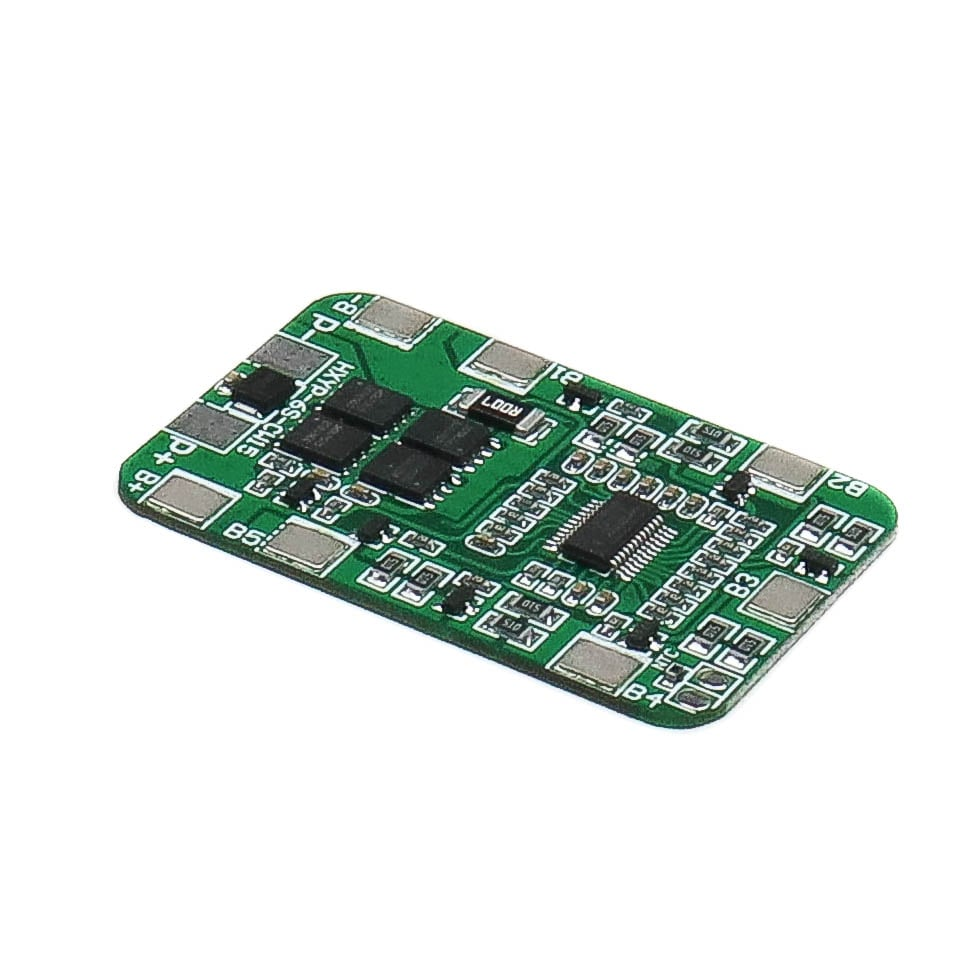

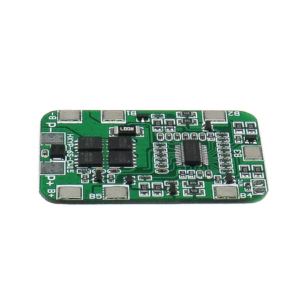

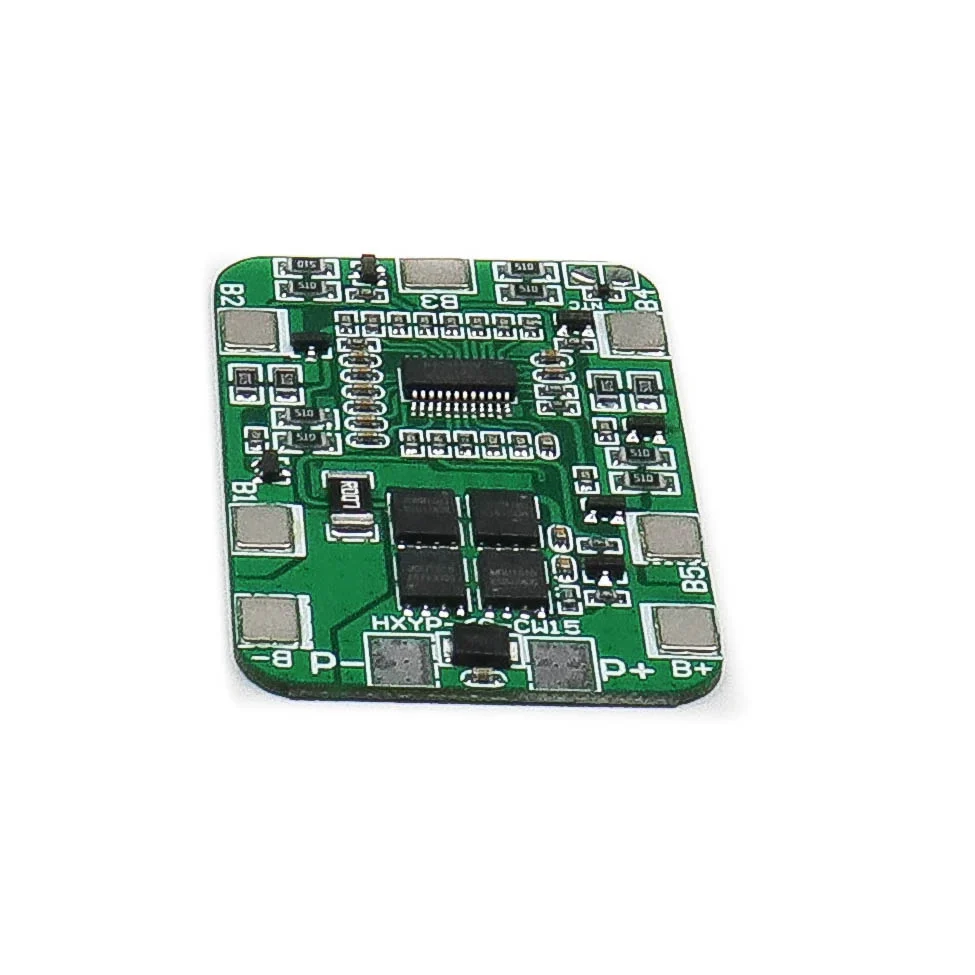

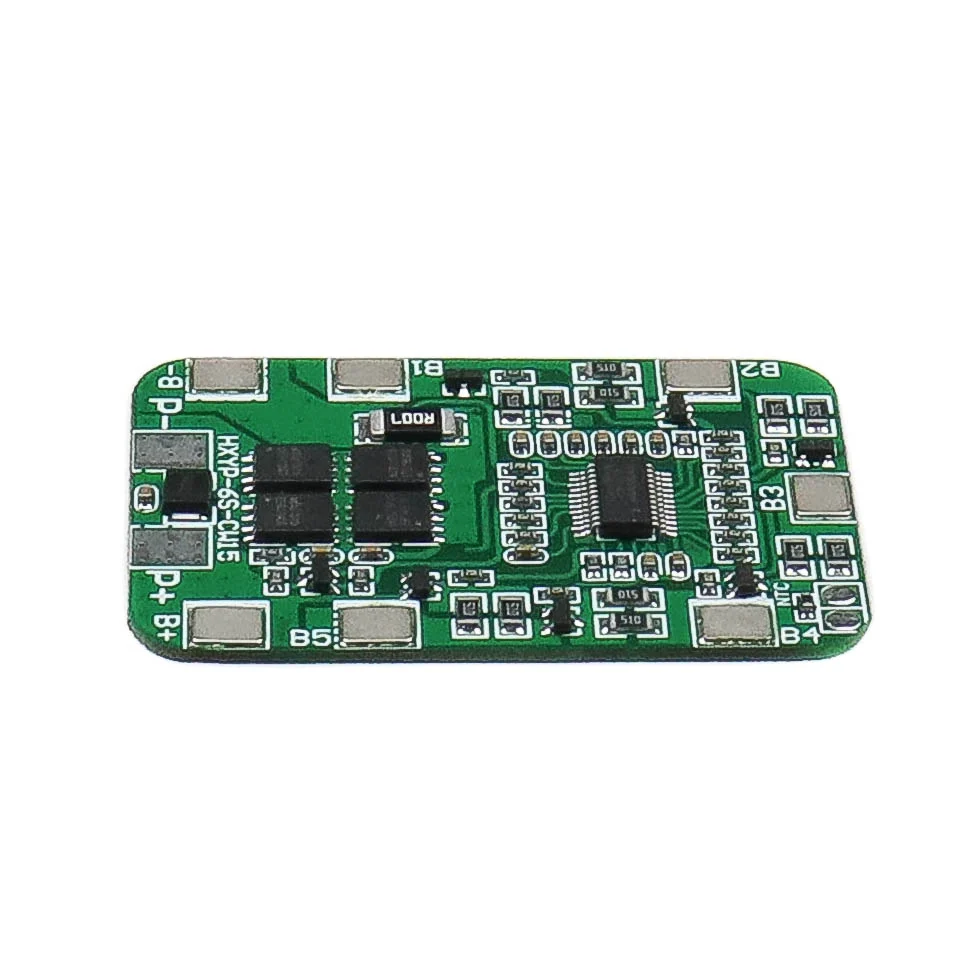

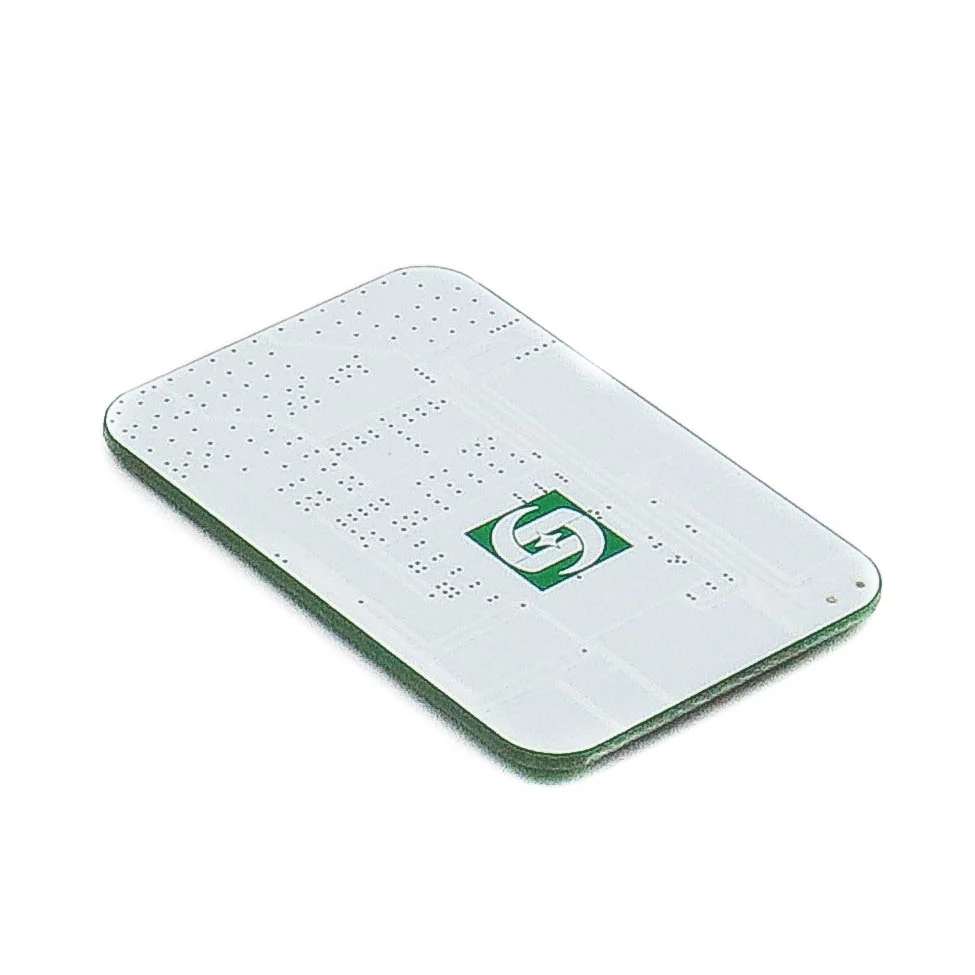

6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module
Introducing the 6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module, a compact PCB-mounted solution for charging and protecting lithium-ion batteries. This module is equipped with a range of essential features including short circuit protection, overcharge protection, over-discharge protection, and overcurrent protection. It’s the perfect choice for integrating into your DIY portable projects.
Please note that the product image may vary in terms of color.
Features:
- Designed for rechargeable lithium-ion batteries to ensure safety and reliability.
- Provides protection against overcharge, over-discharge, short circuits, and overcurrent.
- Easy to install and suitable for various DIY portable projects.
- Instantaneous discharge current: 25A
- Charging voltage: 25.5V
- Charging current: 20A (MAX)
- Overcharge detection voltage: 4.28 ± 0.05V
- Overcharge protection delay: 0.1S
- Over-discharge detection voltage: 2.55 ± 0.08V
- Overcharge release voltage: 4.08 ± 0.05V
- Over-discharge detection delay: 0.1S
- Over-discharge release voltage: 2.9 ± 0.1V
- Overcurrent detection voltage: 150mV
- Overcurrent detection delay: 9MS
- Overcurrent protection current: 30 ± 3A
- Overcurrent protection release condition: Disconnect the load
- Short circuit detection delay: 250uS
- Short circuit protection release condition: Disconnect negative open
- Main circuit conduction resistance: ≤20mΩ
- Working current: ≤30uA
- Sleep current (battery over-discharge): ≤10uA
- Temperature range: -30°C to 80°C
Connections:
- MB: Common connection point between the batteries.
- B: Battery positive terminal.
- B-: Battery negative terminal.
- P: Charging positive terminal.
- P-: Charging negative terminal.
Enhance the safety and reliability of your lithium-ion battery projects with the 6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module.
Specifications:
| Input Voltage (V) | 25.5 – 26 V |
|---|---|
| Operating Temperature (°C): | -30 to 80 |
| Weight (g): | 8 |
| Over-Current Protection (A) | Yes |
| Under-Voltage Protection (V) | Yes |
| Internal Resistance(Ω) | <20m |
| Maximum Operating Current (A) | 15 |
| Dimensions (mm) | 50 x 32 x 4 |
Package Includes:
LiPo Battery Puffing: Causes, Danger Signs & Safe Disposal
LiPo Battery Puffing: Causes, Danger Signs & Safe Disposal If you've been flying drones, driving RC cars, or...
Read More →
Battery Capacity Testing: Build a Discharge Tester
Table of ContentsWhy Test Battery Capacity How Discharge Testing Works Components Needed Building the Discharge Tester Circuit Arduino...
Read More →
Power Electronics Lab: Equipment List for Students
Setting up a power electronics lab for students and hobbyists requires the right equipment to safely work with...
Read More →Technical Specifications
| Operating Voltage | 24V |
|---|---|
| Current Rating | 20A |
| Cell Configuration | 6S |
| SKU | AI2167 |
| Weight | 0.00988 kg |
| Availability | In Stock |
Applications & Use Cases
The 6S 20A Li-ion Lithium Battery 24V 18650 Charger Protection Board Module is a versatile battery protection board used across a wide range of applications including lithium battery pack protection, power bank builds, e-bike battery management, solar energy storage, and UPS systems.
Common use cases:
- Building a custom lithium battery pack
- Adding overcharge/overdischarge protection
- Creating a DIY power bank
This product is ideal for battery pack builders and power electronics engineers.
Technical Tip: BMS boards prevent overcharge, overdischarge, overcurrent, and short circuit. Match cell count (S) and max current rating to your battery pack.
