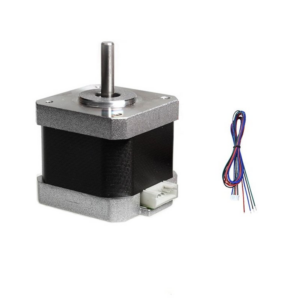

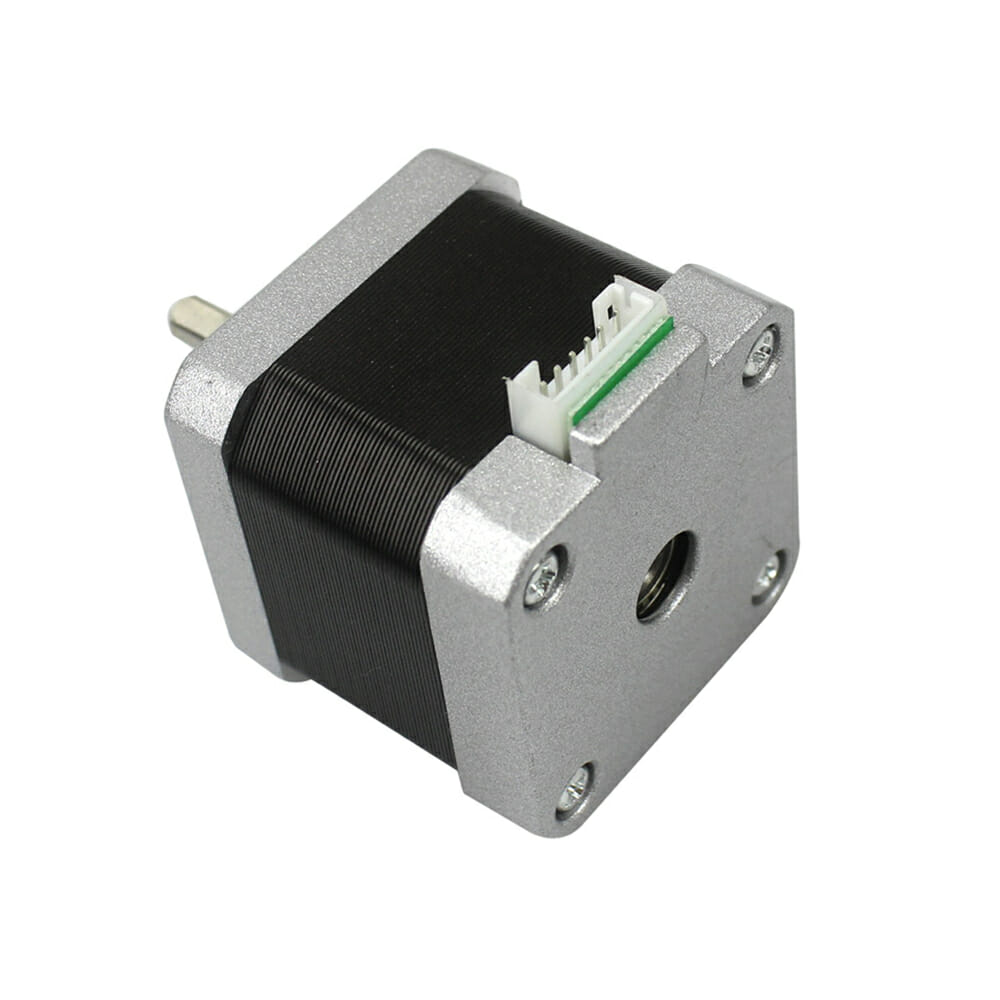

42HS48-1204A-20F NEMA17 5.6 kg-cm Stepper Motor with Detachable Cable – D-Type Shaft
Stepper motors move in precisely repeatable steps, making them the motors of choice for machines requiring precise position control. The NEMA17 5.6 kg-cm Stepper Motor can provide 5.6 kg-cm of torque at 1.2A current per phase. The motor’s position can be commanded to move or hold at one position with the help of Stepper Motor Drivers. The NEMA17 5.6 kg-cm Stepper Motor provides excellent response to starting, stopping, and reversing pulses from the stepper motor driver. These motors are very useful in various applications, especially those that demand low speed with high precision. Many machines, such as 3D Printers, CNC Routers and Mills, Camera Platforms, and XYZ Plotters, utilize stepper motors. The NEMA17 5.6 kg-cm Stepper Motor is a brushless DC motor, so its life depends on the life of the bearings. Position control is achieved by a simple Open Loop control mechanism, eliminating the need for complex electronic control circuitry. It comes with a detachable 72cm cable for easy wiring and rewiring. The design of this cable allows direct mounting on a stepper motor controller.
Stepper Motors
Note:
- The Nema17 5.6kgcm Stepper motor dimensions and weight may have ±2% error.
- Resonances can occur because of improper instalment.
- Not easy to operate at extremely high speeds.

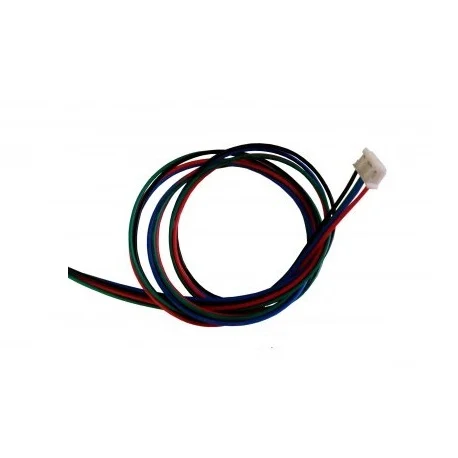

- The cable comes with Motor has connector from one end to connect it to the motor while another end of cable is open for soldering
Features:
- Input pulse decides the rotation angle of the motor.
- High accuracy of around 3 to 5% a step.
- Provides good starting, stopping and reversing.
- Control of this motor is less costly because of exclusion of complex control circuitry.
- The speed is proportional to the frequency of the input pulses.
Specification:
| Motor Type | Single Shaft |
|---|---|
| Step Angle | 1.8° |
| Holding Torque (Kg-Cm) | 5.6 |
| Operating Voltage (VDC) | 3.1 |
| Supply Current (A) | 1.2 A/Phase |
| No. of Leads | 4 |
| Inductance (mH/Phase) | 3.2 |
| Rotor Inertia (gm-cm2) | 54 |
| Weight (g): | 375 |
| Dimensions (mm) LxWxH | 42x42x48 |
| Detent Torque (kg-cm) | 0.28 |
| Frame Size (mm) | 42 x 42 |
| Inductance Accuracy | ±20% |
| Resistance Accuracy | ±10% |
| Step Angle Accuracy | ±5% |
| Shaft Type | D-type |
| Shaft Diameter (mm) | 5 |
| Shaft Length (mm) | 20 |
| Cable Length (cm) | 72 |
| Shipping Weight | 0.4 kg |
| Shipping Dimensions | 10 × 10 × 6 cm |
Package Includes:
1 x42HS48-1204 NEMA17 5.6 kg-cm Stepper Motor with Detachable Cable – D-Type Shaft
Stepper Motor Tutorial: NEMA 17, A4988, and AccelStepper Library
The stepper motor is the backbone of precision motion control in electronics projects. From 3D printers and CNC...
Read More →
Build a Motorized Camera Slider with Stepper Motor & Arduino
A motorized camera slider turns any smartphone or DSLR footage into cinematic video — smooth, repeatable pulls that...
Read More →
MOSFET vs Relay for Motor Switching: Which Is Better?
Every motor project eventually faces the same question: should I switch the motor with a MOSFET or a...
Read More →Technical Specifications
| Model | NEMA17 |
|---|---|
| Current Rating | 1204A |
| Interface / Protocol | BLE |
| SKU | AI5251 |
| Weight | 0.48 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 42HS48-1204A-20F NEMA17 5.6 kg-cm Stepper Motor with Detachable Cable – D-Type Shaft is a versatile stepper motors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
