This is the 24V variant of the 4 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse in Relay Modules. Available at Original price was: ₹554.60.₹467.28Current price is: ₹467.28. (₹396.00 + GST) with free shipping across India.

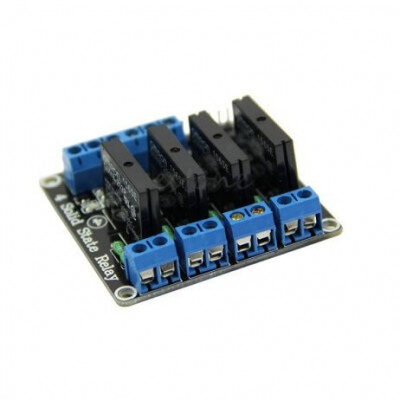

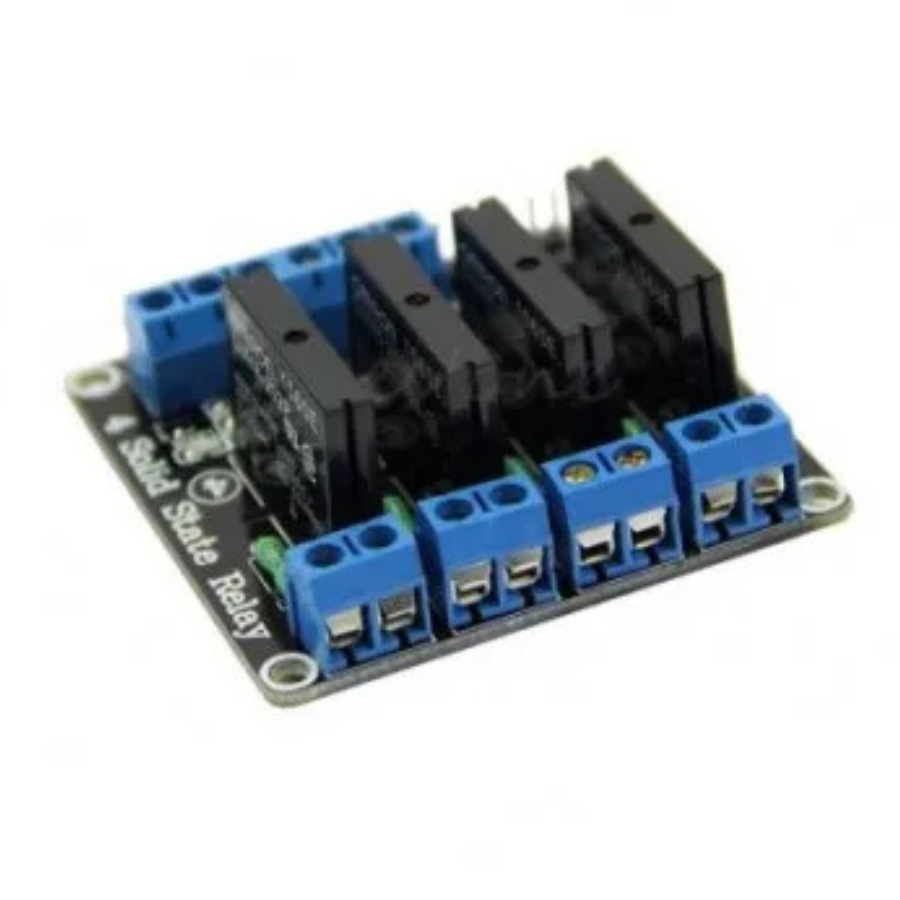

4 Channel 24V Relay Module Solid State High Level SSR DC Control 240V 2A with Resistive Fuse
This 4 Channel 24V Solid State Relay Module functions similarly to a mechanical relay but utilizes solid-state components. It enables the control of high-voltage AC loads using lower voltage DC control circuitry. Unlike mechanical relays, solid-state relays (SSRs) employ infrared light for contact, encapsulating an IR LED and a photo Triac within a compact enclosure.
Solid-state relays offer several advantages over their mechanical counterparts. They generate minimal noise and boast a significantly longer lifespan. Additionally, SSRs can be triggered by lower voltages and currents. Moreover, due to the absence of moving parts, solid-state relays can switch much faster and endure prolonged operation without wearing out.
In essence, the 4 Channel 24V Solid State Relay Module provides efficient and durable control over high-voltage AC loads, making it a preferred choice for various applications requiring reliable switching capabilities.

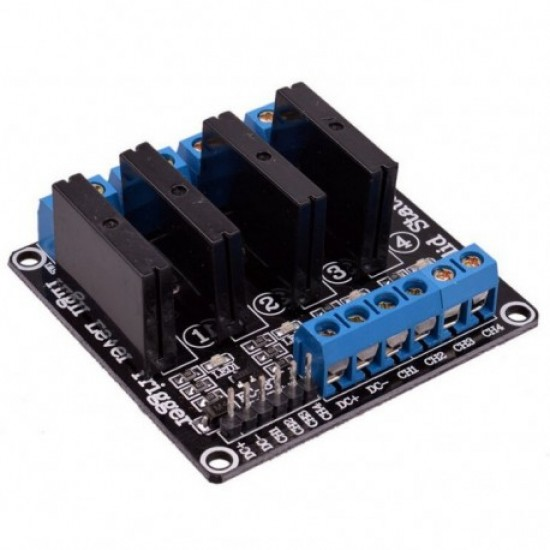

Input Parts:
- DC+: connected to VCC (Supply power according to relay voltage)
- DC-: connected to GND
- IN1: CH1 Signal triggering the end of 1-channel relay module (active at the high level)
- IN2: CH2 Signal triggering the end of 2-channel relay module (active at the high level)
- IN3: CH3 Signal triggering the end of 3-channel relay module (active at the high level)
- IN4: CH4 Signal triggering the end of 4-channel relay module (active at the high level)
Features:
- 4-channel 2 AMP Solid State Relay board.
- Control 4 loads of up to 2 amps each at 240 V AC.
- Good for lighting, Holiday displays, etc.
- Has been assembled, and the electrical test passed.
- Led indicator for each relay.
- Use it to control various appliances and other equipment with a large current.
- It can be controlled directly by a Microcontroller.
Specification:
- Type: Solid State Relay (SSR) Module
- Channels: 4
- Control Voltage: 24V DC
- Load Voltage: Up to 240V AC
- Load Current: Up to 2A per channel
- Control Signal: High-level DC control
- Protection: Resistive fuse included
- Operating Voltage: 24V DC
- Maximum Load Voltage: 240V AC
- Maximum Load Current: 2A per channel
- Fuse Rating: Resistive fuse included
- Mounting: Standard PCB mounting
PACKAGE INCLUDES
1 X 4 Channel 24V Relay Module Solid State High Level SSR DC Control 240V 2A with Resistive Fuse
IoT Sensor Fusion: Combine Multiple Sensors for Accuracy
Table of Contents What is Sensor Fusion Types of Sensor Fusion Kalman Filter Basics for IoT Complementary Filter...
Read More →
NodeMCU V3 vs V2: Differences and Which One to Buy in India
Walk into any Indian electronics market or browse any local online store, and you will find NodeMCU boards...
Read More →
IoT Soil Monitoring Network: Multi-Farm Dashboard
Table of Contents IoT in Indian Agriculture Soil Sensors and Parameters Building Sensor Nodes Multi-Farm Network Architecture Dashboard...
Read More →Technical Specifications
| Voltage Range | 24V - 250V |
|---|---|
| Current Rating | 2A |
| Channels | 4-channel |
| SKU | AI3686 |
| Weight | 0.05 kg |
| Availability | In Stock |
Applications & Use Cases
The 4 Channel 24V Relay Module Solid State High Level SSR DC Control 250V 2A with Resistive Fuse is a versatile relay modules used across a wide range of applications including home automation, industrial control, IoT projects, Arduino/Raspberry Pi interfacing, and motor control.
Common use cases:
- Switching high-voltage AC appliances with a microcontroller
- Building a smart home relay board
- Automating irrigation pumps in agriculture
This product is ideal for electronics engineers, IoT developers, and automation hobbyists.
Technical Tip: Use optocoupler-isolated relay modules to protect your microcontroller. Match relay coil voltage to your MCU logic level (3.3V or 5V).
