35A BLHeli_32 Blheli 32bit 2-5S Esc

35A BLHeli_32 Blheli 32bit 2-5S Esc

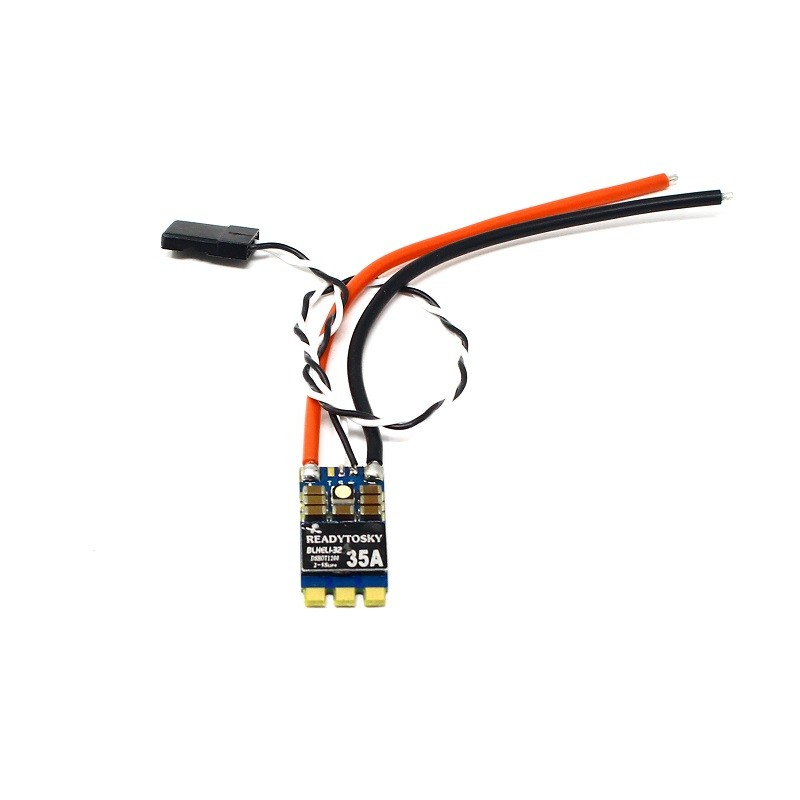

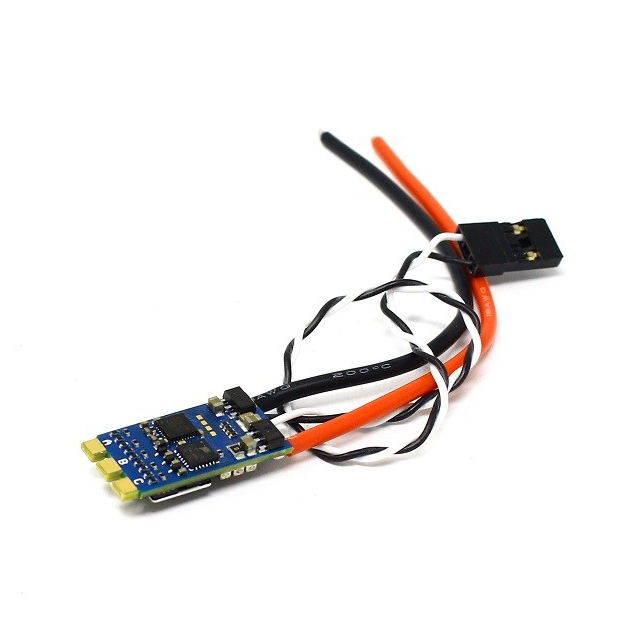

This is a One Shot BLHeli_32 35A 32 bit 2-5S ESC.

BLHeli is firmware that runs on some Atmel and SiLabs ESCs, supports One Shot 125, and is designed for multi-copter performance. BLHeli Suite is the companion application (windows only) that allows one to flash and configure BLHeli ESCs (Electronic Speed Controller).

The 32bit architecture enables the ESC to run at incredible speeds resulting in better performance, faster input signals and lower latency compared to older 8bit ESCs. The ESCs are low profile and compact in size, saving weight and making builds easy One shot (OneShot125) is a special mode for ESC’s running the BLheli firmware that allow your supported flight controller to communicate very quickly with your ESC, enabling your motors to react much faster than standard PWM communication protocols used on most ESC’s It adopts 32-bit stm32f051 main control chip, which has faster response speed and processing capability.

The operating frequency of up to 48MHZ and high-performance three-in-one drive make the throttle signal receiving delay lower, and the response and control of the motor change. High speed and precision allow the flying player to enjoy the thrill and advantage of flying at speed BLHeli was the original open-source software that is no longer maintained and is not available on modern ESCs. BLHeli32 is closed source and based on 32bit ARM MCUs, all modern ESCs use BLHeli32 and also it is open-source Firmware.

Note: Design may be different in actual product.

1. Supports all common Dshot commands like Turtle Mode, 3D mode and change of rotation
2. Overcurrent protection (measures the current and reduces it to max. 40A)
3. Telemetry capability (voltage, current, temperature, speed)
4. advanced adaptive auto-timing (6.5-30° feed at each commutation)
5. For Race Multicopters (25A continuous even with weak cooling)
6. Very fast throttle response Linear throttle response Active freewheel (low diode losses)
7. Regenerative braking
8. Modern smart gate driver

Specification:

Packages Includes:

1 x BLHeli_32 35A 32 bit 2-5S ESC

35A BLHeli_32 Blheli 32bit 2-5S Esc Overview

The 35A BLHeli_32 ESC is a 32-bit electronic speed controller designed for 2–5S LiPo setups (up to 6S with brake enabled). It delivers low-latency motor control with telemetry feedback for voltage, current, temperature and RPM on multirotor drones.

Key Features of 35A BLHeli_32 Blheli 32bit 2-5S Esc

• 32-bit processing architecture for faster input signals and reduced latency
• Supports 2–5S LiPo (6S max in brake mode) for versatile power ranges
• On-board telemetry: voltage, current, temperature and motor RPM feedback
• Comprehensive protection: overvoltage/undervoltage (~±30V) and overcurrent limiting to 40A
• Compatible with Dshot commands including Turtle Mode, 3D Mode and rotation change
• Genuine product, fast shipping from Zbotic for quick delivery

Applications and Use Cases

• FPV racing quads requiring low-latency throttle response
• Freestyle drones that benefit from OneShot125 and 3D bidirectional thrust
• Aerial cinematography builds with real-time voltage and current telemetry
• Long-range multirotors where overcurrent protection boosts reliability
• Custom DIY drone kits needing compact, low-profile ESCs

How to Use 35A BLHeli_32 Blheli 32bit 2-5S Esc

Solder the battery leads and motor wires to the ESC pads, then connect the signal wire to your flight controller’s throttle output. Flash and configure settings via BLHeli Suite on Windows using a compatible programming adapter. Calibrate throttle endpoints, select Dshot protocol and enable telemetry in your flight controller firmware before mounting the ESC securely with heat-shrink or straps.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What battery voltages does this ESC support?

The ESC handles 2–5S LiPo natively and can accept up to 6S in brake mode. Ensure your battery voltage stays within these limits to avoid triggering overvoltage protection.

How do I configure Dshot, Turtle Mode and 3D Mode?

Use BLHeli Suite on a Windows PC with a compatible USB programming tool. In the software, choose your desired Dshot protocol, enable 3D bidirectional operation or Turtle Mode and set rotation direction, then write settings to the ESC.

What built-in protections are available?

This ESC features overvoltage and undervoltage protection on all inputs/outputs (~±30V) and overcurrent protection that limits motor current to 40A. It also monitors temperature to safeguard against overheating.
