This is the 100V variant of the 0.28 inch Digital Voltmeter Ammeter DC 100V 50A LED Amp Volt Meter With Shunt in Digital Voltage, Current and Frequency Meter. Available at ₹265.50 (₹225.00 + GST) with free shipping across India.

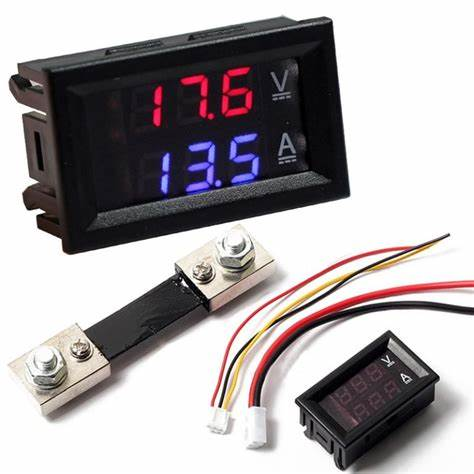

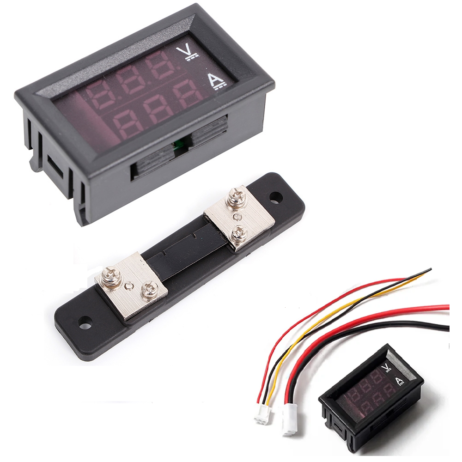

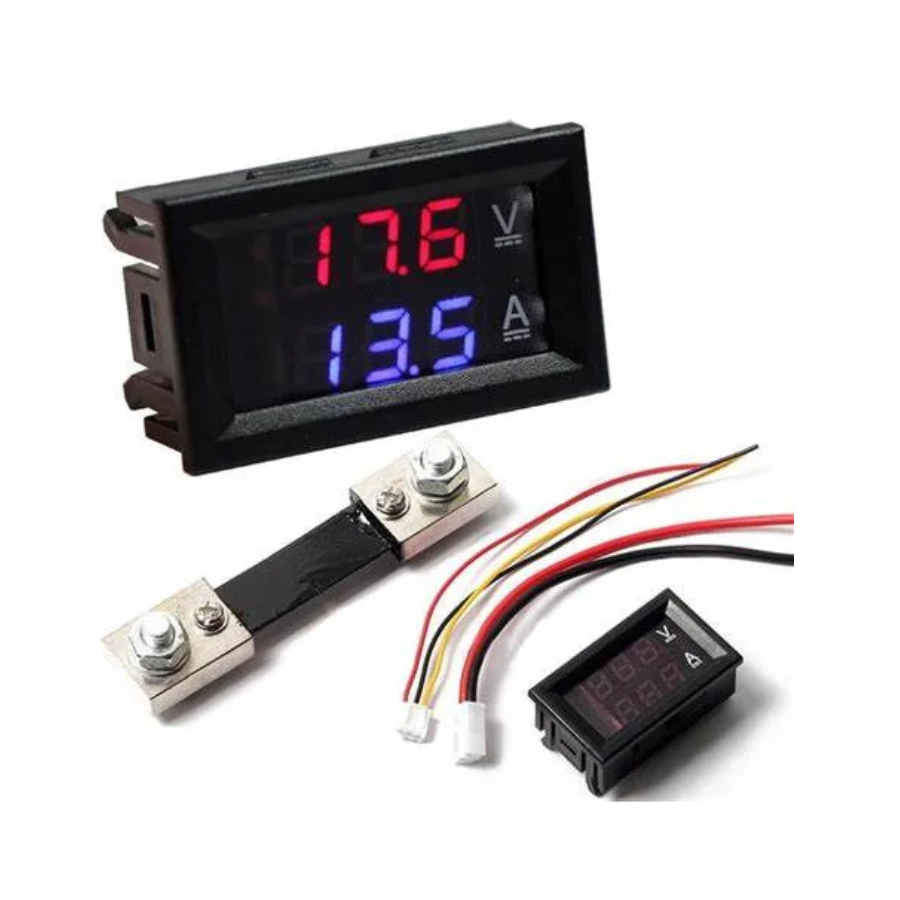

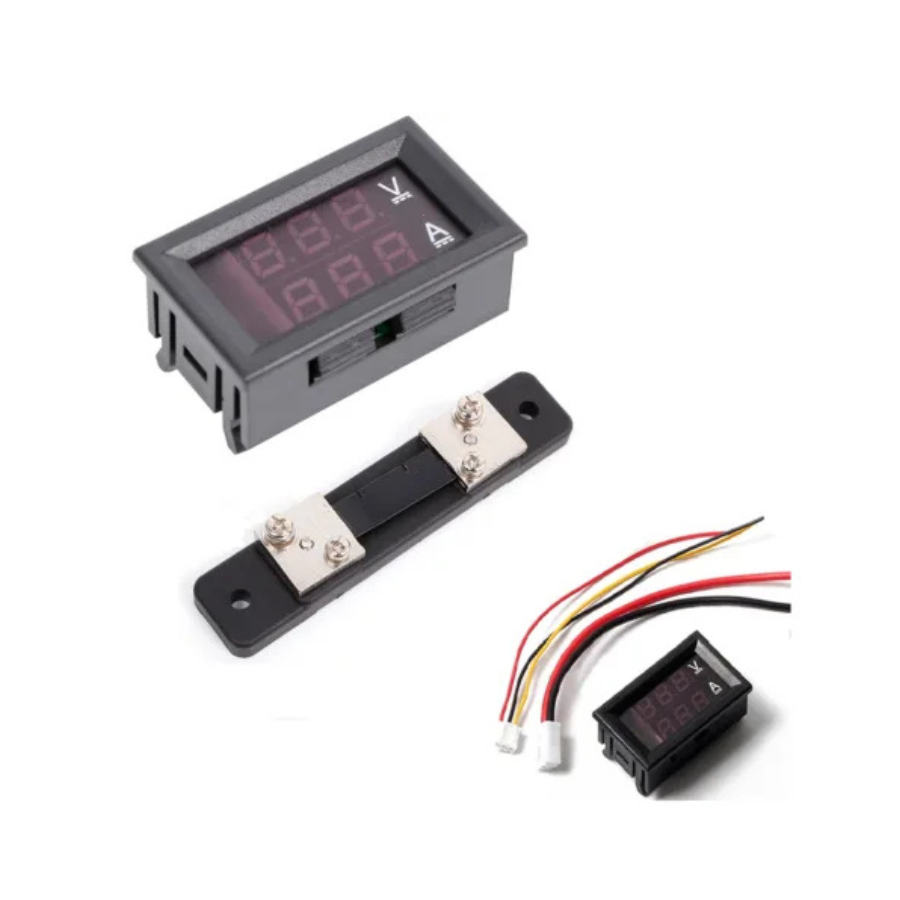

0.28-inch Digital Voltmeter Ammeter DC 100V 50A LED Amp Volt Meter With Shunt
Introducing the 0.28-inch Digital Voltmeter Ammeter DC 100V 50A LED Amp Volt Meter With Shunt. This meter is capable of measuring up to 100 VDC with a resolution of 0.1 volts.

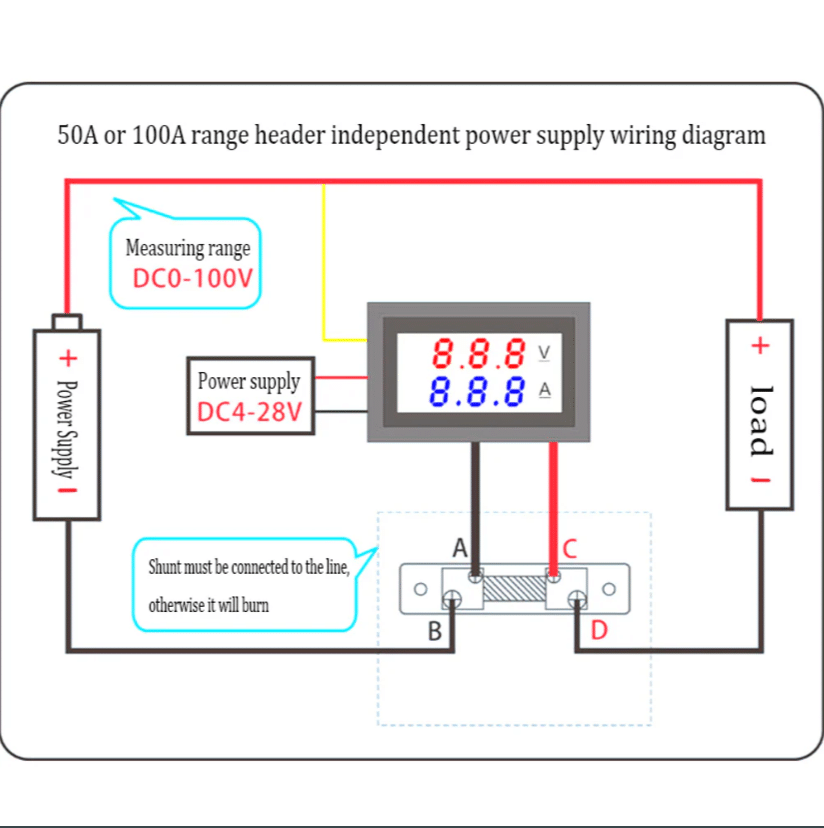

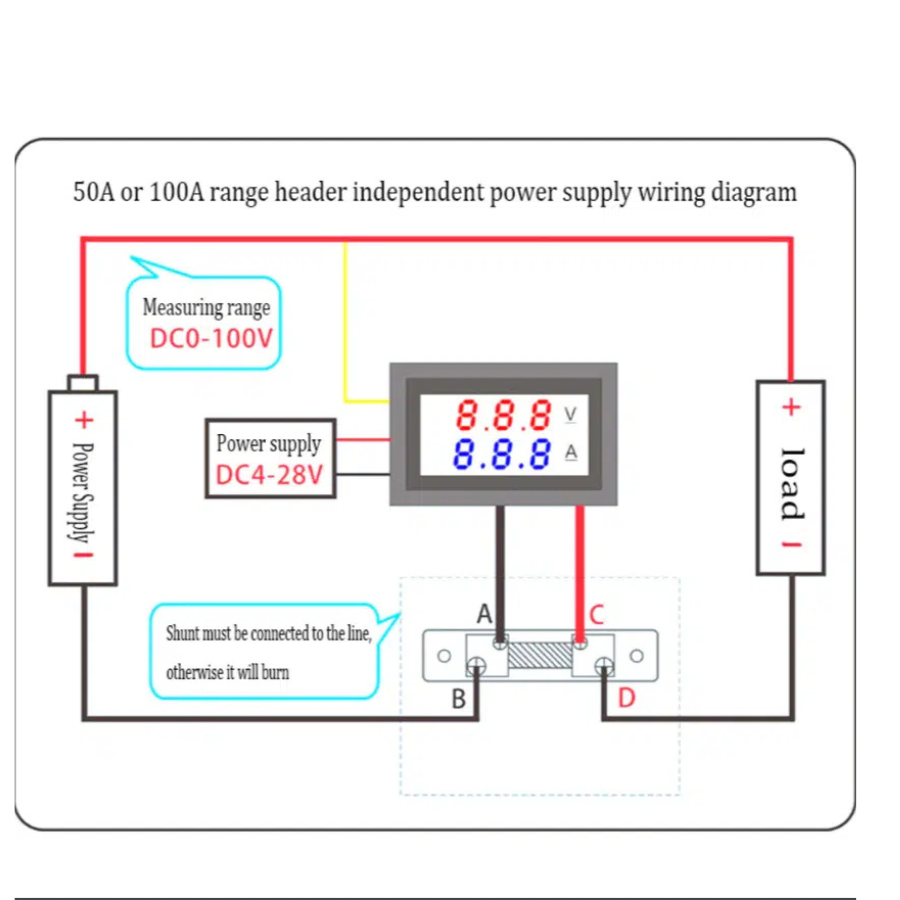

It’s important to note that this meter comes with two wiring harnesses. One harness, consisting of two poles with a RED and a BLACK lead, is designed to provide power for the meters. Despite its small size and portability, this meter displays both voltage and current magnitudes simultaneously on the same screen.
The meter can be supplied with power anywhere from 6 volts DC up to 30 VDC. It’s crucial to use a separate power supply that is isolated from the source. While it’s possible to use the same supply, it may affect the amp meter reading.
Additionally, the three-wire harness is used for grounding, connecting directly to the battery or the supply ground of the load.
Note:
There are different wiring variants with the same working functionality is available which will be shipped randomly.
If the input voltage is more than 5V then please use the buck converter.
Features:
- It measures up to 100V and 50A DC.
- Very handy and small in size.
- It requires a power supply of 5V.
- 100% Brand new and high quality.
Specification:
Operating Voltage: 5V DC
Current Consumption: <60mA
Testing Voltage: 0-100V
Testing Current: 1-50A
Easy to read even in dim light
Package Includes:
1 x Dual LED Panel Ampere Voltage Meter.
1 x Current Shunt.
Technical Specifications
| Operating Voltage | 100V |
|---|---|
| Current Rating | 50A |
| Display Size | 0.28" |
| SKU | AI2311 |
| Weight | 0.09 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 0.28 inch Digital Voltmeter Ammeter DC 100V 50A LED Amp Volt Meter With Shunt is a versatile digital voltage, current and frequency meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
