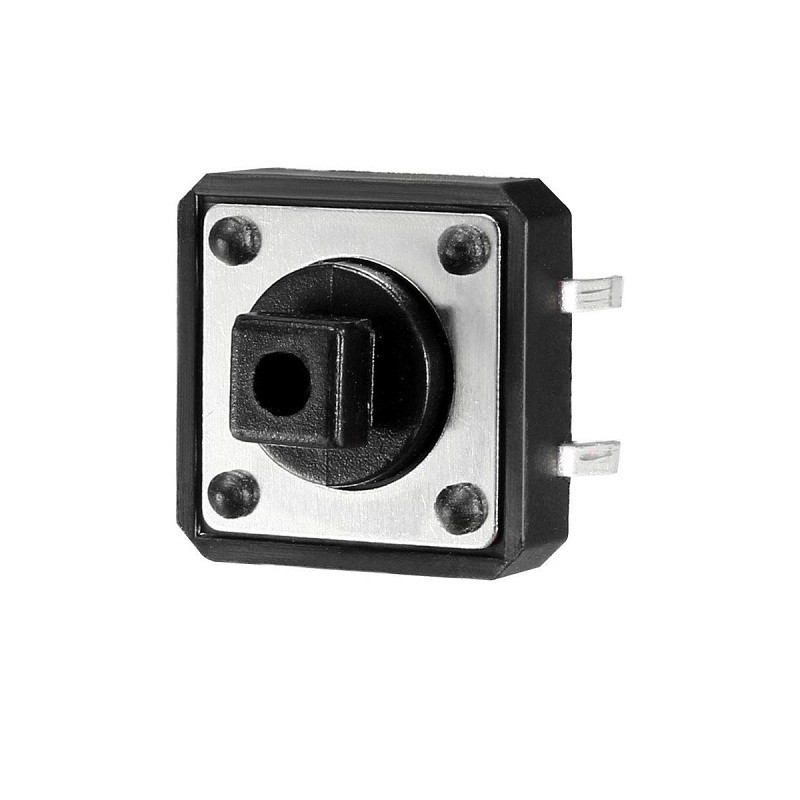

12x12x7.3mm Tactile Push Button Switch
12x12x7.3 mm Tactile Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.
This tactile switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

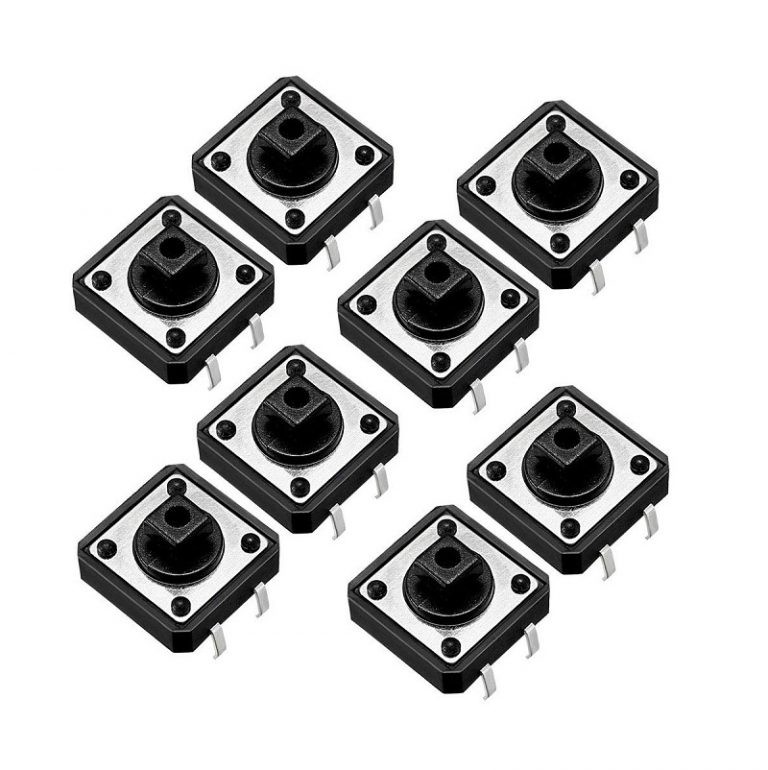

They come in a pack of 10, as they’re pretty handy so you’ll want to keep them around.
Features :

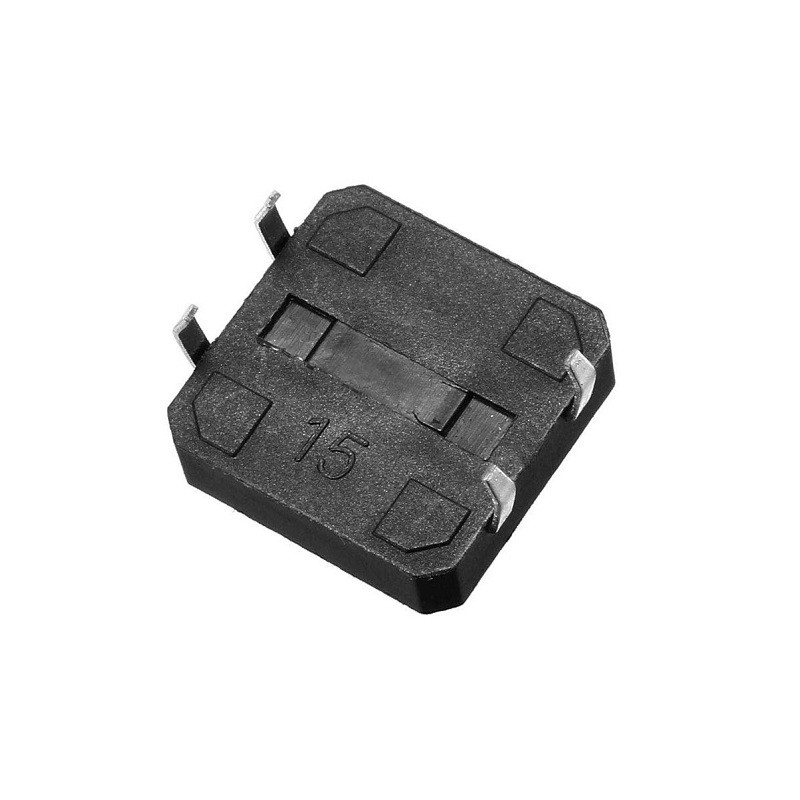

- Through-hole design.
- Shaft Shape: Square
- High operating force (3.0N or 3.6N) suited to automotive equipment requirements
- The long life of 300,000 cycles realized despite the high operating force
- Middle stroke (1.05mm)
- Used in the fields of electronic products, household appliances and more.
-
High precision mechanism design offers acute operation and long service life.
-
Compact and lightweight, easy to carry and dismantling.
-
Good electrical conductivity.
Specifications:
| Operating Voltage | 12 V DC |
|---|---|
| Operating Current | 50mA |
| On/Off Function | Push to ON |
| Switch Type | Momentary |
| Mounting Type | Through-hole |
| Contact Material | Aluminium alloy |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 100MΩ |
| Operating Temperature Range | -20°C to +70°C |
| Operation Force | About 3-5N |
| Operation Stroke | 1.05mm |
| Body Material | Plastic |
| Mech. & Electrical Life | 300,000 Cycles |
| Protection Grade | IP65 |
| Length (mm): | 12 |
| Width (mm): | 12 |
| Height (mm): | 7.3 |
| Weight (g): | 1 (approx) (each) |
Package Includes :
1 x 12x12x7.3mm Tactile Push Button Switch-10Pcs.
12x12x7.3mm Tactile Push Button Switch-10Pcs. Overview
The 12x12x7.3mm Tactile Push Button Switch pack of 10 is a through-hole, square-shaft, momentary push-to-ON switch designed for PCB mounting. With a middle stroke of 1.05 mm and reliable dome contact technology, it delivers strong tactile feedback for precise input control.
Key Features of 12x12x7.3mm Tactile Push Button Switch-10Pcs.
- Through-hole design for secure PCB mounting
- Square shaft shape ensures consistent actuation alignment
- High operating force options: 3.0 N or 3.6 N, meeting automotive requirements
- Durable lifespan of up to 300,000 cycles despite high actuation force
- Middle stroke travel distance of 1.05 mm for tactile feedback
- Pack of 10 switches, plus genuine product and fast shipping from Zbotic
Applications and Use Cases
- Prototype input buttons on solderless breadboards and custom PCBs
- Control panels in automotive dashboards and in-vehicle electronics
- Push-button interfaces for audio/video equipment and consumer devices
- Testing and instrumentation devices requiring reliable momentary switches
- Medical device user interfaces for equipment controls
- Telecommunications hardware with high-actuation durability needs
How to Use 12x12x7.3mm Tactile Push Button Switch-10Pcs.
Insert each switch into the matching PCB footprint, ensuring the square shaft aligns with the housing cutout. Solder the four through-hole terminals to secure mechanical and electrical connections. Once soldered, test by pressing the button to confirm a momentary ON closure; mount in an enclosure or panel cutout as needed for your project.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the operating force of these tactile switches?
This series offers two operating force options: 3.0 N and 3.6 N, suitable for applications that require a firm tactile feel, including automotive equipment.
How are these switches mounted?
They use a through-hole design with four pins that solder directly to PCB pads, providing a secure mechanical and electrical connection.
What is the expected lifecycle of the switches?
Each switch is rated for up to 300,000 actuation cycles, delivering long-term reliability even under high operating forces.
Technical Specifications
| Dimensions | 12x12x7.3mm |
|---|---|
| Package Quantity | 12 pcs |
| SKU | AI5914 |
| Weight | 0.00103 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 12x12x7.3mm Tactile Push Button Switch-10Pcs. is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
