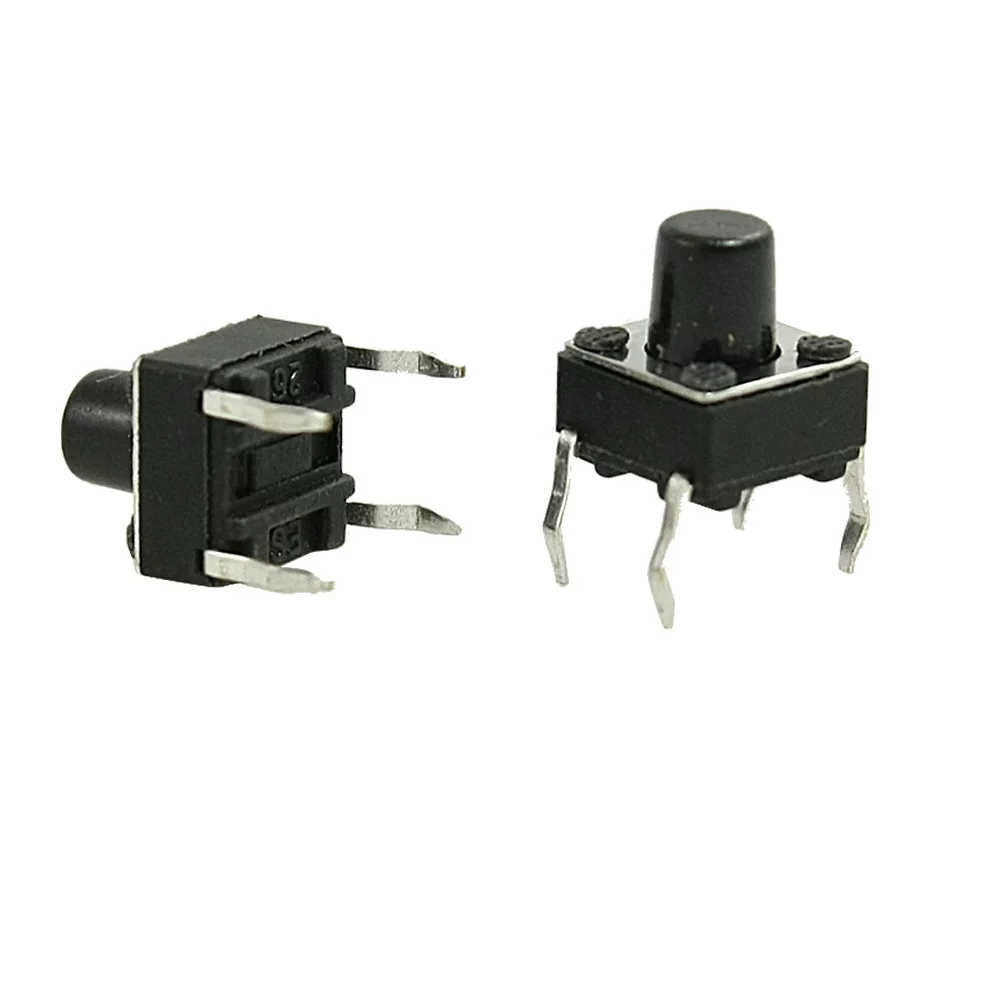

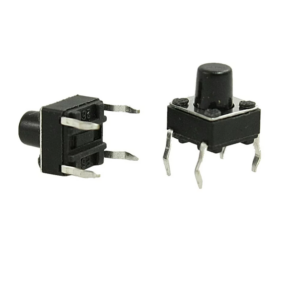

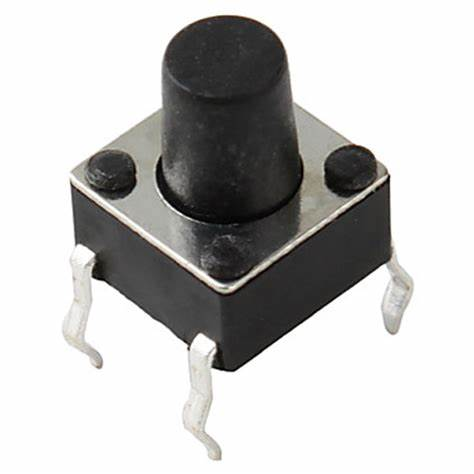

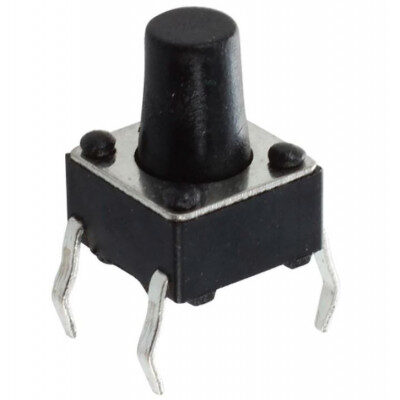

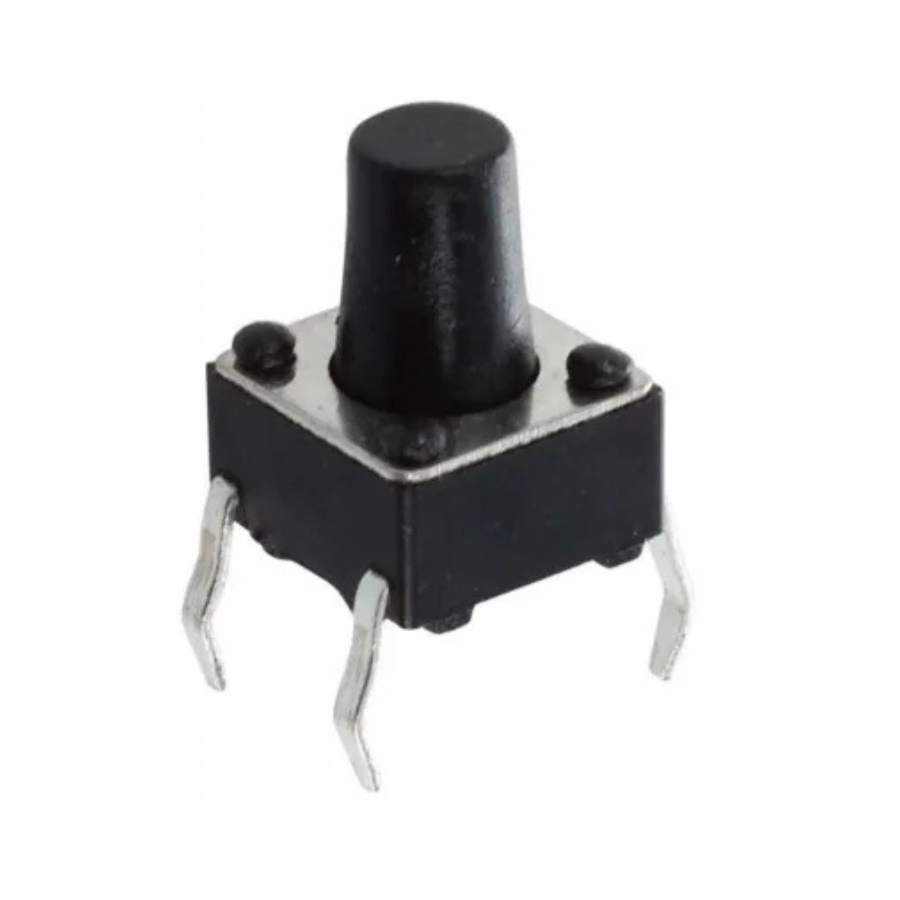

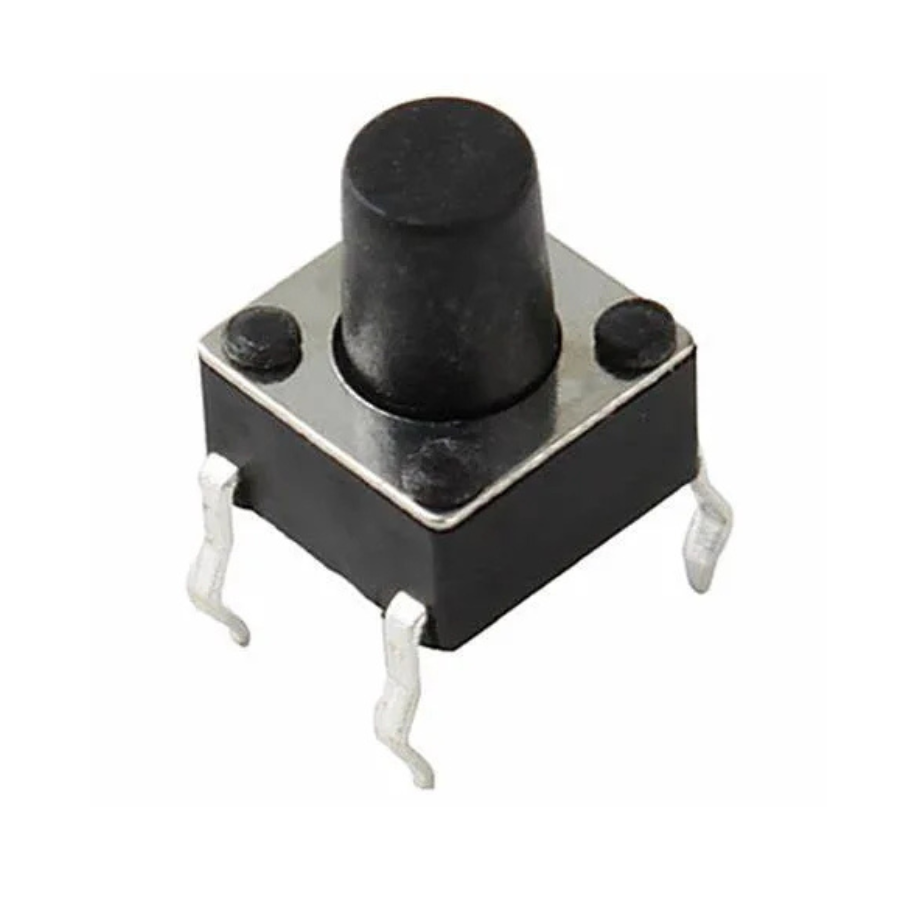

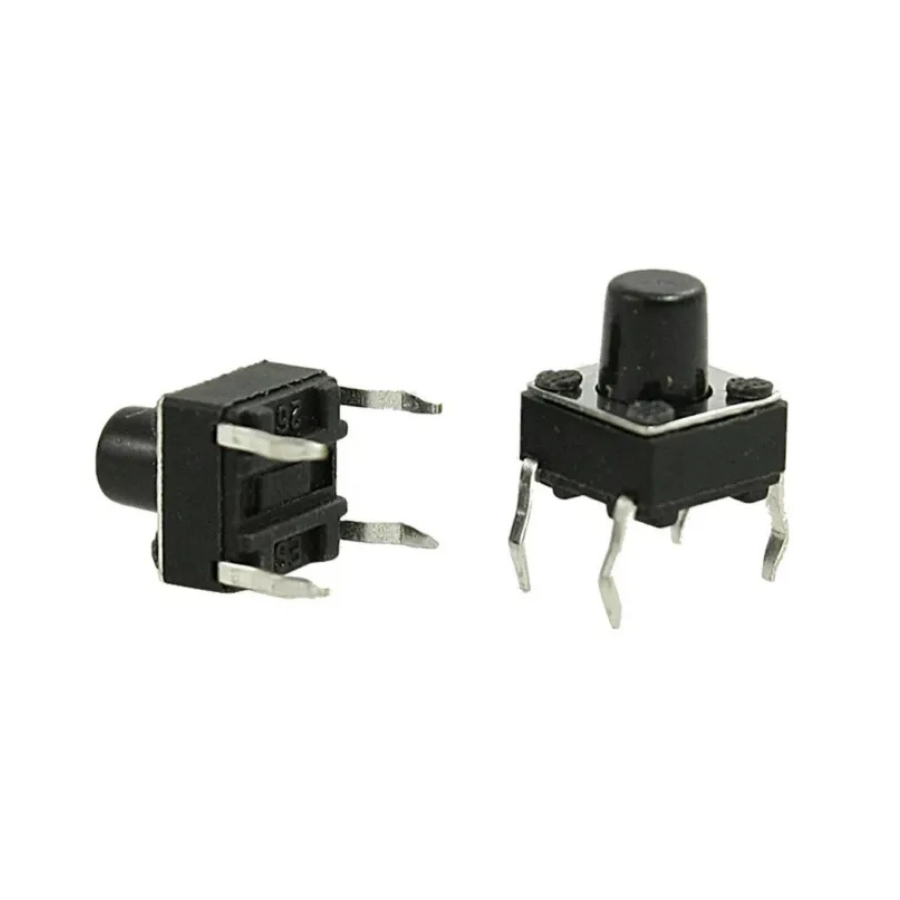

Tactile Push Button Switch 6x6x7MM
The 6x6x7mm Tactile 4 Pin Push Button Switch is a commonly employed component serving as standard input buttons in electronic projects. While its optimal performance is achieved when mounted on a PCB, it can also be utilized on a solderless breadboard for temporary connections during prototype development.
Operating on the principle of normally open (disconnected) pins, pressing the button momentarily closes the pins, completing the circuit. This switch is equipped with reliable dome contact technology, providing strong tactile feedback. Moreover, it offers multiple operating forces to cater to different preferences.
Its versatile nature makes it suitable for various applications across industries, including telecommunications, consumer electronics, audio/visual equipment, medical devices, testing and instrumentation tools, as well as computer peripherals.
Features:
- Through-hole design.
- High operating force (1.5N or 2.5N) suited to automotive equipment requirements.
- The long life of 300,000 cycles realized despite the high operating force.
- Middle stroke (1.05mm)
- Used in the fields of electronic products, household appliances and more.
-
This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
-
High precision mechanism design offers acute operation and long service life.
-
Compact and lightweight, easy to carry and dismantling.
-
Good electrical conductivity.
Specifications:
| Operating Voltage (VDC) | 12 |
| Max. Operating Current (mA) | 50mA |
| On/Off Function | Push to ON |
| Switch Type | Momentary |
| Contact Type | Through-hole. |
| Contact Material | Brass |
| Contact Resistance | 50mΩ |
| Insulation Resistance (MΩ) | 100 |
| Operating Temperature Range (°C) | -20 to 70 |
| Operation Force | 1.56 +/- 0.5 N |
| Operation Stroke | 0.25+0.2/-0.1mm |
| Body Material | Plastic |
| Mech. & Electrical Lifecycle | 50000 |
| Protection Standard | IP65 |
PACKAGE INCLUDES
1 X Tactile Push Button Switch 6x6x7MM (Pack of 20)
Technical Specifications
| Dimensions | 6x6x7mm |
|---|---|
| Package Quantity | 6 pcs |
| SKU | AI3991 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Tactile Push Button Switch 6x6x7MM (Pack of 20) is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
