Momentary Tactile Push Button Module DC 5V Switch
The Momentary Tactile Push Button Module DC 5V/12V Switch is an ideal solution for integrating a button into your projects, providing a high signal output when pressed.

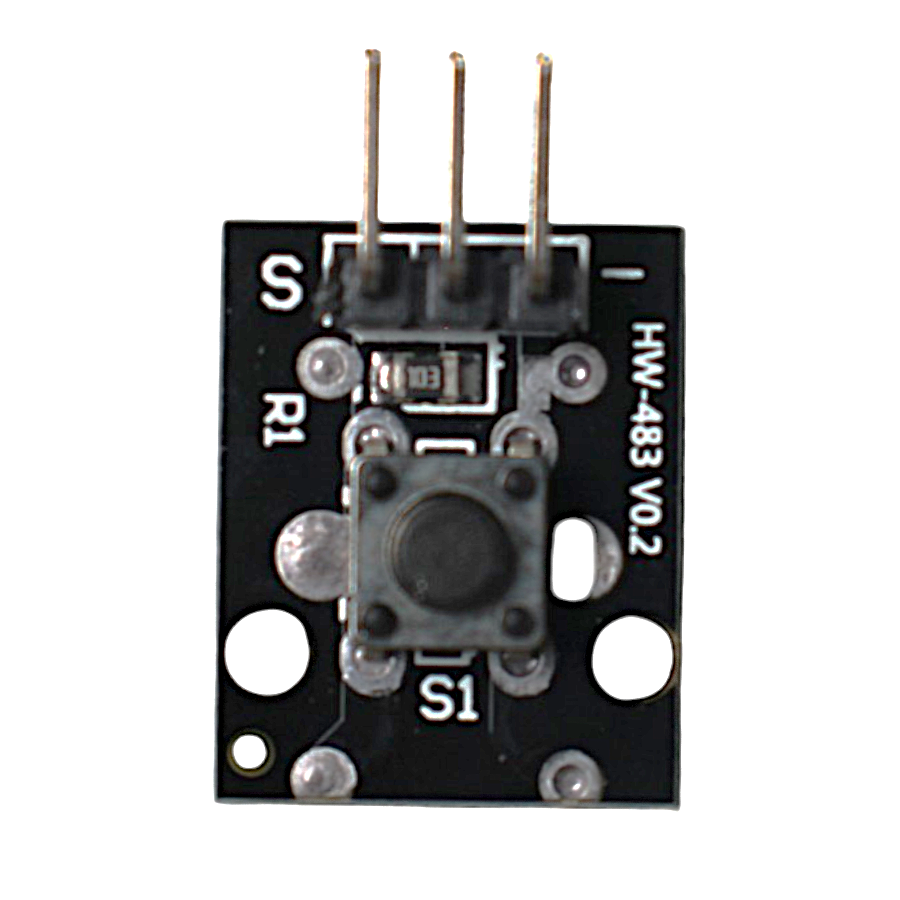

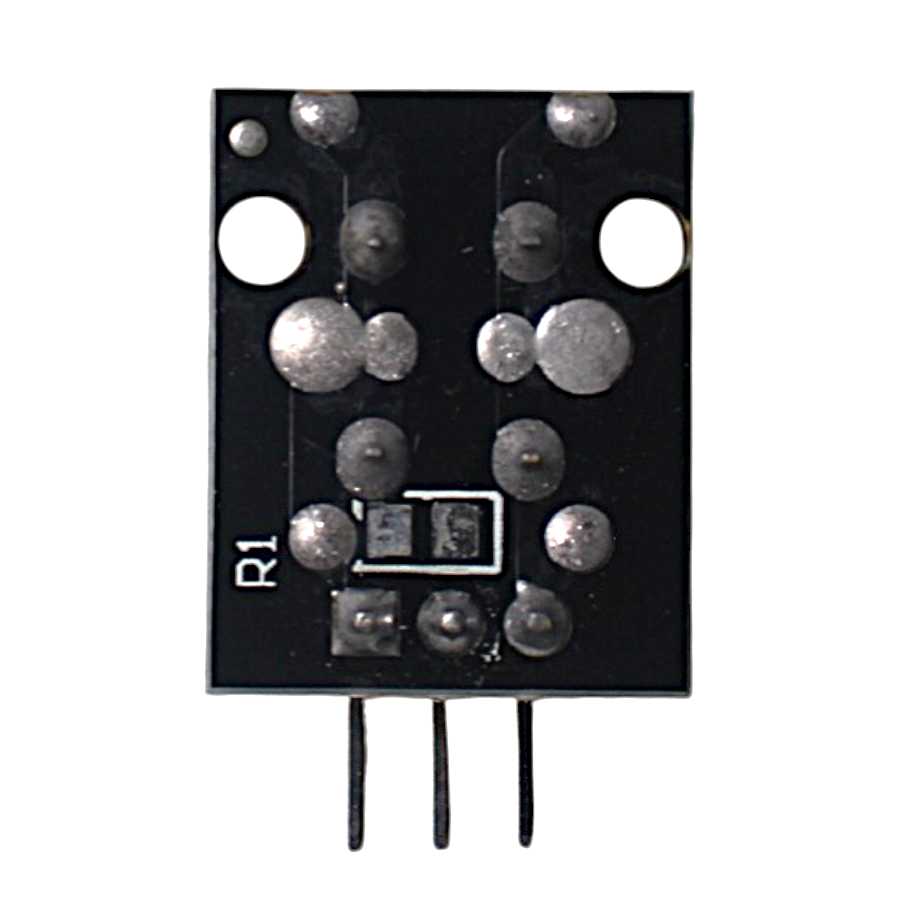

This push button module comes fully equipped, eliminating the need for additional pull-up or pull-down resistors as they are already integrated into the circuit. The button, along with the resistor, is conveniently mounted on the board, with pre-drilled holes for easy installation. The built-in resistor has a value of 10 kΩ.
Featuring two contacts, this module operates by closing the contacts when the button is pressed and opening them when released. The board also includes three output terminals: I, S, and 5V. The I contact is connected to the common wire of the circuit, S serves as the output of the module, and the 5V terminal is connected to the power supply.
Specification:
Parameter | Specification |
---|---|
Input Voltage | DC 5V |
Operating Mode | Momentary |
Contact Rating | 50 mA |
Resistance | 10 kΩ |
Number of Contacts | 2 |
Output Terminals | I, S, 5V |
Mounting Holes | Yes (Pre-drilled) |
Dimensions | Variable |
Material | PCB |
Weight | Variable |
Operating Temperature | -20°C to +70°C |
Application | Projects, DIY |
Package Includes:
1 x Momentary Tactile Push Button Module DC 5V 12V Switch
