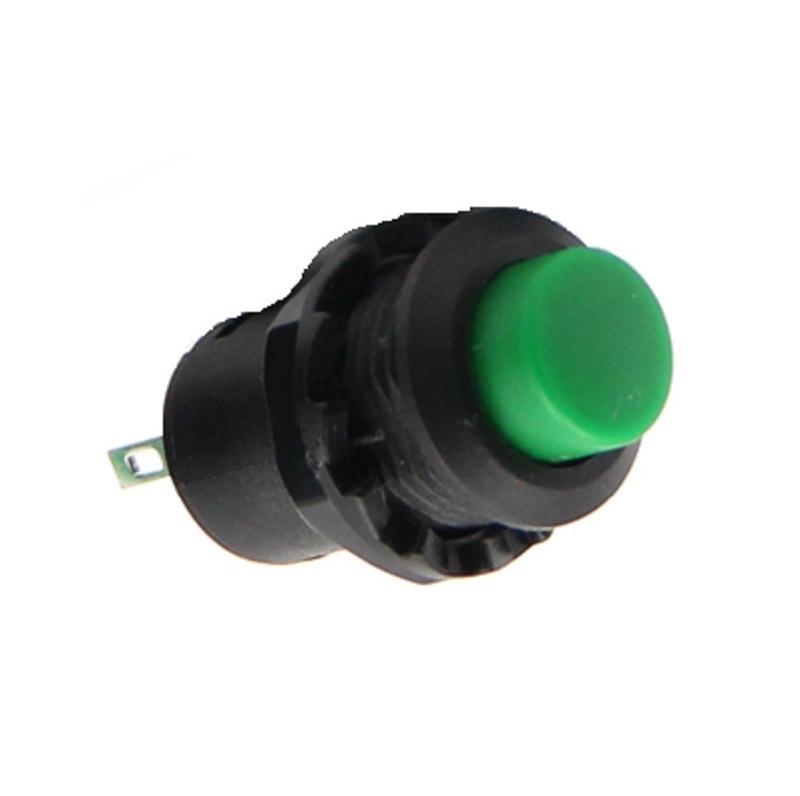

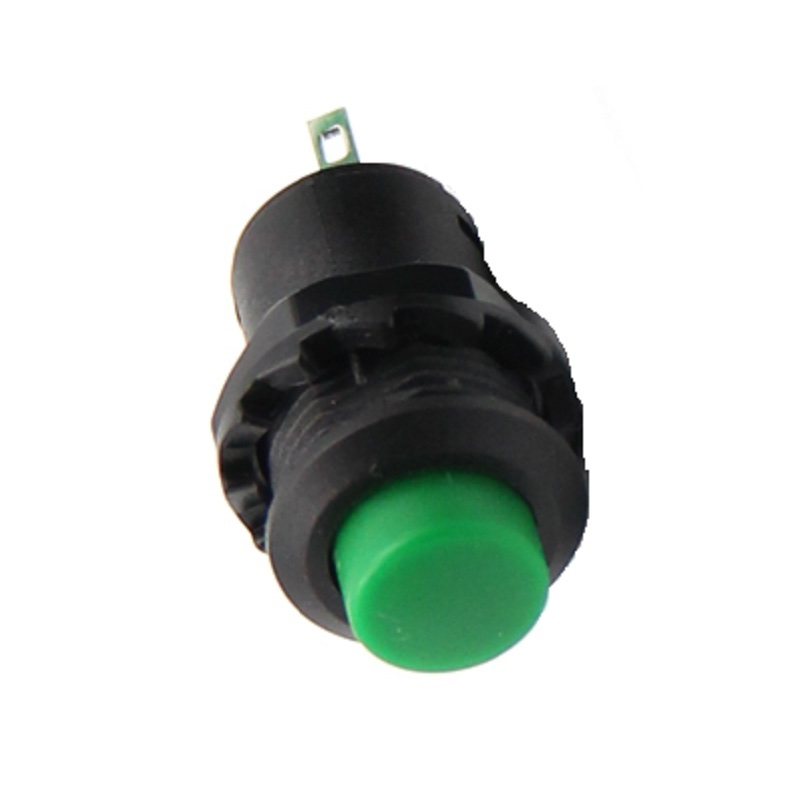

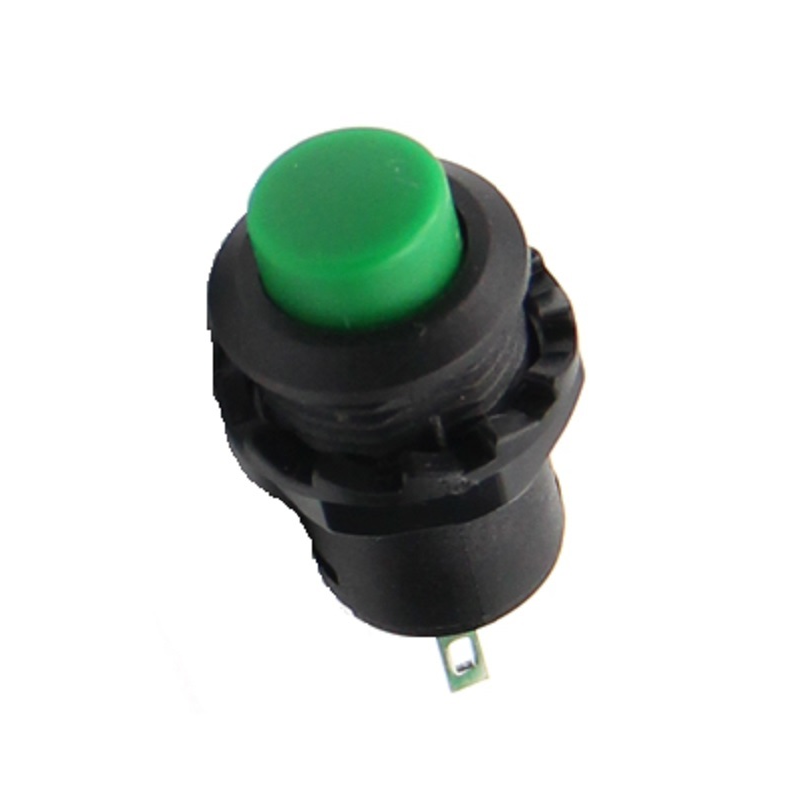

This is the Green variant of the Green R13-502 12MM 2PIN Momentary Self-Reset Round Cap Push Button Switch in Plastic Push Button Switch, Electronic Switches. Available at ₹14.87 (₹12.60 + GST) with free shipping across India.
Looking for R13-502? Green R13-502 12MM 2PIN Momentary Self-Reset Round Cap Push Button Switch is available at Zbotic with fast shipping across India.
PRODUCT DESCRIPTION
A momentary switch is a type of switch that only allows electric current to flow when it is pressed. It is commonly used in control panels, push-button phones, kitchen appliances, magnetic locks, and many other mechanical and electronic devices in homes and industries.
A push button is a simple switch that controls the power of a machine or appliance. It is usually made of metal or thermoplastic and designed to be easily accessible to the user. Electric circuits work by allowing electricity to flow continuously through wires and components. However, some circuits are more useful when they can be turned on and off as needed.
A push-button switch is a widely used device that operates various electric circuits, devices, and machines in homes and industries. It can turn on and off loads such as contactors, motors, relays, etc. It is a switch that turns on when pushed and turns off when released.
Note: Image may vary from actual product in terms of design, color and brand printed
Features:
- Easy to use
- Best for your DIY projects
- Self-locking/Latching Self-reset
- Good electrical conductivity
- This is Momentary type push-button switch
Specification:
| Model No. | R13-502 |
|---|---|
| Operating Voltage(V) | 250V 1.5A, 125V 3A |
| Material | Plastic |
| Color: | Green |
| Function | Momentary |
| Temperature | -25°C to 85°C |
| Terminals | 2 Pin |
| Dimensional Accuracy (mm) | 12mm |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 5 × 5 × 2 cm |
Packages Includes:
1 x Green R13-502 12MM 2PIN Momentary Self-Reset Round Cap Push Button Switch
Green R13-502 12MM 2PIN Momentary Self-Reset Round Cap Push Overview
The Green R13-502 12MM 2PIN Momentary Self-Reset Round Cap Push Button Switch is a compact, panel-mount switch that completes its circuit only while pressed. Ideal for applications needing quick on-off control, it snaps back to open position as soon as the user releases the green cap.
Key Features of Green R13-502 12MM 2PIN Momentary Self-Reset Round Cap Push
- 12 mm round cap with momentary self-reset action for instantaneous control
- 2-pin configuration for straightforward installation in low-current circuits
- Distinctive green cap for easy visual identification on any panel
- Good electrical conductivity ensures reliable signal flow
- Lightweight, space-saving design suited to compact control boards
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Start/stop controls on industrial control panels
- Reset or trigger buttons in kitchen appliances and consumer electronics
- Momentary input for DIY electronics and Arduino projects
- Activation switch for magnetic locks and security systems
- Footswitch or signal trigger in audio equipment racks
- Prototype test rigs requiring reliable momentary actuation
How to Use Green R13-502 12MM 2PIN Momentary Self-Reset Round Cap Push
Drill or punch a 12 mm hole in your panel, then press the switch into place until it snaps in securely. Connect one wire to each of the two metal pins—one serves as the input, the other as the output. Press the green cap to momentarily close the circuit; it will automatically return to open when released.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What mounting hole size is required for the R13-502 switch?
This switch requires a 12 mm panel hole. Use a clean drill or punch tool to ensure a snug snap-fit installation of the round cap.
How do I connect the 2-pin terminals?
Solder wires directly onto the two metal terminals or use crimp-on connectors. One terminal is your input and the other is the output for the circuit.
Is this switch suitable for control panel applications?
Yes, its momentary self-reset design makes it ideal for control panels where quick, repeatable actuation is needed without manual resetting.
Technical Specifications
| Model | R13-502 |
|---|---|
| Size | 12mm |
| Pin Count | 2-pin |
| Color | Green |
| SKU | AI3233 |
| Weight | 0.0026 kg |
| Availability | In Stock |
Applications & Use Cases
The Green R13-502 12MM 2PIN Momentary Self-Reset Round Cap Push Button Switch is a versatile plastic push button switch used across a wide range of applications including breadboard prototyping, control panels, toys and gadgets, appliance interfaces, and PCB mounting.
Common use cases:
- Adding user input to an Arduino project
- Building a game controller
- Prototyping a product interface on a breadboard
This product is ideal for electronics students, hobbyists, and prototype builders.
Technical Tip: Use a 10K pull-down resistor with push buttons connected to microcontroller inputs to prevent floating pin issues.
