Product Description

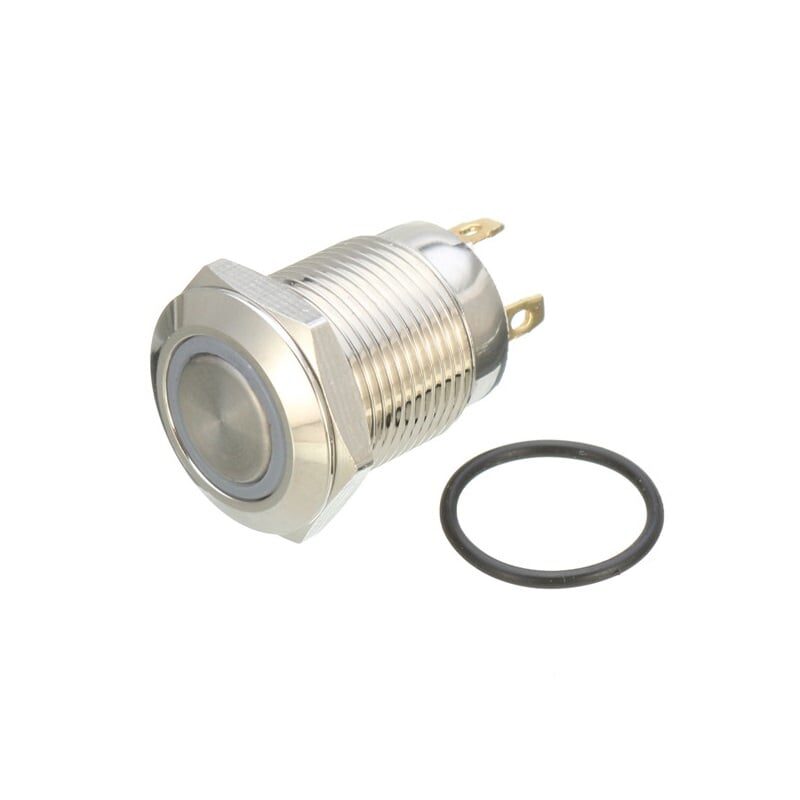

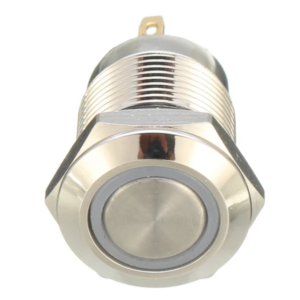

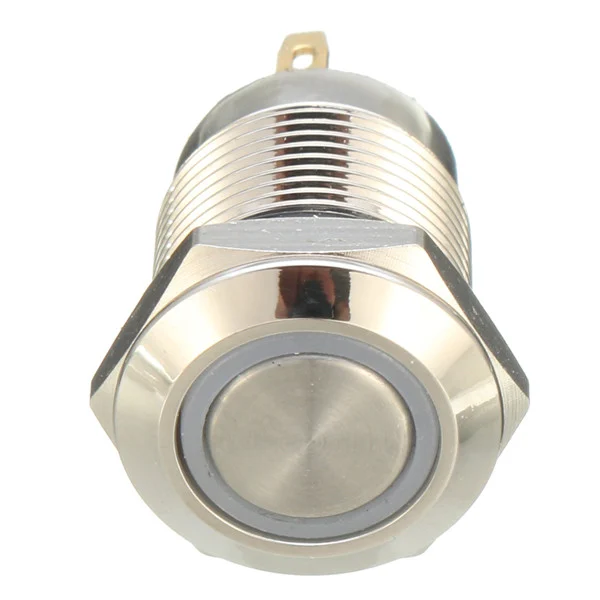

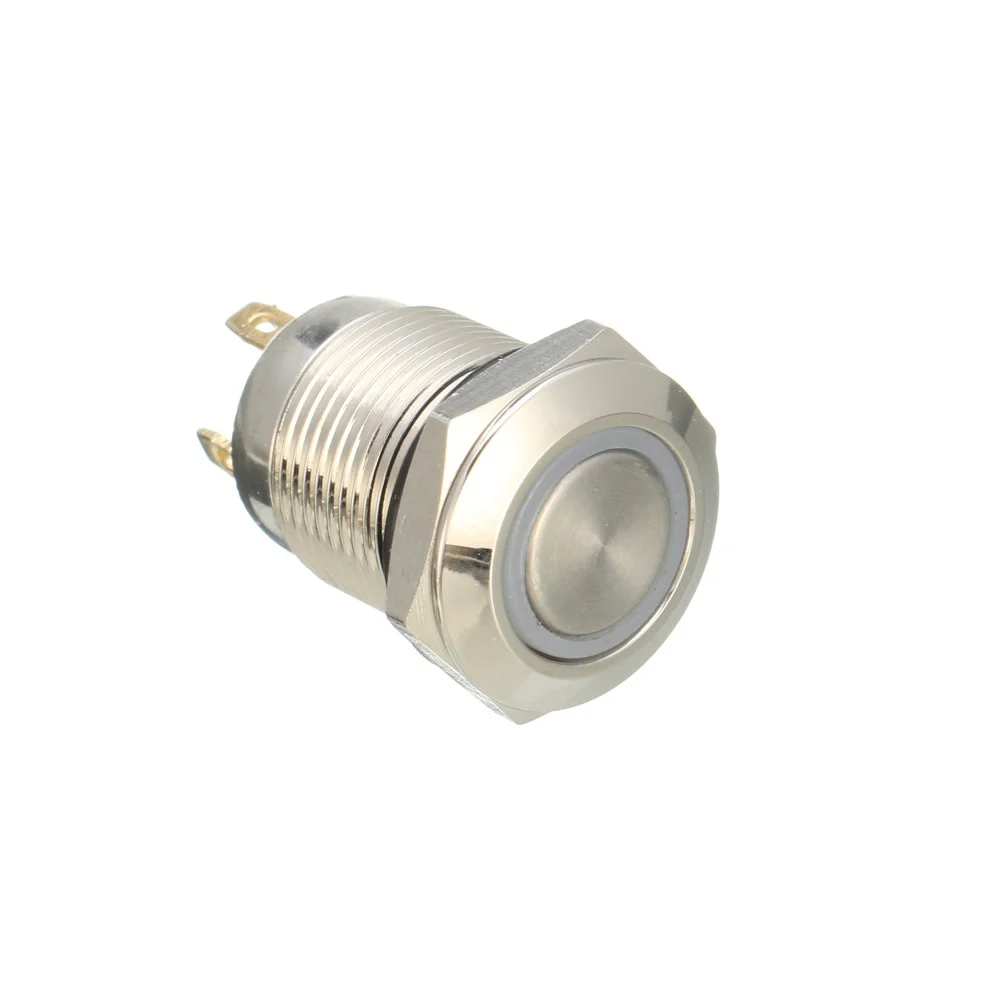

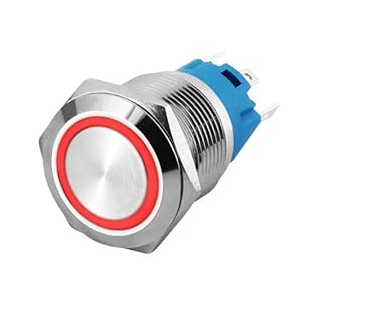

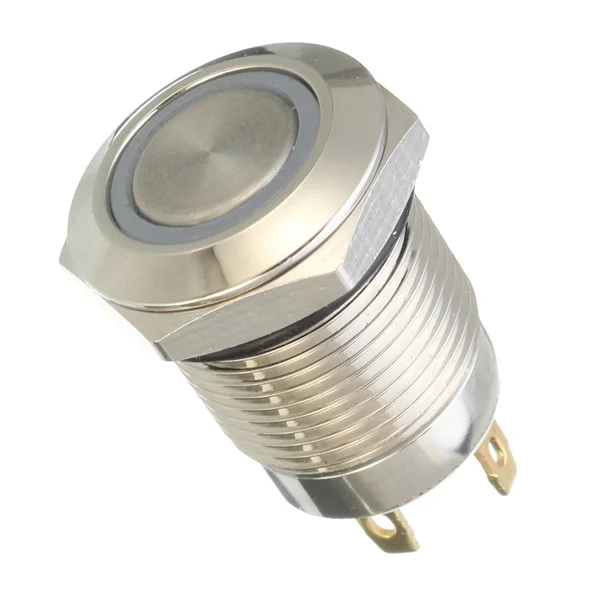

This product is a 12mm 12V Ring Light Self-Lock Non-Momentary Metal Push-button Switch with Red Light.

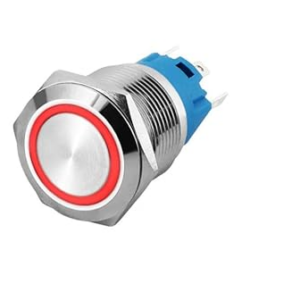

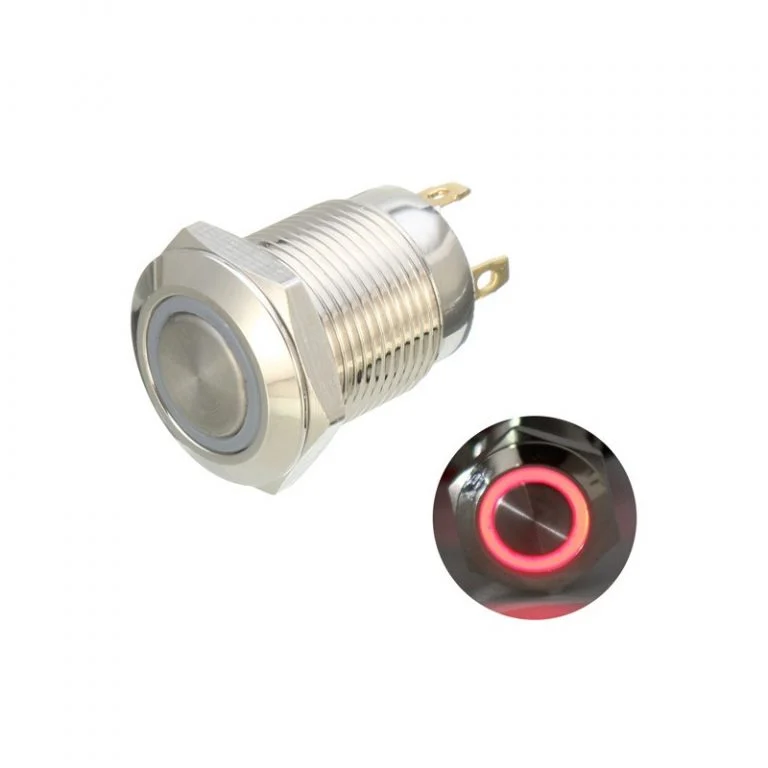

If you need a durable and stylish push-button, this is the one for you! It has a metal body with a red LED ring that lights up when the switch is on. It is an SPDT switch with 12mm threading and 1mm pitch. It adds a premium look to your dashboard or control panel with its glowing ring. You can also choose from different LED colors to suit your application.

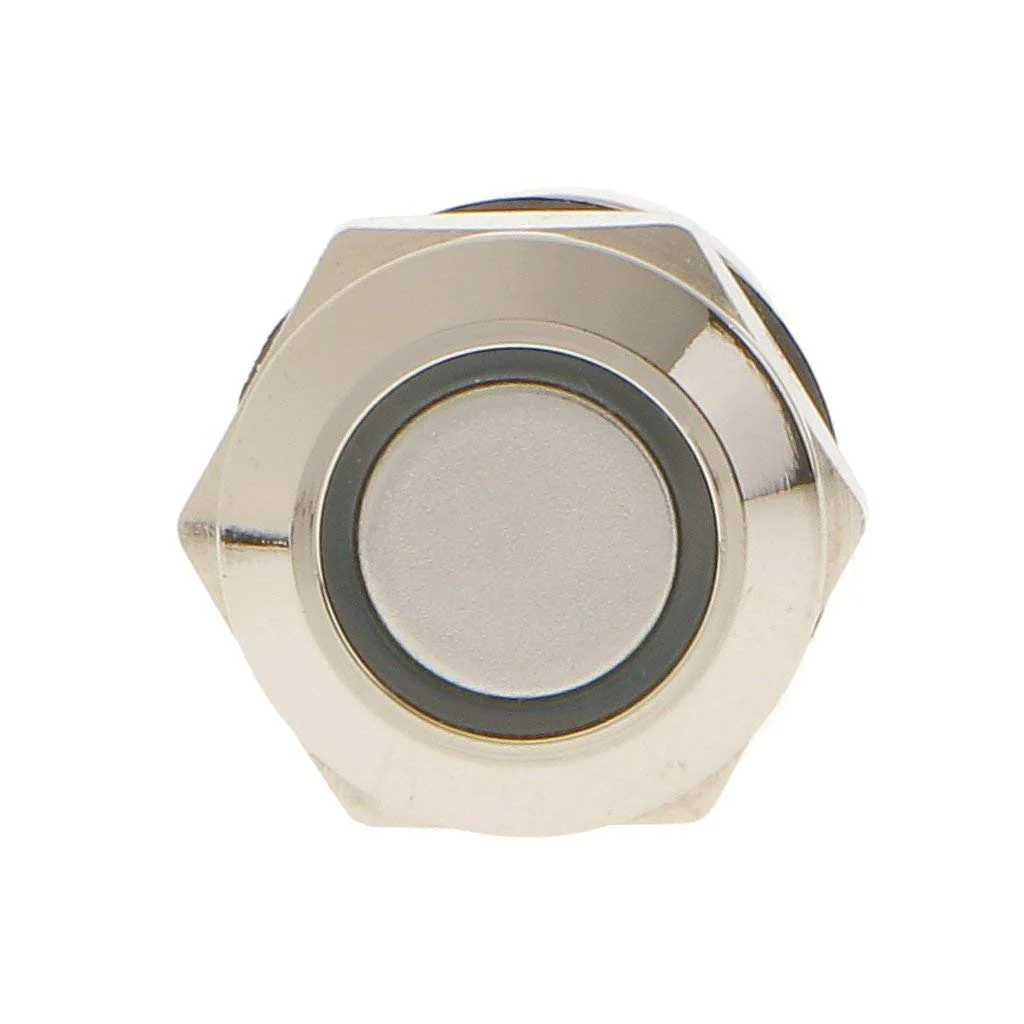

This switch has a non-momentary self-lock action, which means it stays on or off until you press it again. It comes with a threaded head and a nut for easy mounting and installation. It has a flat hexagonal ring structure that shows on the outside of your project case. The switch has a stainless steel body with an IP67 protection rating, which means it is resistant to dust and water. This button is ideal for basic on/off functions. It has a total length of 26mm (including leads) and small solder lugs for connection. The switch can handle up to 3A and 12VDC, while the LED can handle up to 5V.
Features:
- Stainless steel material for long-term use
- High-end appearance and good to touch
- Inbuilt Colorful Ring illumination LED

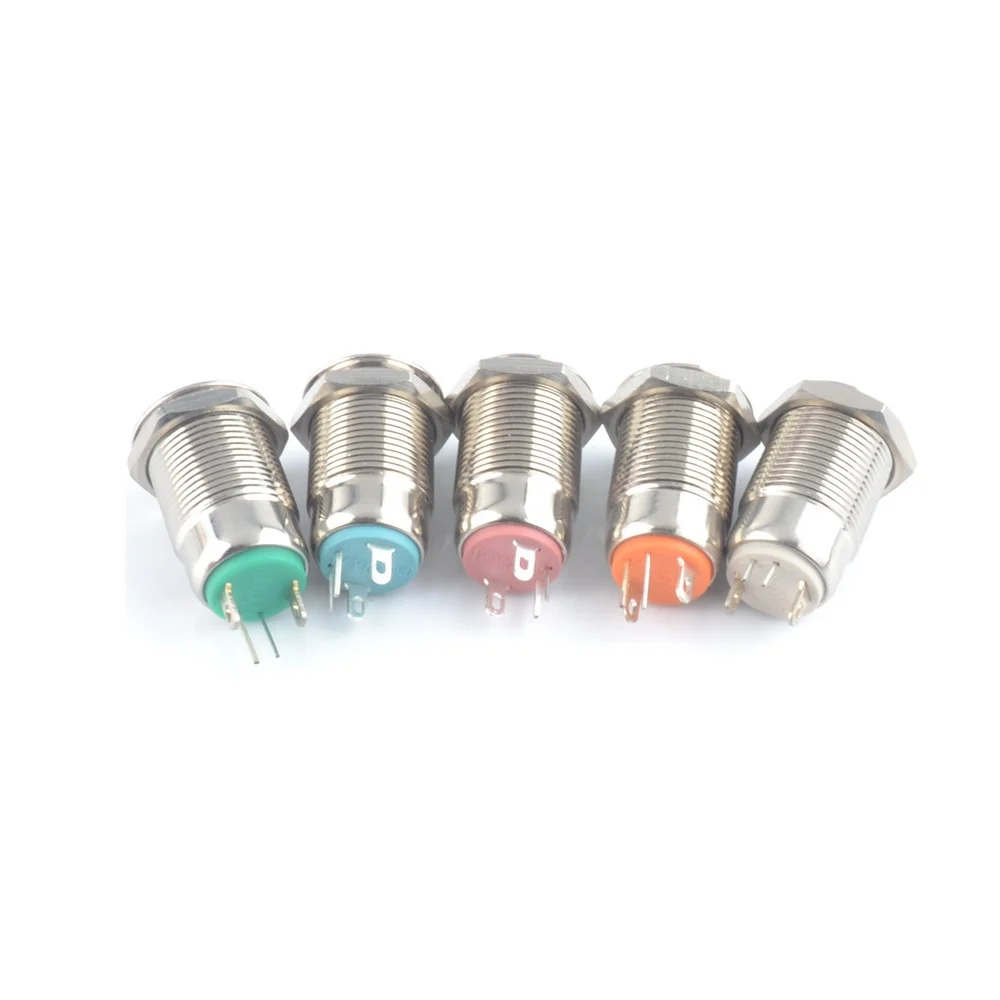

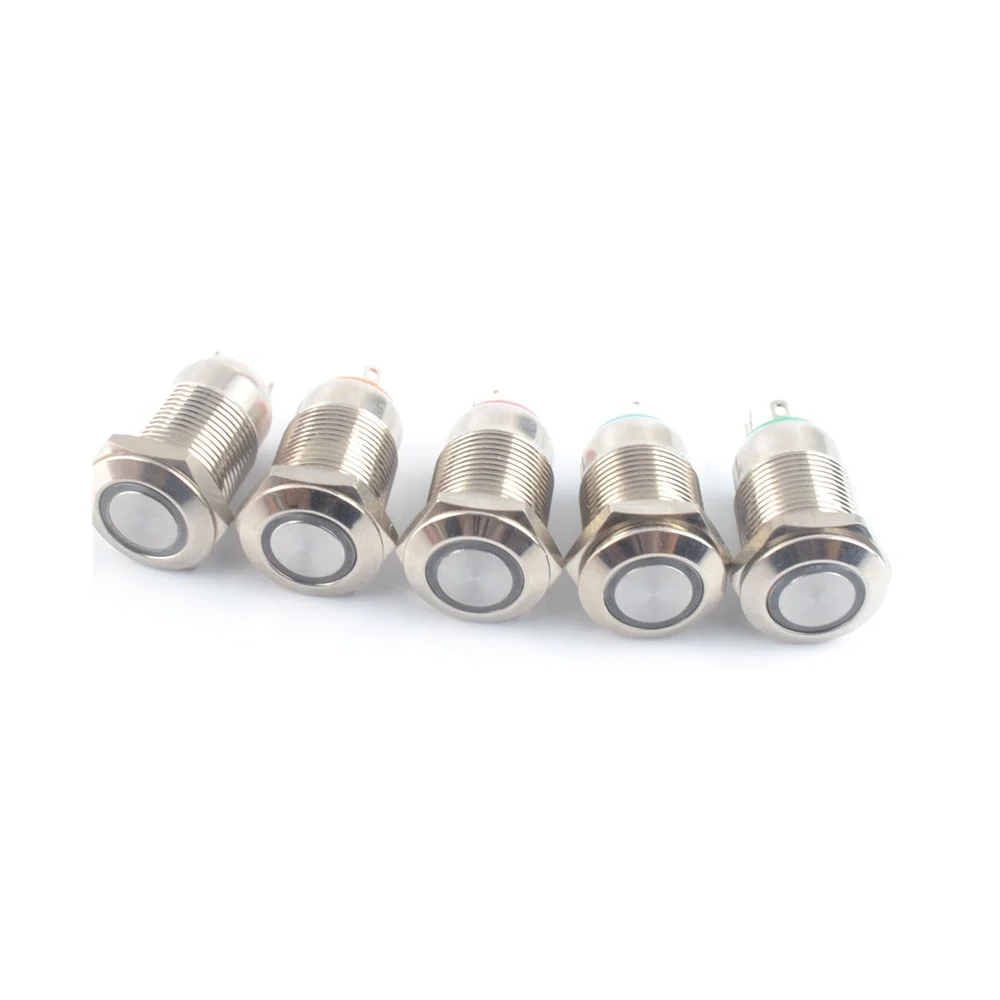

- Available in Various LED Color
- Independent LED terminals
- Bright daylight LEDs
- Single pole push to make and Push to break Function
- Front and rear panel seal to IP67
- Integral supply resistors
- TVS protection
- Good electrical conductivity
- Non-Momentary type push-button switch
- Rubber ring and hexagon nut to fix, Waterproof and Dustproof
Specification:
| Contact Type | Solder Type |
|---|---|
| Contact Material | Silver Alloy |
| Contact Resistance | ≤50 MΩ |
| Insulation Resistance (MΩ) | ≥1000 |
| Operating Temperature Range (°C): | -20 to 55 |
| Operation Force | About 3-5N |
| Operation Stroke | 2-5mm |
| Body Material | Stainless Steel and Plastic |
| Mech. & Electrical Lifecycle | ≈ 50000 |
| Protection Standard | IP66 |

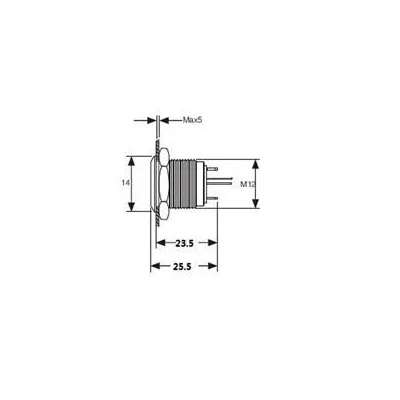

| Dimensions in mm (LxWxH) | 26 x 14 (Length x Head Dia) |
| Weight (g): | 6 |
| Shipping Weight | 0.012 kg |
| Shipping Dimensions | 8 × 5 × 2 cm |
Package Includes:
1 x 12mm 12V Ring Light Momentary Metal Pushbutton Switch-Red Light
