This is the 32V variant of the 120W 10-32V to 12-35V 6A DC-DC Boost Converter Module in Boost Converter. Available at Original price was: ₹260.78.₹214.76Current price is: ₹214.76. (₹182.00 + GST) with free shipping across India.
120W 10-32V to 12-35V 6A DC-DC Boost Converter Module:
The featured DC-DC Boost Power Supply/Converter Module offers exceptional versatility, efficiently stepping up input voltages from 10V to 32V to output voltages ranging between 12V and 35V. With an impressive output power capability of up to 120W and a maximum current handling of 6A, this module caters to demanding applications.

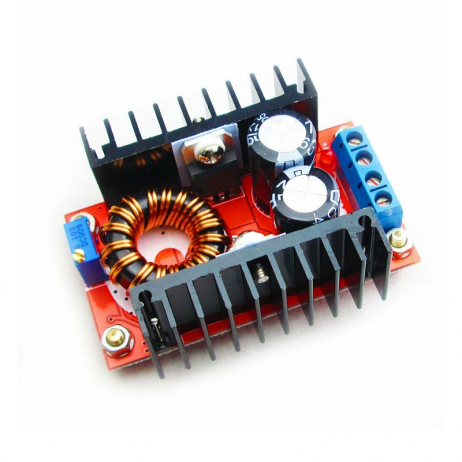

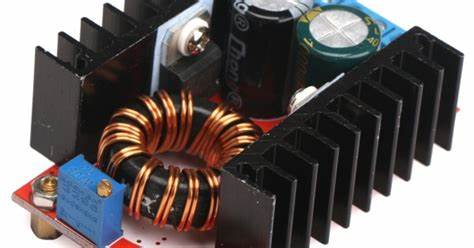

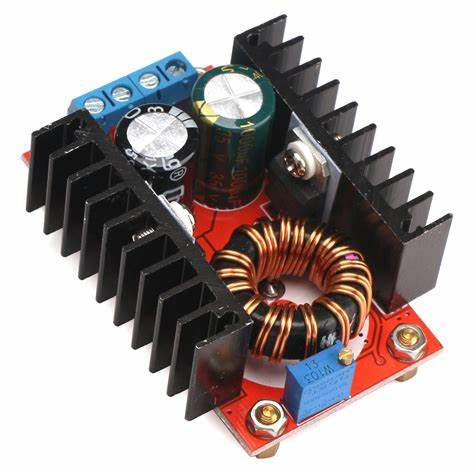

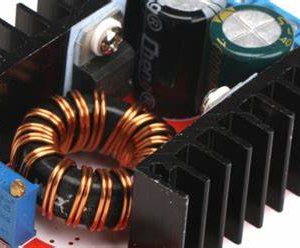

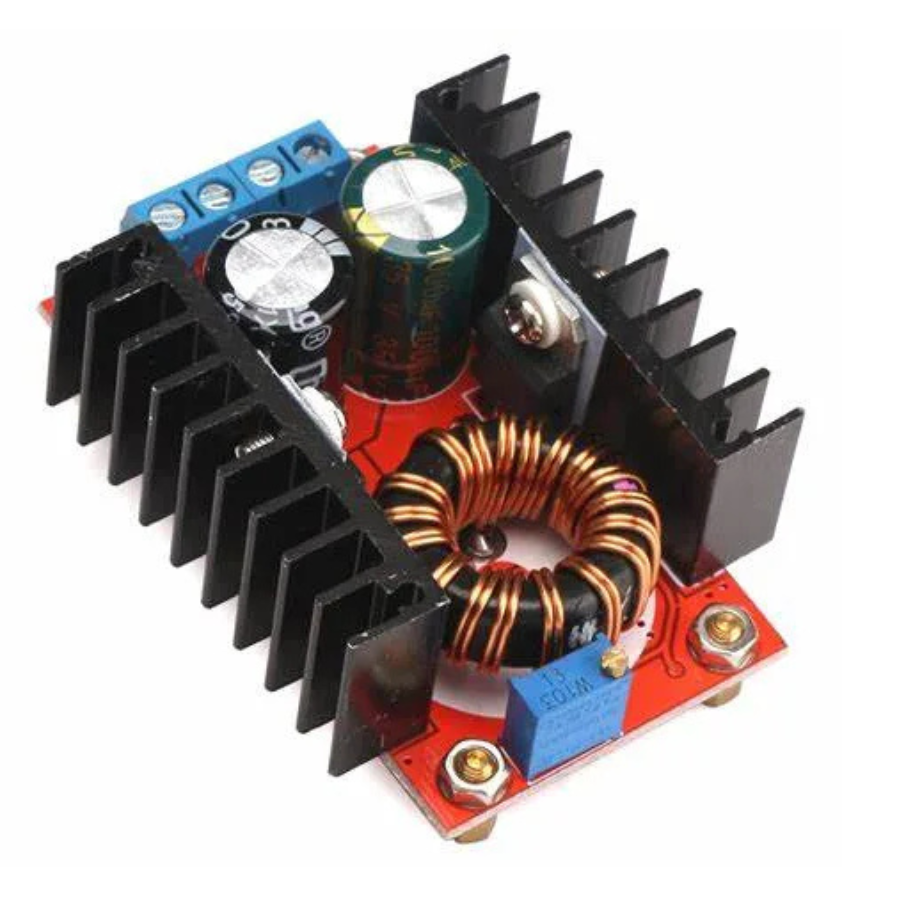

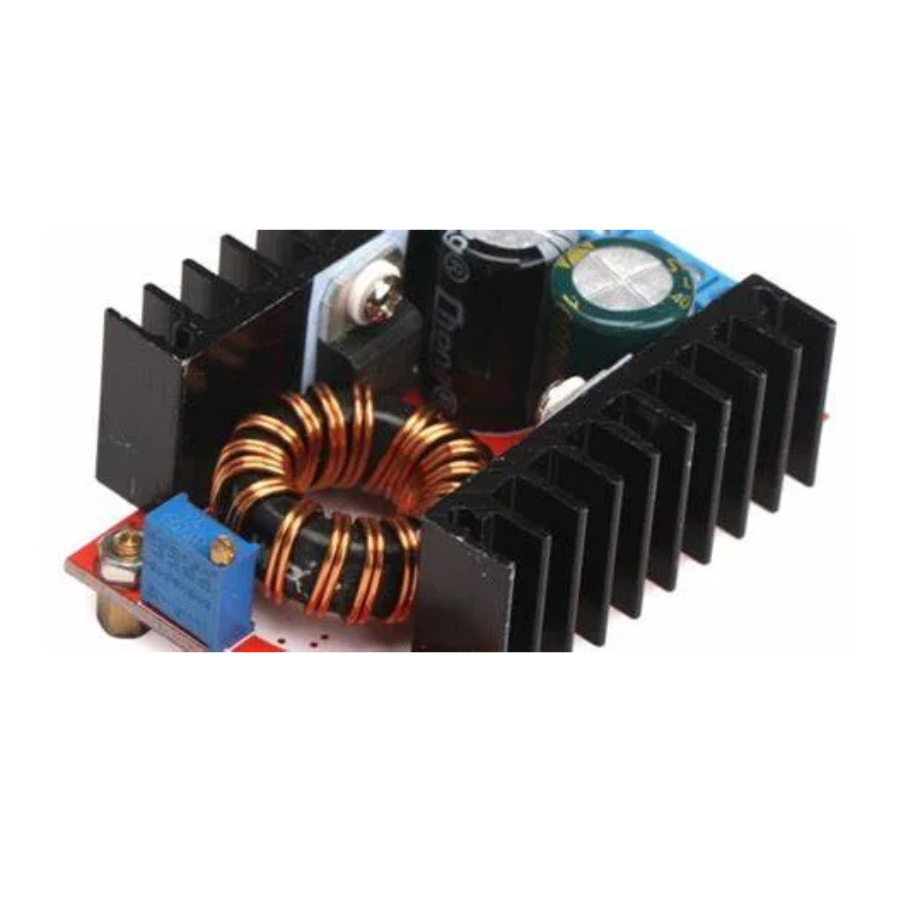

Engineered for heavy-duty performance, this 120W DC-DC Boost Converter boasts a prominent toroidal inductor and dual heatsinks, ensuring reliable operation under diverse conditions. It’s particularly well-suited for automotive environments, enabling the conversion of standard 12V battery power to 19V for laptop charging or to 18V/24V for other applications requiring higher voltages.
It’s important to note the absence of reverse polarity protection. A series diode is recommended but may not be suitable for high-load applications. Therefore, users must exercise caution with input polarity to avoid potential damage.
Applications:
- DIY adjustable output vehicle power supply. Provide 12V input; the output voltage can be continuously adjusted from 12–35V (output voltage cannot be lower than the input).
- Universal car laptop power supply. Provide 12V input; the output voltage is adjustable for your notebook. Can easily drive dual-core or quad-core notebooks at 19V and up to 6A output current.
- Power supply for electronic devices, as long as the voltage is adjusted appropriately and does not exceed the module’s rated current.
Note:
- Set the output voltage to the desired level using a voltmeter before connecting it to your equipment or load.
- Short circuit protection: None — please take precautions to protect the module from overcurrent.
- Input reverse polarity protection: None — use a series diode to protect against reverse polarity.
Features:
- Non-isolated step-up power conversion module
- Onboard LED illuminates when voltage is applied
- Equipped with a multi-turn potentiometer
- Easy to drive 65W/90W dual-core notebooks
- Output voltage is continuously adjustable via OUT and OUT- screw terminals (must be greater than input voltage)
- Non-isolated step-up power conversion module
- Onboard LED indicator
- Equipped with multi-turn potentiometer
Specification:
| Input Voltage | 10–32V |
|---|---|
| Output Voltage | 12–35V (adjustable) |
| Output Current | 10A (MAX) |
| Input Current | 16A (MAX) (Enhance heat dissipation if above 10A) |
Package Includes:
- 1 x 120W 10-32V to 12-35V 6A DC-DC Boost Converter Module
- 4 x set of brass standoffs and screws
Technical Specifications
| Current Rating | 6A |
|---|---|
| Power Rating | 120W |
| SKU | AI2334 |
| Weight | 0.08 kg |
| Availability | In Stock |
Applications & Use Cases
The 120W 10-32V to 12-35V 6A DC-DC Boost Converter Module is a versatile boost converter used across a wide range of applications including voltage step-up for electronics, battery-powered LED drivers, USB power banks, and low-voltage to high-voltage conversion.
Common use cases:
- Boosting 3.7V LiPo to 5V for USB output
- Driving 12V LED strips from a 5V source
- Building a portable power bank
This product is ideal for power electronics designers and DIY enthusiasts.
Technical Tip: Boost converters increase voltage at the cost of reduced current capacity. Total power (W) remains roughly constant minus efficiency losses.
