Description:

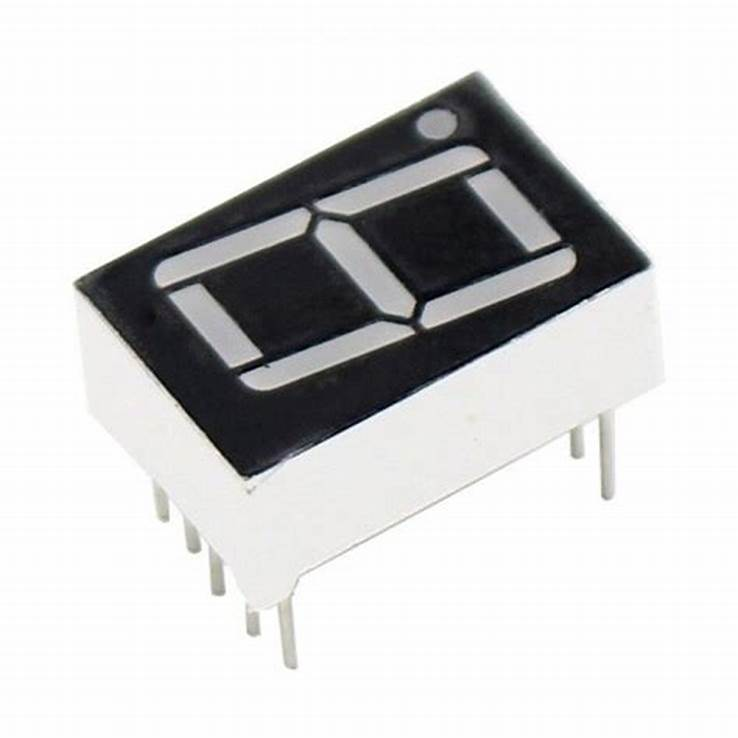

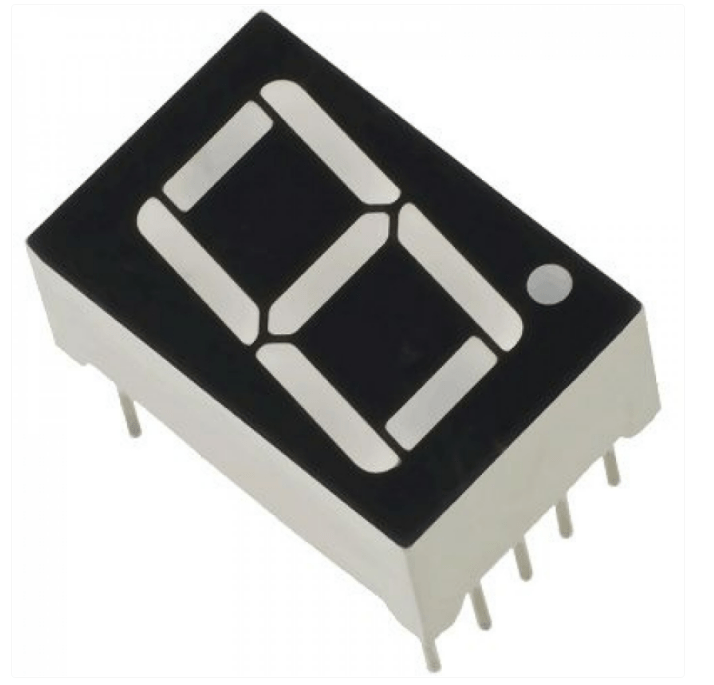

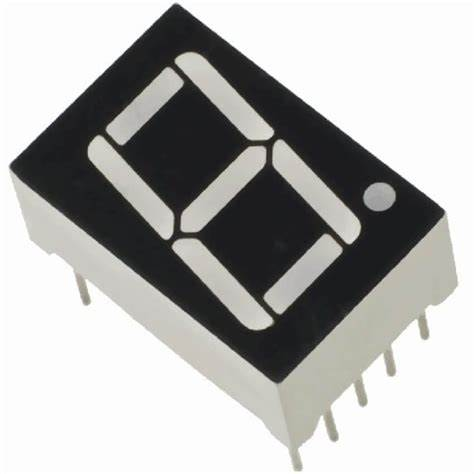

7-Segment Display – Common Cathode -LT543
This 1 Digit 7-Segment LED Display is a compact, efficient, and easy-to-use component for displaying numeric information in electronic projects. Ideal for timers, counters, clocks, and other embedded systems, it features seven individually controlled segments (labeled A through G) plus an optional decimal point (DP) to display digits from 0 to 9.
Features:
- This LED display has a high intensity output that can be seen clearly even in bright conditions.
- It is priced economically to fit your budget and needs.
- It has a vibrant red color that stands out and attracts attention.
- It has a compact size of 0.56 inches in length and width, with a depth of only 0.5 inches.
- It is easy to mount on any surface with the included hardware and instructions.
- It is RoHS compliant, meaning it meets the standards for environmental and health safety.
Specification:
| Product | Segment LED Display |
|---|---|
| Item Type: | Common Cathode |
| Color: | Red |
| Characteristics | Easy to Use, High Brightness, Low Current Consumption, PCB Mounting |
| Length (Inch) | 0.56 |
Package Includes:
- 1 x 1 Digit 7 Segment LED Display
Technical Specifications
| SKU | AI0510 |
|---|---|
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 1 Digit 7 Segment LED Display is a versatile seven segment display used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
