10 Segments 4 Colors Stripe Digital Tubes 2R3Y4G1B Cathode?BAS?

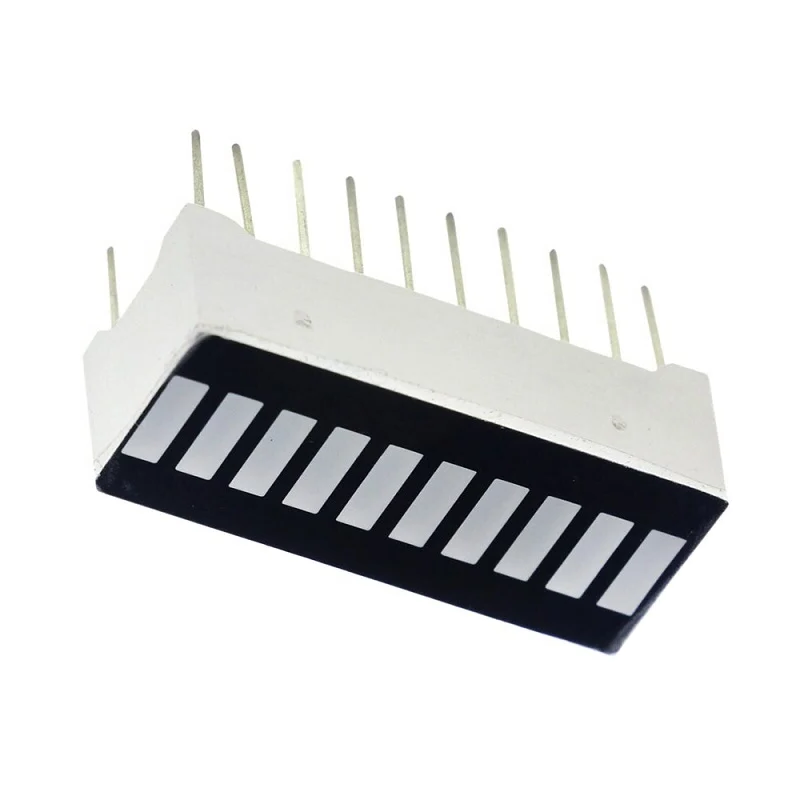

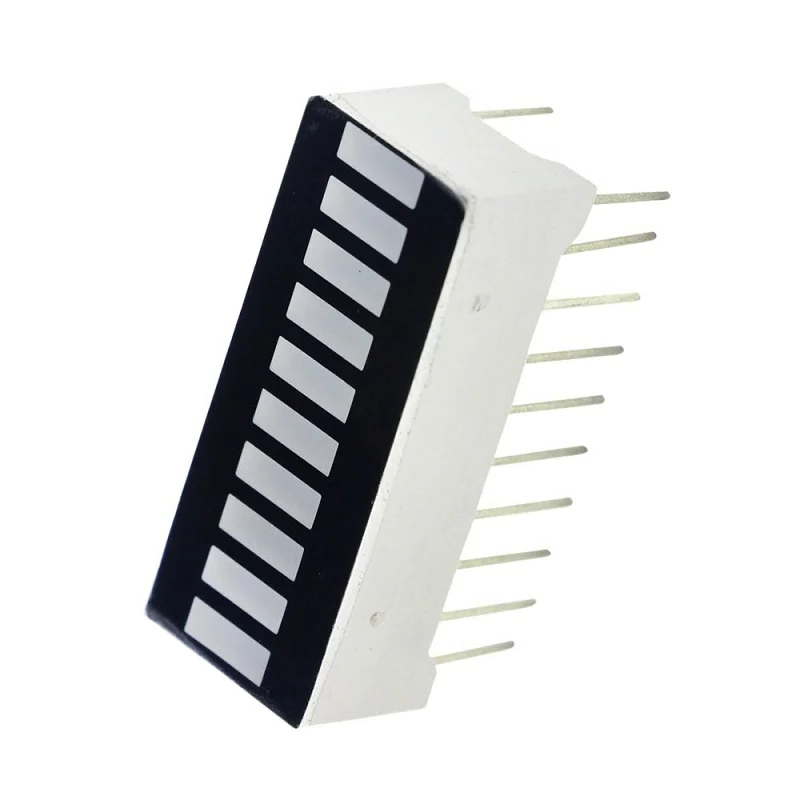

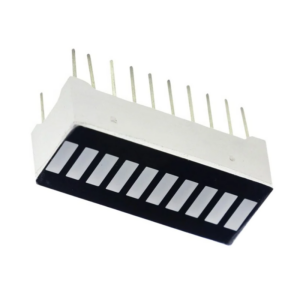

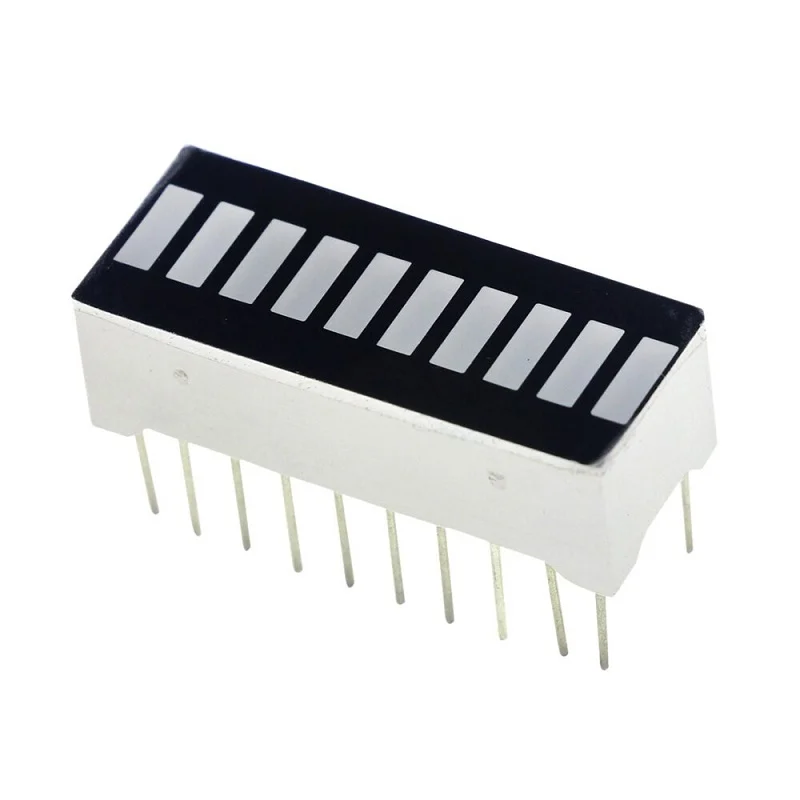

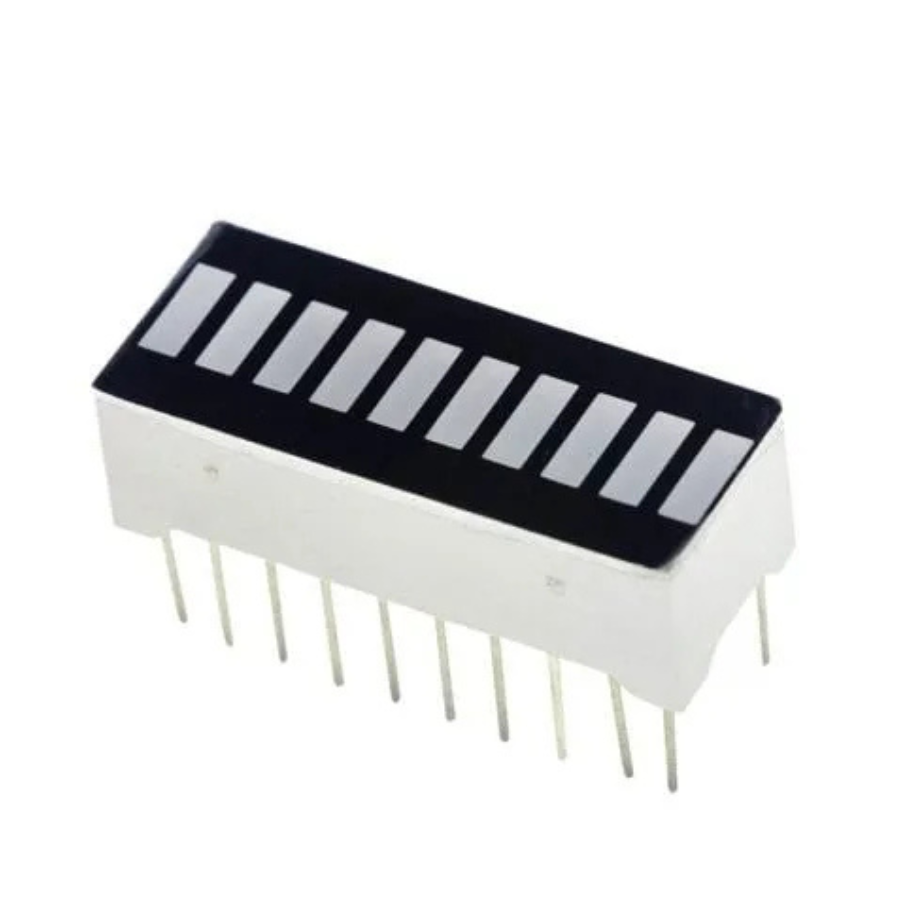

This product is a digital tube with 10 segments and 4 colors. It has 2 red, 3 yellow, 4 green, and 1 blue LED in a cathode configuration (BAS). You can create a sleek linear display with a radiant 4-color glow using this refined LED bar graph that is only 1″ long. The display has a bright, attractive, and funky appearance with smooth diffused rectangular lenses. It has 20 pins, 10 on each side, with 0.1″ spacing that allows you to easily connect it to a breadboard and have enough room for wiring.
Features:
- built-in chip.
- 5050 Highlight LED.
- It is equipped with an I / O interface that can control multiple LEDs.
- it can finish data reception and decoding in one piece.
- RGB 256 level brightness adjustment, 160,000 color image display effect, sweep frequency not less than 400Hz / S.
Specification:
| Type of element | Common Cathode |
|---|---|
| No. of Pins | 20Pins |
| Current Consumption | Low |
| Brightness | High |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 5 × 4 × 3 cm |
Package Includes:
1 x 10 Segments 4 Colors Stripe Digital Tubes 2R3Y4G1B Cathode（BAS）
Technical Specifications
| Interface / Protocol | 4G |
|---|---|
| SKU | AI2863 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 10 Segments 4 Colors Stripe Digital Tubes 2R3Y4G1B Cathode?BAS? is a versatile seven segment display used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
