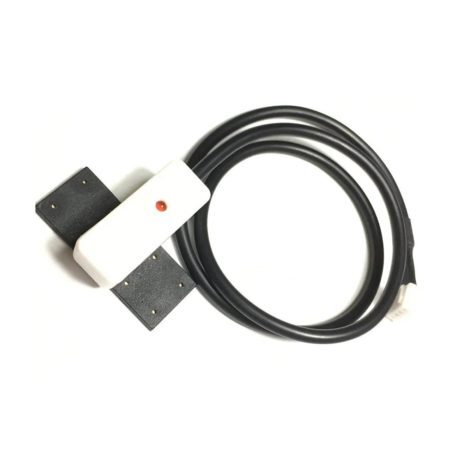

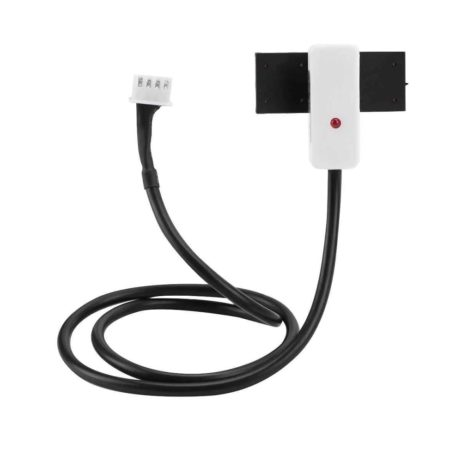

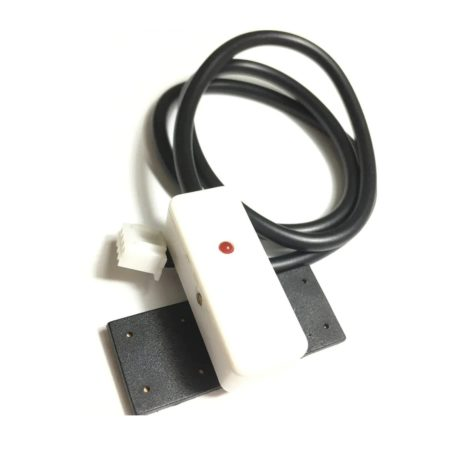

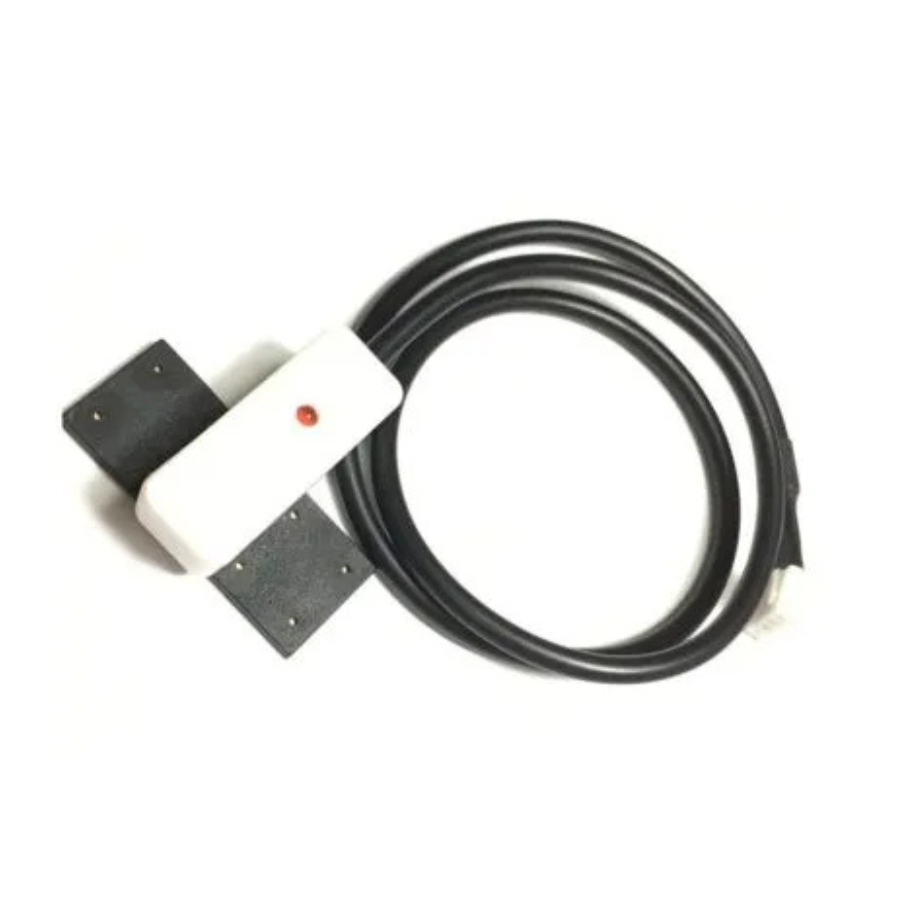

This is the 12V variant of the XKC-Y26 PNP 5-12V Intelligent Non-Contact Liquid Level Sensor Water Level Sensor 50CM in Level and Pressure Sensor, Water TDS, pH, Flow, Level and Pressure Sensor. Available at ₹831.90 (₹705.00 + GST) with free shipping across India.
Product Description:
This is a smart sensor that can measure the liquid level inside a sealed container without touching it. It uses advanced signal processing technology and a high-speed chip that can ignore the thickness of the container wall. The sensor can be attached to the bottom of the container (high or low level) without drilling holes in non-metallic containers. It is easy to install and versatile. It can detect various liquids, including toxic, acidic, alkaline, and high-pressure ones. It does not depend on the type of liquid or container material.
Applications:
- Water tower
- Sewage treatment
- Drone irrigation.
- Medical equipment
- Aquarium
Features:
- The non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
- High stability, high sensitivity.
- Compatible with most 5 ~ 24V power adapters.
Specification:
| Model | XKC-Y26 PNP |
|---|---|
| Input Voltage (V) | 5 to 12 |
| Current Consumption (mA) | 5 |
| Max Output Current (mA) | 1~100 |
| Response Time (mS) | 500mS |
| Operating Temperature (°C): | 0~85 |
| Working Humidity Range | 5~100% |
| Material: | ABS |
| Cable Length (cm) | 49 |
| Length (mm): | 18 |
| Width (mm) | 13 |
| Height (mm) | 11 |
| Weight (g): | 45 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 8 × 6 × 3 cm |

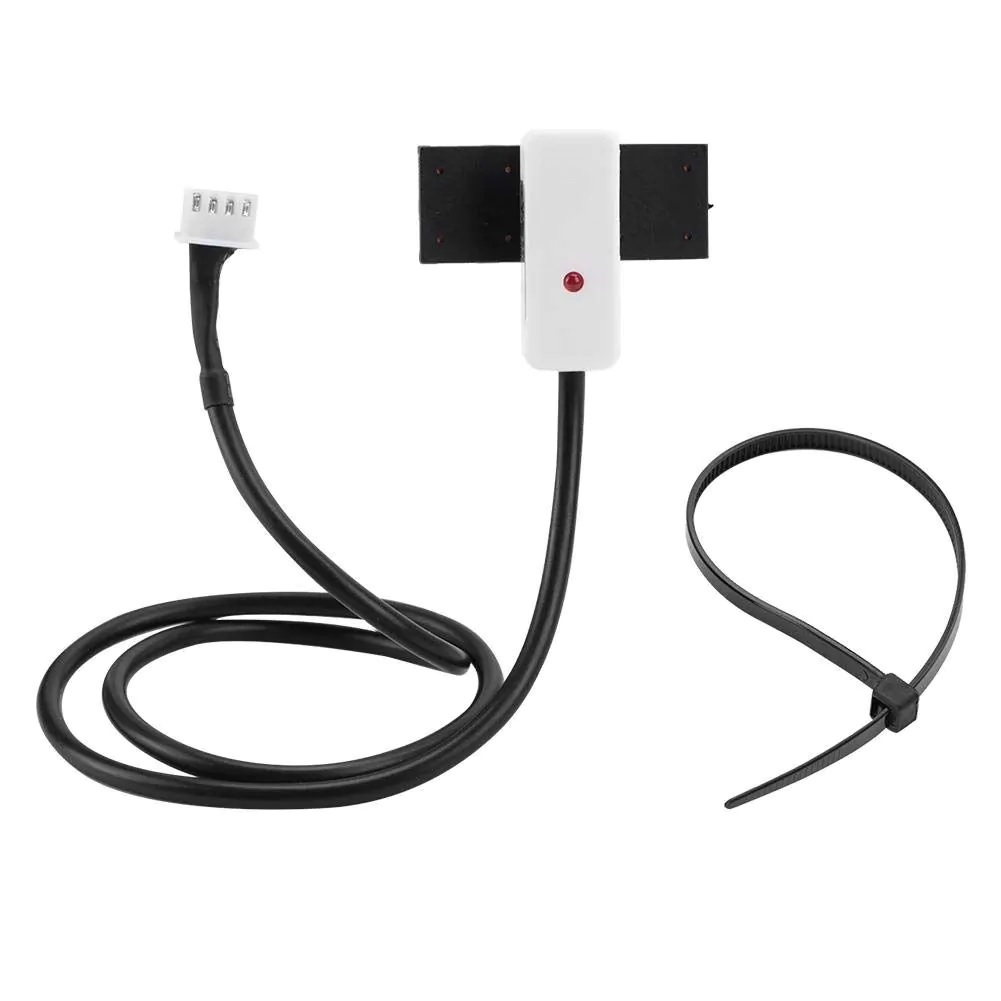

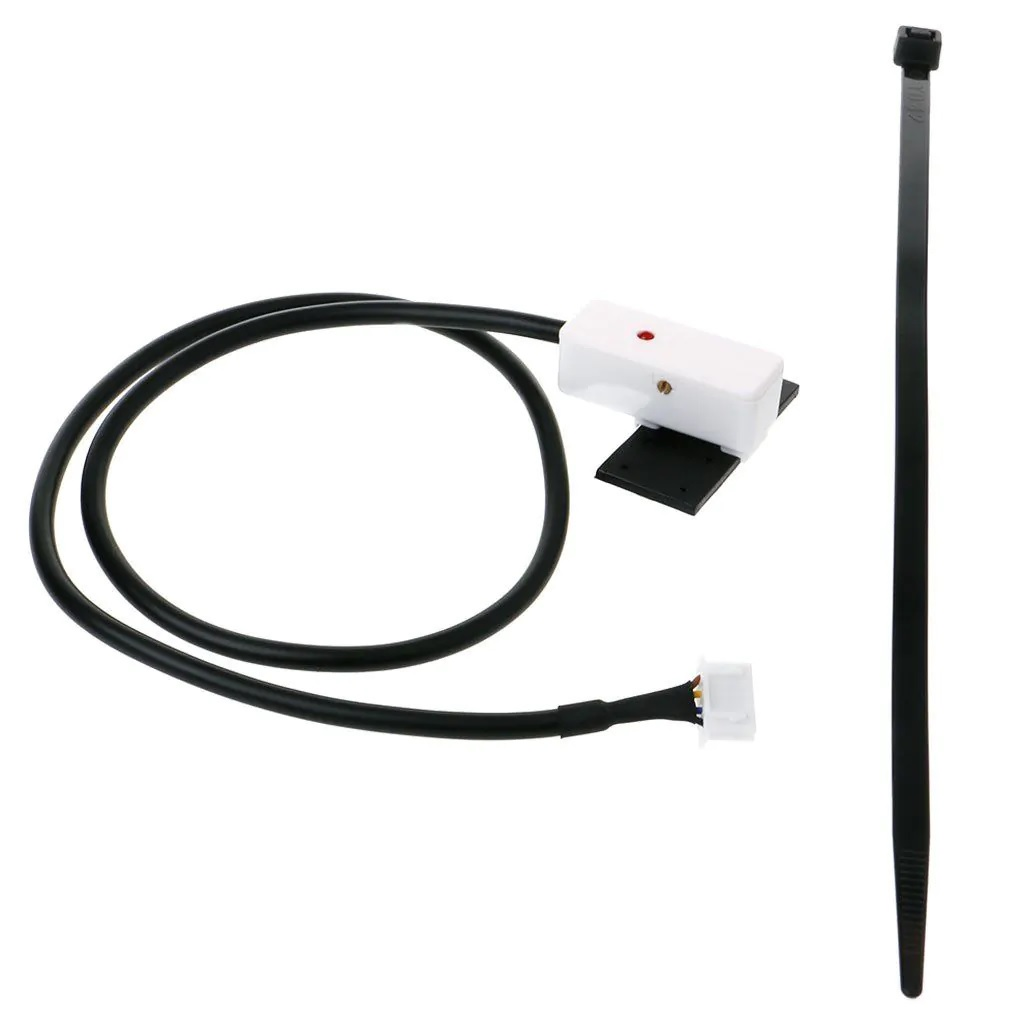

Package Includes:
1 x XKC-Y26 PNP 5-12V Intelligent Non-Contact Liquid Level Sensor Water Level Sensor 50CM
1 x Cable Tie
