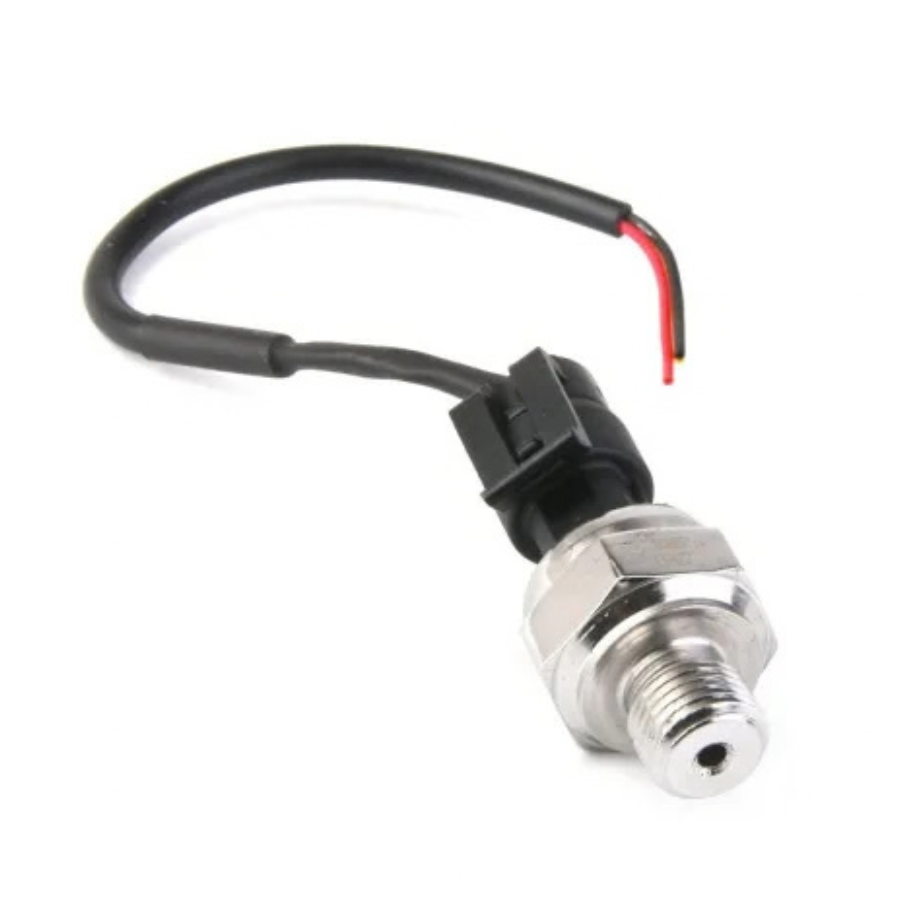

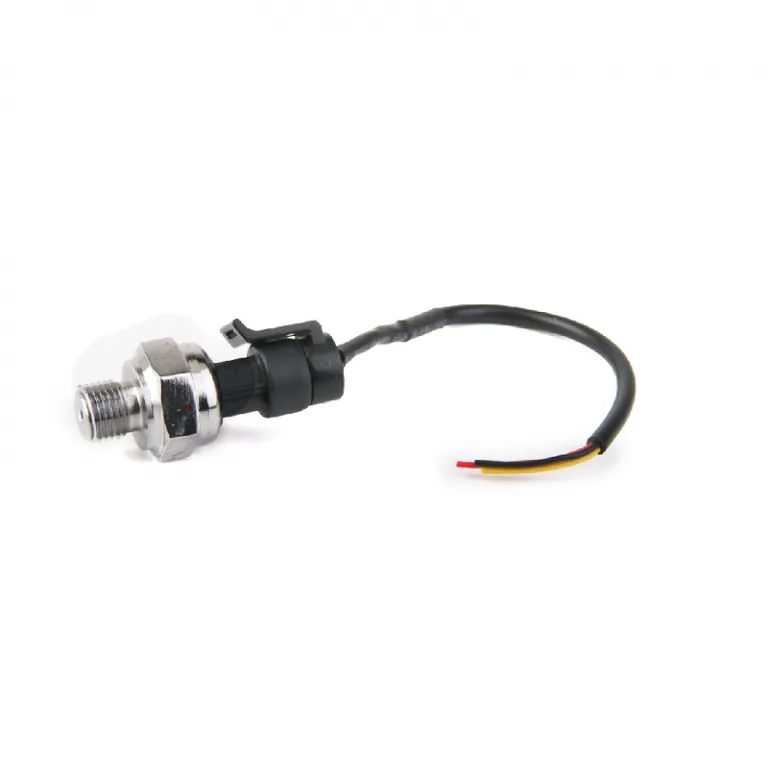

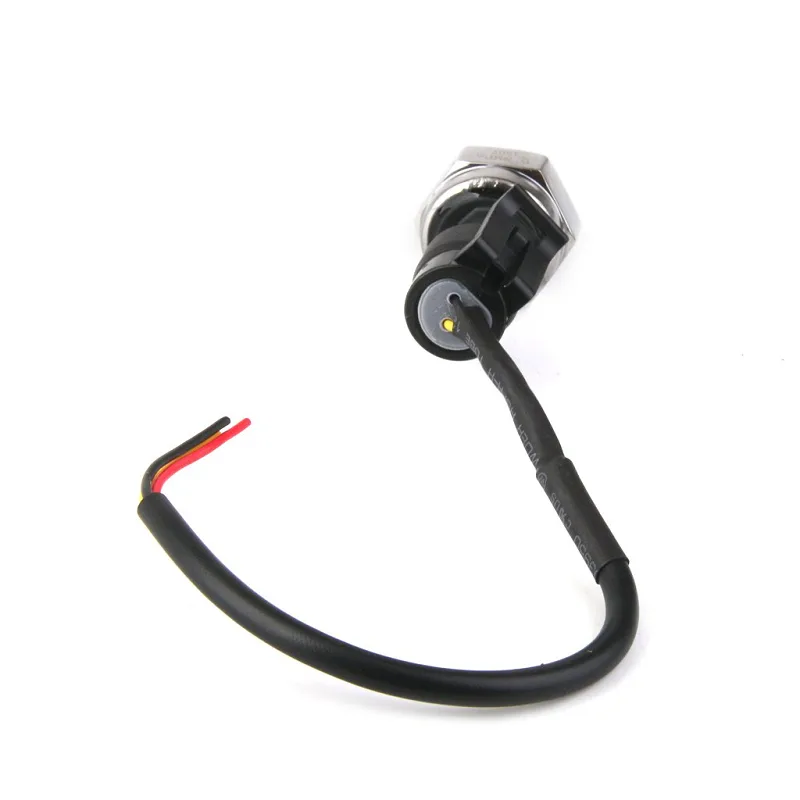

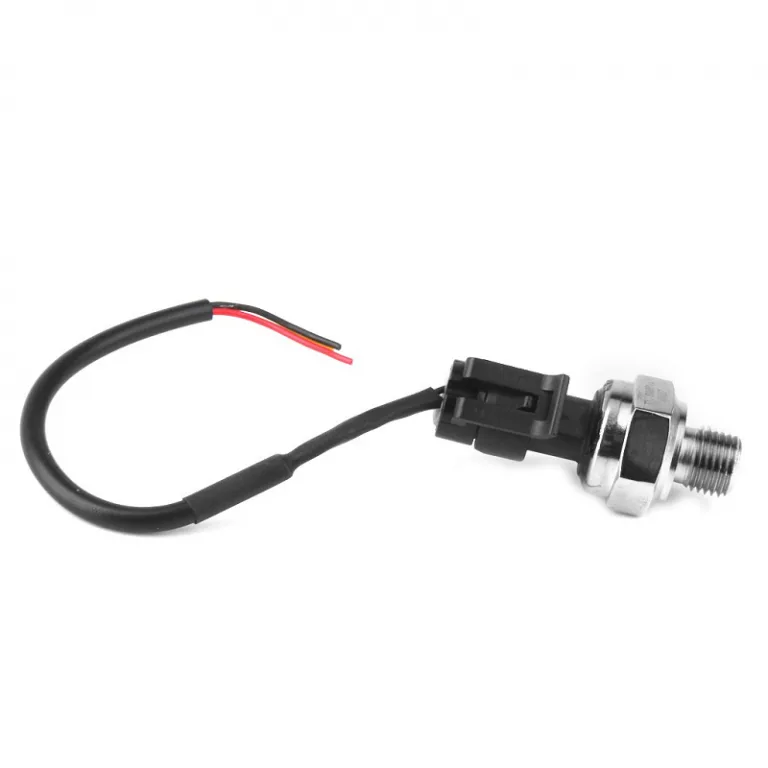

Zbotic .in introduces a new product line of pressure transducers made from high-quality stainless steel for durability. These transducers have a standard G1/4 thread size and can operate in both air and water. They produce a digital output between 0.5V and 4.5V when powered by 5VDC. They have stable performance and a long service life.
Applications:
- Pressure Detection in Oil Tank, Gas Tank.
Features:
- Adopt Precision Compensation Technology and Sensitive Components, Stable and Reliable.
- 0.1% FS Small Output Error, Including Nonlinear, Hysteresis Error, and Repeatability.
- Light Weight and Small Volume, Easy to Install, and Operate.
- Stainless Steel Body, it has Complete Surge Voltage Protection Function.

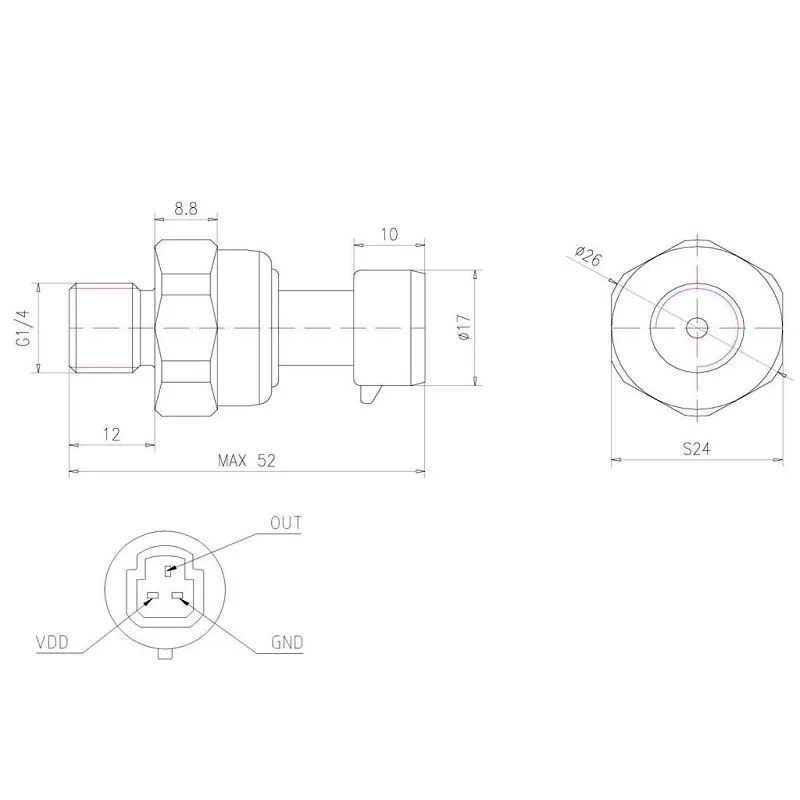

specification-
| Pressure Range (MPa) | 0 – 0.5 |
|---|---|
| Operating Voltage (VDC) | 5 |
| Output Voltage (VDC) | 0.5 ~ 4.5 |
| Accuracy | 1.5%FS |
| Length (mm): | 50 |
| Width (mm) | 20 |
| Height (mm) | 20 |
| Weight (g): | 70 |
| Shipping Weight | 0.075 kg |
| Shipping Dimensions | 6 × 3 × 2 cm |
Package Includes:
1 x 0.5MPa Stainless Steel Pressure Transducer Sensor
Datasheet:
Motor Current Sensing: Detect Overload and Stall Conditions
Motors are among the most common causes of electrical failures in industrial machinery, robotics, and hobbyist electronics. A...
Read More →
Turbidity Sensor: Water Clarity Measurement for IoT System
Water quality monitoring has become a critical part of modern agriculture, aquaculture, industrial processes, and smart city infrastructure....
Read More →
Capacitive Soil Sensor vs Resistive: Which Is More Accurate?
Table of ContentsIntroductionHow Resistive Soil Sensors WorkHow Capacitive Soil Sensors WorkAccuracy ComparisonDurability and LifespanWiring Both Sensors to ArduinoArduino...
Read More →Technical Specifications
| SKU | AI2577 |
|---|---|
| Weight | 0.07 kg |
| Availability | In Stock |
Applications & Use Cases
The 0.5MPa Stainless Steel Pressure Transducer Sensor is a versatile level and pressure sensor used across a wide range of applications including water quality monitoring, hydroponics, aquariums, industrial water treatment, and smart irrigation.
Common use cases:
- Measuring TDS in a hydroponic nutrient solution
- Monitoring pH in an aquarium
- Tracking water flow in an irrigation system
This product is ideal for aquaculture professionals, hydroponic growers, and environmental engineers.
Technical Tip: Calibrate pH and TDS sensors regularly with standard solutions. Keep probe tips clean and submerged when not in use.
