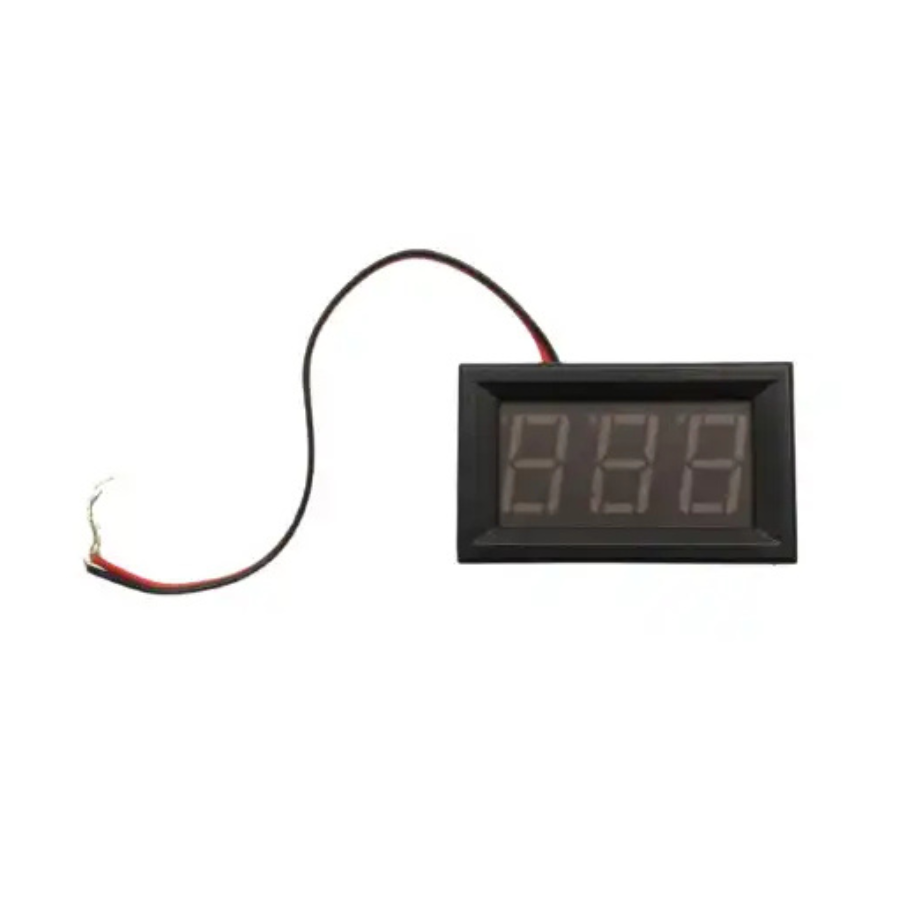

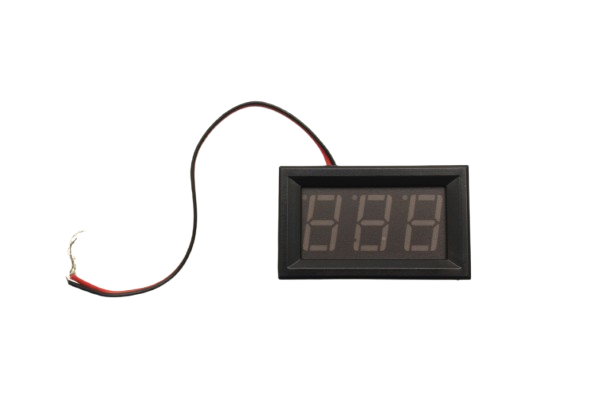

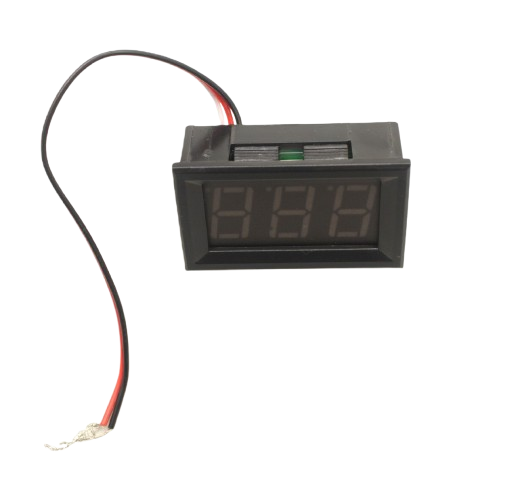

0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter-BLUE
We are excited to present the newest member of our product family: the sleek and compact Digital Voltmeter with a BLUE LED Display. The 0.56-inch 0-100V Three Wire DC Voltmeter BLUE Panel is designed for effortless installation, taking only minutes to set up. Just connect the wires to your desired measurement source, and watch the LED illuminate.
Attach the Red wire to the positive terminal, the Black wire to the negative terminal, and the Yellow/White wire to the positive terminal of the measurement source or a different source. When measuring across a separate source, make sure the negative terminal is shared. Additionally, the integrated reverse polarity protection guarantees safety against incorrect connections.
The voltmeter’s precision is enhanced by its ability to automatically shift the decimal point according to the voltage detected. It shows voltages under 10V with two decimal places and voltages over 10V with one decimal place for clear readability.
Ideal for monitoring storage battery voltages in motorcycles and cars up to 100 volts, this voltmeter is indispensable for assessing battery health. It is also effective for other DC voltage measurements.
It operates within a broad range of 4.5V to 30VDC. Note that the maximum voltage for safe operation is 30VDC. To avoid damage from electrical surges, power fluctuations, or sudden voltage spikes, it is advised to operate below this maximum threshold.
Equipped with a vividly bright LED Display, this voltmeter stands ready to deliver precise DC voltage measurements from 0V to 100V.
Note:
- Consider 1V voltage drop at voltmeter itself, as we observed it at robulabs while testing this Voltmeter.

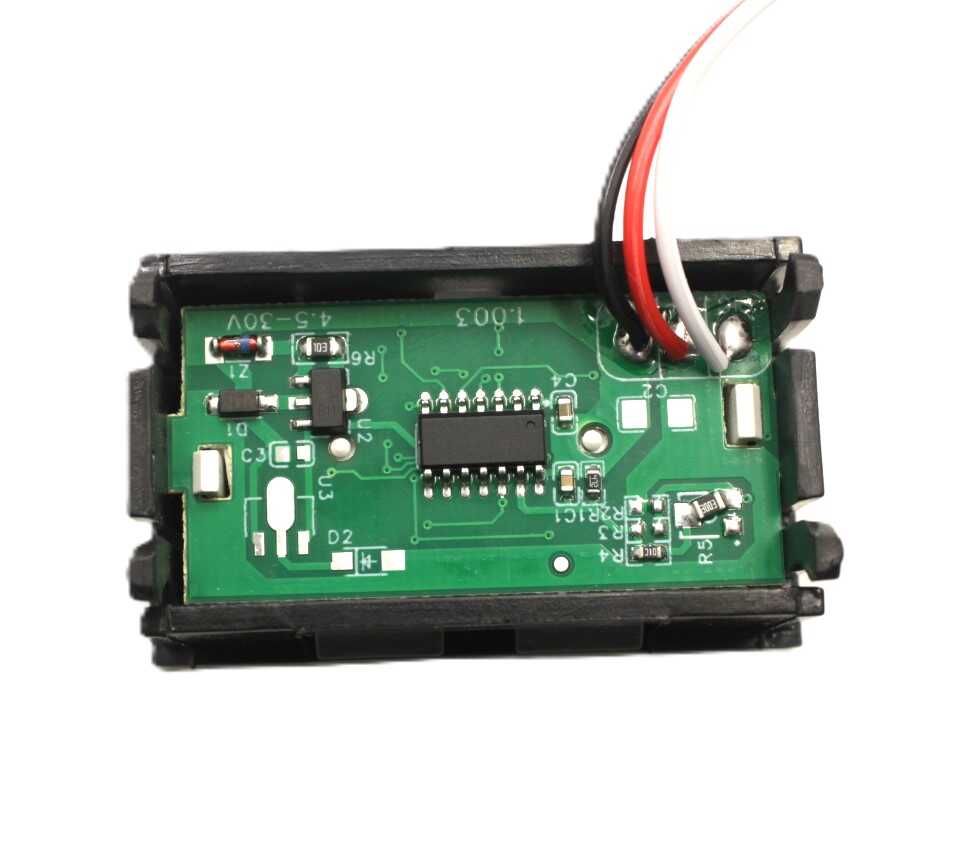

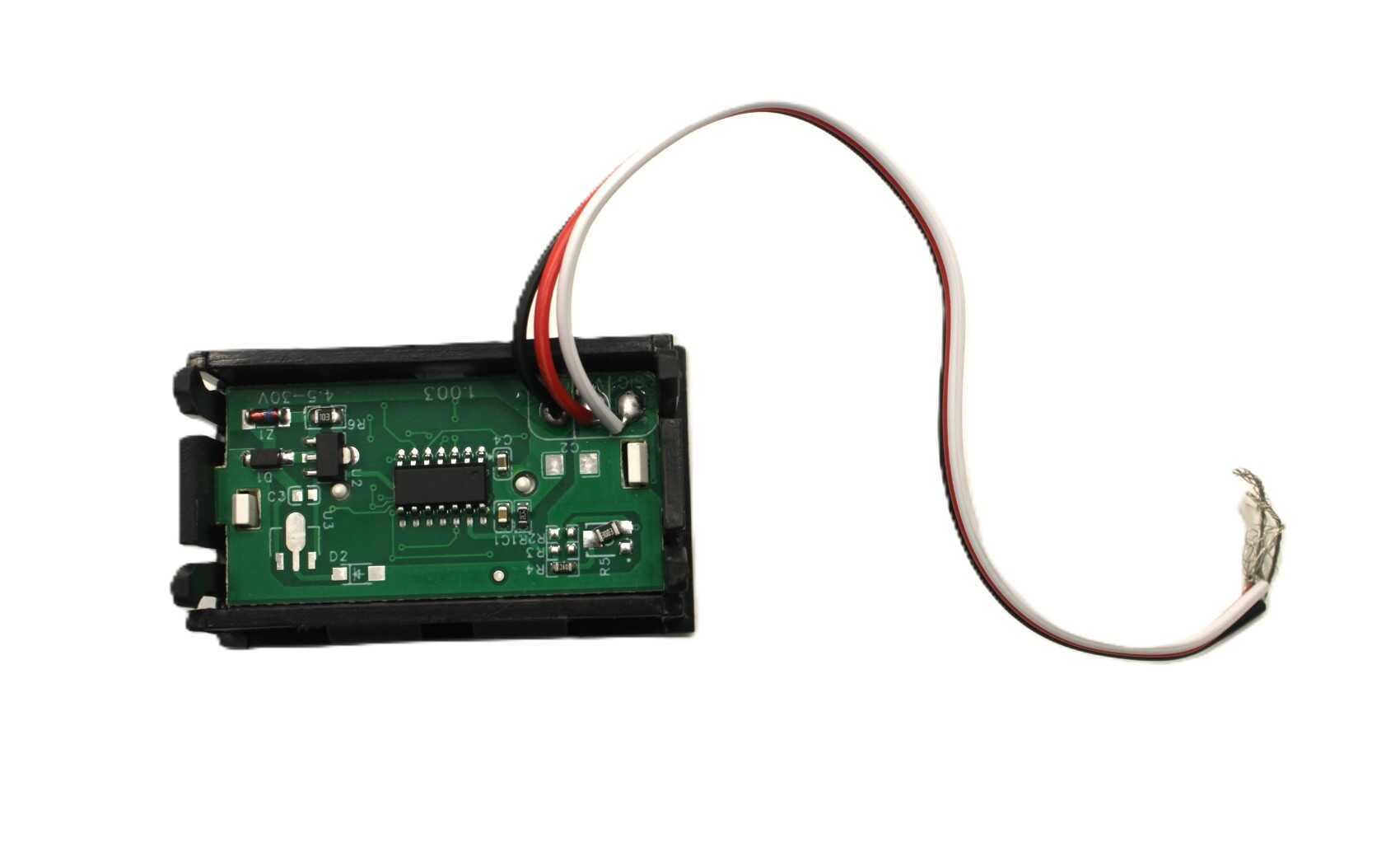

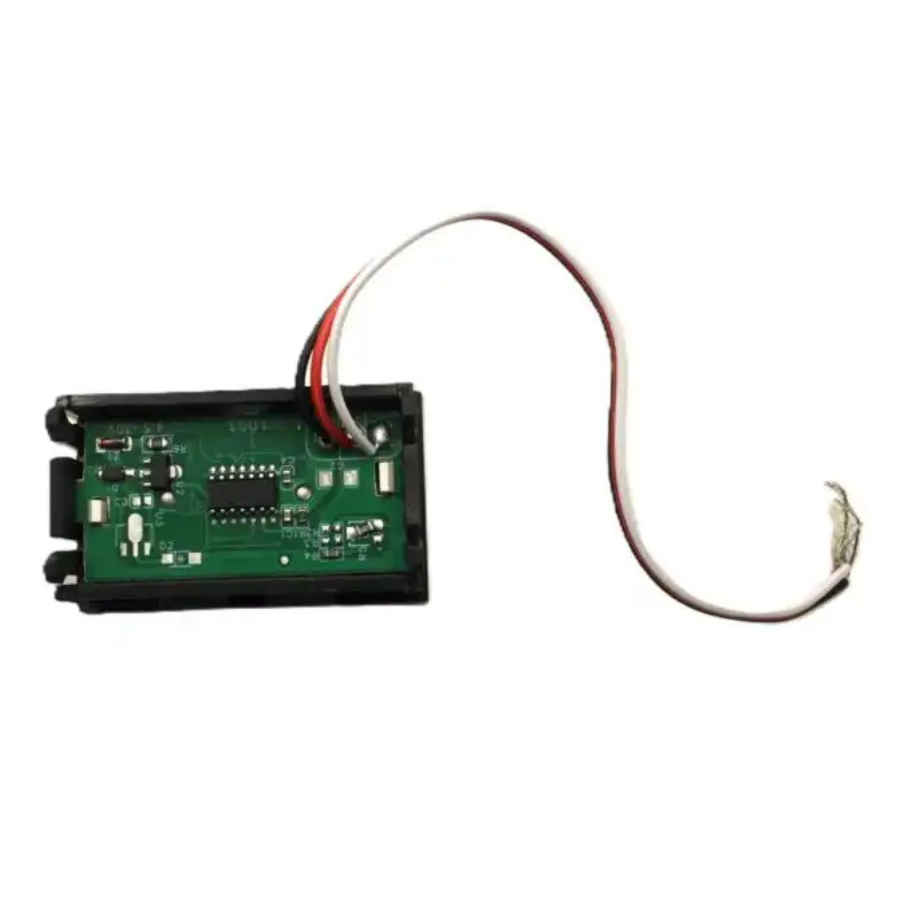

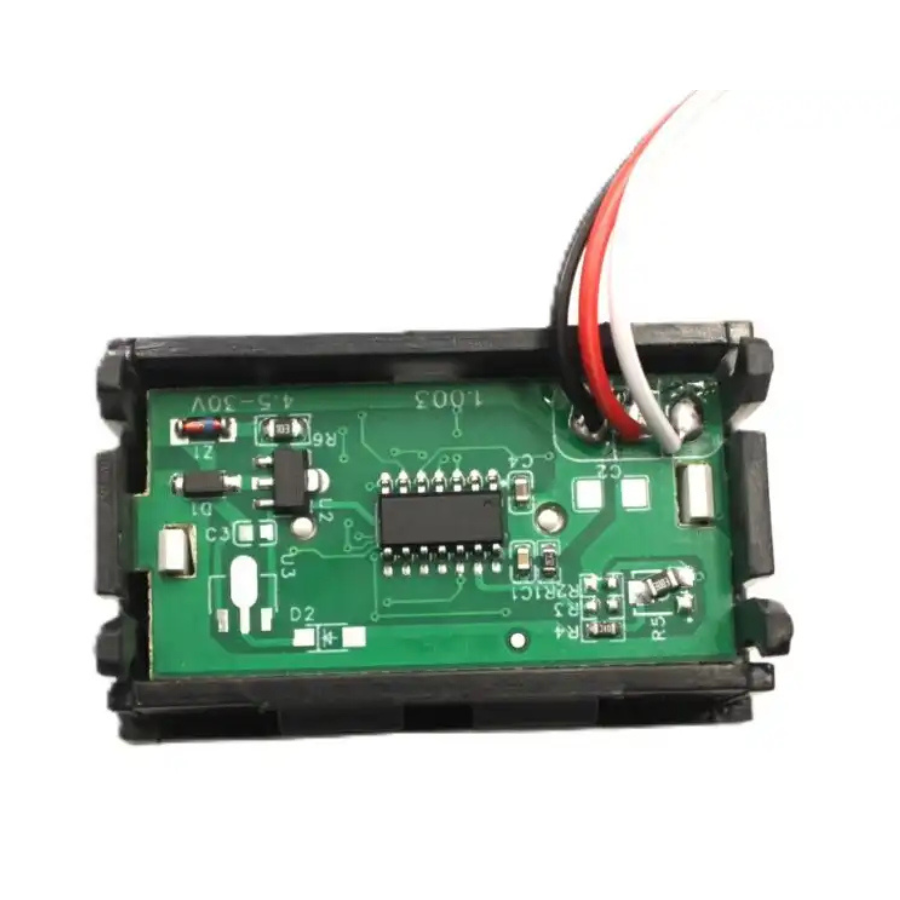

- Product Image may vary in terms of colour 3rd Wire and PCB or PCB-layout as per the version update from the manufacturer.
Connections:
- Red Wire: Positive of the Power supply
- Black Wire: Negative of the Power supply and also used as the negative of the measurement voltage source
- Yellow/White/Blue: Positive of the measurement voltage source.
With this Voltmeter Measurement can be done in two different scenarios observe the connection illustration accordingly:
CASE 1: If you have only one power source to give Power as well as to measure the voltage
CASE 2: If you have to measure the voltage of another source then with a separate power supply for Voltmeter:
We also have the same module in two different colours as(click on the colour name below for more information)
>>YELLOW LED<<
>>GREEN LED<<
Features:
Very small and lightweight voltmeter module.
Very handy and easy to use.
BLUE LED display.
Best operates in the working voltage range of 5V to 24V
Recommended (Robulabs) device Operating Voltage: 5V DC
Matt finish Display glass makes display Digits more Lucid in the daytime.
100% Brand new and high quality.
Specification:
Operating Voltage: 0-100 VDC
It is a 3-wire display.
LED Color: Blue
Current Consumption : <40 mA.
Accuracy: 0.1 V.
Refresh Speed : Approx 200mS/time.
The display on Voltage: 3 V.(but not measure accurately up to 3.6V).
Package Includes:
1 x 0.56inch 0-100V Three Wire DC Voltmeter-BLUE
0.56inch 0-100V Three Wire LED Display Digital DC Overview
The 0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter in blue is a compact panel meter designed to monitor DC voltages from 0 to 100 V with high visibility. Ideal for installation in control panels, power supplies, battery systems and electronic projects.
Key Features of 0.56inch 0-100V Three Wire LED Display Digital DC
- Wide measurement range: 0–100 V DC for versatile voltage monitoring
- Three-wire connection: separate power supply and measurement lead for stable readings
- High accuracy: ±0.1 V resolution ensures precise voltage display
- Fast refresh rate: updates every ~200 ms for near-real-time monitoring
- Low current draw: under 40 mA consumption preserves system efficiency
- Compact 0.56″ blue LED digits: clear visibility in dim and bright environments
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Battery voltage monitoring in backup power and UPS systems
- Voltage display on DIY electronics and robotics control panels
- Solar charge controller and photovoltaic array voltage readings
- Automotive and motorcycle custom dashboards
- Lab power supplies and bench-top instruments
How to Use 0.56inch 0-100V Three Wire LED Display Digital DC
Mount the display in a panel cutout, then connect the red wire to a 3–100 V DC positive supply, black wire to the negative/ground, and the yellow (or white) wire to the point where voltage is to be measured. Power up the unit, and the blue LED digits will show the applied DC voltage with updates every 200 ms.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
1. What is the minimum voltage required for accurate readings?
The display powers on from about 3 V DC, but accurate measurement begins above 3.6 V; below that the digits may light but readings aren’t guaranteed.
2. How do I wire the three leads correctly?
Connect the red lead to your DC positive supply (3–100 V), black to the common negative, and yellow (or white) to the voltage point you wish to measure. Do not swap measurement and power wires.
3. What is the unit’s accuracy and update rate?
This voltmeter offers ±0.1 V accuracy with a refresh speed of approximately 200 milliseconds per update, making it suitable for most DC monitoring applications.
Technical Specifications
| Display Size | 0.56" |
|---|---|
| Color | Blue |
| SKU | AI2318 |
| Weight | 0.02 kg |
| Availability | In Stock |
Applications & Use Cases
The 0.56inch 0-100V Three Wire LED Display Digital DC Voltmeter-BLUE is a versatile digital voltage, current and frequency meter used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
