This is the 3V variant of the XY-WB 2.4G Wireless Transceiver Module Anti-interference 3.3V Low Power Ultra 24L01 Type B in IR and RF Transmitters and Receivers. Available at ₹125.08 (₹106.00 + GST) with free shipping across India.

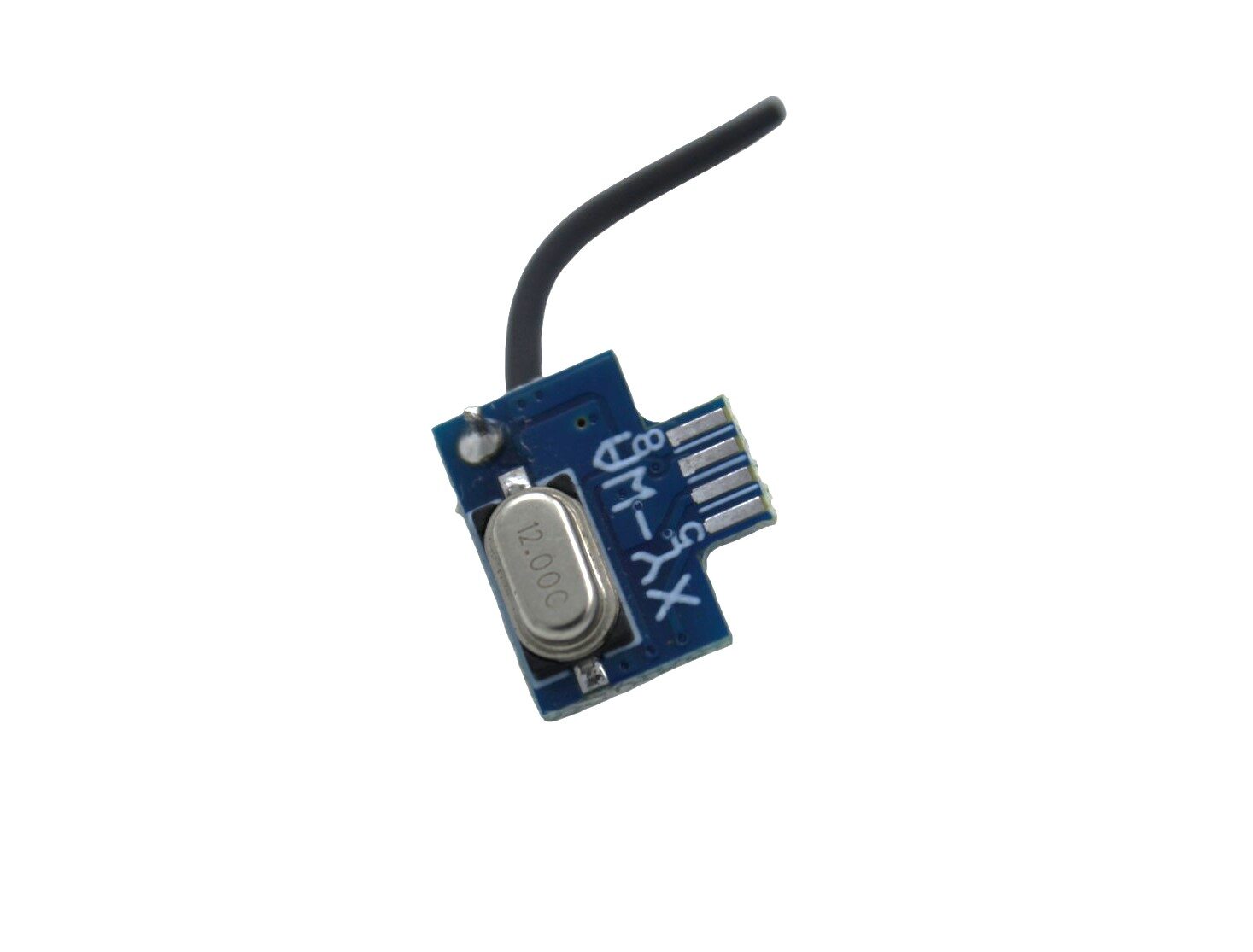

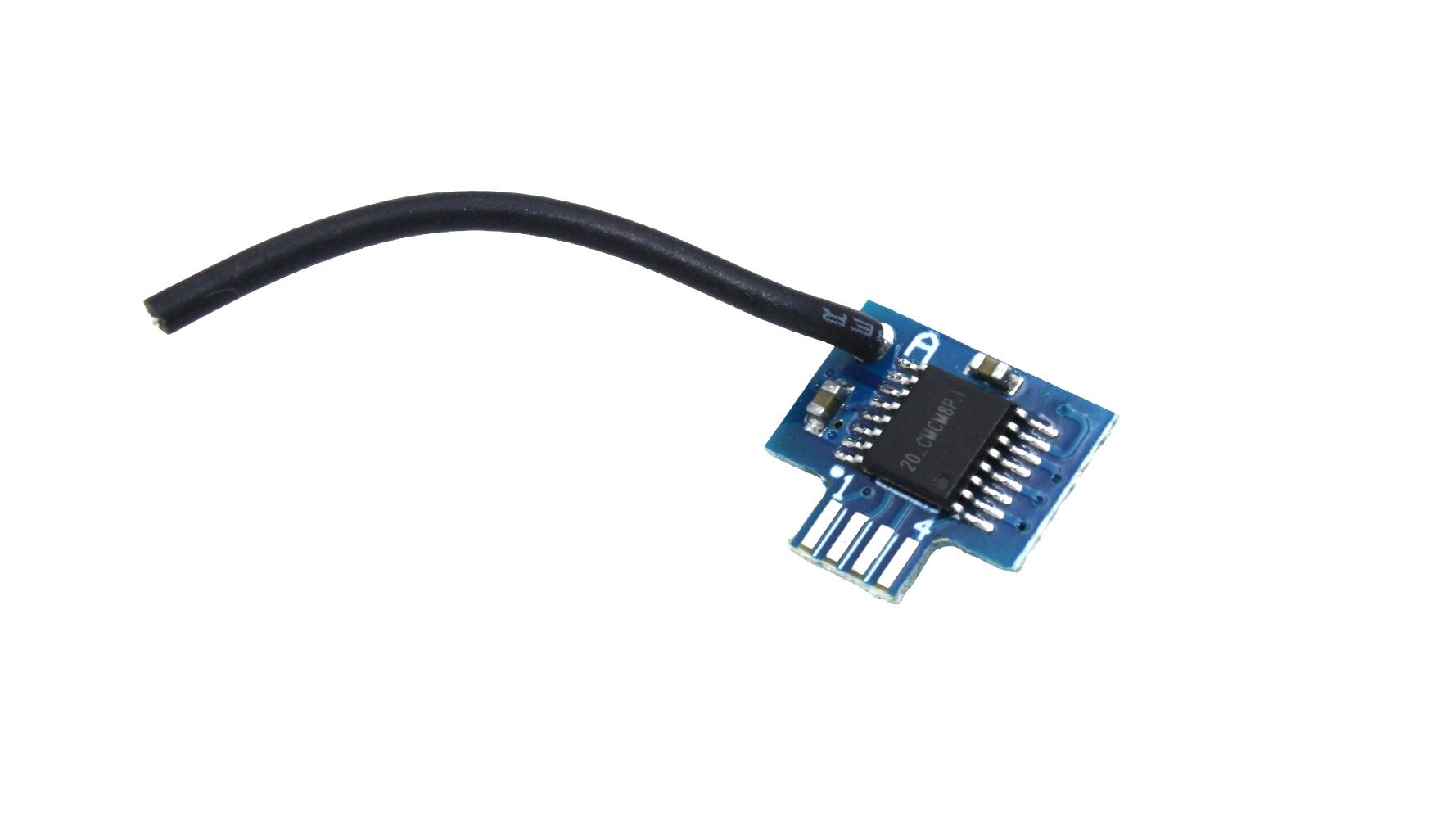

XY-WB 2.4G Wireless Transceiver Module Anti-interference 3.3V Low Power Ultra 24L01 Type B
We offer detailed resources, including open-source STM8 + LT8920 procedures, schematics, IC datasheets, and more. Additionally, we provide an optional STM8 small system board as a demo board, making it easy to connect for demonstrations and support future development.
Our affordable 2.4G communication module is available in two versions: Version B features a 2.54mm pitch pin connector that can be soldered for easy debugging with DuPont wires. Version A offers a plug-in soldering option, which reduces the board size and simplifies alignment, making it ideal for applications such as toys, model aircraft, and other product transceivers.
Features:
2.4G 3.3V XY-WB Wireless Module Transceiver Long Distance Low Power Anti-interference LT8920 ultra NRF24L01
With good peformance and high quality material, it may work for a long time.
Provide a full protection from dust, shock, scratches and bumps and other daily damage
Completely fits and works
Simple and easy, comfortable, easy to carry
Specification:
| Specification | Description |
|---|---|
| Module Type | 2.4G Wireless Transceiver Module |
| Model | XY-WB |
| Anti-interference | Yes |
| Operating Voltage | 3.3V |
| Power Consumption | Low Power |
| Chip Type | Ultra 24L01 |
| Frequency | 2.4GHz |
PACKAGE INCLUDES
1 X XY-WB 2.4G Wireless Transceiver Module Anti-interference 3.3V Low Power Ultra 24L01 Type B
XY-WB 2.4G Wireless Transceiver Module Anti-interference Overview
The XY-WB 2.4G Wireless Transceiver Module Type B is a low-power, anti-interference communication board operating at 3.3 V and 2.4 GHz. Designed around the Ultra 24L01 chipset, it provides a stable SPI interface via a 2.54 mm pin header for rapid prototyping and reliable data exchange in embedded systems.
Key Features of XY-WB 2.4G Wireless Transceiver Module Anti-interference
- Operating Voltage: 3.3 V for compatibility with 3.3 V microcontrollers
- 2.4 GHz frequency band with built-in anti-interference filtering
- Low power consumption ideal for battery-powered applications
- Type B design with 2.54 mm pitch pins for easy DuPont wire soldering
- Rugged housing for dust, shock, scratch, and bump protection
- Comprehensive open-source resources: STM8 + LT8920 examples, schematics, and datasheets
- Fast shipping from Zbotic—get genuine modules delivered swiftly
Applications and Use Cases
- Wireless telemetry in DIY drone and RC aircraft projects
- Remote sensor networks for environmental monitoring
- Home automation links between controllers and smart devices
- Wireless data transmission in robotics and automation systems
- Prototyping IoT gateways and low-range mesh networks
- Embedded development with Arduino, STM8, and other MCU platforms
How to Use XY-WB 2.4G Wireless Transceiver Module Anti-interference
Solder the Type B 2.54 mm header or plug into a breadboard, then wire VCC (3.3 V) and GND. Connect MOSI, MISO, SCK, CSN and CE lines to your microcontroller’s SPI pins. Install a compatible library, configure addressing and channel parameters, and begin transmitting or receiving data packets at 2.4 GHz.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
1. What host voltage levels are required?
The XY-WB module requires a stable 3.3 V supply for VCC and uses 3.3 V logic on its SPI pins. If your MCU operates at 5 V, a level shifter is recommended.
2. Does the module come with development examples?
Yes. Zbotic provides open-source STM8 + LT8920 reference code, full schematics and IC datasheets. An optional STM8 demo board can be added to your order for plug-and-play trials.
3. How far can the Type B module transmit?
Range varies with environment and antenna. In open spaces with clear line of sight, expect up to 100–200 meters. Indoor or noisy RF environments will reduce effective range.
Technical Specifications
| Operating Voltage | 3.3V |
|---|---|
| Interface / Protocol | 4G |
| SKU | AI3558 |
| Weight | 0.00117 kg |
| Availability | Out of Stock |
Applications & Use Cases
The XY-WB 2.4G Wireless Transceiver Module Anti-interference 3.3V Low Power Ultra 24L01 Type B is a versatile ir and rf transmitters and receivers used across a wide range of applications including remote control systems, wireless data links, home automation, security systems, and garage door openers.
Common use cases:
- Building a custom remote control
- Adding wireless triggering to a project
- Creating a simple wireless sensor link
This product is ideal for electronics hobbyists and IoT developers.
Technical Tip: 433MHz modules offer longer range; IR is line-of-sight only. RF modules need matched transmitter/receiver pairs.
