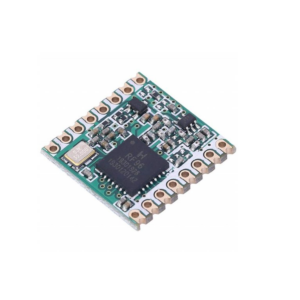

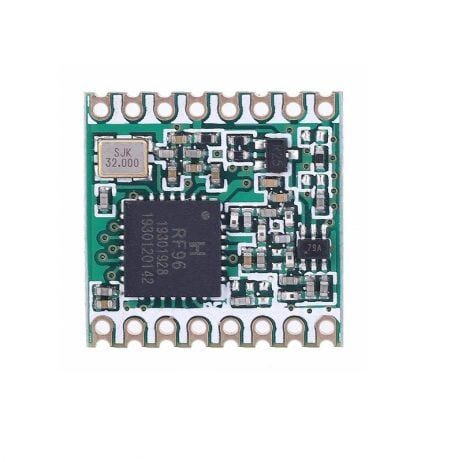

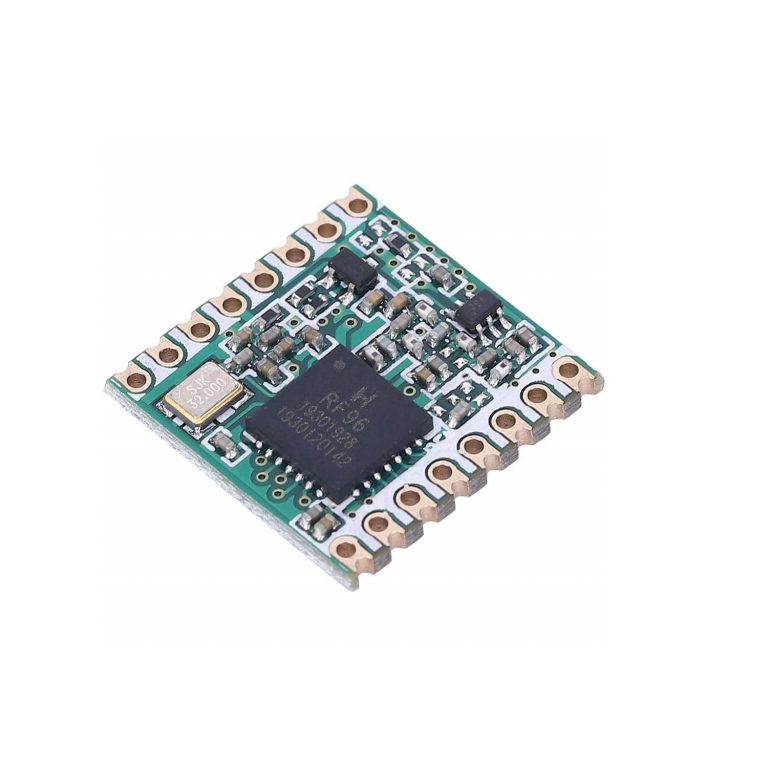

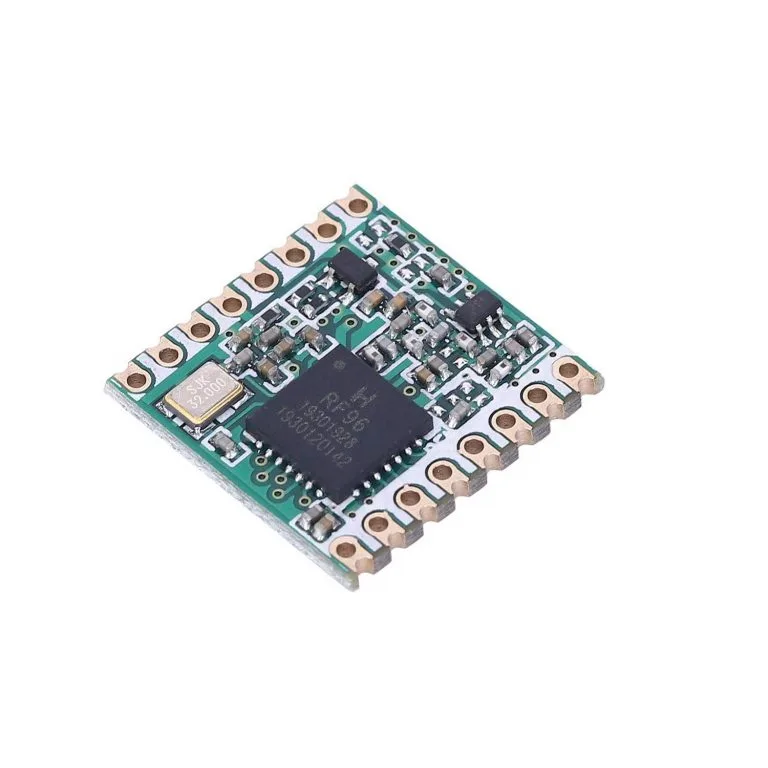

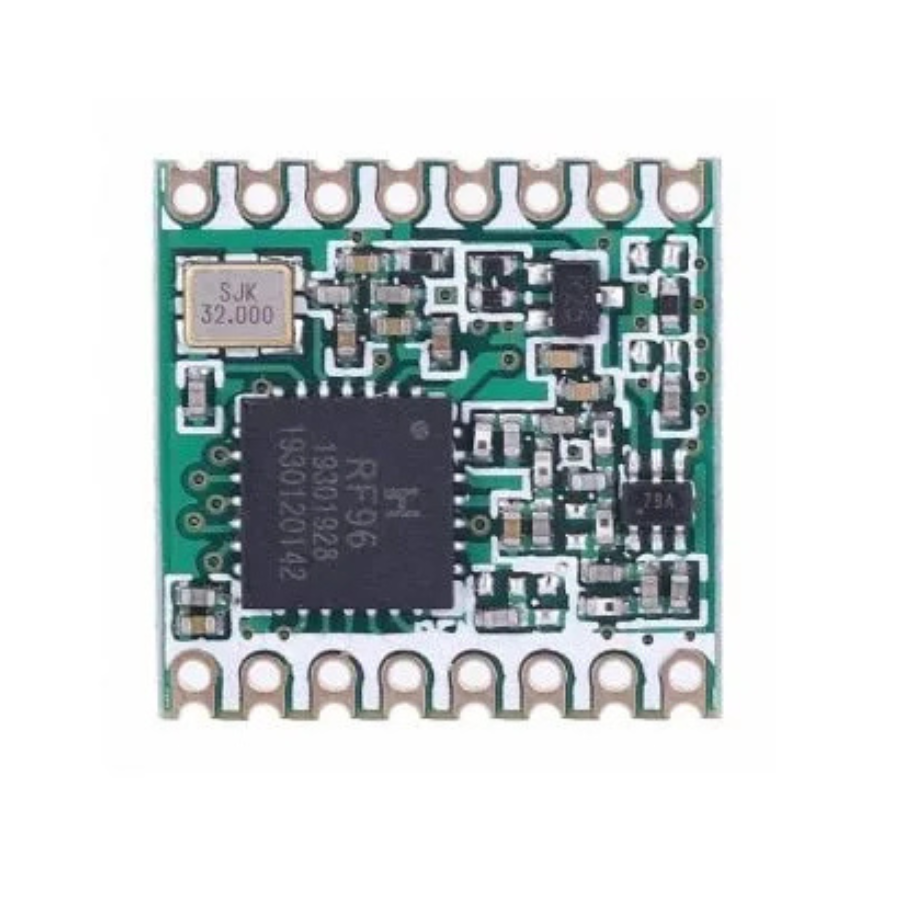

Looking for Rfm95w Module? RFM95W Wireless Receiving Module，915mhz is available at Zbotic with fast shipping across India.
Product Description
The RFM95W transceivers use the LoRaTM long-range modem, which enables ultra-long range spread spectrum communication with high interference immunity and low current consumption. The LoRaTM modulation technique, patented by Hope RF, allows the RFM95W to achieve a sensitivity of over -148dBm with a low-cost crystal and a simple bill of materials.
The transceivers have an industry-leading link budget due to the high sensitivity and the integrated 20 dBm power amplifier, making them ideal for any application that requires range or robustness. LoRaTM also offers significant benefits in blocking and selectivity over conventional modulation techniques, addressing the common trade-off between range, interference immunity, and energy consumption.
Features:
- LoRaTM Modem.
- 168 dB maximum link budget.
- 20 dBm – 100 mW constant RF output vs. V supply.
- 14 dBm high-efficiency PA.
- Programmable bit rate up to 300 kbps.
- High sensitivity: down to -148 dBm.
- Bullet-proof front end: IIP3 = -12.5 dBm.
- Excellent blocking immunity.
- Low RX current of 10.3 mA, 200 nA register retention.
- Fully integrated synthesizer with a resolution of 61 Hz.
- FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
- Built-in bit synchronizer for clock recovery
specification-
| Bit Rate(kbps) | 300 |
|---|---|
| Sensitivity (dBm) | Down to -144 dBm |
| Operating Temperature Range (°C): | -20 to 70 |

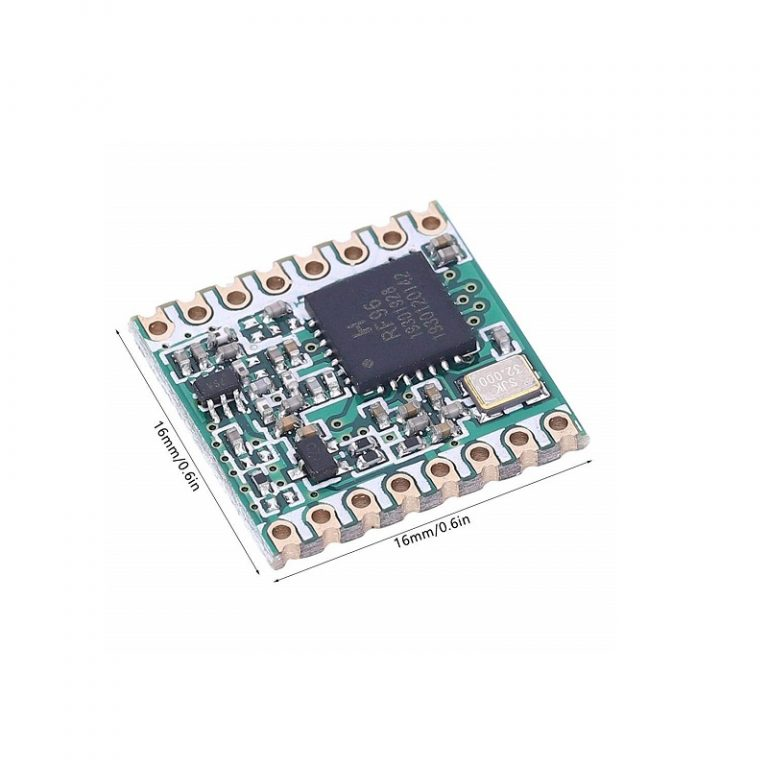

| Length (mm): | 16 |
| Width (mm) | 16 |
| Height (mm) | 2 |
| Weight (g): | 3 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 7 × 4 × 1 cm |
Package Includes:
1 x RFM95W Wireless Receiving Module，915mhz
RFM95W Wireless Receiving Module，915mhz Overview
The RFM95W Wireless Receiving Module operates at 915 MHz using HopeRF’s LoRa™ long-range spread spectrum modem, making it ideal for ultra-long-distance data reception with strong interference immunity. At just 16 × 16 × 2 mm and weighing 3 g, it fits compact designs in remote monitoring, telemetry and asset-tracking systems.
Key Features of RFM95W Wireless Receiving Module，915mhz
- LoRa™ modulation for spread spectrum communication and high interference immunity
- Receiver sensitivity down to –144 dBm for reliable signal capture over kilometers
- Integrated 20 dBm power amplifier and low current consumption design
- SPI interface, supports up to 300 kbps bit rate for fast data transfer
- Compact 16×16×2 mm form factor, runs from a 3 V supply
- Genuine product, fast shipping across India from Zbotic
Applications and Use Cases
- Remote environment and weather station data reception
- Smart agriculture: soil moisture and crop monitoring networks
- Industrial condition monitoring and wireless alarm systems
- Asset tracking, logistics and fleet management receivers
- Home automation gateways for door sensors and smart meters
- DIY telemetry for drones, robotics and 3D printer status
How to Use RFM95W Wireless Receiving Module，915mhz

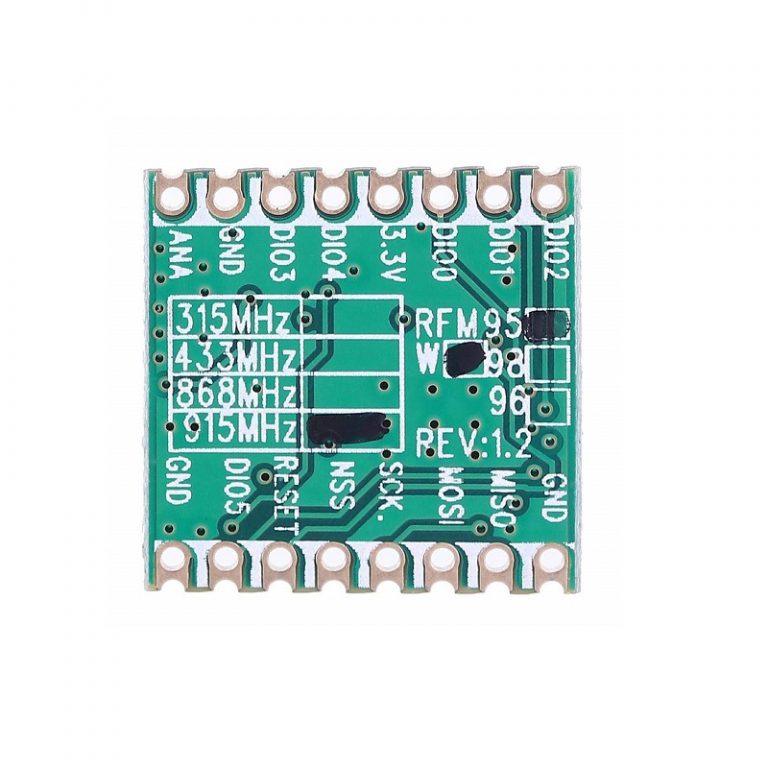

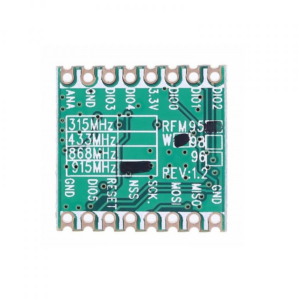

Power the module with a regulated 3 V supply, connect MOSI, MISO, SCK and NSS pins to your microcontroller’s SPI bus, and attach an appropriate 915 MHz antenna. Configure LoRa registers via SPI—set frequency, bandwidth and spreading factor—then switch the module to receive mode and poll its DIO pins for packet-ready interrupts. Finally, read payload data over SPI and implement your application logic.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What voltage do I need to power the RFM95W module?
The RFM95W accepts a 3 V input supply. You can use a 3.3 V regulator or low-dropout converter to ensure stable operation.
How do I interface this module with my microcontroller?
Use the module’s SPI pins (MOSI, MISO, SCK, NSS) plus DIO0 for interrupt signaling. A LoRa-compatible library simplifies register configuration and packet handling.
What range can I achieve with this receiver?
With –144 dBm sensitivity and a matched 20 dBm transmitter, expect several kilometers of line-of-sight range. Actual performance depends on antenna quality and environmental obstacles.
Technical Specifications
| Model | RFM95W |
|---|---|
| Frequency | 915mhz |
| SKU | AI2588 |
| Weight | 0.00585 kg |
| Availability | In Stock |
Applications & Use Cases
The RFM95W Wireless Receiving Module，915mhz is a versatile ir and rf transmitters and receivers used across a wide range of applications including remote control systems, wireless data links, home automation, security systems, and garage door openers.
Common use cases:
- Building a custom remote control
- Adding wireless triggering to a project
- Creating a simple wireless sensor link
This product is ideal for electronics hobbyists and IoT developers.
Technical Tip: 433MHz modules offer longer range; IR is line-of-sight only. RF modules need matched transmitter/receiver pairs.
